The 300 movements puzzle box

Advertising
Make an offer
Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
๐Ÿ†ย Bestย ?
License
Usages
3D design format
15 files (STL) Close
  • block_1.stl 68.0 ร— 34.999999 ร— 11.3 mm
  • block_2.stl 68.0 ร— 35.0 ร— 11.300002 mm
  • block_3.stl 68.0 ร— 35.0 ร— 11.300003000000004 mm
  • box.stl 197.799996 ร— 117.79999399999998 ร— 58.400000999999996 mm
  • drawer.stl 84.54709600000001 ร— 111.800004 ร— 55.800001 mm
  • hexagonal_tip.stl 17.153794000000005 ร— 15.259656000000001 ร— 12.0 mm
  • holding_1.stl 37.050636 ร— 15.674 ร— 3.0 mm
  • holding_2.stl 14.174011 ร— 6.300000000000001 ร— 2.6000000000000014 mm
  • lever.stl 12.8 ร— 12.797037 ร— 23.799999999999997 mm
  • pull_tab.stl 76.293415 ร— 100.376 ร— 11.973999 mm
  • round_tip.stl 21.327684 ร— 21.327683999999998 ร— 25.212839000000002 mm
  • sleeve_block_1.stl 138.800003 ร— 47.0 ร— 22.5 mm
  • sleeve_block_2_3.stl 110.800003 ร— 42.800001 ร— 9.999997999999998 mm
  • slide.stl 11.0 ร— 27.0 ร— 6.600001000000001 mm
  • top_plate.stl 191.400002 ร— 114.06863100000001 ร— 2.0343149999999994 mm

Learn more about the formats
Publication date
Design number 766109
Design author matlef
matlef

matlef

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

This puzzle box opens and closes in about 300 movements, precisely 322 movements because it takes exactly 161 movements to open it so 161x2.

This box is inspired by "the Void box" from the Jean-Claude Constantin range, this box is rated difficulty level 10 but I think it is outclassed anyway.

The difference between the 2 boxes can be done on the mechanism which remains unknown on the Void box and the solidity of this one.

You can notice that there is a meaningless space on one of the sides of the box that you can modify, however you can send me a message so that I modify this space with what you wish. Do not hesitate to report any problems you may have with this box so that I can apply changes.

Assembly :

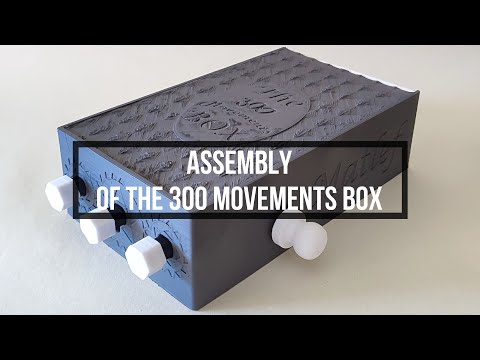

In order to make the best assembly of the box I advise you to watch this video The assembly of the 300 movements box. Do not hesitate to put glue on the parts that do not move.

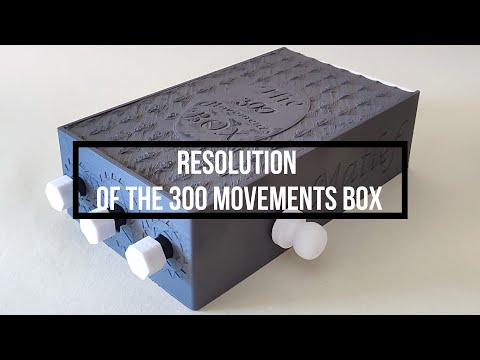

Once the assembly is finished, you just have to close the box, for that watch this video The resolution of the 300 movements box to understand the mechanism used to open and close the box.

I remain at your disposal for any question.

3D printing settings

Resolution :

  • all pieces except box and top_plate : 0.2 mm

  • box and top_plate : 0.3 mm

Infill : 15%

Infill :

  • The box is about 20 cm long, 12 cm wide and 5.7 cm high.

  • The tolerance between each part is 0.3 mm for the parts which

remain fixed between them and 0.4 mm for the parts which are

movable between them

  • You can add a sheet of paper present on the picture 5 in

order to prevent people to observe a part of the mechanism

  • You must print each part only once EXCEPT :

    • (slide) x2
    • (sleeve_block_2_3) x2
    • (hexagonal_tip) x3
    • (round_tip) x2
