Steam Deck Stand USB Hub

20220424_001554.jpg Steam Deck Stand USB Hub
20220424_001454.jpg Steam Deck Stand USB Hub

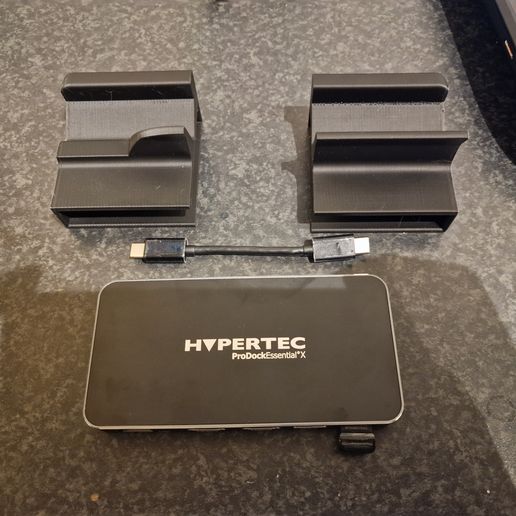

20220424_000852~2.jpg Steam Deck Stand USB Hub
20220424_000943~2.jpg Steam Deck Stand USB Hub
left_side.stl Steam Deck Stand USB Hub
single.stl Steam Deck Stand USB Hub
right_side.stl Steam Deck Stand USB Hub
20220424_001554.jpg Steam Deck Stand USB Hub
20220424_001454.jpg Steam Deck Stand USB Hub
20220424_000852~2.jpg Steam Deck Stand USB Hub
20220424_000943~2.jpg Steam Deck Stand USB Hub
left_side.stl Steam Deck Stand USB Hub
single.stl Steam Deck Stand USB Hub
right_side.stl Steam Deck Stand USB Hub
Advertising
Make an offer
Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
3D design format
3 files (STL) Close
  • left_side.stl 65.50090100000001 × 43.549685 × 67.600887 mm
  • right_side.stl 65.500881 × 44.207703 × 67.600124 mm
  • single.stl 131.00082400000002 × 44.207703 × 67.600887 mm

Learn more about the formats
Publication date
Design number 704968
Design author cRyzz3d
cRyzz3d

cRyzz3d

Issue with this design? Report a problem.

3D printer file info

3D model description

Spent days searching for the 'perfect dock'.
But I don't think it exists.... yet, I wanted micro sd/ sd slot, 4k 60hz/ 30hz dual display, gigabit ethernet, 2xusb-a 3.0, 2xusb-c, most importantly a detachable usb-c, what valve is bringing in spring looks solid I just hope it also has a detachable cable. Lacking the sd and extra usb-c with this one i have here but other than that this dock is 90% there for me and for less than £60 i dont think you'll beat it, I'll probably get some smaller form factor adapters and will be settled for now.

Having this little compartment for a spare 100mm usb-c seemed too good to miss too.

There are 2 versions, a 1 piece part to print for people with larger printers and a split version for people with smaller printers like you see here.

The 30cm M-M 90° cable I used is from

(https://www.amazon.co.uk/dp/B096XSR5N2/ref=cm_sw_r_apan_i_DNM6DN1W473XTNXDH0AC?_encoding=UTF8&psc=1)

Dock I used is from

(https://www.amazon.co.uk/dp/B08WX1M5FF?ref=ppx_pop_mob_ap_share)

3D printing settings

Printed on a v0.1
.2 layer height
120% extrusion width
2 shells
.6mm nozzle
120mm/s
20% infill

Categories

All categories › Game
