Soryu Class Uboot > ca. 160cm <

Advertising
Share
Add to
Make
?
Creation quality: 4.8/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
License
3D design format
53 files (STL) Close
  • Soryu 10.stl 135.609375 × 179.40118400000006 × 196.230613 mm
  • Soryu 11a.stl 150.2321780000002 × 176.70196499999997 × 145.471412 mm
  • Soryu 11b.stl 150.19995100000006 × 146.75939899999992 × 45.17500299999999 mm
  • Soryu 12.stl 68.24389700000029 × 149.52038599999992 × 149.880325 mm
  • Soryu 13a neu.stl 73.40795899999966 × 175.17810099999997 × 175.78051200000002 mm
  • Soryu 13a.stl 73.40795899999966 × 175.17810099999997 × 175.78051200000002 mm
  • Soryu 13b.stl 53.42675800000006 × 68.05578600000001 × 104.161955 mm
  • Soryu 2.stl 130.40002400000003 × 179.40118400000006 × 193.192283 mm
  • Soryu 3.stl 89.29992700000003 × 179.40117600000002 × 196.230606 mm
  • Soryu 4.stl 150.39990199999988 × 179.40118400000006 × 208.51066600000001 mm
  • Soryu 4x servo bowdenhalter.stl 24.467529999999897 × 69.73962400000005 × 26.964957999999996 mm
  • Soryu 5.stl 148.29992700000003 × 179.40118400000006 × 208.51066600000001 mm
  • Soryu 6a.stl 132.30004900000017 × 179.40118400000006 × 157.751465 mm
  • Soryu 7a.stl 120.60009800000012 × 179.40118400000006 × 157.751465 mm
  • Soryu 8.stl 143.5998529999997 × 179.40118400000006 × 208.51066600000001 mm
  • Soryu 9.stl 76.54834000000028 × 179.40118400000006 × 196.230613 mm
  • Soryu Bug.stl 117.17529300000001 × 166.09021000000007 × 164.655525 mm
  • Soryu M1 lockandlock2l.stl 3.9001469999998335 × 174.98651100000006 × 69.483588 mm
  • Soryu heckalternative.stl 73.98071299999992 × 111.24945099999991 × 111.24939599999999 mm
  • Soryu heckanbau.stl 40.94775400000026 × 6.074218999999971 × 45.069899 mm
  • Soryu mitte 1.stl 3.9001469999998335 × 174.98651100000006 × 69.483588 mm
  • Soryu mitte 2.stl 3.9000250000001415 × 174.98651100000006 × 69.483588 mm
  • Soryu motor distansstueck.stl 2.0 × 30.0 × 30.0 mm
  • Soryu pumpe u ventile.stl 138.29992700000003 × 165.66119300000003 × 6.575776000000001 mm
  • Soryu ruder heck neu.stl 28.863037000000077 × 167.80761700000005 × 168.423431 mm
  • Soryu ruder heck.stl 29.268066999999974 × 166.51403800000003 × 166.318504 mm
  • Soryu ruder turm.stl 62.56433099999981 × 178.2421260000001 × 7.486221999999998 mm
  • Soryu ruderheck4x.stl 28.619628999999804 × 53.95233100000007 × 53.737415 mm
  • Soryu ruderheck4x.stl 28.619628999999804 × 53.95233100000007 × 53.737415 mm
  • Soryu schraube neu .stl 49.20776399999977 × 115.29418999999996 × 114.03509 mm
  • Soryu schraube.stl 41.70165999999972 × 115.29418999999996 × 114.03509 mm
  • Soryu servo 4x.stl 128.17334000000028 × 164.297729 × 4.067389999999996 mm
  • Soryu servo4xheck.stl 55.273437000000285 × 164.297729 × 4.041423999999999 mm
  • Soryu stand a.stl 10.900023999999803 × 147.85931400000004 × 49.449422999999996 mm
  • Soryu stand b.stl 10.00073300000031 × 160.731263 × 69.037106 mm
  • Soryu tt heck a.stl 2.899902000000111 × 175.876892 × 108.590351 mm
  • Soryu tt heck b.stl 2.899902000000111 × 175.876892 × 108.590351 mm
  • Soryu tt vorne c .stl 4.0 × 175.83111599999995 × 108.18202600000001 mm
  • Soryu tt vorne d .stl 4.0 × 175.831055 × 108.18203399999999 mm
  • Soryu ttmg.stl 47.99938999999995 × 47.999419999999986 × 10.0 mm
  • Soryu ttmk.stl 28.0 × 27.882935000000032 × 10.0 mm
  • Soryu turm a.stl 256.43164 × 75.932861 × 42.68012999999999 mm
  • Soryu turm b.stl 216.63952599999993 × 64.62103200000001 × 18.240677000000005 mm
  • Soryu turm c.stl 212.27172799999994 × 58.02581799999996 × 58.46444700000001 mm
  • Soryu uboot 6b.stl 120.60009800000012 × 151.82342500000004 × 50.759201000000004 mm
  • Soryu uboot 7b.stl 132.30004900000017 × 151.82342500000004 × 50.759201000000004 mm
  • Soryu uboot.stl 1637.3437499999998 × 339.547913 × 336.179772 mm
  • Soryu ubooteltbox.stl 240.0 × 90.0 × 1.7 mm
  • Soryu ubootttgross.stl 50.0 × 50.0 × 150.0 mm
  • Soryu ubootttklein.stl 30.0 × 30.0 × 150.0 mm
  • Soryu vtrli.stl 62.56433099999981 × 71.88586400000008 × 7.486221999999998 mm
  • Soryu vtrre.stl 62.56433099999981 × 71.88586400000008 × 7.486221999999998 mm
  • ruder 4x heck einzeln.stl 70.80151299999989 × 66.721496 × 67.496613 mm

Learn more about the formats
Last update
Publication date
?
Published to Thingiverse on:
Design number 446066
Design author jensMSW
jensMSW

jensMSW

Issue with this design? Report a problem.

3D printer file info

3D model description

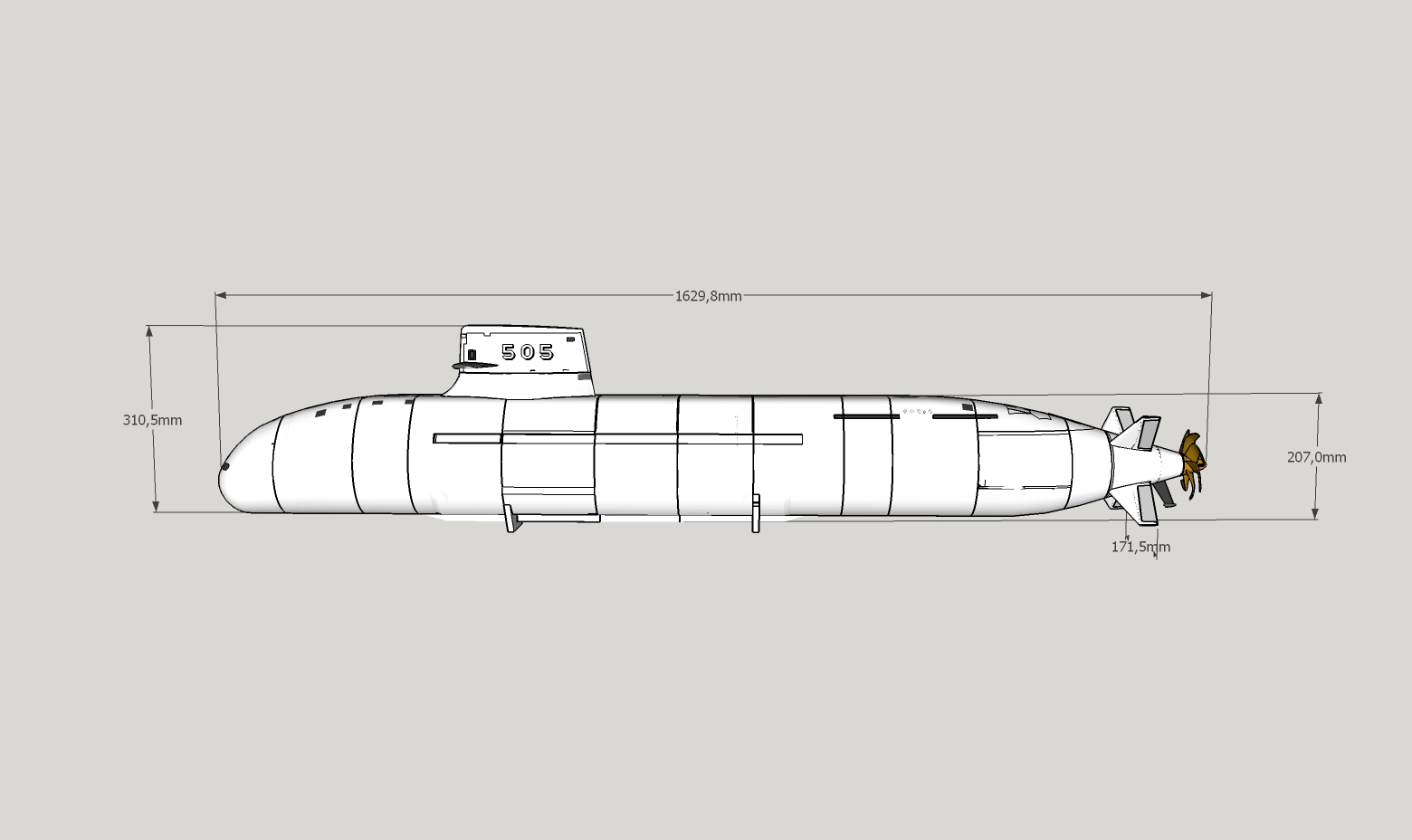

ein Uboot der Soryu Class ca. 160cm lang

Original Model aus dem 3dwarenhaus von sketchup
Final Version 26.09.2021

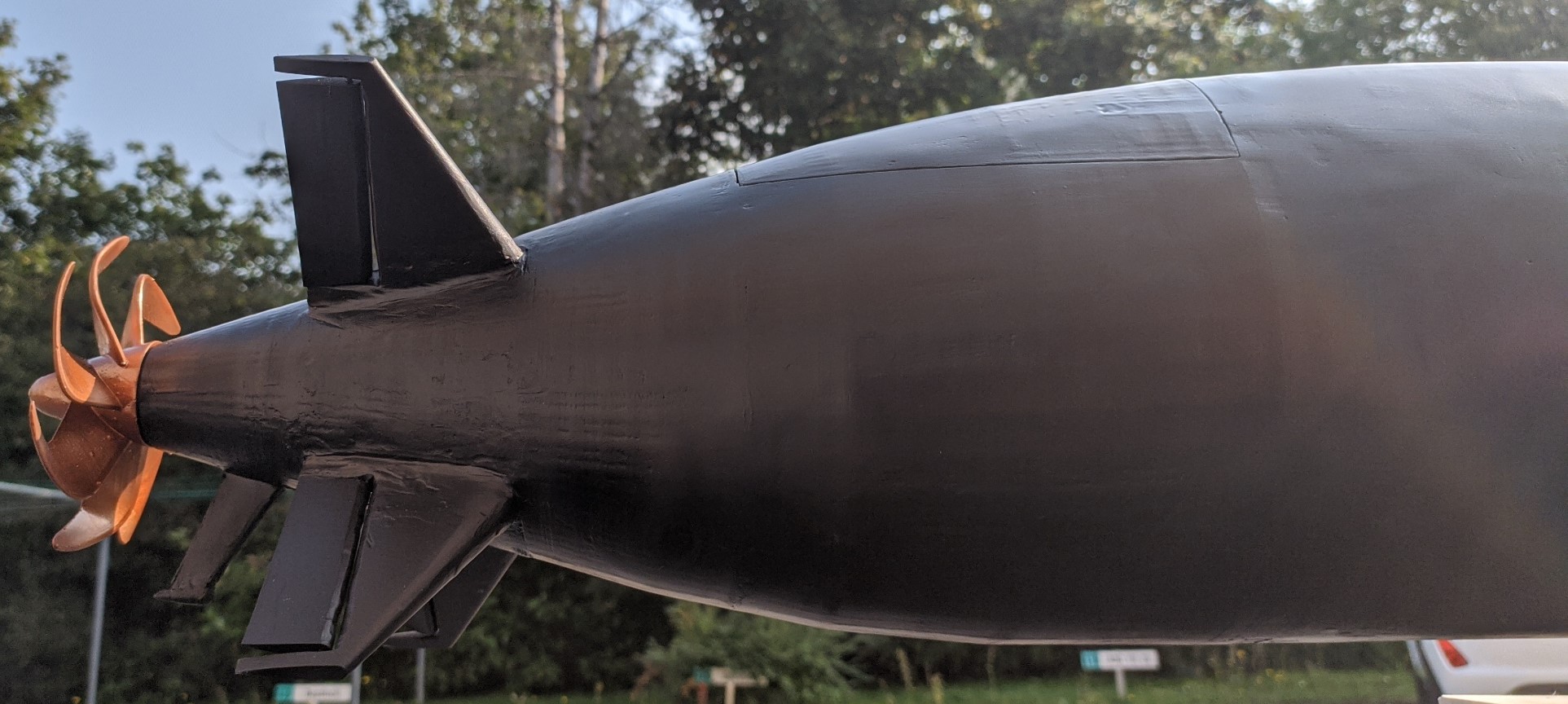

antrieb direkt am heck -> F2838-350KV Brushless Motor (wasserdicht) eBay)

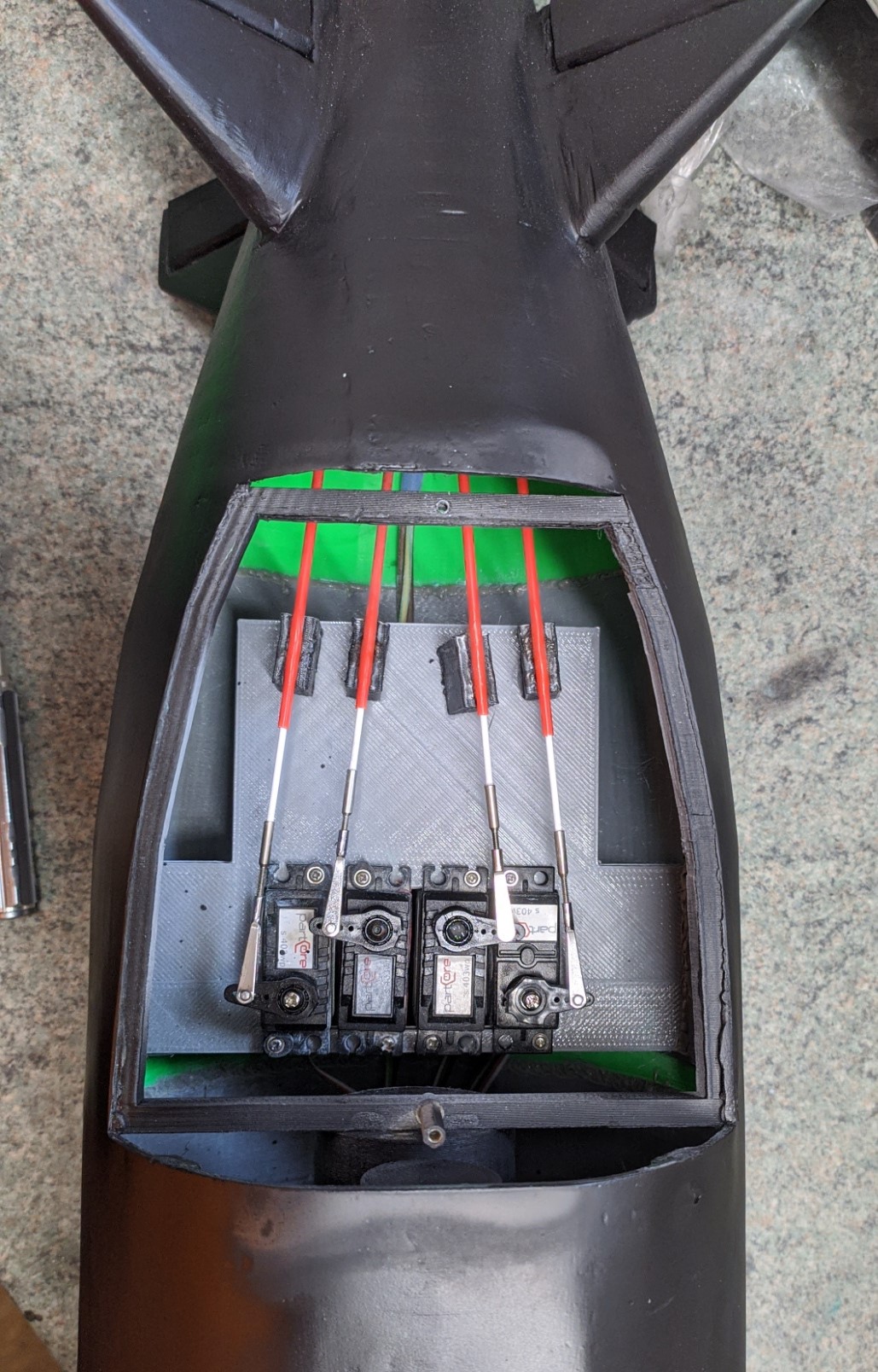

5 x Standard Servo S 403WP 3 kg wasserdicht (evtl. auch mehr ) 4x für Ruder am Heck
1x Brushless Speed Controller 30A- 50A für rc boote am besten wasserdicht

mein Tauchsystem !!

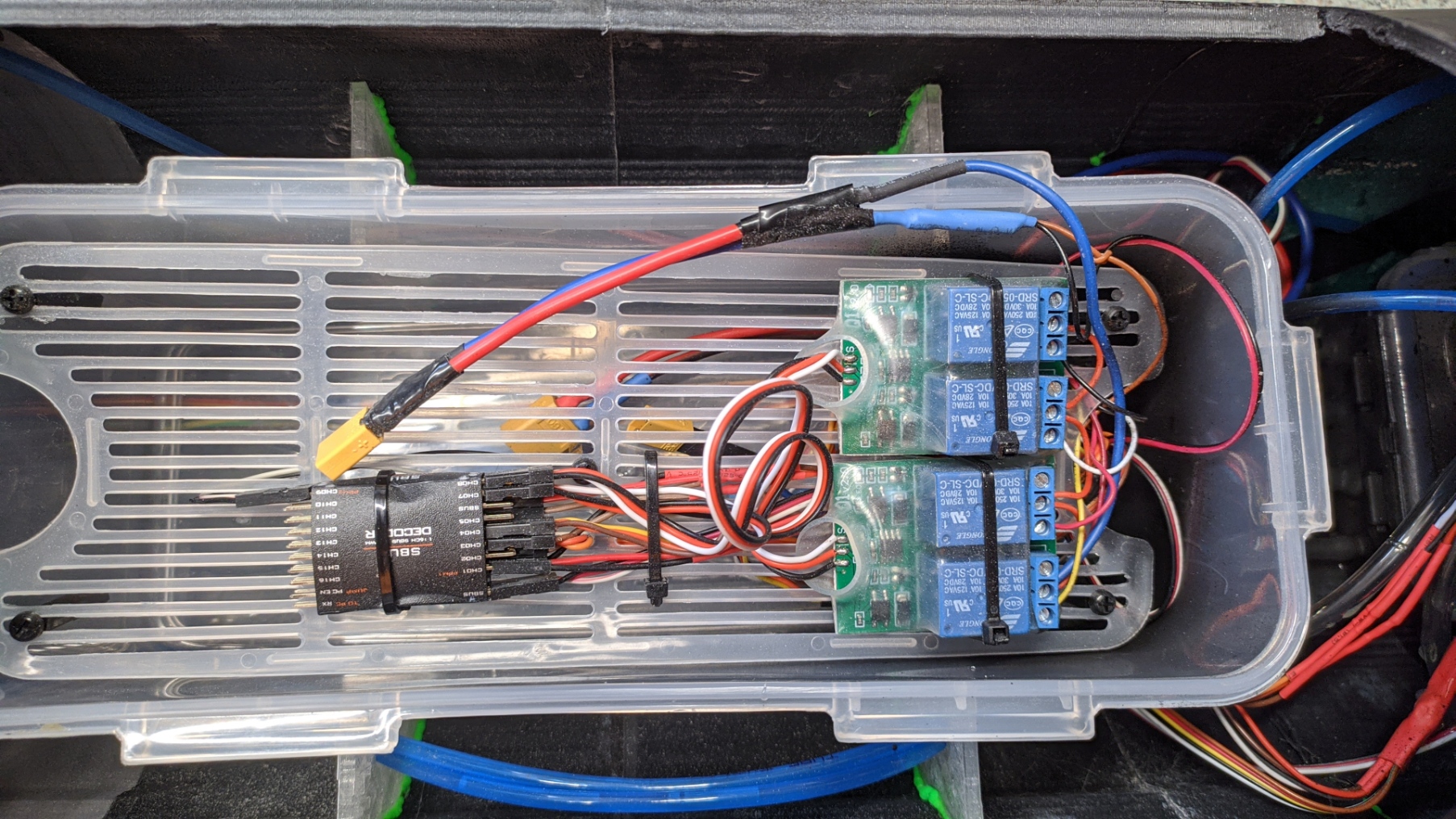

4x Mini 12V Magnetventil Flüssigkeit Pneumatik Elektromagnet Ventil Elektroventil
Zahnrad-Wasserpumpe, selbst ansaugend, 12V-, 1,5l/min

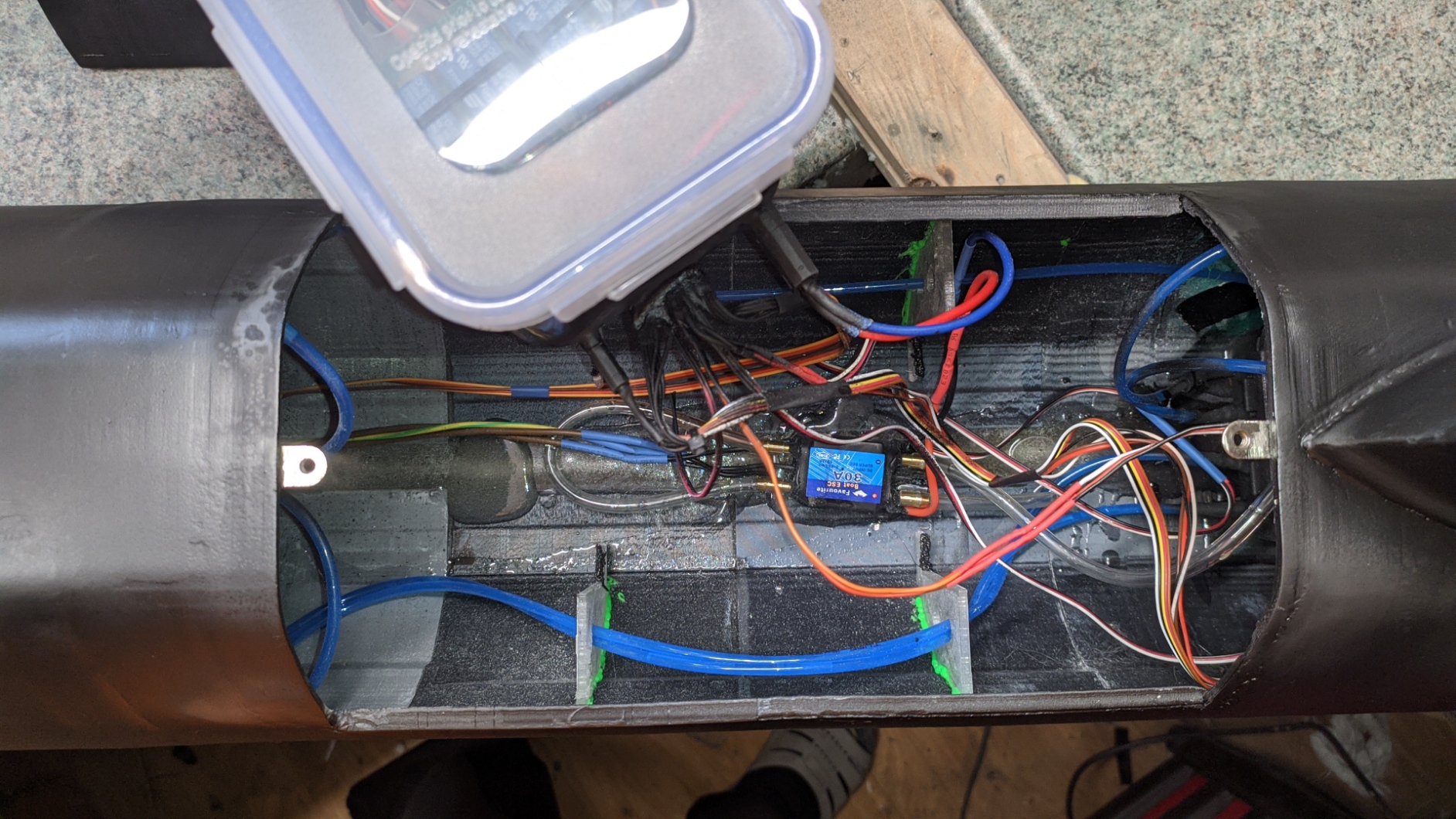

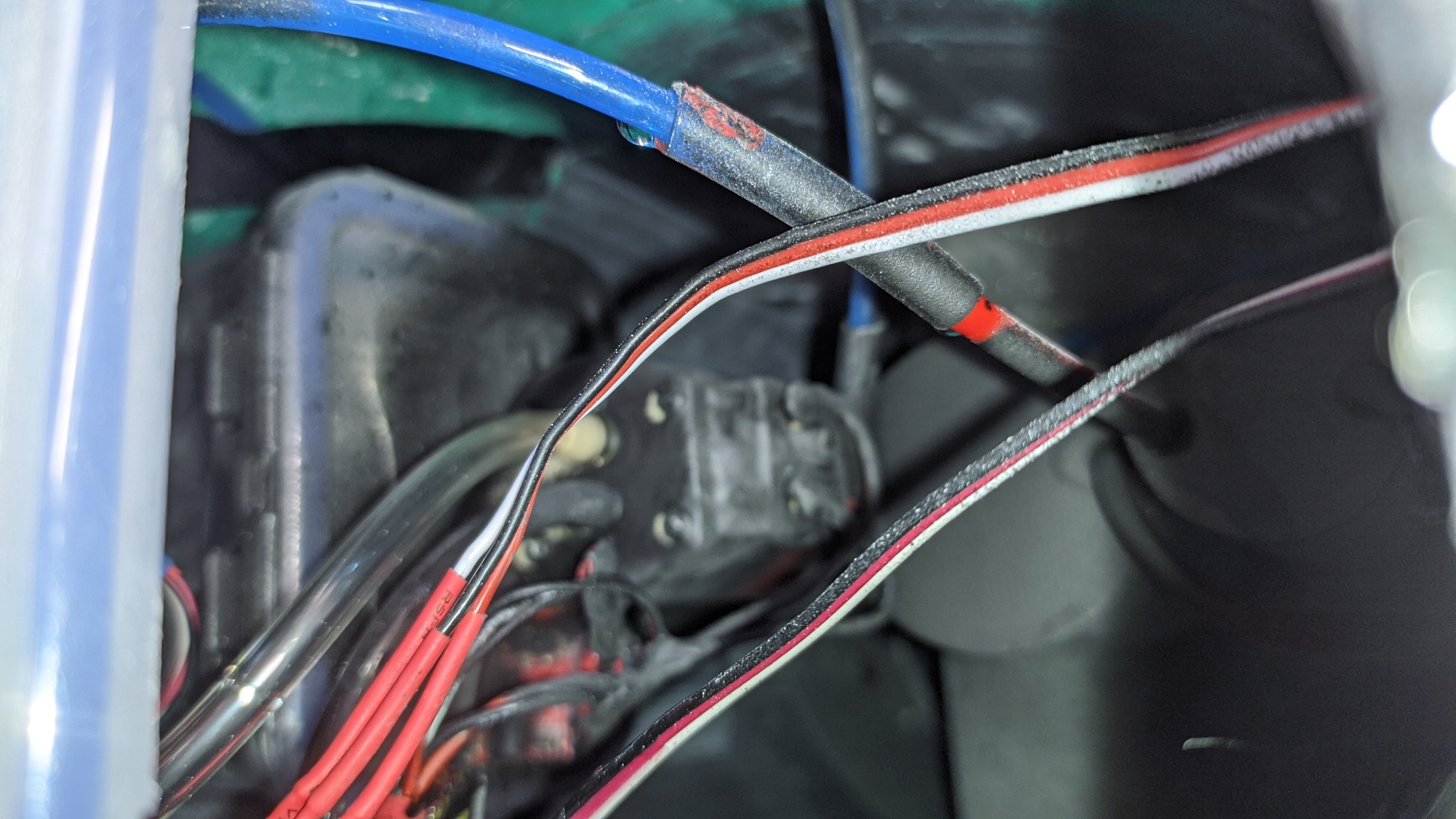

Motor , Pumpe, Ventile, servos , Led liegen im Wasser und sollten wasserdicht sein

1 Tüte Gummibärchen (Nervennahrung)

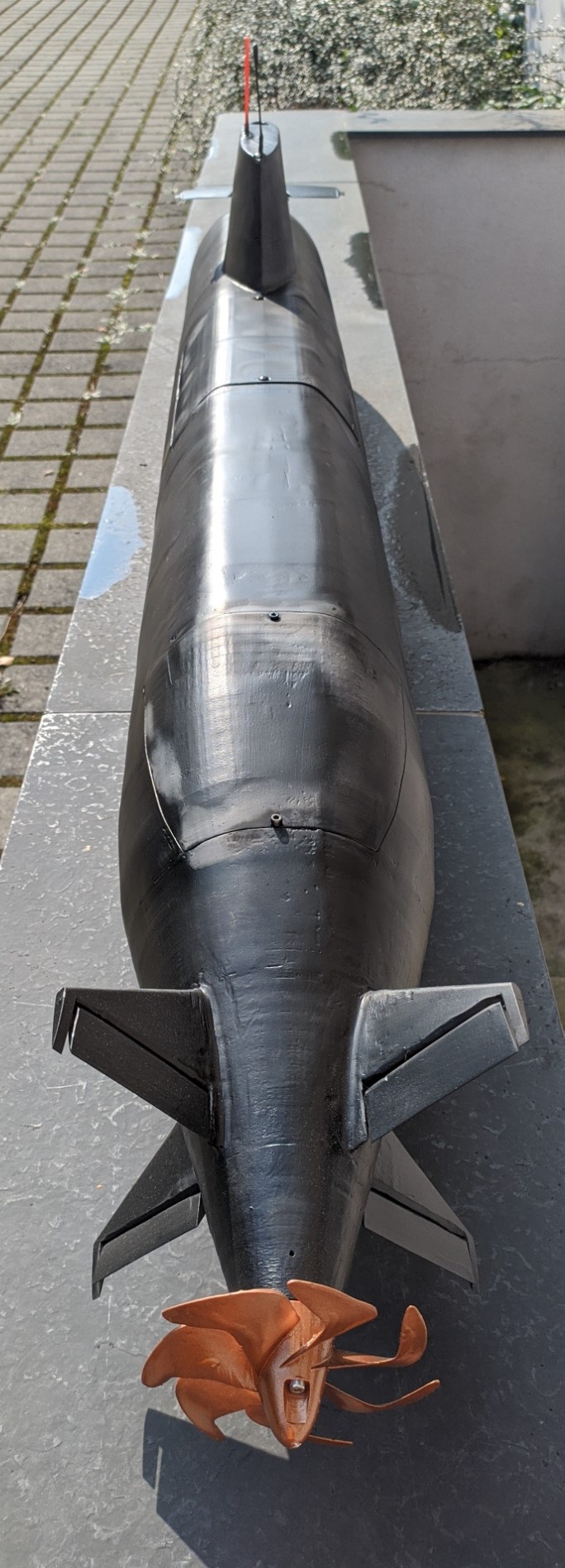

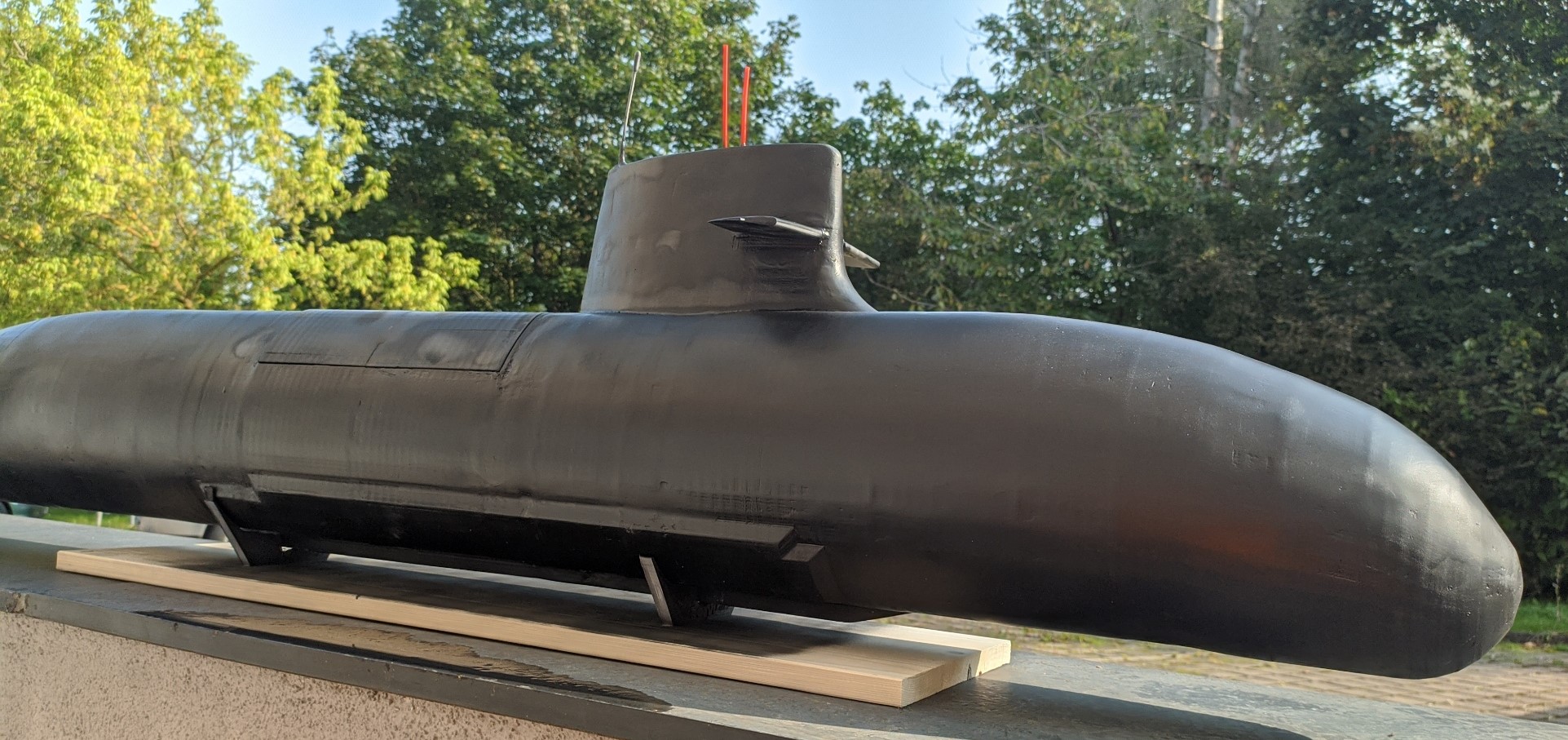

letztes update 26.09.2021 uboot fertig gestellt
