Pistol grip for AR-15 (Tactical Dynamics Replica!)

Pistol grip for Magfed / Airsoft weapons based on AR-15, in my case I attached the grip on Paintball weapon - Valken Milsig M17.

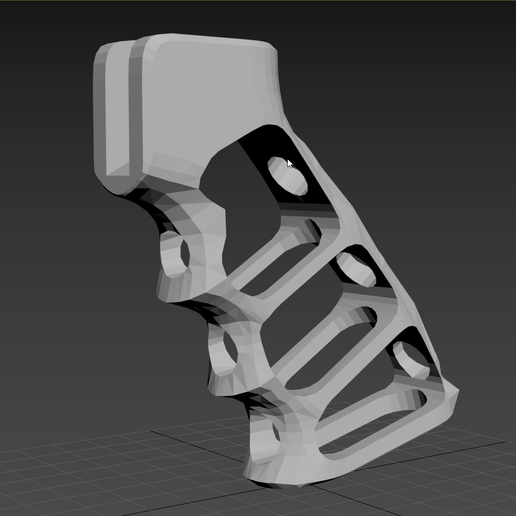

The grip is made after the example of Tactical Dynamics skeletonized pistol grip from Escape from Tarkov game, naturally the grip is not a 100% copy of the original and is made only roughly similar.

When you purchase you will get two versions:

1)Tactical Dynamics Clean Version

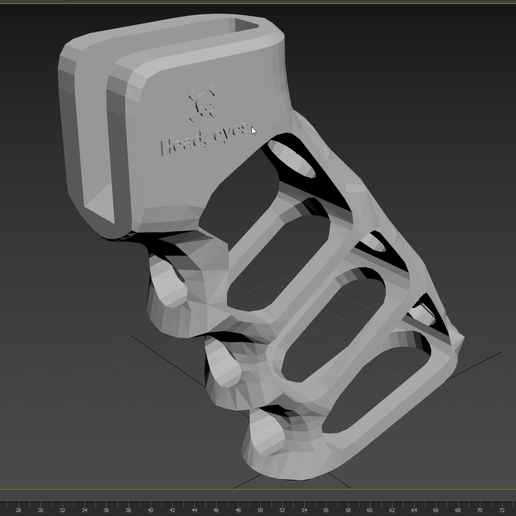

2)Tactical Dynamics Head eyes Version

After printing, I sanded my model with sandpaper and painted the inside with Revell Email Color Red 34 paint, but painting is optional and only at your discretion.

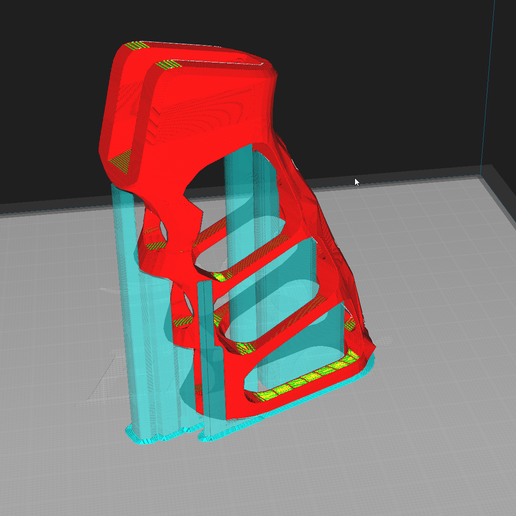

I printed the model with supports, but I think it will work without them because of the angle of inclination, I haven't tried it myself.

After printing it is necessary to drill a hole for fastening of the handle, for exact fitting it is necessary to file and sandpaper. Painting is optional.

My settings:

Layer height - 1.6mm

Wall thickness - 1.2mm

Number of wall lines - 3

Alternating wall - include

Roof layers - 6

Bottom layers - 6

Filling - 20%

Fill pattern - Lines

Temperature depends on your material

Printing speed at your discretion

Supports - from the table

Template - grid

Density of supports - 5%

Without roof and bottom of supports
