Apache (Ocelot MK1) 3D printed rc helicopter

_DSC0076.jpg Apache (Ocelot MK1) 3D printed rc helicopter
_DSC0079.jpg Apache (Ocelot MK1) 3D printed rc helicopter
_DSC0081.jpg Apache (Ocelot MK1) 3D printed rc helicopter
APACHE-v71.png Apache (Ocelot MK1) 3D printed rc helicopter
_DSC0076.jpg Apache (Ocelot MK1) 3D printed rc helicopter
_DSC0079.jpg Apache (Ocelot MK1) 3D printed rc helicopter
_DSC0081.jpg Apache (Ocelot MK1) 3D printed rc helicopter
APACHE-v71.png Apache (Ocelot MK1) 3D printed rc helicopter
Advertising
Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
Usages
3D design format
1 file (ZIP) Close
  • OCELOT V1.5.zip
    • BATTERY BAY FRONT.stl
    • BATTERY BAY.stl
    • BATTERY HOLDER.stl
    • BODY CLIP 1.stl
    • BODY CLIP 2.stl
    • BODY CLIP.stl
    • BOOM C.stl
    • BOOM JOINER MID.stl
    • BOTTOM SCOOP.stl
    • EXH FLANGEPRINT X 2.stl
    • FIN BRACE.stl
    • FIN HOLDER X 2.stl
    • FRONT BASE MOUNT.stl
    • FRONT GUN (1).stl
    • FRONT LG MOUNT L.stl
    • FRONT LG MOUNT R.stl
    • FUSE JOINER.stl
    • GUN HOLDER (1).stl
    • HOOD (1).stl
    • HOOD CAP.stl
    • LHS EXH (1).stl
    • LHS FIN (1).stl
    • LOW RADAR (1).stl
    • motor bolt.stl
    • MOTOR PLATE.stl
    • POD 1 (1).stl
    • REAR BASE MOOUNT.stl
    • REAR BLOCK (1) (1) (1) (1).stl
    • REAR BLOCK (1) (1) (3).stl
    • REAR BLOCK 2 (1) (1).stl
    • REAR BLOCK 2 (3).stl
    • rear clip x 2.stl
    • REAR EXH LHS.stl
    • REAR EXH RHS.stl
    • REAR FIN.stl
    • REAR FUSE.stl
    • REAR LEG MOUNT R.stl
    • REAR LG MOUNT L.stl
    • REAR STAB.stl
    • RHS EXH (1).stl
    • RHS FIN (1).stl
    • RHS LG (1) (1).stl
    • RHS LG (1).stl
    • ROCKET 1 (1).stl
    • ROCKET HOLDER X 4.stl
    • ROCKET X 2.stl
    • ROTATION CAP.stl
    • SHORT FRONT BOOM.stl
    • SHORT REAR BOOM.stl
    • TAIL JOINER.stl
    • TAIL WHEEL (1).stl
    • TAIL WHEEL HOLDER (1).stl
    • TIRE (2) (1).stl
    • TOP BODY POST.stl
    • TURBO.stl
    • UPP RADAR (1).stl

Learn more about the formats
Publication date
Design number 2682347
Design author mirschickiphone
mirschickiphone

mirschickiphone

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

This heli is 450 size and designed to natively fit the Flywing Bell/UH1 electronics. If you're using the stock small 3 mount motor give a shout, I'll make a Tail fin to fit with the correct 3 mounting holes. This fin included, is for a larger motor with 2 holes as found on the FW450 V2.5. These quad motors are superior to the stock Flywing Mavic clone motors and can easily run a 6040 prop. If you're fitting this to a FW450 chassis, you will need the chassis conversion plates, or else it won't fit. The conversion plates, ideally CNC cut out of 2mm carbon will make the entire mechanics the same height as the Bell versions. You can print them out of PETG. I have done this and had many successful flights. Find these plates in my designs.

For optimal CG, depending how much stuff you put on, you will need about 25g of putty in the very front of the nose in front of the battery. Mine with everything on it is 1500g AUW with a 3000 battery.

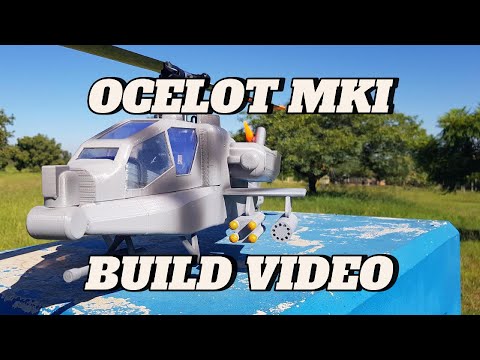

BUILD VIDEO
https://www.youtube.com/watch?v=tB9tGIPO084

3D printing settings

PETG or similar
With a 0.4mm nozzle
Line width 0.6mm
Layer height 0.25mm
15% infill for all body parts. This only affects little protrusions etc. and not the main body which will have a 1.2mm wall
100% infill for motor plates and other plates
Custom support where required. Use your imitative.
