Logitech Working Horn Kit for G920, G29, G923

Designed for steering wheels with 55mm inner diameter.

Things you will need:
M5 x 12mm counter sunk screws
My awesome adapter
Printed Horn ring

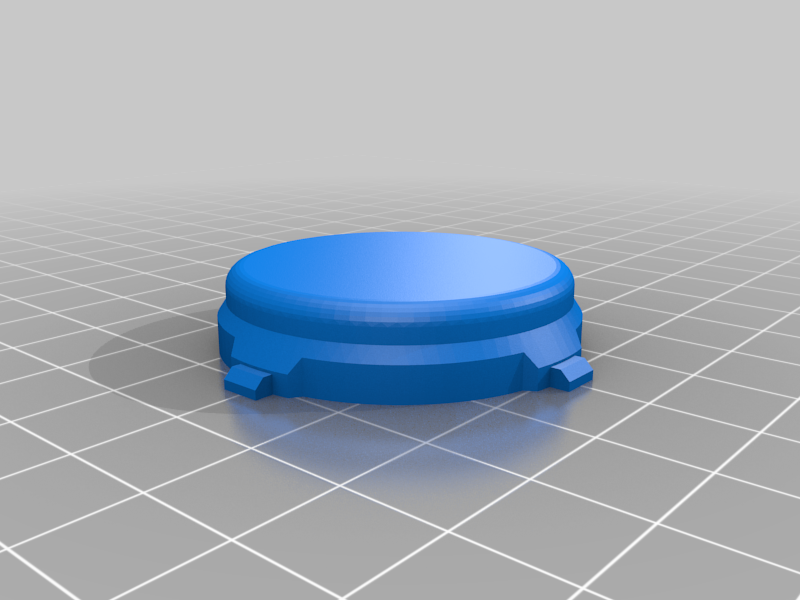

Printed Horn button
Generic Autozone horn (41mm diameter)
70mm Steering wheel(nrg, hiwowsport, some momos, etc)

Printer requirements:
Horizontal expansion needs to be tuned

Ive included a blank step model, feel free to do your own button customizations.

The steering wheel I have is a Hiwowsport flat face carbon fiber steering wheel and is super light, its 450 ish grams which is lighter than stock G923 steering wheel by a lot! Plus its 350mm wheel! The steering wheel cost me 80 bucks on ebay shipped. They got all kinds of flavors! Check em out!

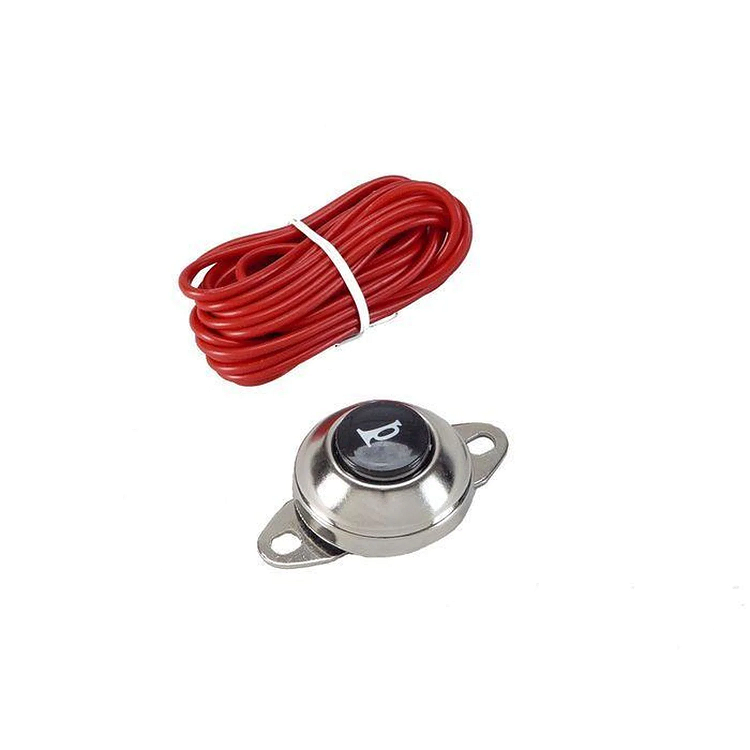

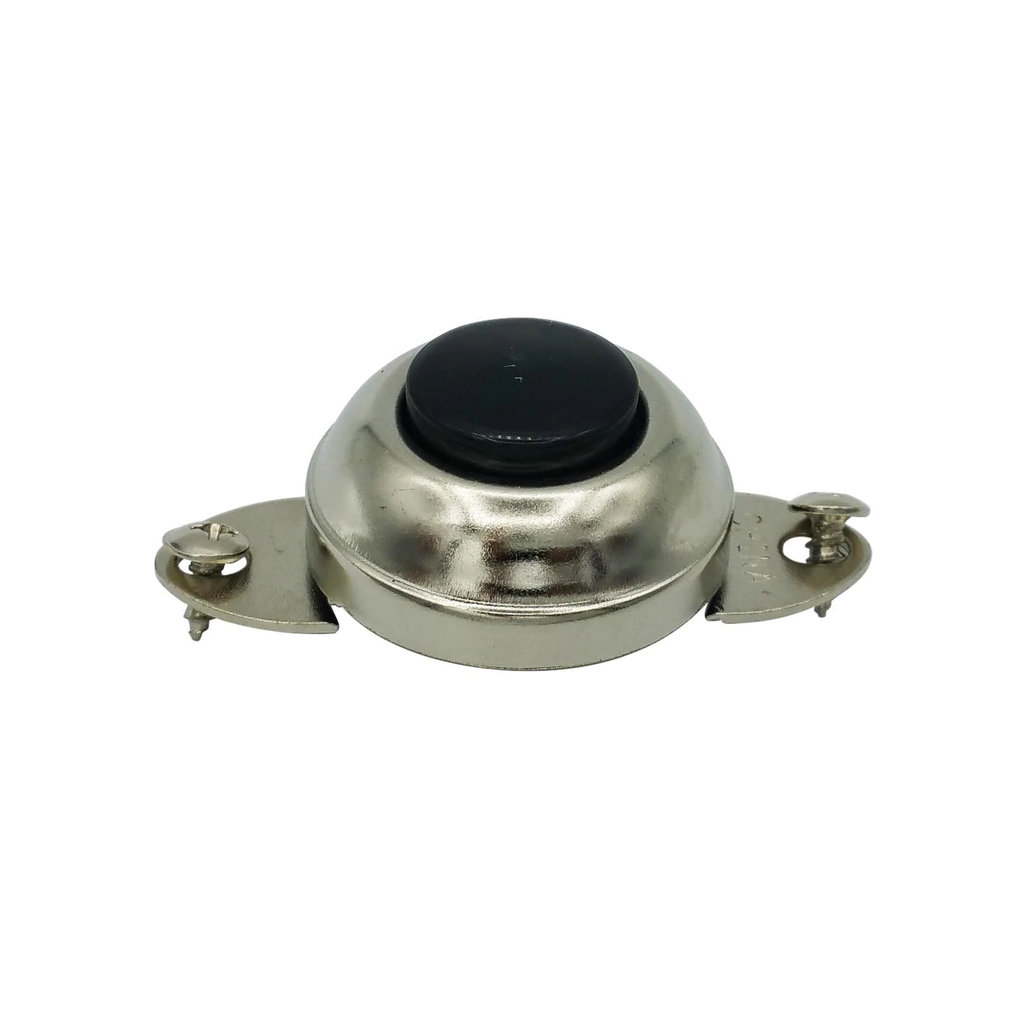

For the horn button. Go to autozone or order a generic button that looks like the pictures. Super generic and has been on sale since the beginning of time. Rip off the mount(bend it off) and wire it to the xbox button or one of the PS button on the button of the steering wheel. I believe you need to wire it to the two contact on the left of the button.

The reason why I don't want to use the standard horn because it moves the steering wheel too far back and I wanted my horn to be as close as the original position of the original steering wheel.

To make things more easy to print, the adapter doesn't need the bottom pattern, it just there because I hate it when dust gets behind the adapter. So you can just cut the bottom off and print it by moving it down.

BOOM! Now you can road rage in games.

-
