HSD F-16 Cockpit

Advertising
Make an offer
Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
Usages
3D design format
17 files (STL) Close
  • ACES II HSD F16 Kopfstuetze v1.stl 43.530085 × 23.906735 × 29.001960999999998 mm
  • ACES II HSD F16 v1.stl 80.112175 × 51.000029 × 51.453384 mm
  • Cockpit Anbindung v1.1.stl 67.999836 × 12.010466000000001 × 5.00049 mm
  • Cockpit v1.1.stl 69.104973 × 25.510894 × 8.123599 mm
  • F-16 Joystick.stl 6.236142000000001 × 5.788851000000001 × 17.265957 mm
  • HSD F-16 Cockpit Aufnahme v1.1.stl 120.99858800000001 × 76.00025600000001 × 21.932846 mm
  • HSD F-16 Gashebel.stl 6.524902000000111 × 10.976043000000004 × 8.108192 mm
  • HSD F-16 Heckabdeckung.stl 26.740246000000003 × 64.500021 × 0.901877 mm
  • HSD F-16 Panal (1).stl 8.291258999999968 × 10.652774999999998 × 1.6003150000000002 mm
  • HSD F-16 Panal (2).stl 5.580016999999998 × 7.379996999999996 × 1.500004 mm
  • HSD F-16 Panal (3).stl 5.579955999999925 × 7.380004000000007 × 1.500004 mm
  • HSD F-16 Panal (4).stl 44.000469 × 7.00289 × 3.700571 mm
  • HSD F-16 Panal (5).stl 44.002924 × 7.058519 × 3.700099 mm
  • HSD F-16 Panal.stl 8.388060999999993 × 10.768278000000002 × 1.600048 mm
  • HSD F16 Cockpit Aufnahme Boden v1.stl 110.02781999999999 × 67.005222 × 2.001559 mm
  • Schacht Rohr.stl 4.012732999999997 × 4.013118000000002 × 76.846329 mm
  • Schleudersitz Grif v1.stl 3.763549999999995 × 11.730072 × 13.082296 mm

Learn more about the formats
Last update
Publication date
Design number 215468
Design author RuckyPlex
RuckyPlex

RuckyPlex

Issue with this design? Report a problem.

3D printer file info

3D model description

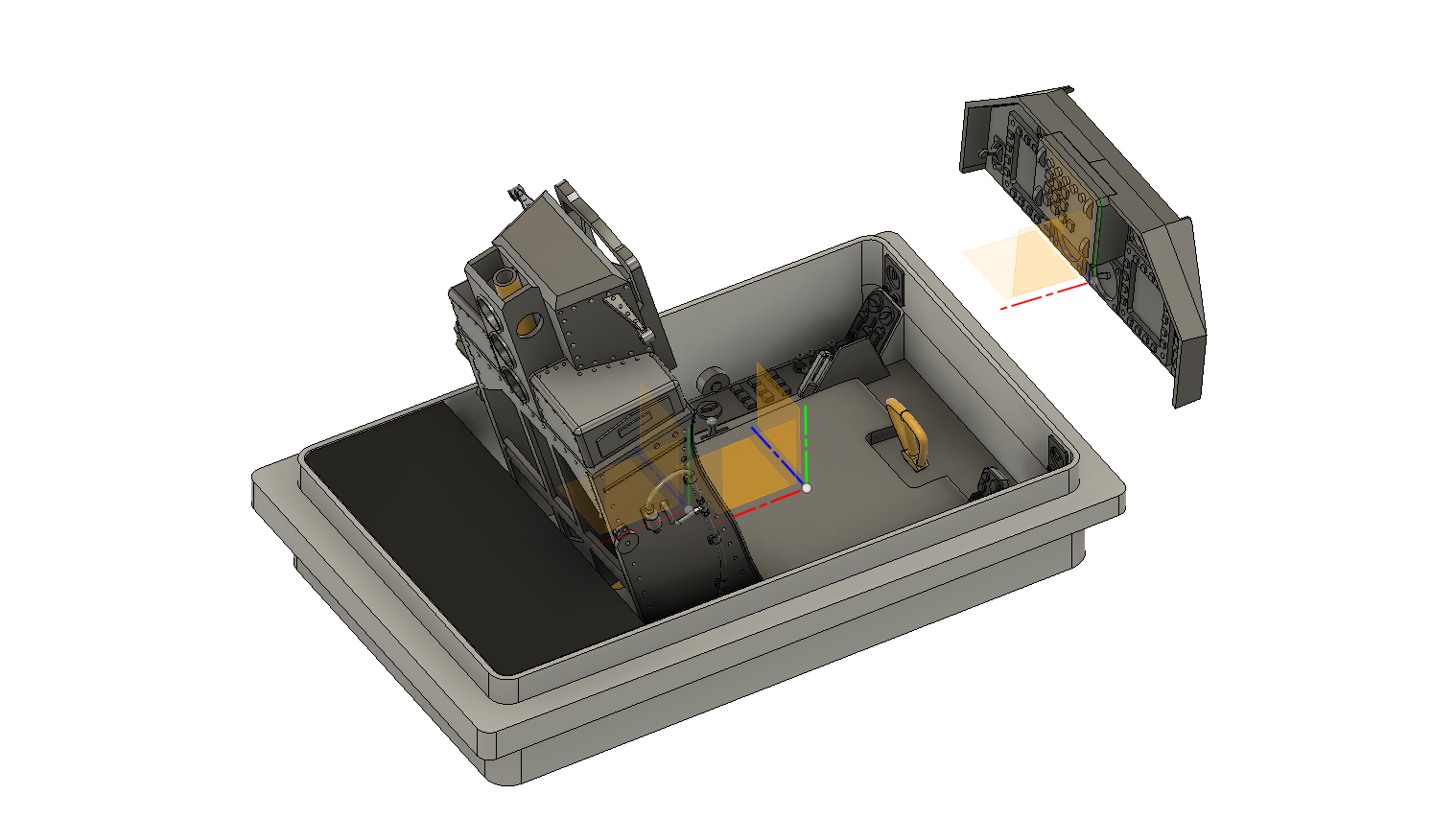

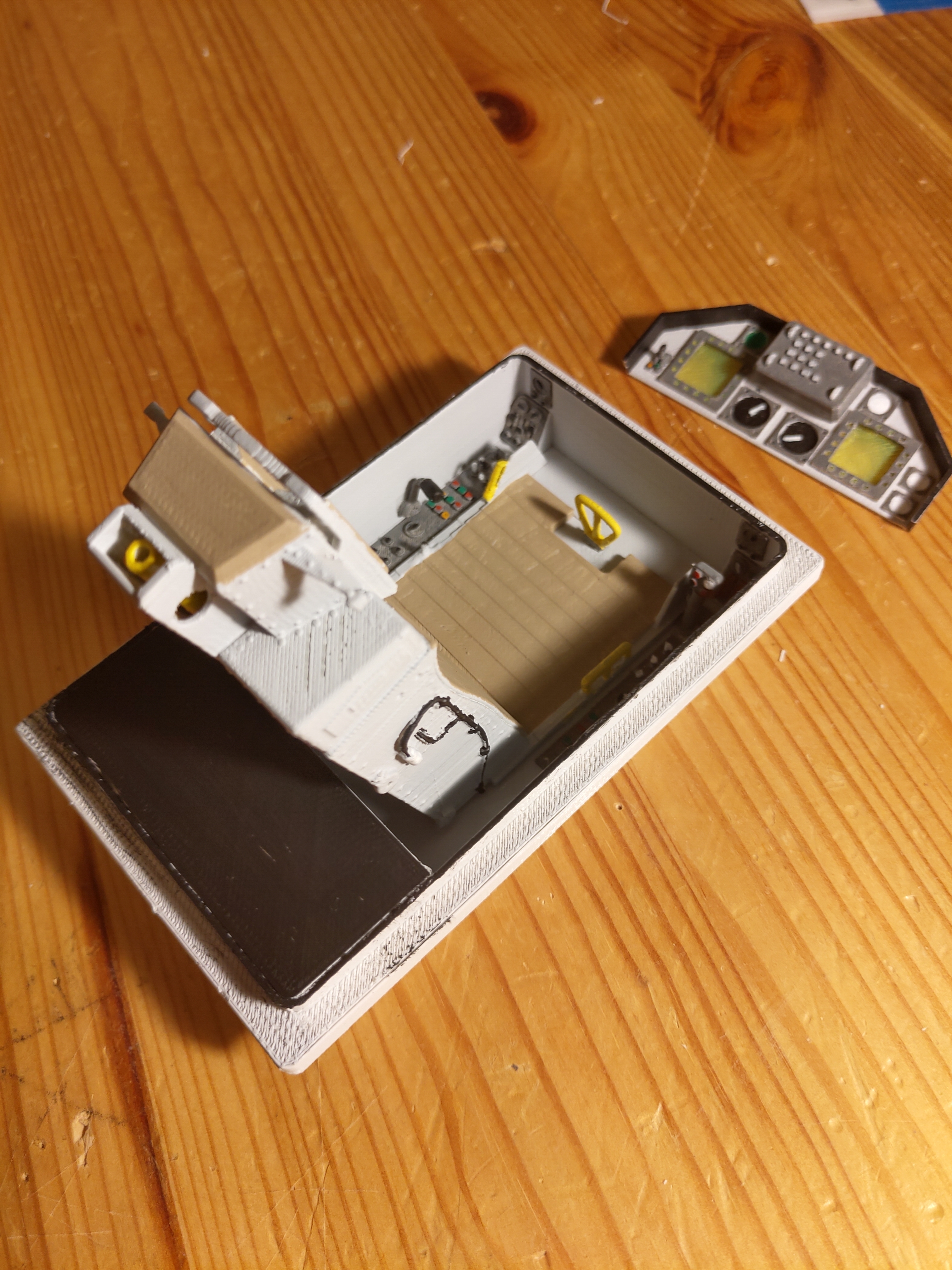

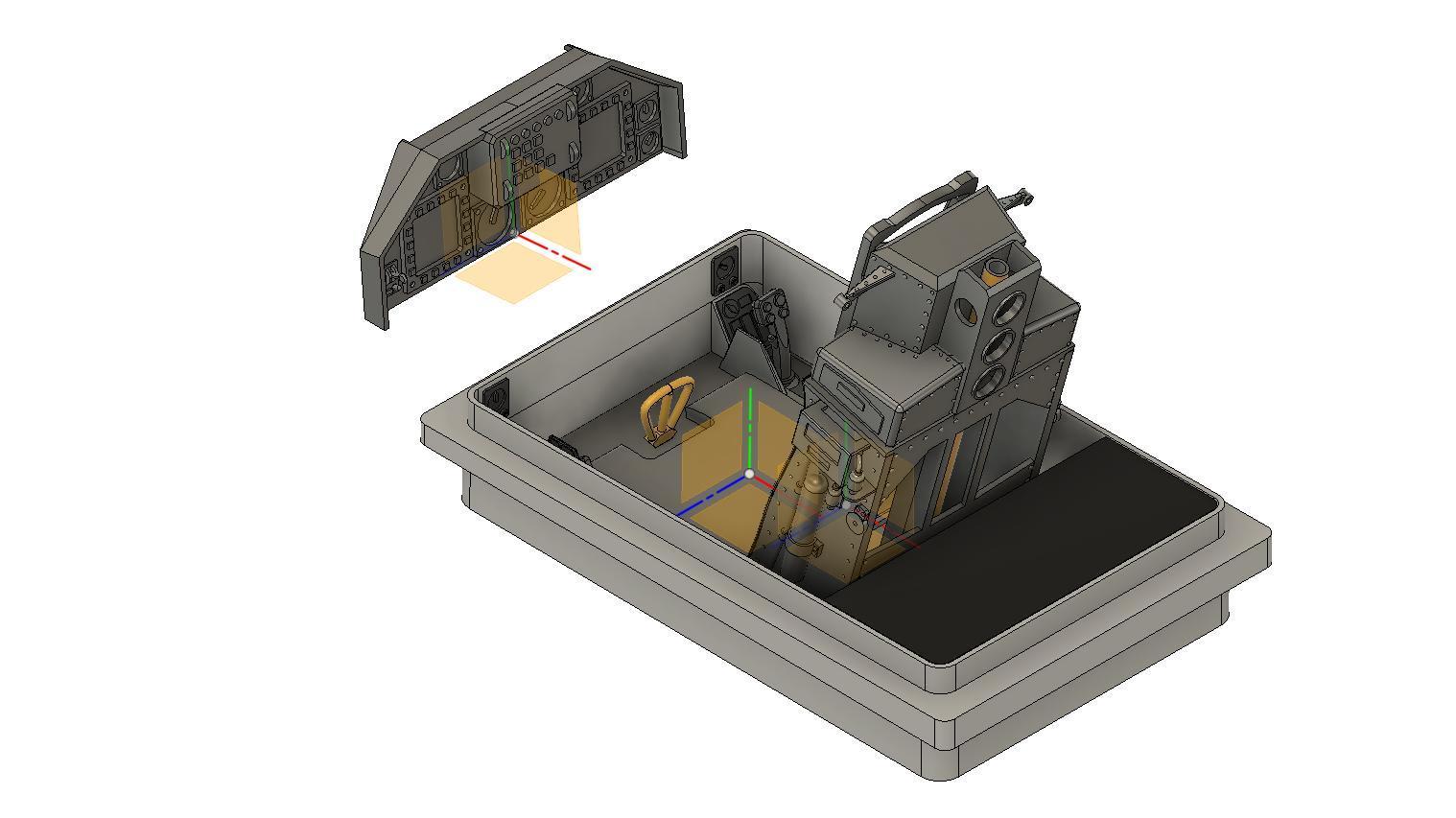

I created a 3DPUP for the cockpit of my HSD F-16. It weighs 55gr. The pilot weighs 25gr and is from a Freewing F-16 https://www.motionrc.eu/products/freewing-pilot-figure-16#qa-tab My goal was not to have to cut around the canopy. You just have to remove the original brown insert that is to serve as the seat and replace it with mine. I have placed the objects in the files as I can best print them.

Google translator

3D printing settings

Layer->Primary Layer Height-> 0.1
Additions->Skirt Outlines->10 at Schacht Rohr, F-16 joystick, ejector seat handle v1, HSD F-16 throttle, all others with. Additions->Skirt Outlines->0

Categories

All categories › Game

Tags
