Gaugemaster Seep Motor Alignment Mount Bracket and Tool

Gaugemaster seep motor alignment bracket to assist with mounting seep motor.
Also included is an alignment tool (Used before laying track).

Designed for use with Gaugemaster GMC-PM1, GMC-PM2 and GMC-PM4

Designed to fit between seep motor and baseboard.
It's designed to fit into a 10mm hole where the seep motor point switching tie bar goes. Designed to fit 6mm thick baseboard and above.

For installation drill a 10mm hole in the baseboard, and roughly place the bracket into the hole on the underside of the baseboard (use alignment screw holes to hold in position, these allow a 16deg movement).
Use the alignment tool to align the bracket to the track correctly and then fasten the bracket securely to the baseboard.
Finally, attach the seep motor to the braket with holes in the seep motor.

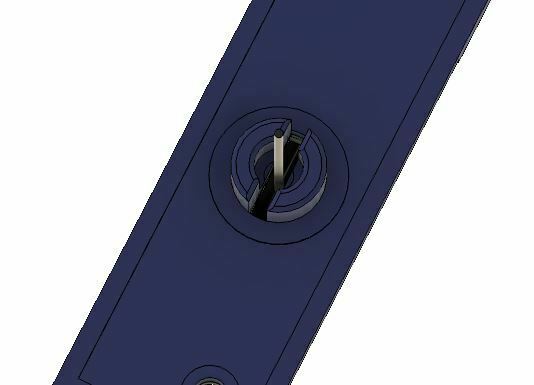

Please refer to the pictures for help.

They are designed to be printed on a 3D Resin or filament printer.
The bracket will be stronger if printed on a 3D filament printer, for example, is printed on a 3D resin printer and is strong enough to use.
