3D model description

The model recreates an RC controlled, scale replica of a RHS 70 hydrofoil. Despite its' small size it's fully functional.

For operation an ultra micro RC equipment is needed. See manual for specs.

The free assembly manual can be downloaded from my profile together with two free test files. Check it first before buying the files.

The build thread is located here on RCG:
https://www.rcgroups.com/forums/showthread.php?4091895-Hydrofoil-Rodriguez-RHS-70-3d-printed

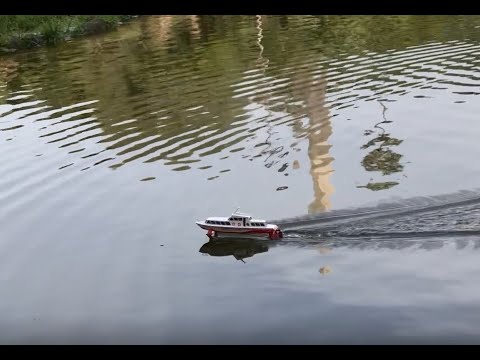

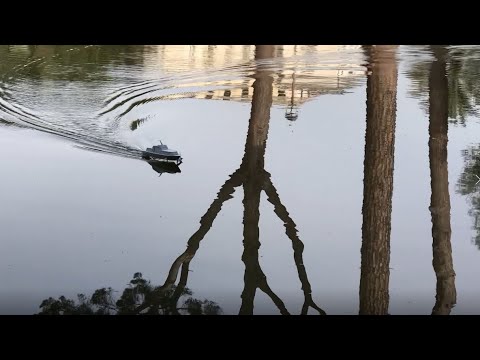

Three videos show the performance:
Maiden
#2
#3

UPDATE 23/09/19
stl files added the the donwload.
Hull motor mount LW.factory replaced

3D printing settings

The model is designed to fit any 200x200x250mm3 printer.

Full download contains both factory-files for Simplify3D and Gcodes. The Gcodes are specific for the Ender3 and for PLA respective LW PLA.

For more details see the manual.

3D printer file information

Design number: 1452275
3D design format: PDF and ZIP Folder details Close
- Freccia RHS 70 Gcodes.zip
  - Handrails LW.gcode
  - Hull aft LW.gcode
  - Hull bow LW.gcode
  - Hull motor mount LW.gcode
  - Hull stern LW.gcode
  - Hull tube PLA.gcode
  - Parts 2 PLA.gcode
  - Parts PLA.gcode
  - Stencil PLA.gcode
  - Superstructure aft LW.gcode
  - Superstructure front LW.gcode
- Freccia RHS 70 STLs.zip
  - Fender 1.stl
  - Fender 2.stl
  - Foil aft 1.stl
  - Foil aft 2.stl
  - Foil front 1.stl
  - Foil front 2.stl
  - Foil front tube.stl
  - Former.stl
  - Handrail.stl
  - Hull aft.stl
  - Hull bow.stl
  - Hull motor mount.stl
  - Hull stern.stl
  - Hull tube.stl
  - Mast.stl
  - Propellor.stl
  - Rudder base.stl
  - Rudder.stl
  - Shaft holder.stl
  - Stencil.stl
  - Superstructure aft.stl
  - Superstructure front.stl
- Freccia RHS 70 factory files2.zip
  - Handrails LW.factory
  - Hull aft LW.factory
  - Hull bow LW.factory
  - Hull motor mount LW.factory
  - Hull stern LW.factory
  - Hull tube PLA.factory
  - Parts 2 PLA.factory
  - Parts PLA.factory
  - Stencil PLA.factory
  - Superstructure aft LW.factory
  - Superstructure front LW .factory
- Freccia RHS 70_Manual V1.pdf
Learn more about the formats
Last update: 2023-09-19 at 15:25
Publication date: 2023-09-15 at 15:24
