Das Liddle Stik RC Airplane

3D model description

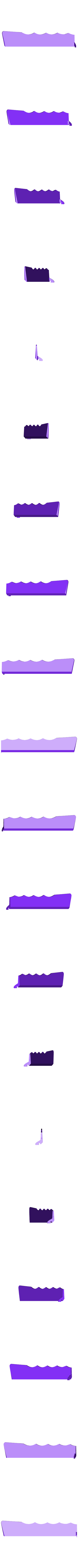

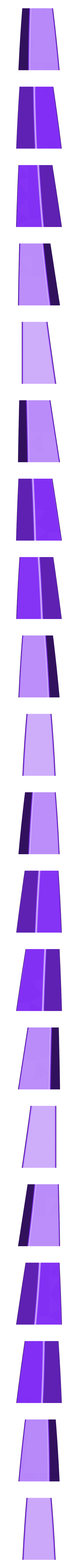

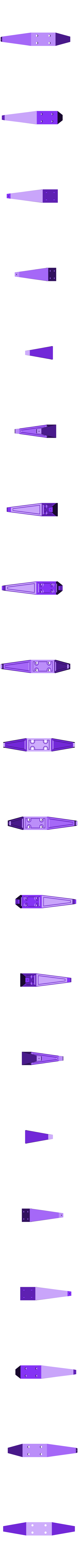

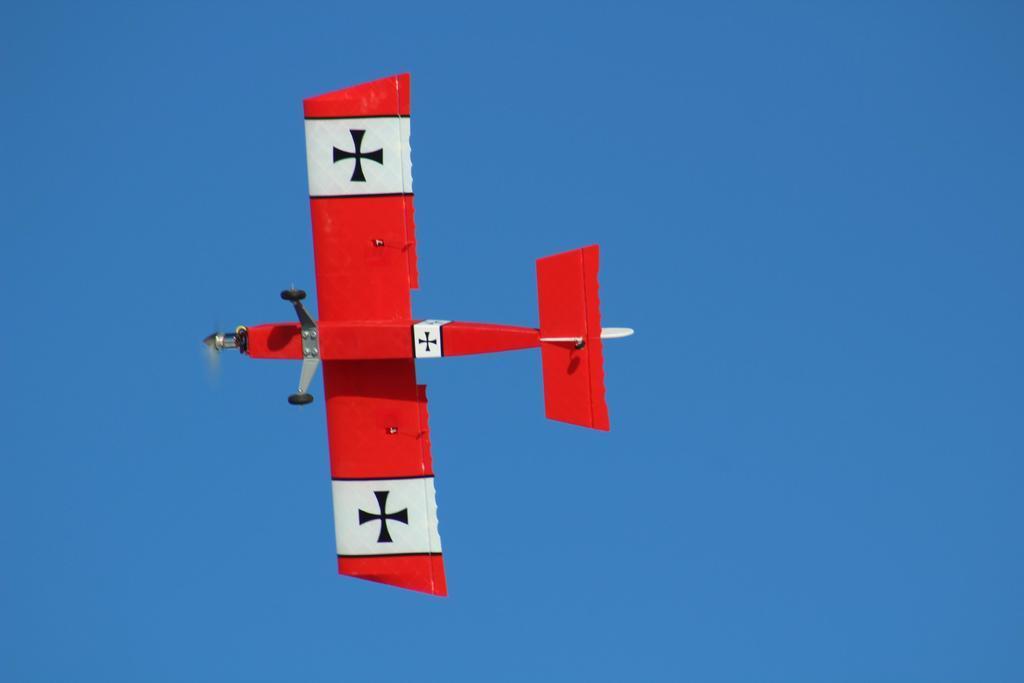

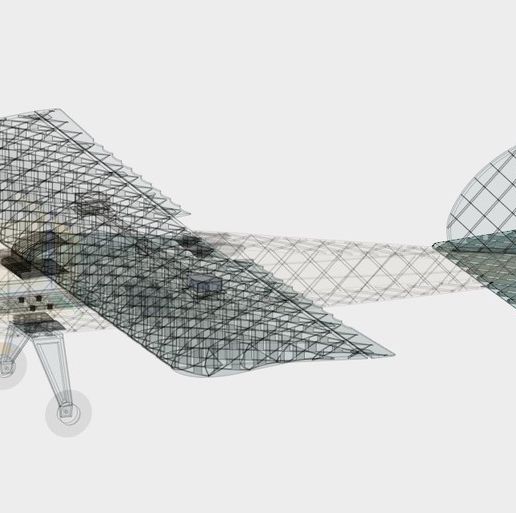

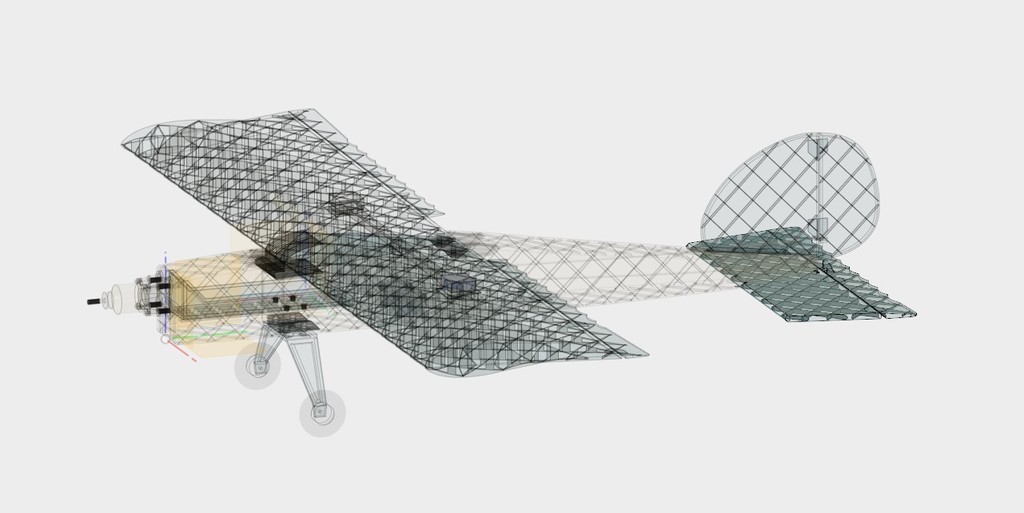

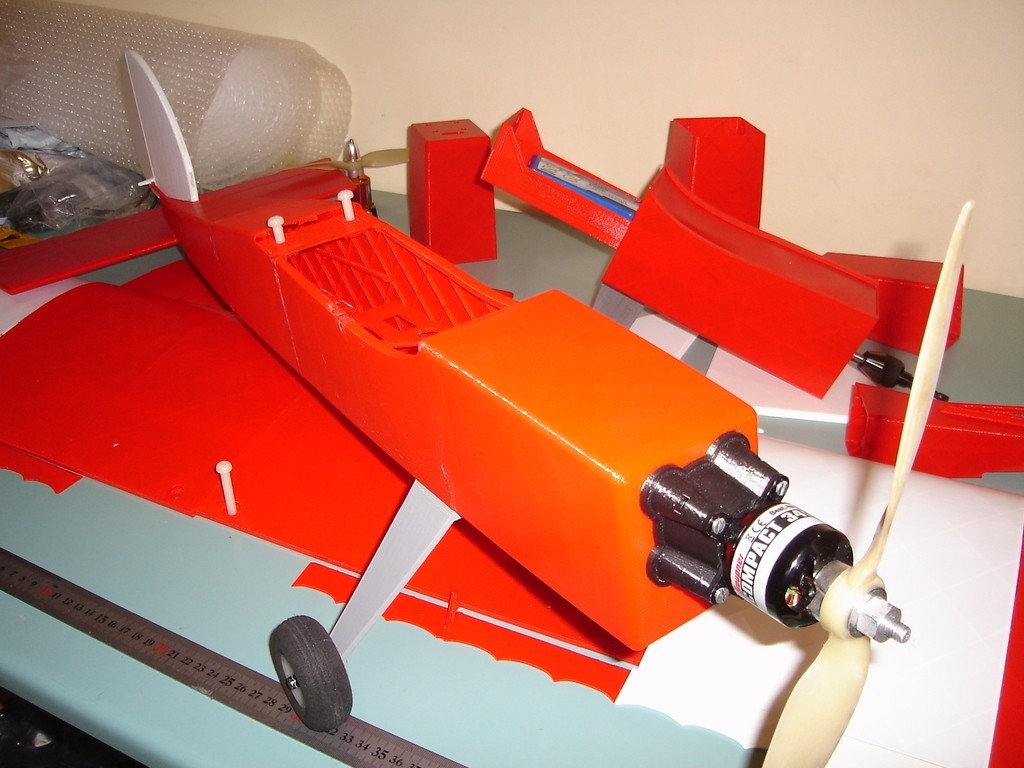

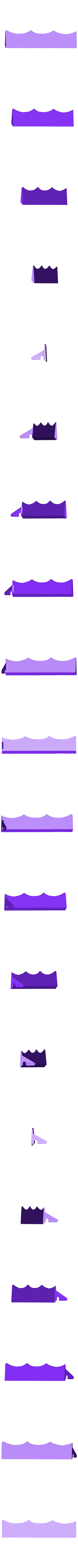

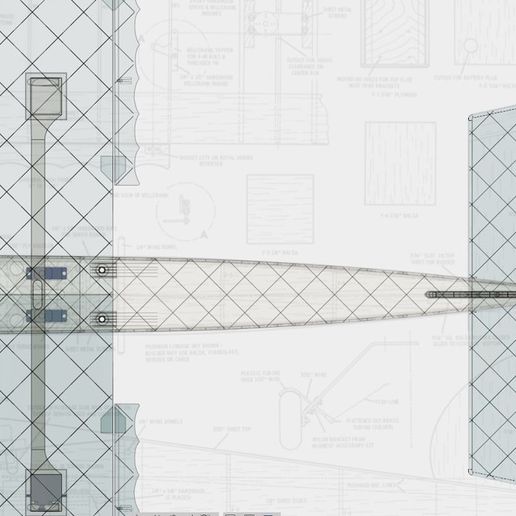

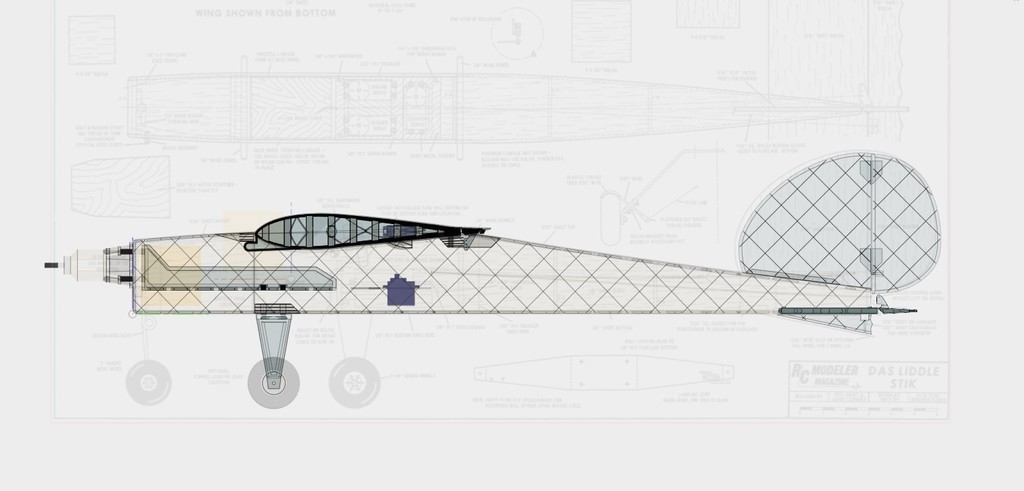

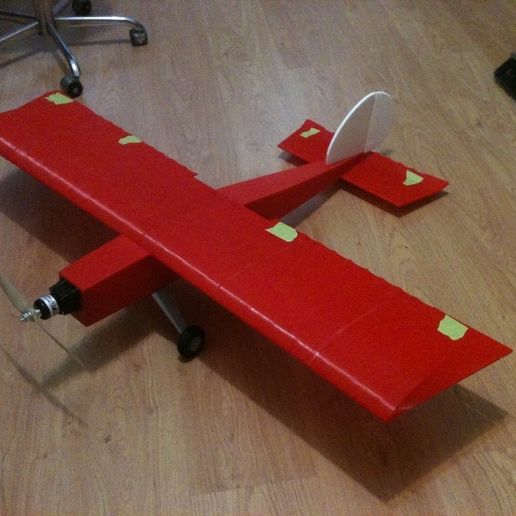

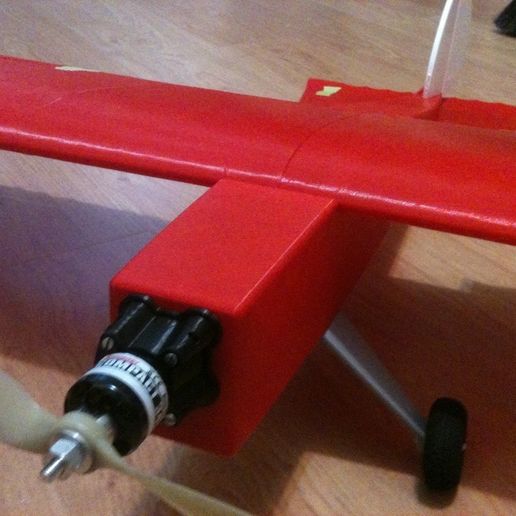

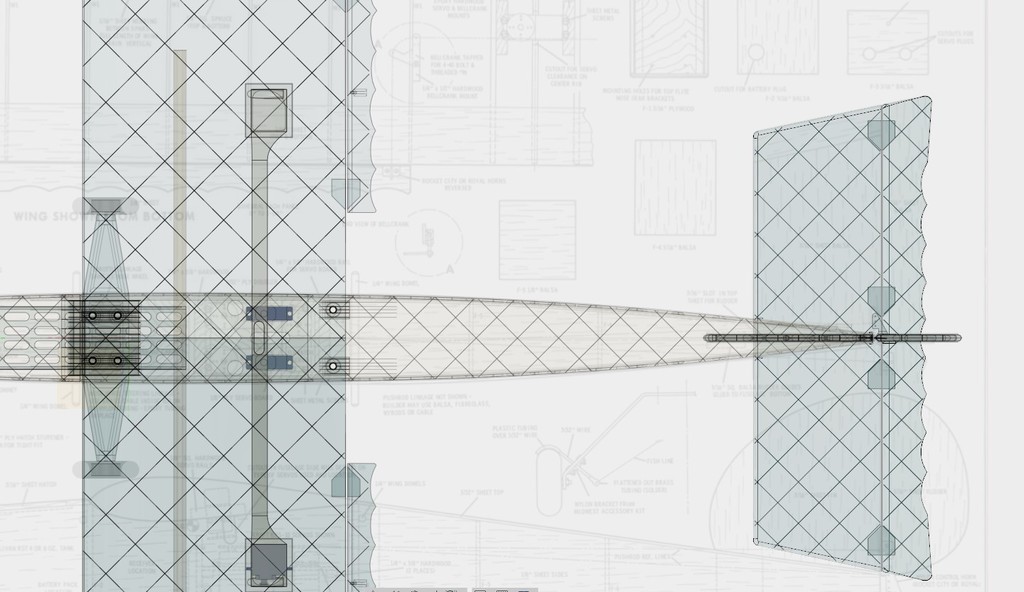

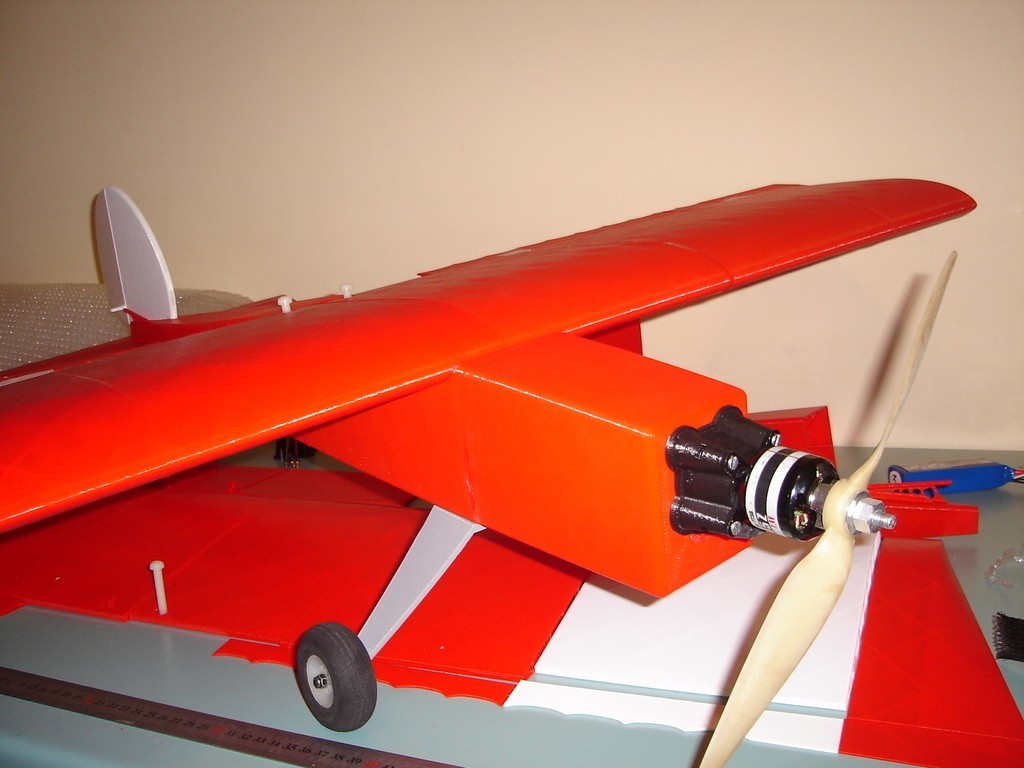

This is a fully printable, all parts included for free "Das Liddle Stik" basically its a smaller version of the famous Ugly Stick and modelled by AeroFred from an RCM plan, this one https://aerofred.com/details.php?image_id=80646

(The source plan is the "Das Liddle Stik" designed by Phil Kraft and Larry Leonard for the 1968 May issue of the RCM Magazine.)

Order a printed kit here:

https://aerofred.com/details.php?image_id=99742

Also available here, if you wish to support me:

https://cults3d.com/en/3d-model/various/das-liddle-stik

A word of caution on printing this model yourself

Use the stl files inside the large zip package not the free files on the thing listing.

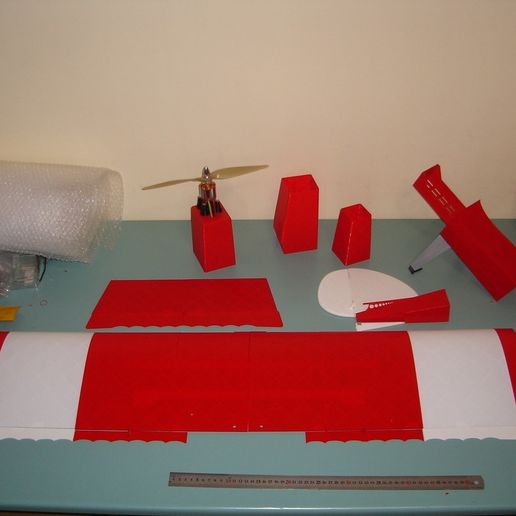

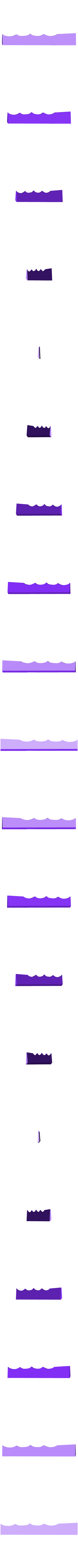

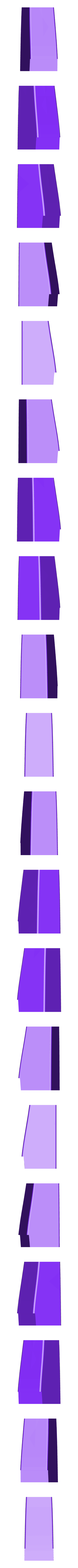

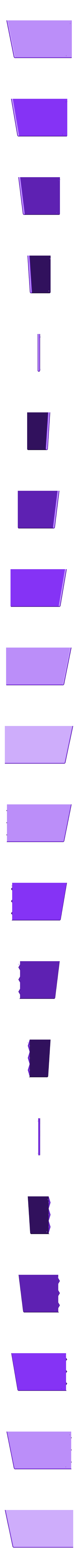

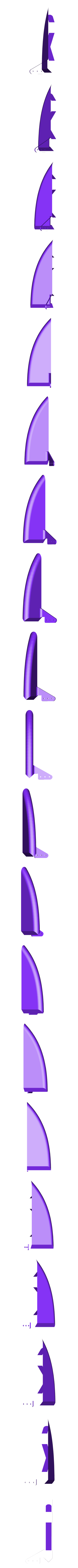

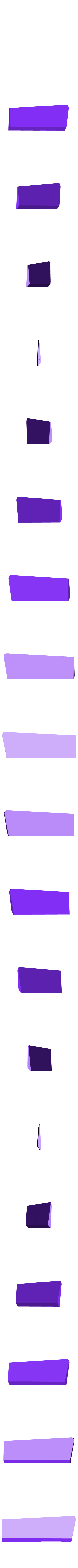

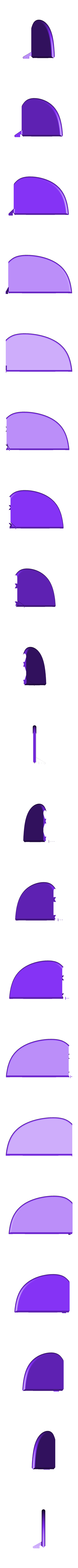

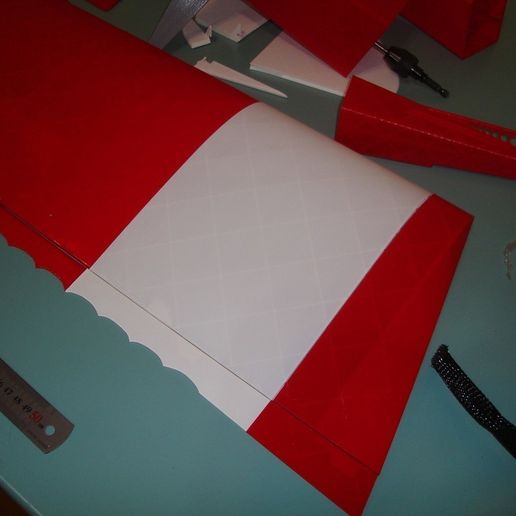

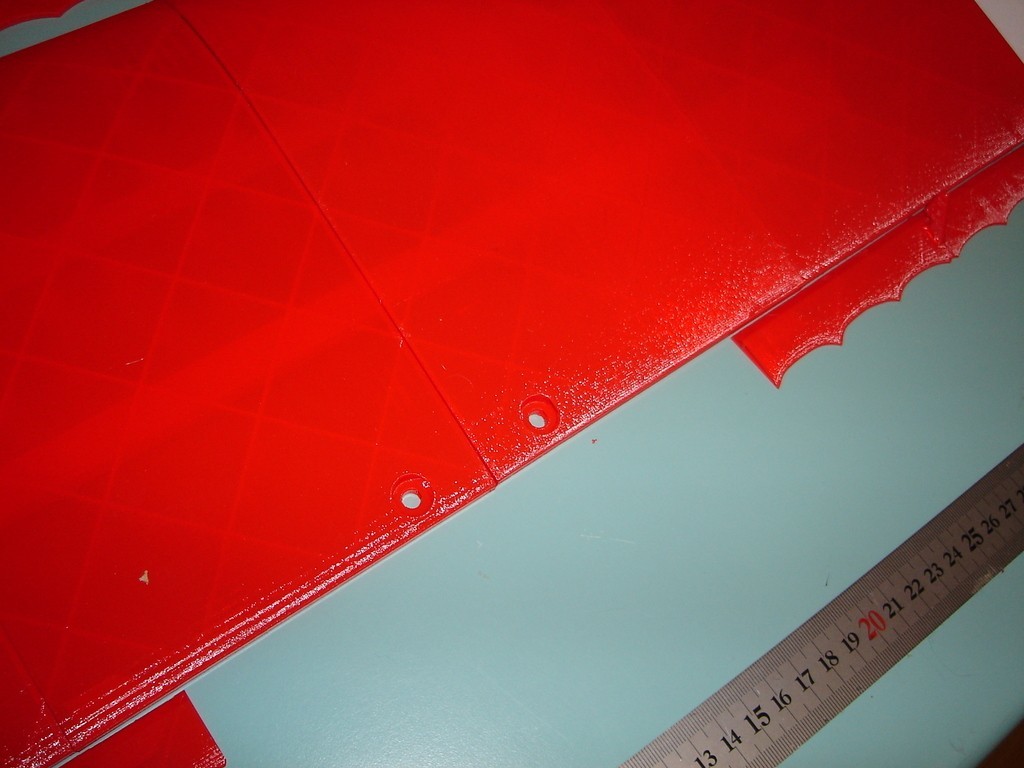

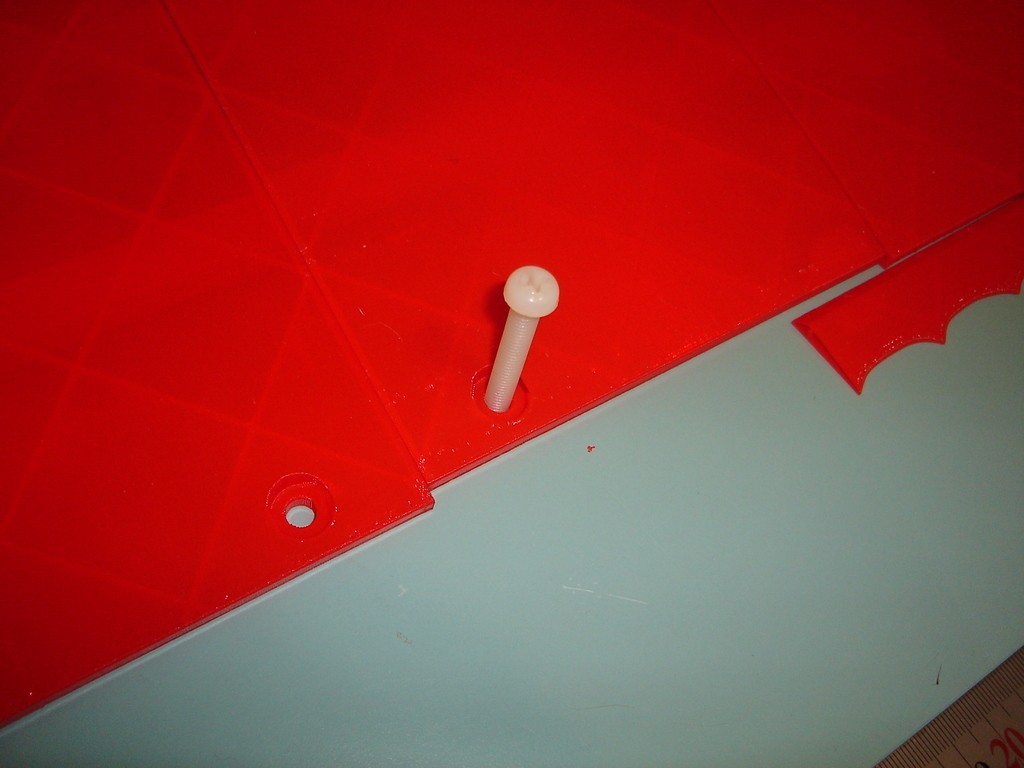

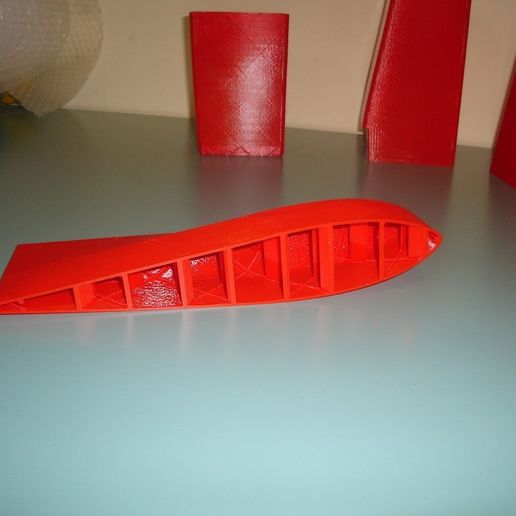

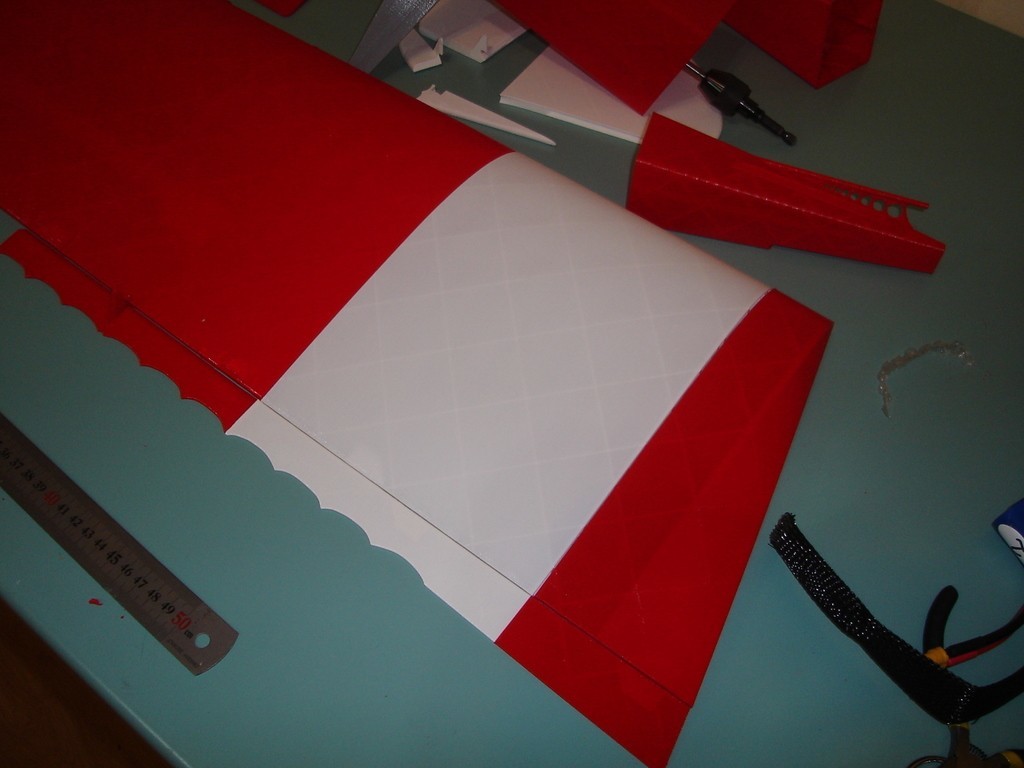

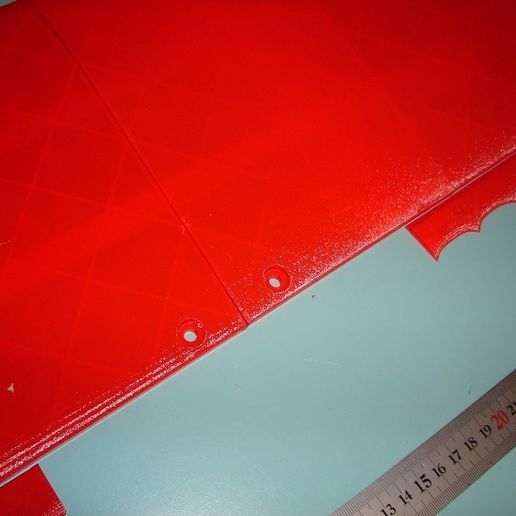

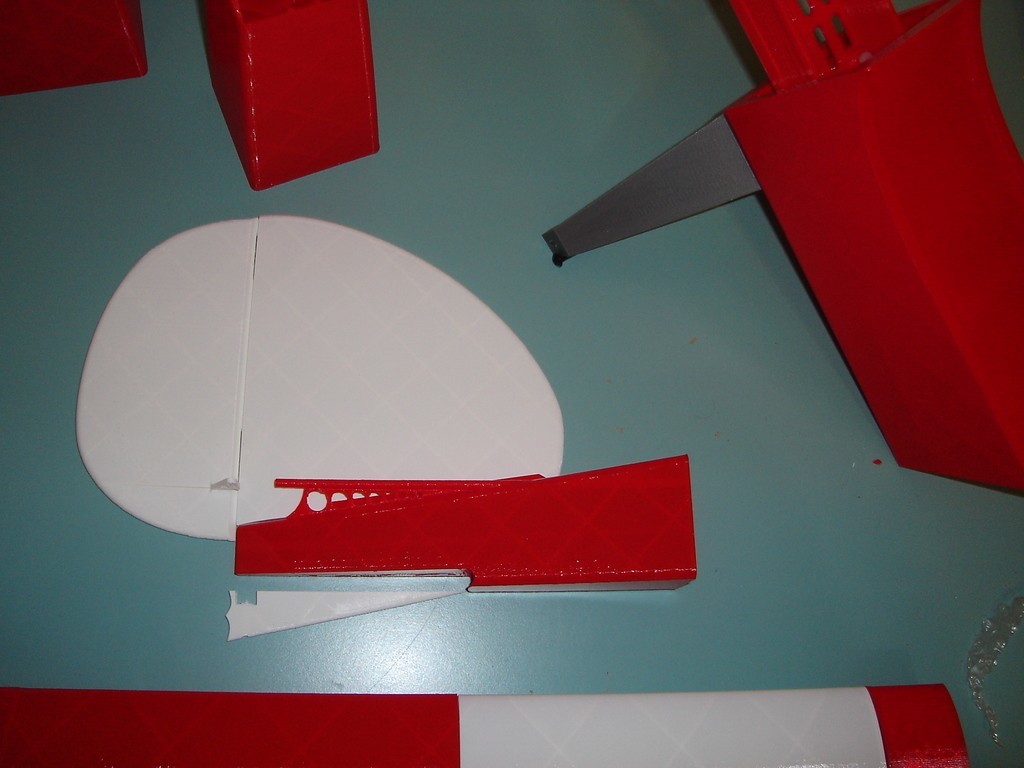

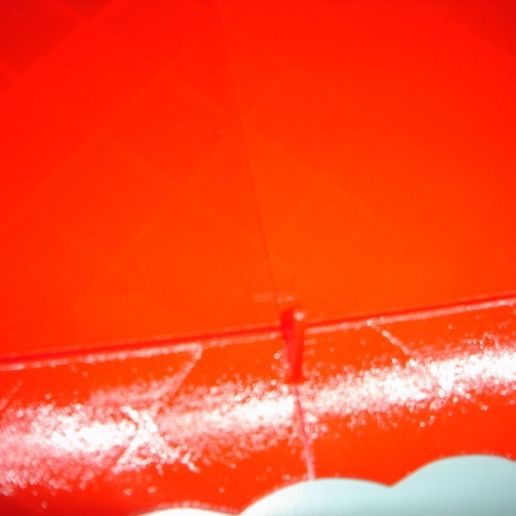

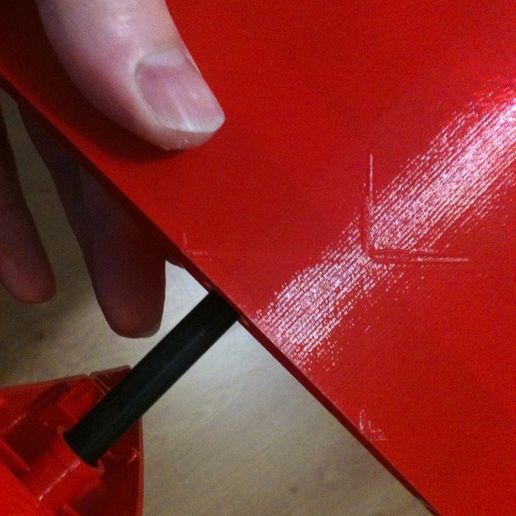

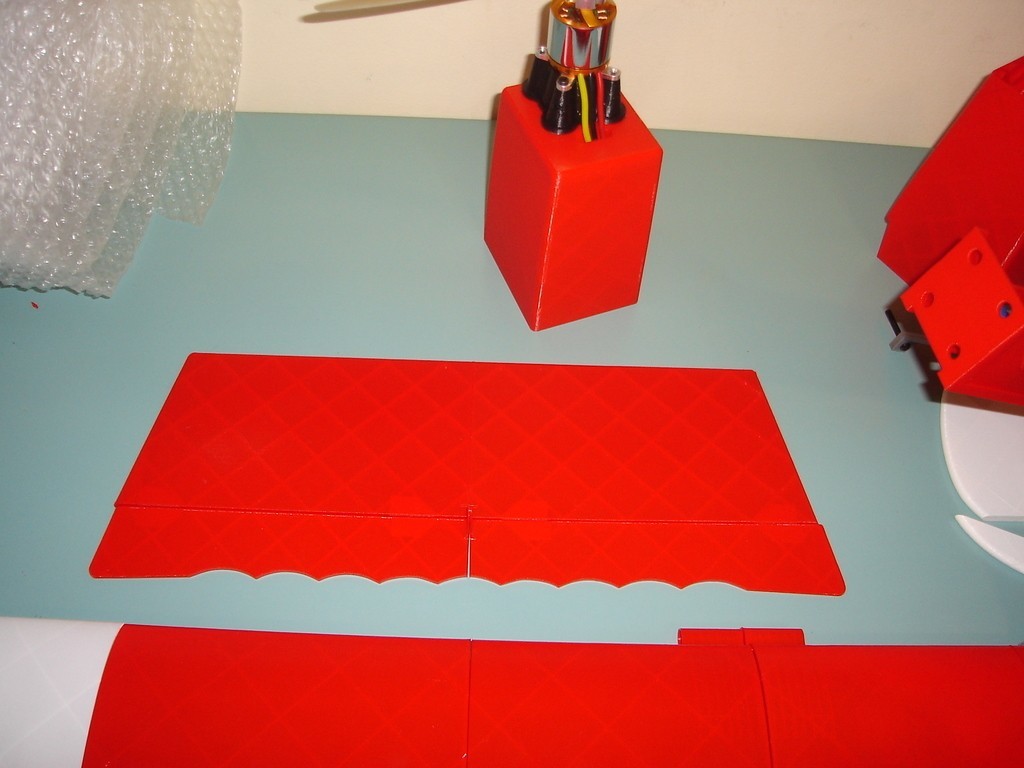

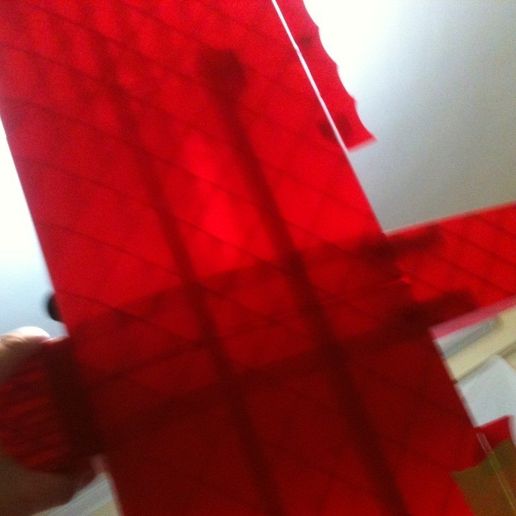

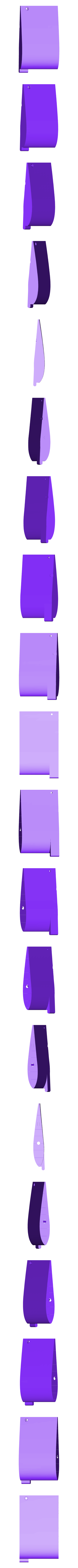

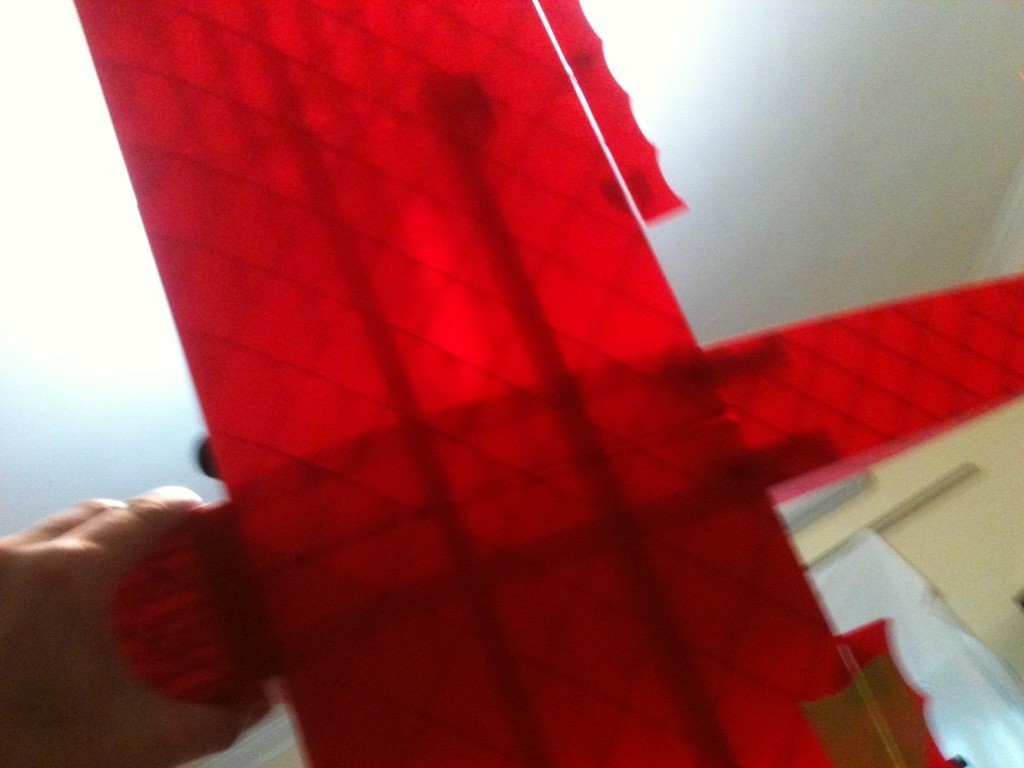

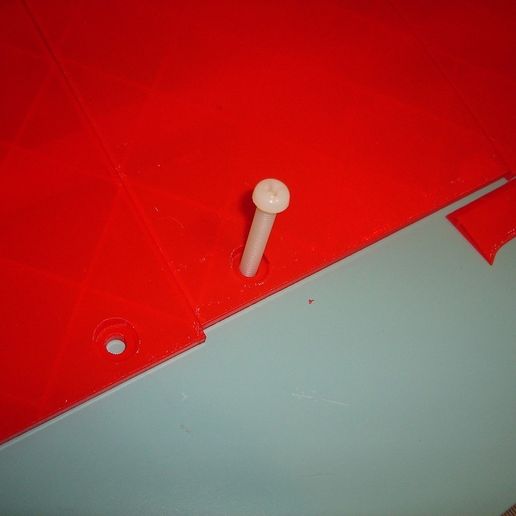

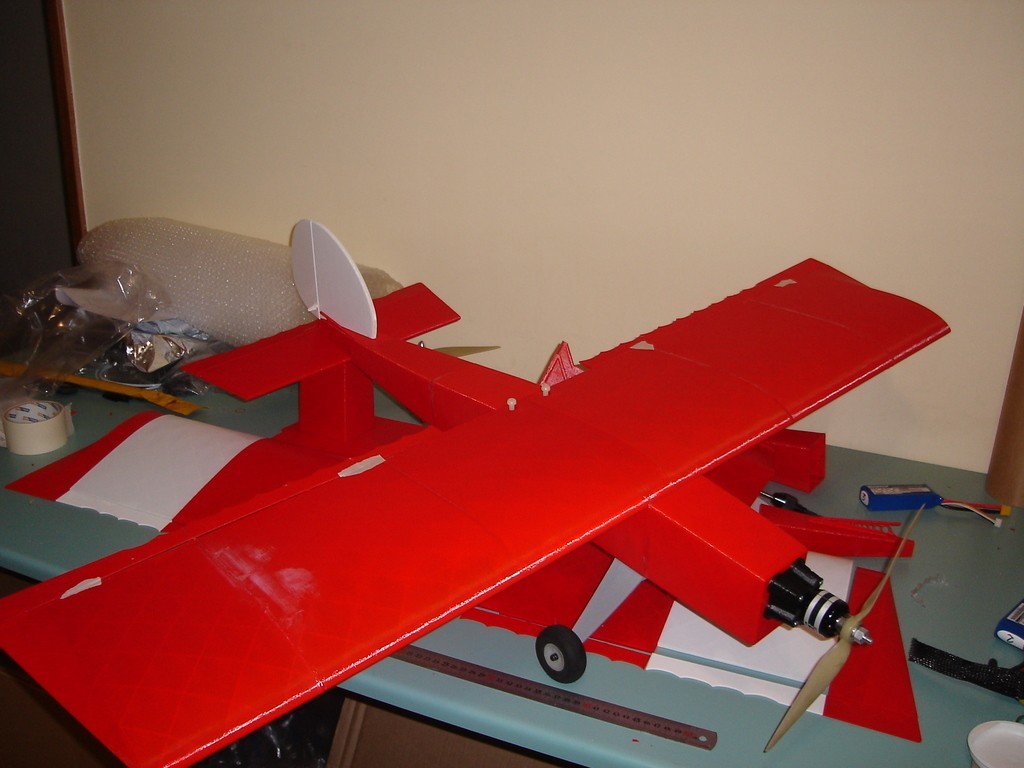

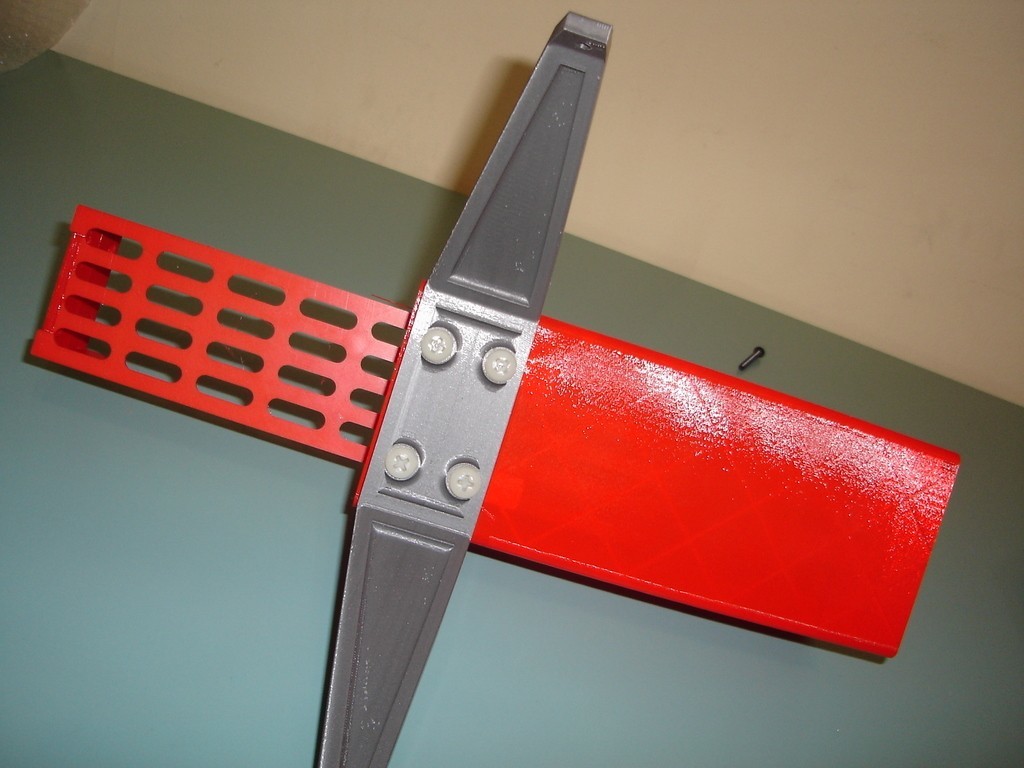

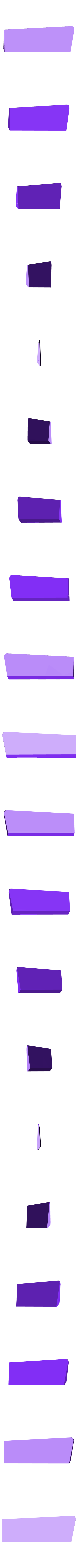

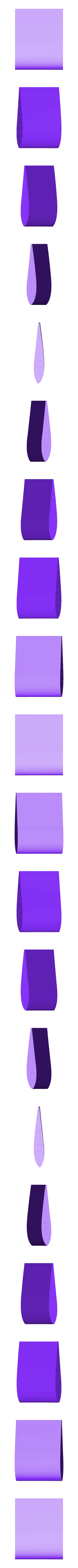

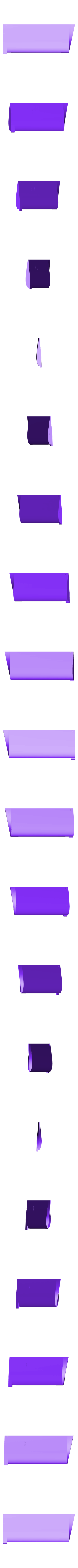

The wing has 1.5º of washout so it cannot be assembled flat on a table top! You have to joint the sections one by one vertically making sure the leading and trailing edges are coincident and well aligned.

In other words, the wing is twisted, this is on purpose, assemble it as described above.

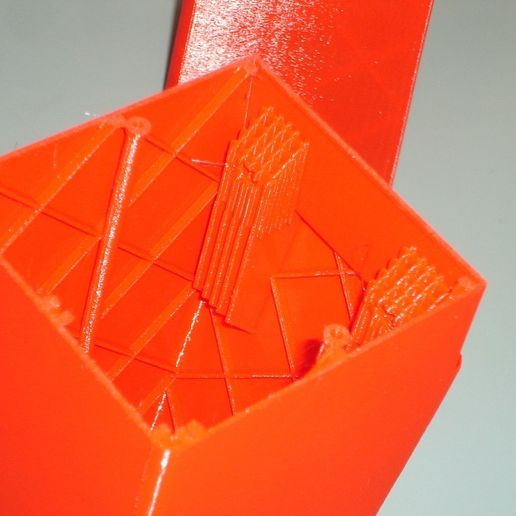

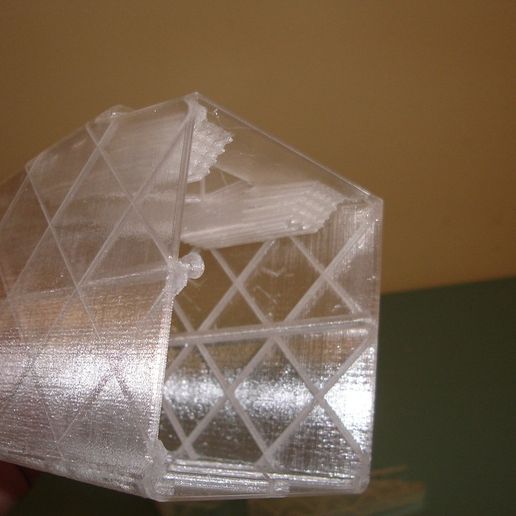

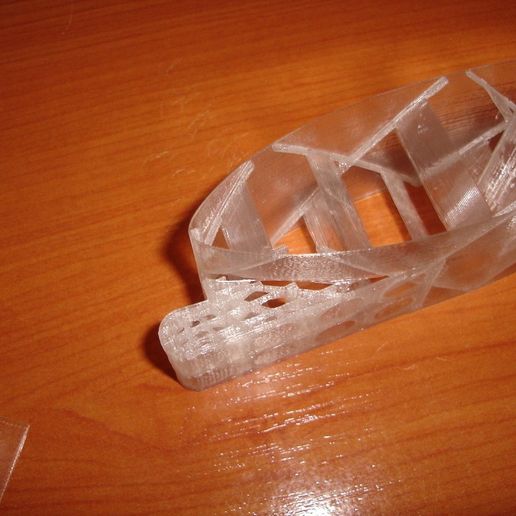

If you´re going to use your own printing processes please note that the wing tip needs a double wall 2mm before it starts to curve for the tip and 3 top layers

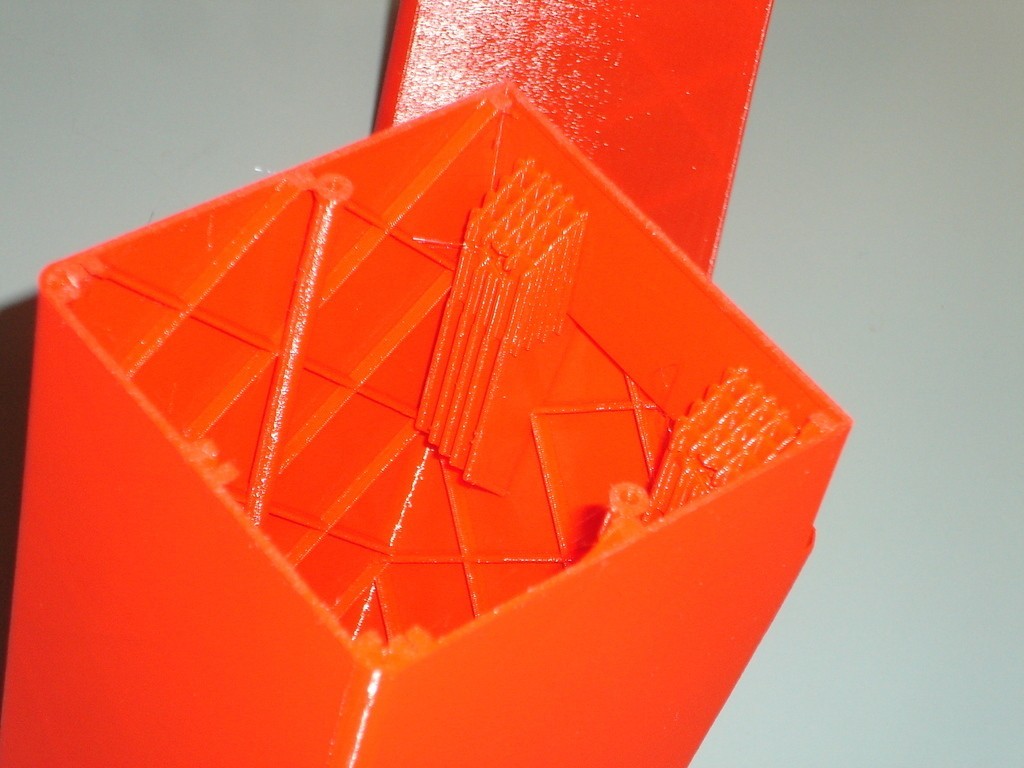

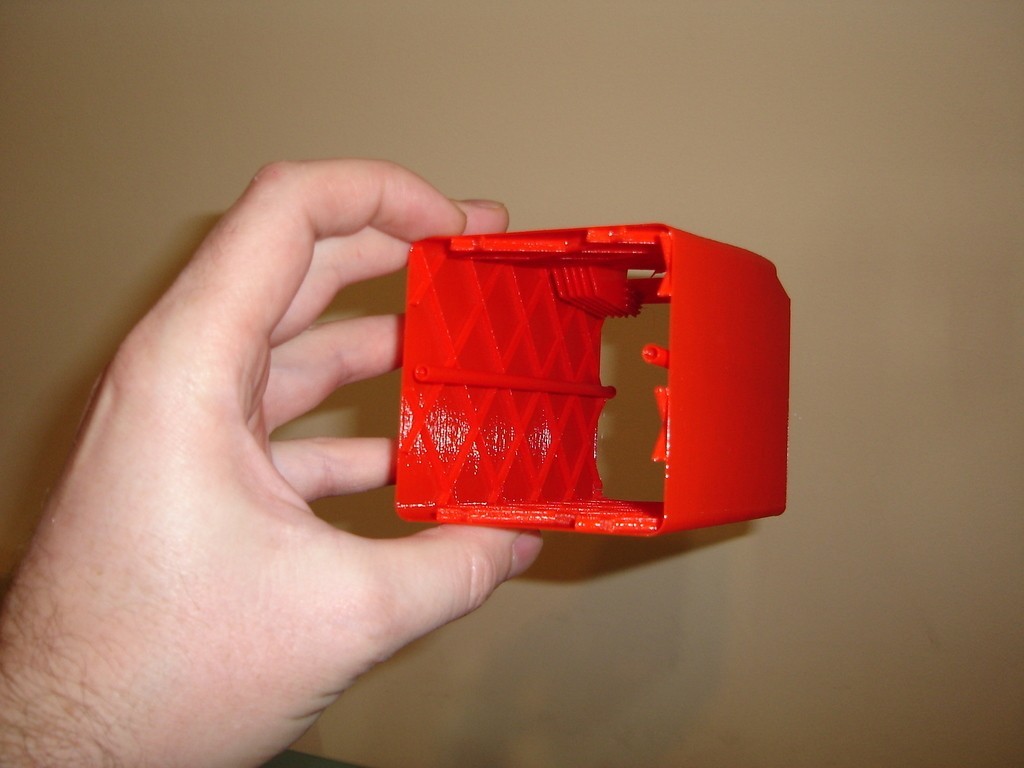

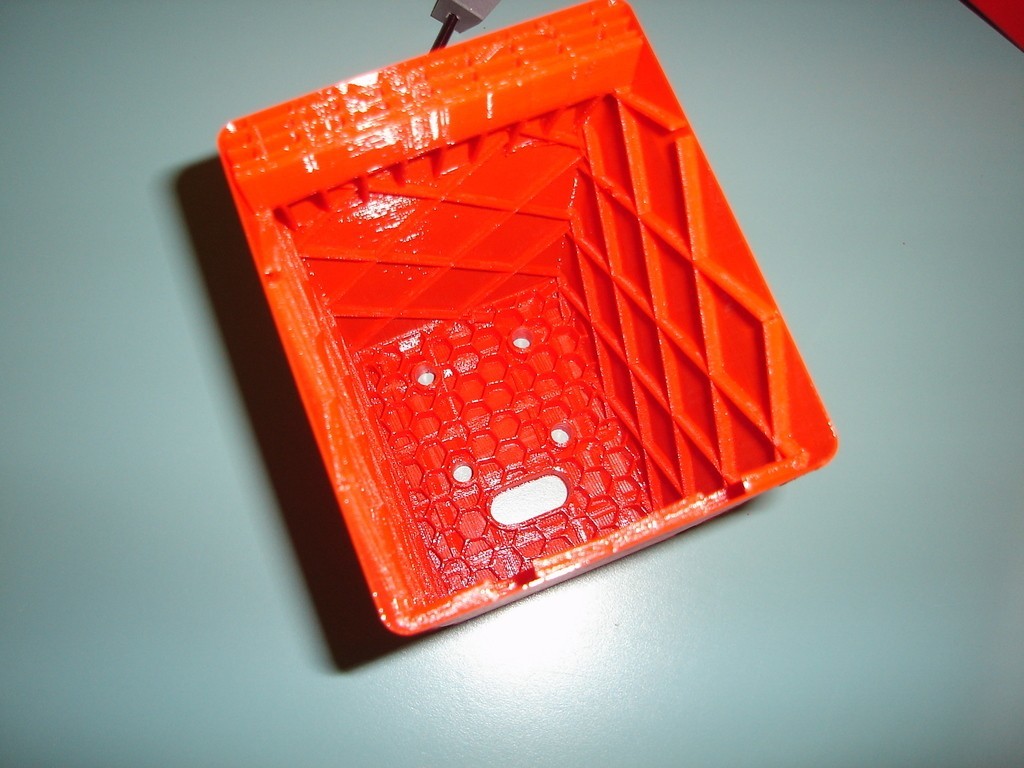

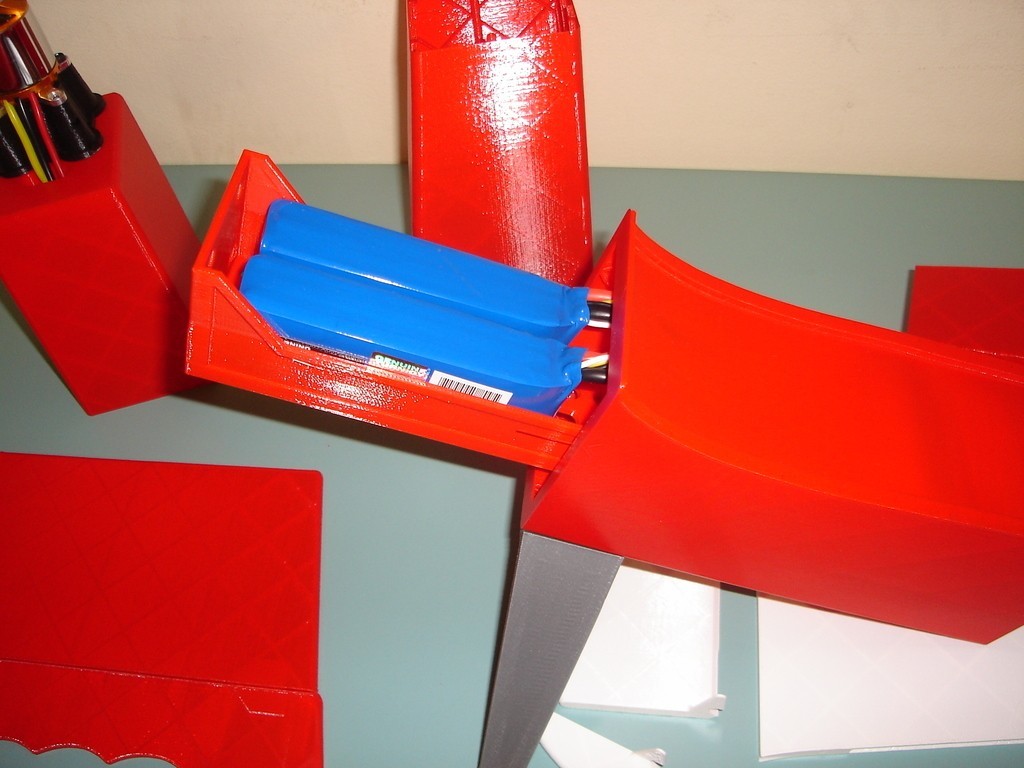

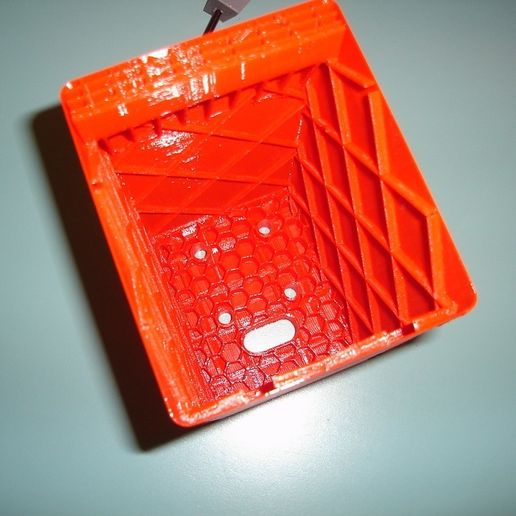

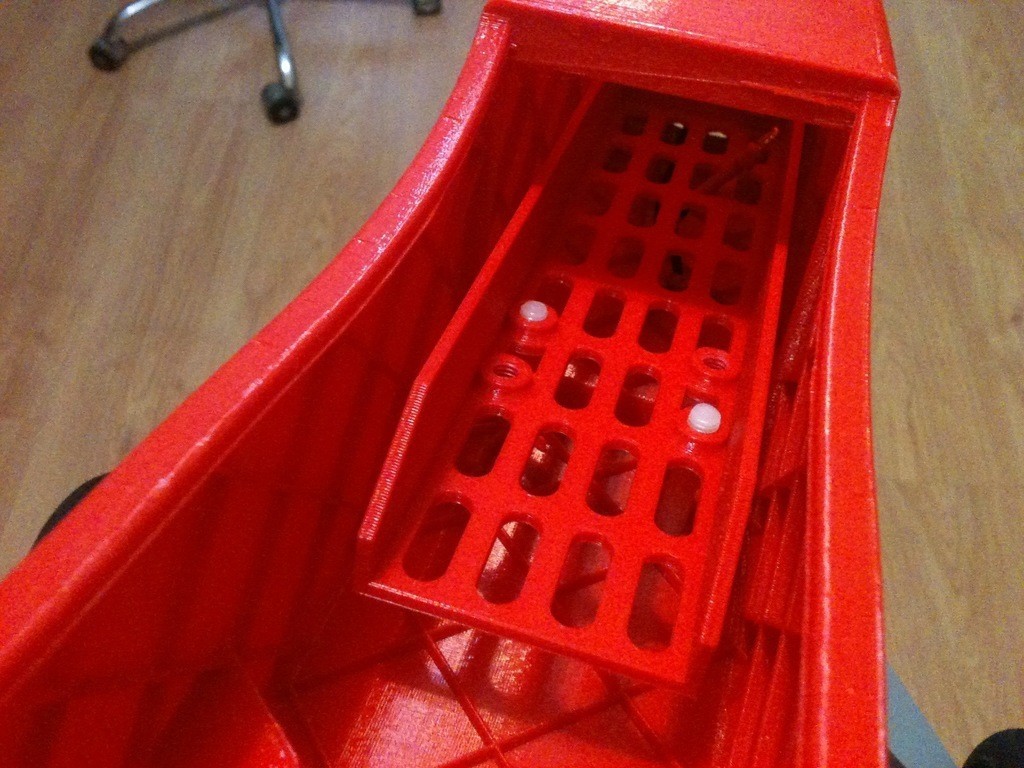

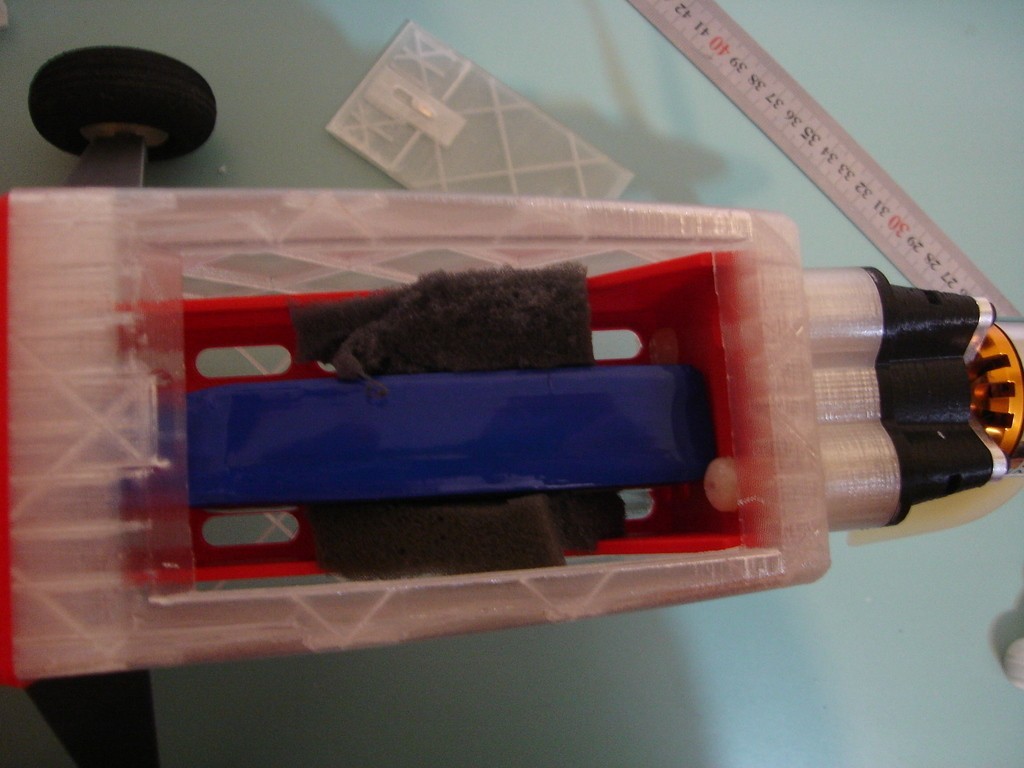

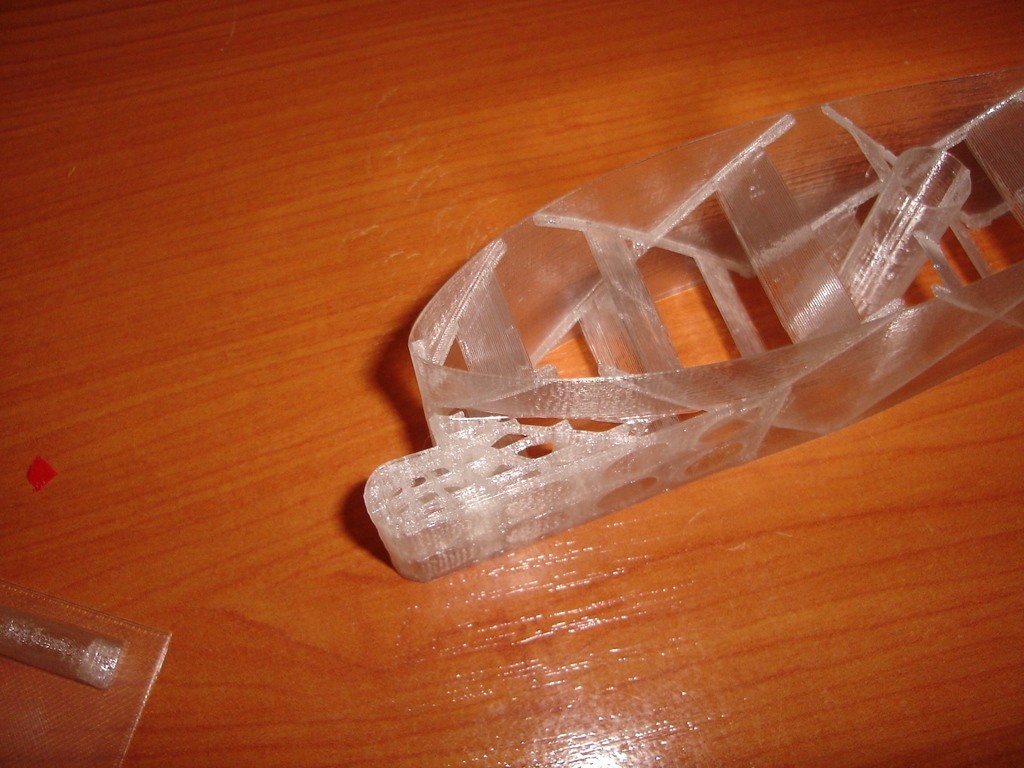

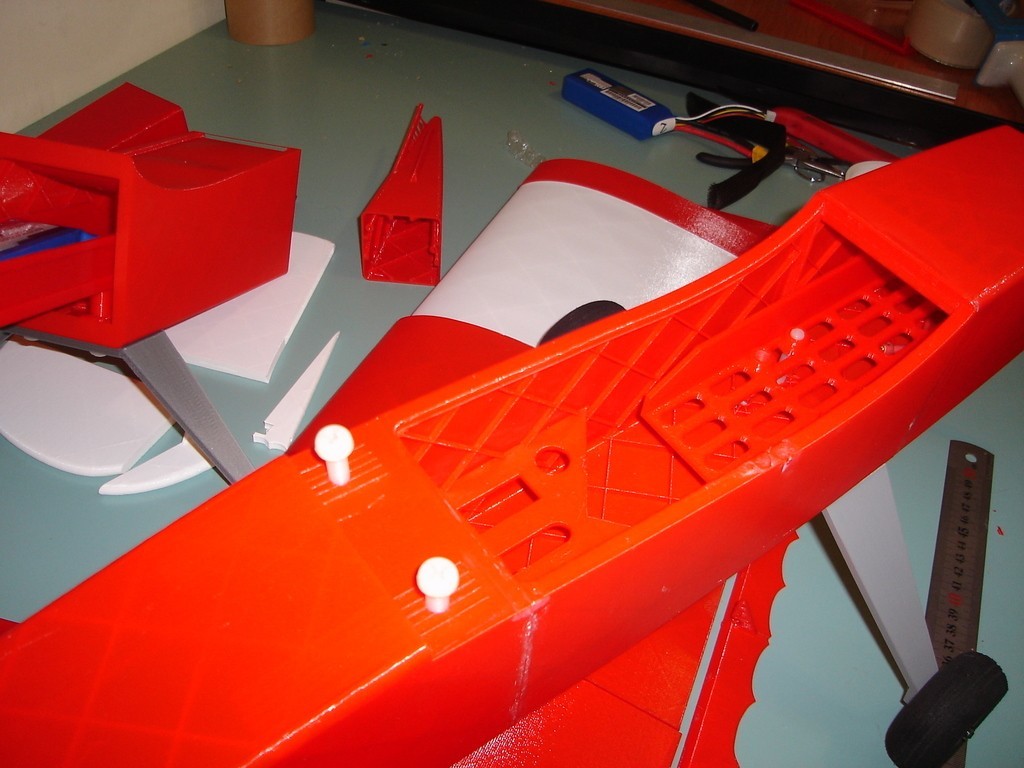

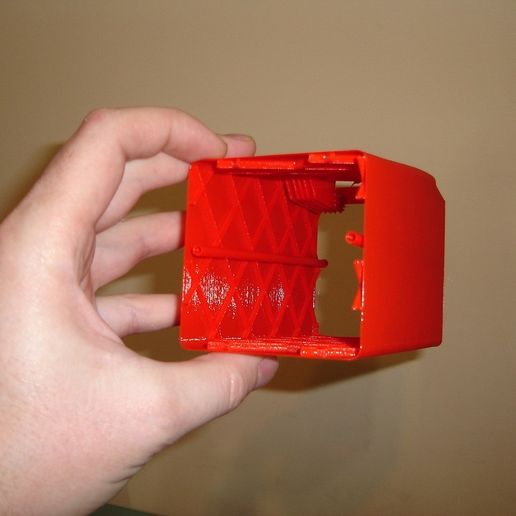

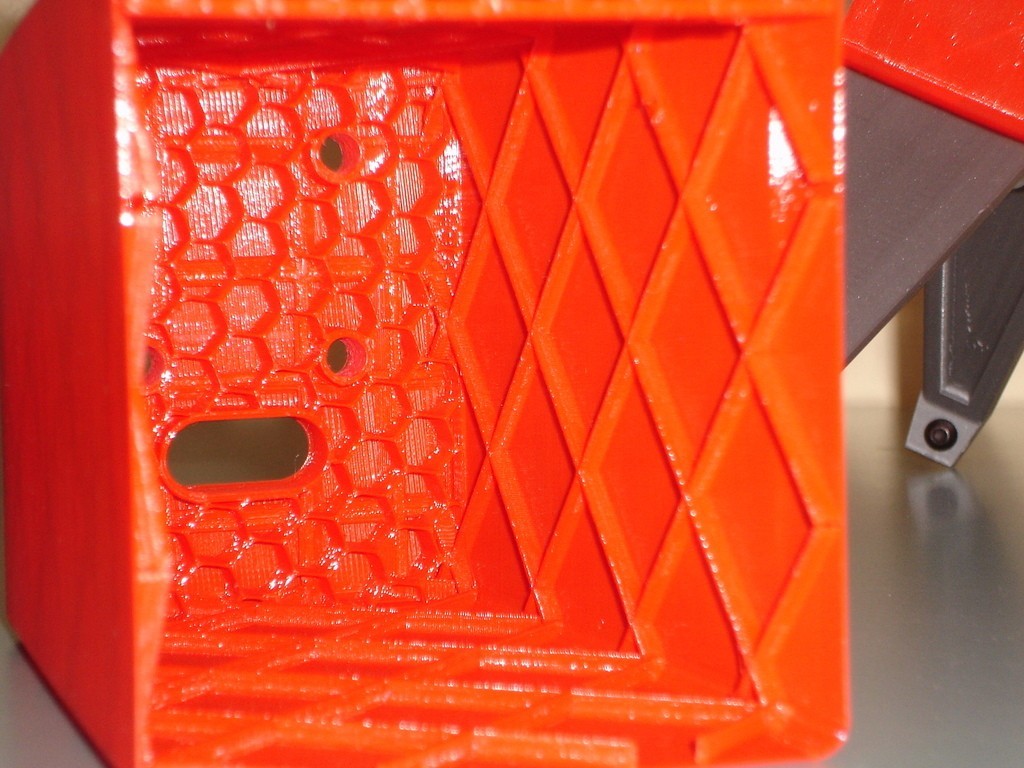

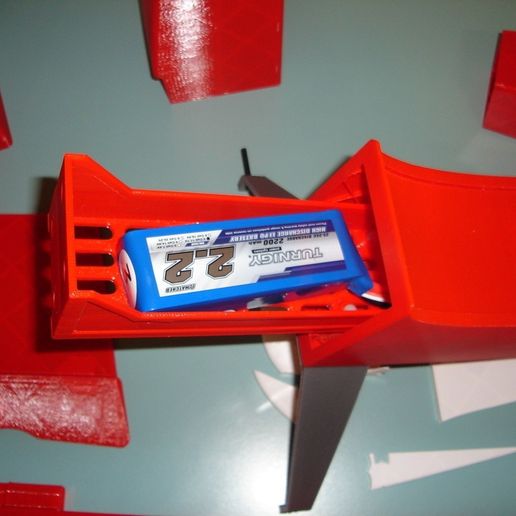

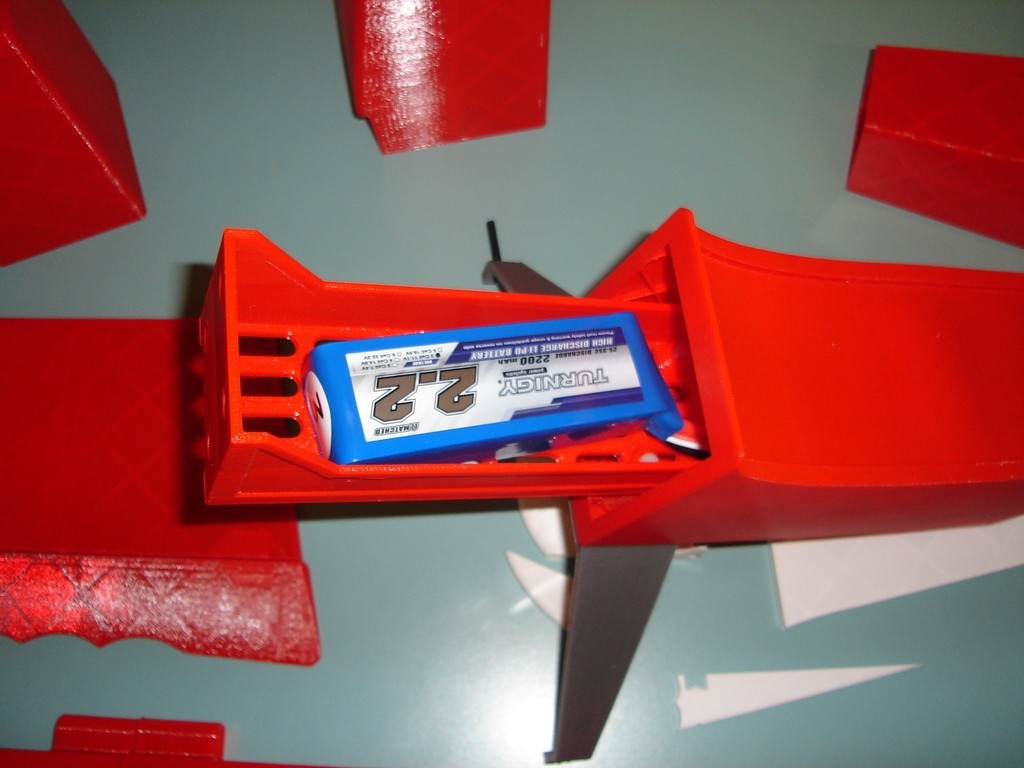

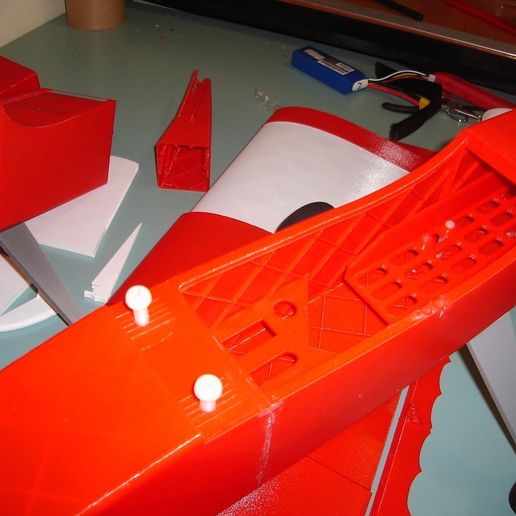

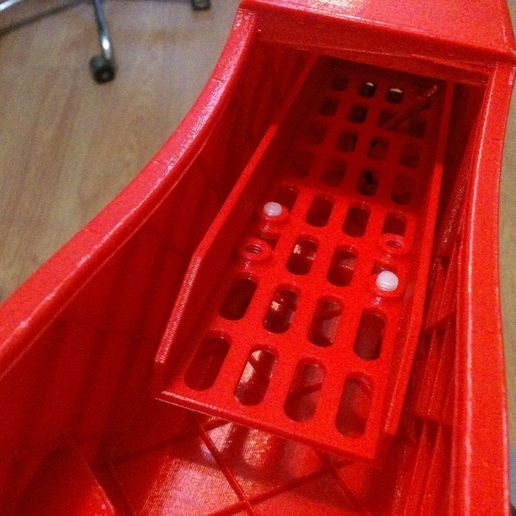

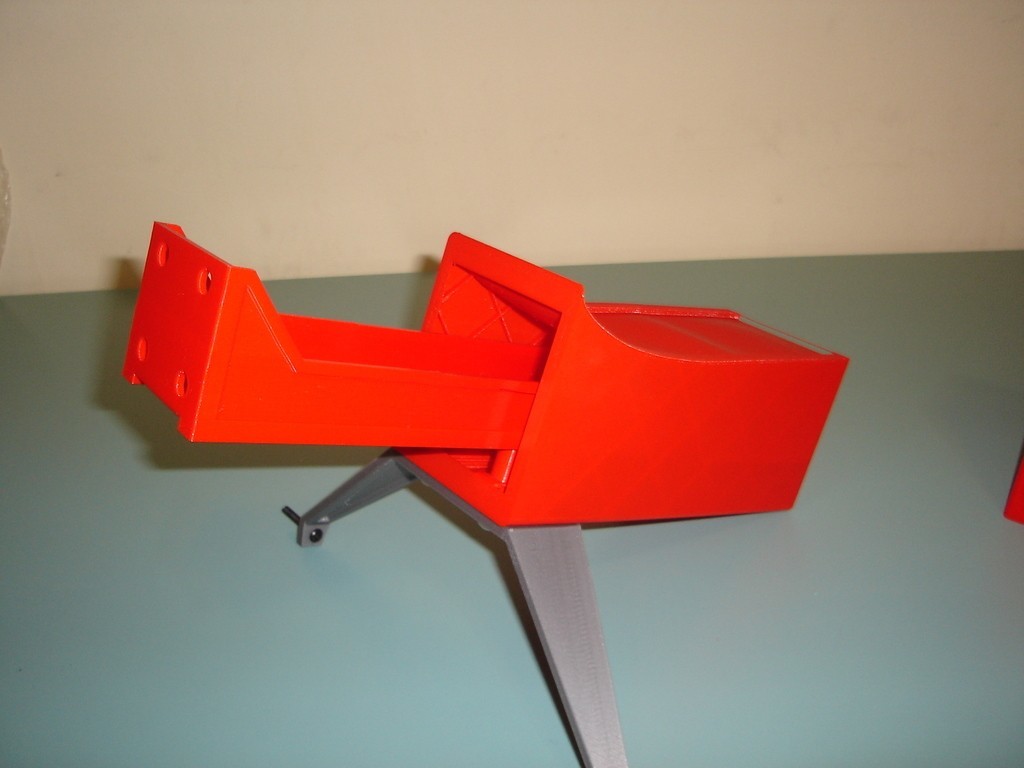

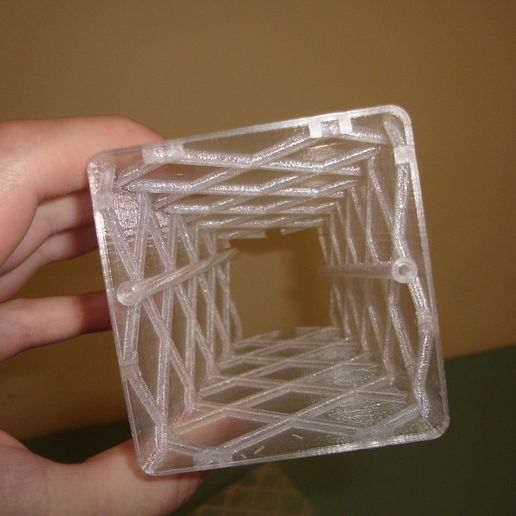

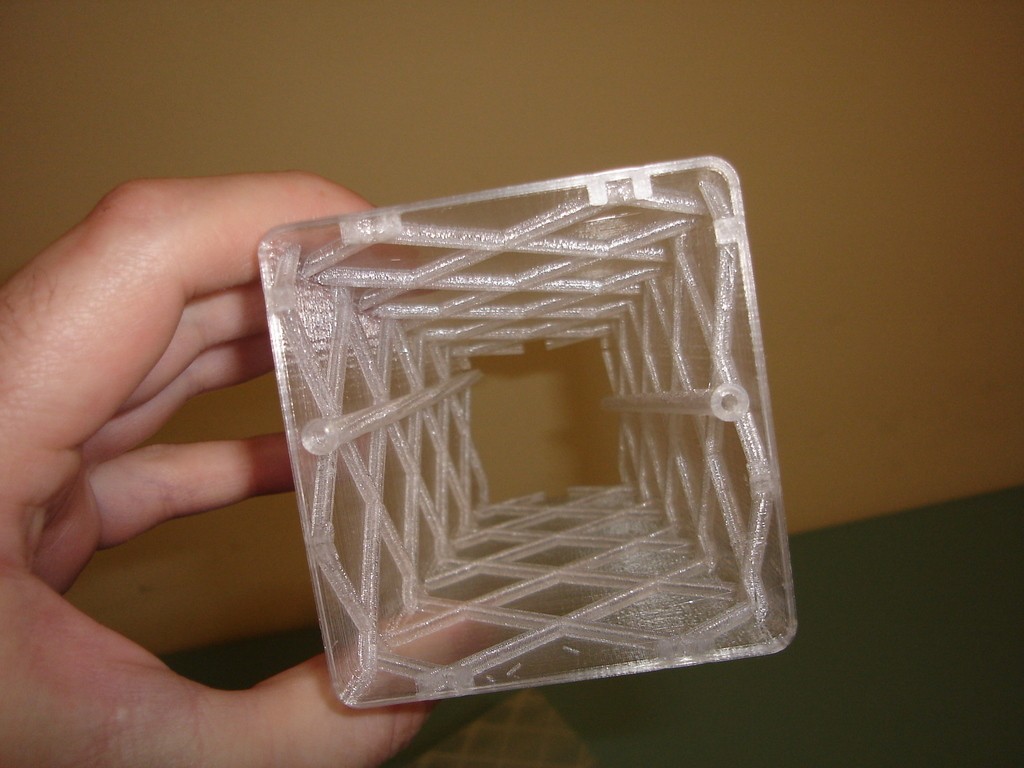

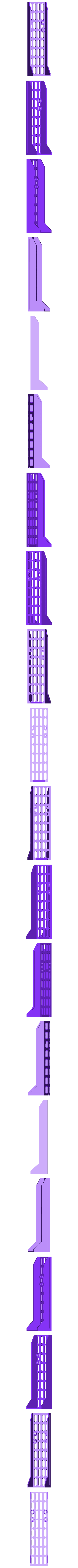

And the fuselage1 needs 10mm of hex 10% infill to create a firewall and slace for the battery tray, without these 10mm the battery tray will not touch the firewall.

Better use the .factory or gcode files.

Basic specs

Print weight: +/- 850grams
AUW: +/- 1550grams?
WingSpan 115cm
Motor 300watts?
C.G. 90 mm from the leading edge

Needed stuff

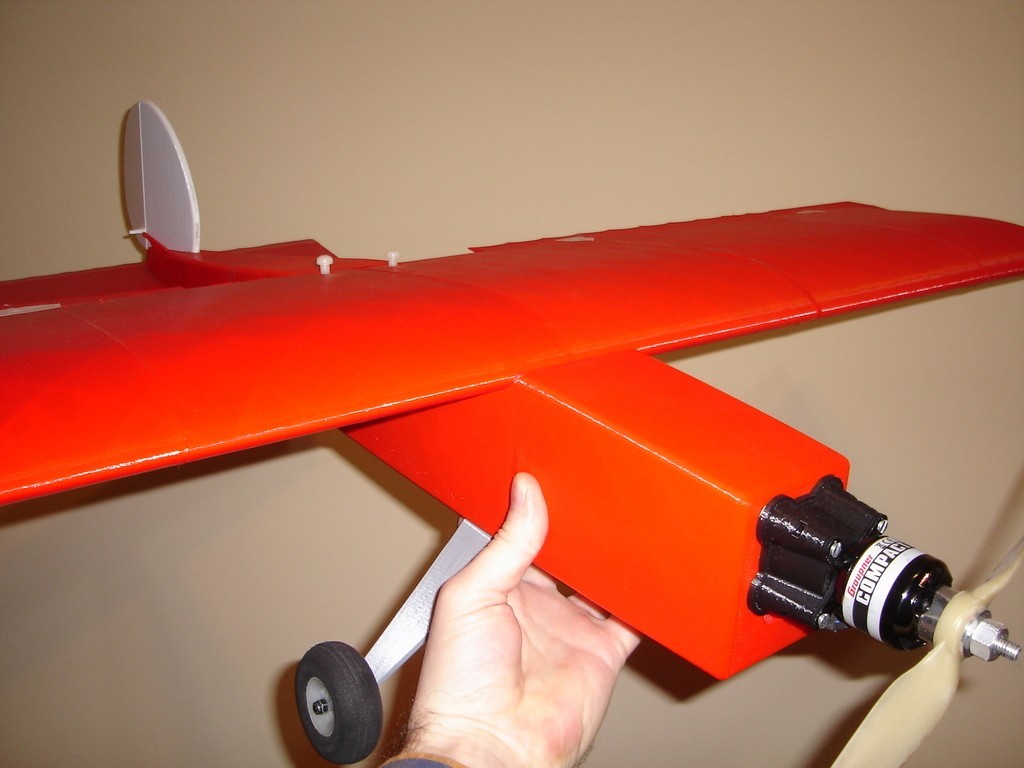

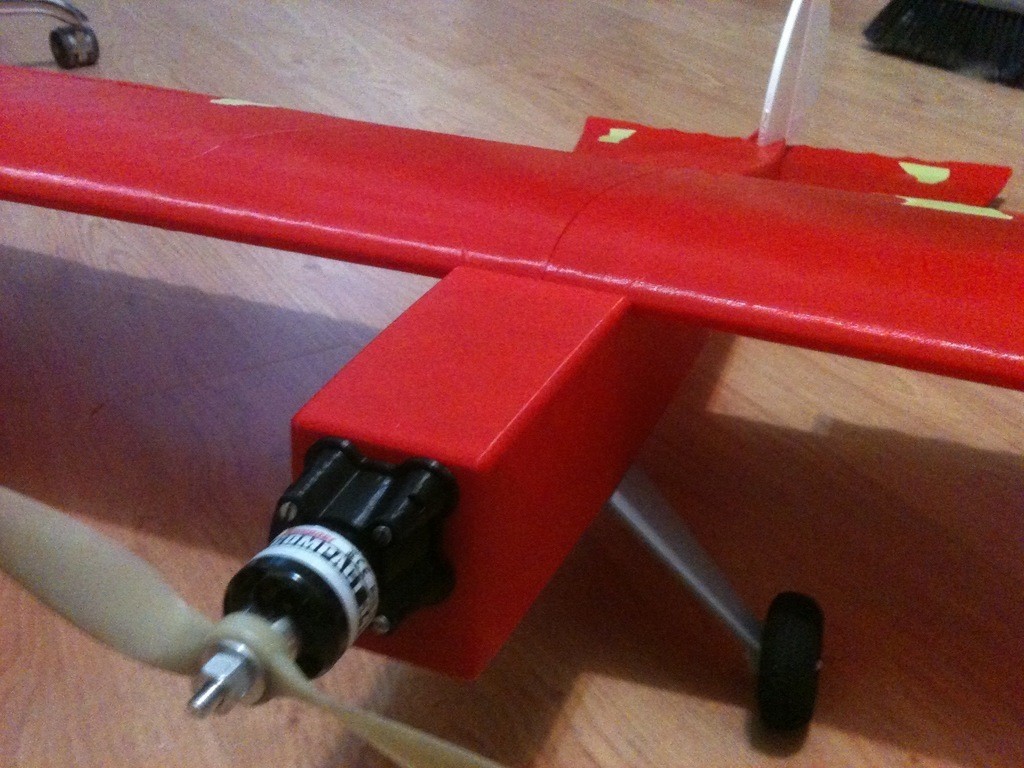

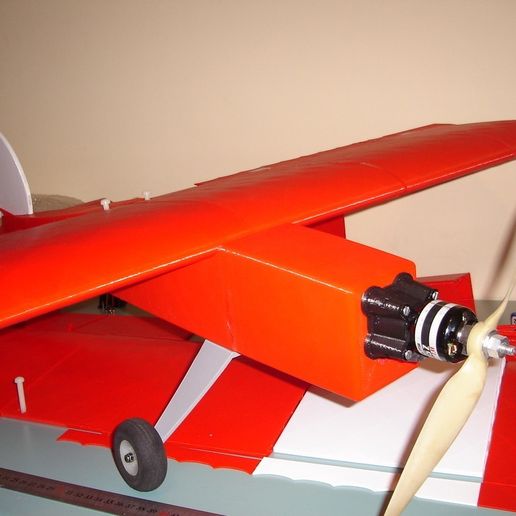

Outrunner 3530 or 3536 3s 2200ma/h battery 40amps esc
2 hs81 size servos for rudder and elevator
2 hs55 servos, one for each aileron

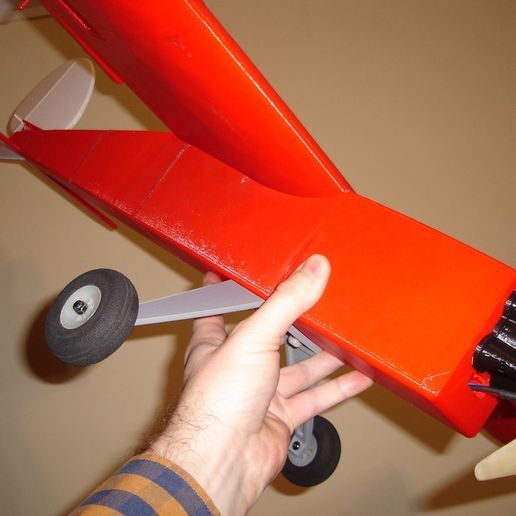

2 wheels, the lighter the better, 1 rear wheel and a piece of 2mm wire for the rear landing gear.
0.5mm or 0.75mm piano wire for the links (rudder and elevator)
A colar for the rear landing gear, the rear wheel will be free.
Two or four servo extensions for the wing servos.

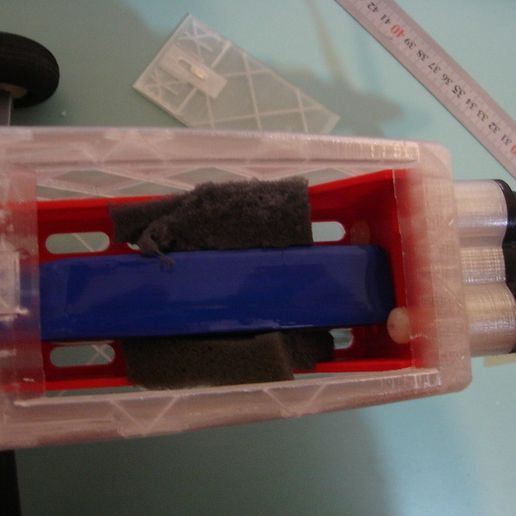

Velcro or a velcro strap for the battery
CA hinges
Medium or thick CA
CA Accelerator
A propeller
10 M6X40 Nylon screws
4 M3X20 steels screws and 4 M3 nuts and a few M3 washers.
40cm 10mm carbon fiber tube for the wing (optional)

###

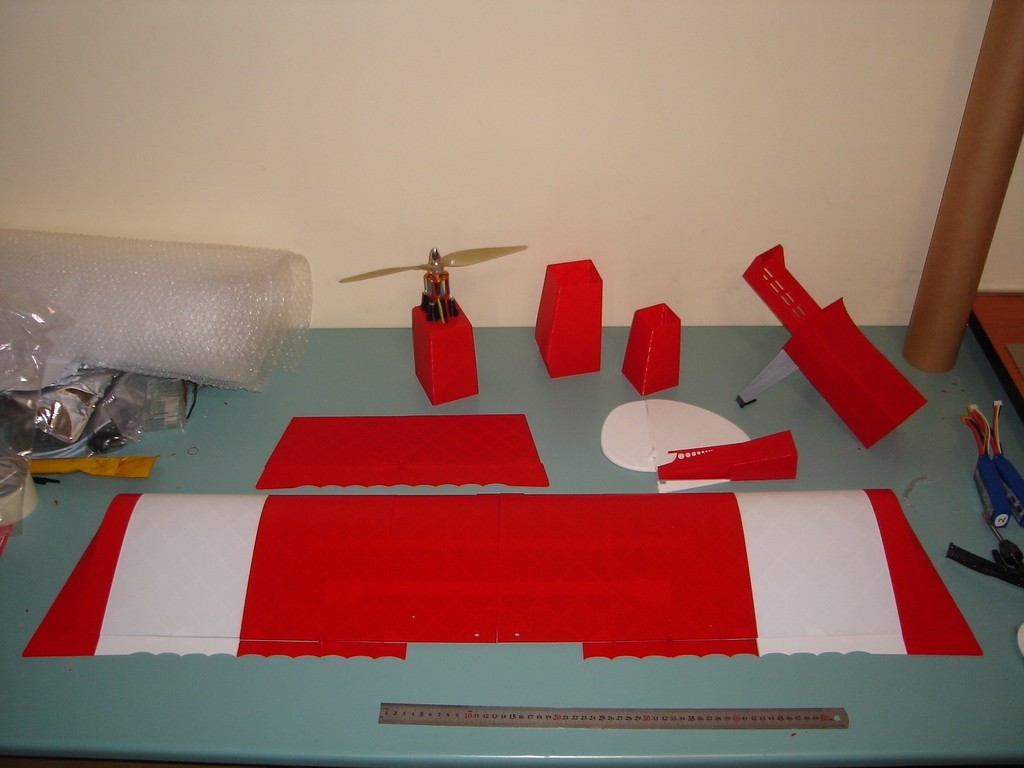

Files provided:
GCODE files for a Prusa i3MK2
Simplify3D .factory files

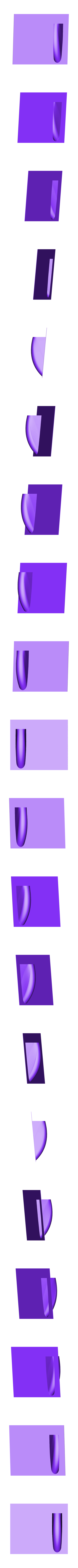

STL files

There are minor improvements that I will add in the next release, all described in the text file included in the zip package.

I´m also sharing the files on my website here: https://aerofred.com/details.php?image_id=99742 where you can find many model airplane plans and in the future more 3d printable planes.

### #RCGroups thread:####
https://www.rcgroups.com/forums/showthread.php?2992513-AeroFred-Das-Liddle-Stik-3D-Printable

Updated

Updated on 30.11.2017
Added wing servo covers STL, GCODE, .factory

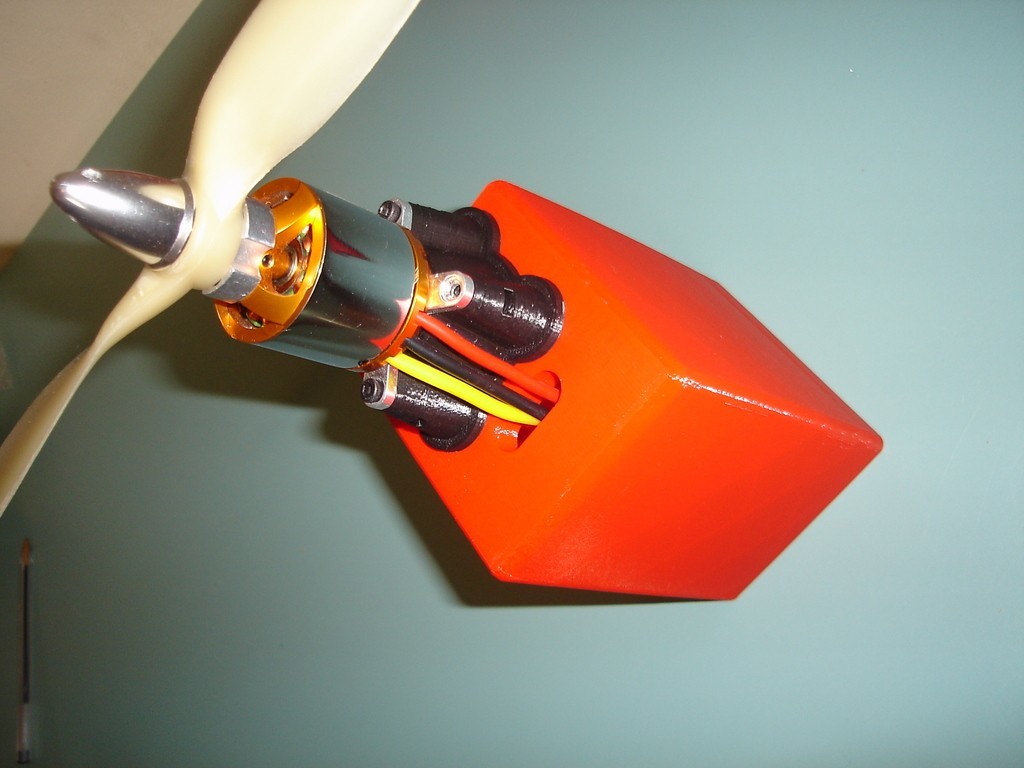

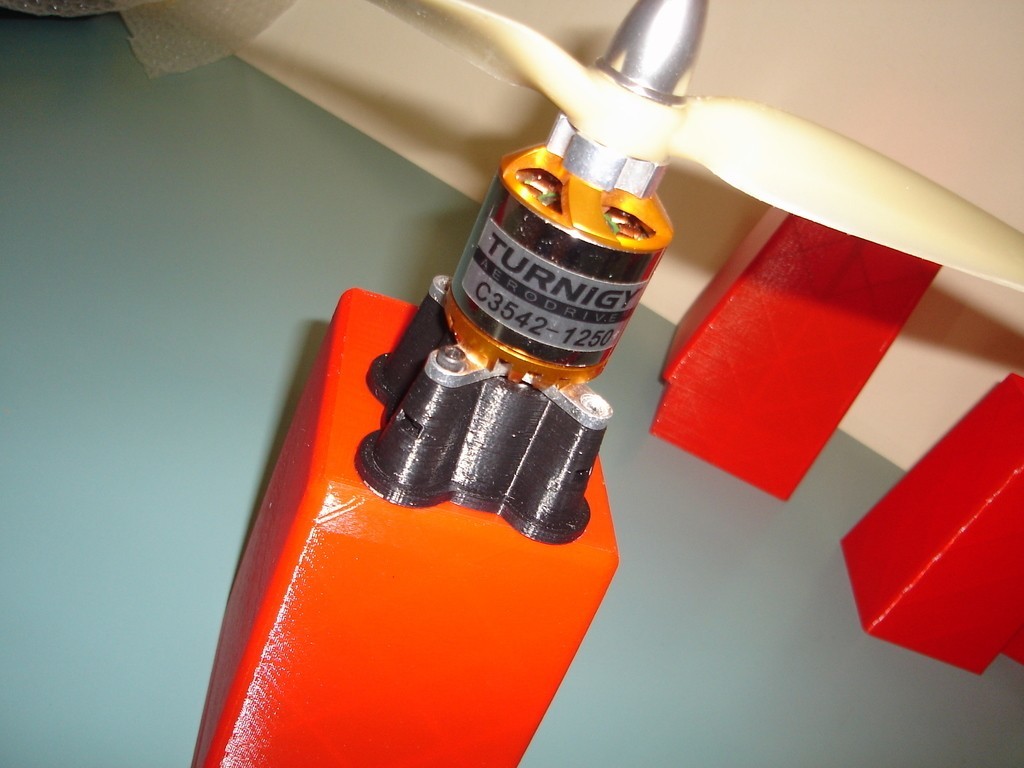

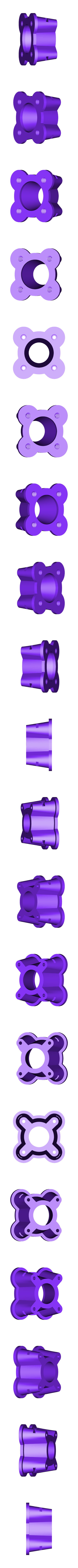

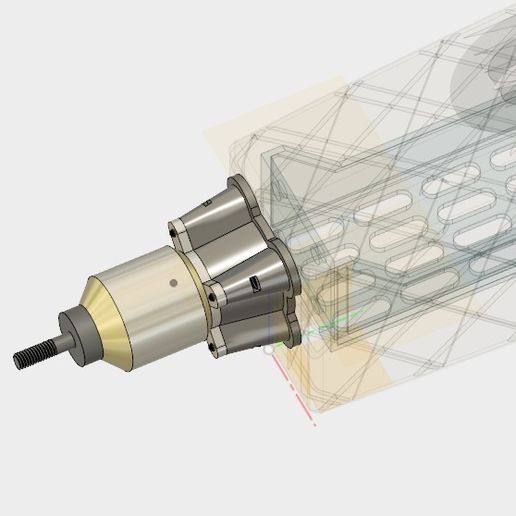

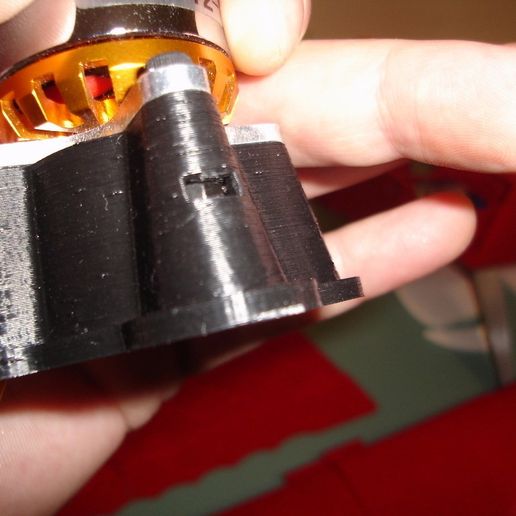

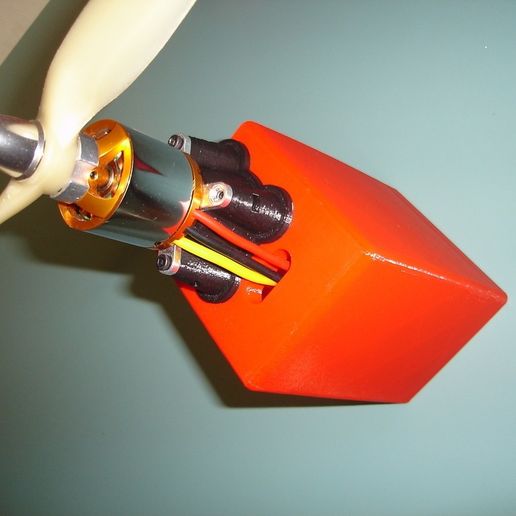

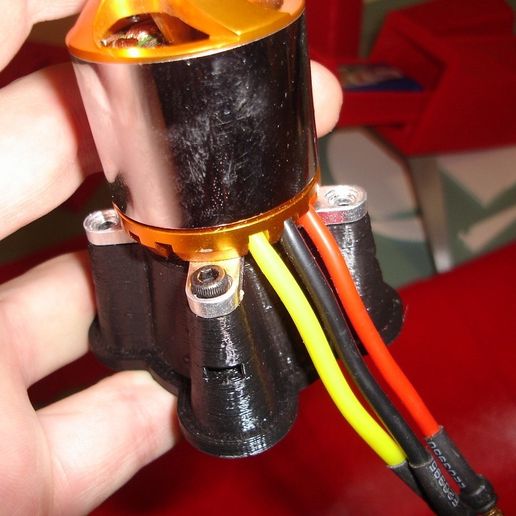

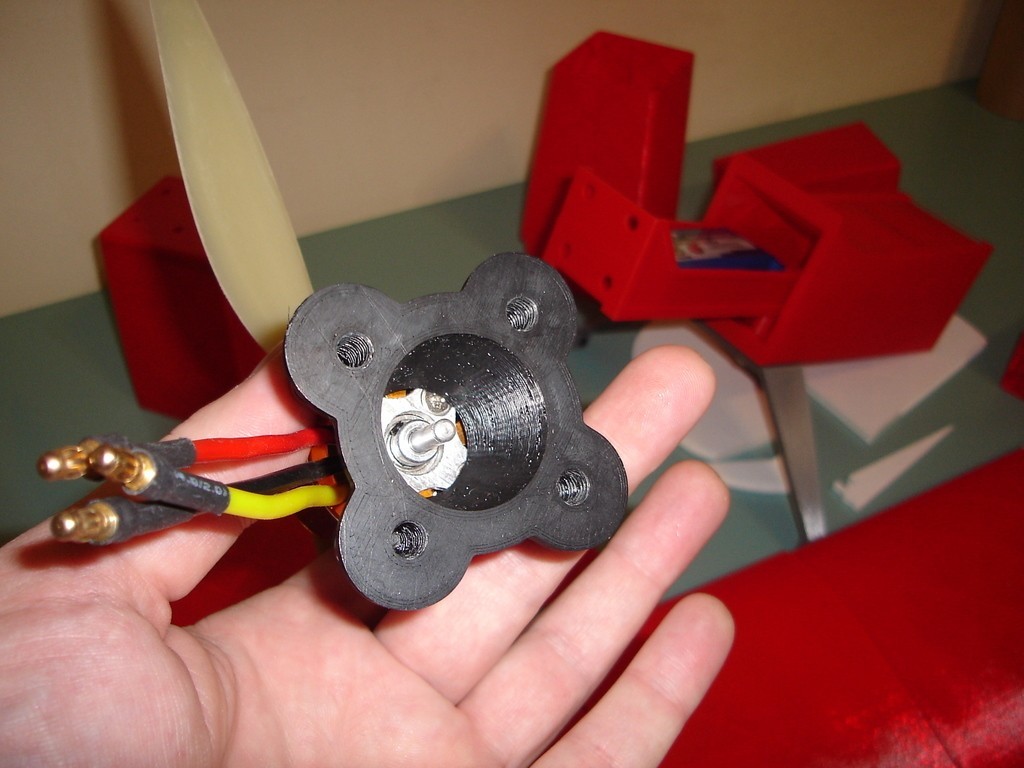

Added Torque compensated motor mount 2.5º down and 2.5º right

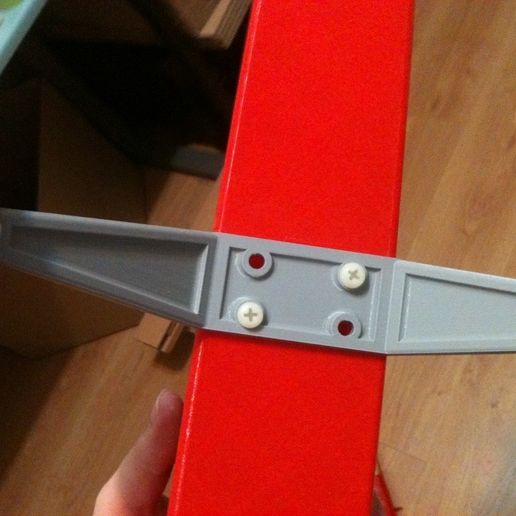

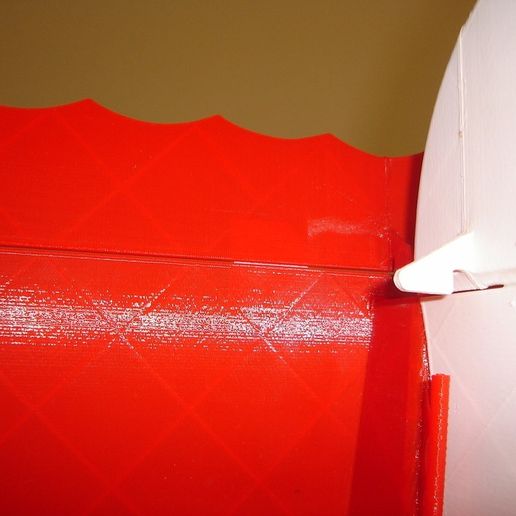

Added reinforcement on the wing tongue, the part that slits into the fuselage at the center of the wing.

Updated on 19.12.2017

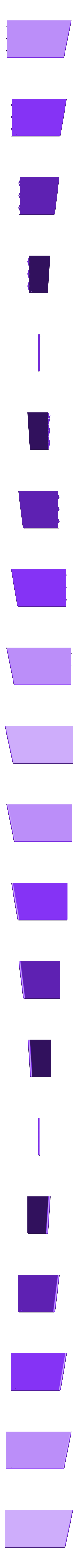

Added a lighter tail section STL, GCODE, .factory

Updated on 21.12.2017
Corrected small issue on vertical stabiliser.

Updated 26.12.17

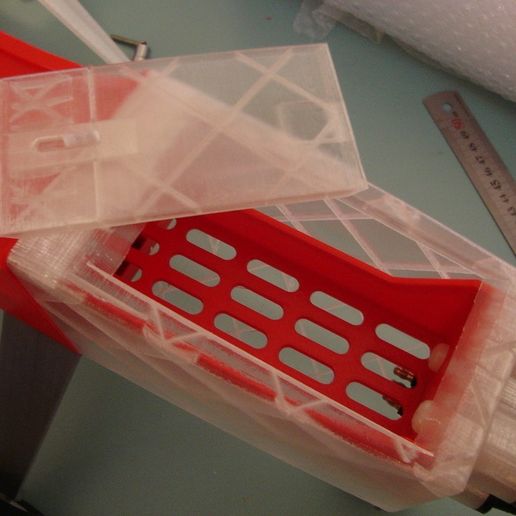

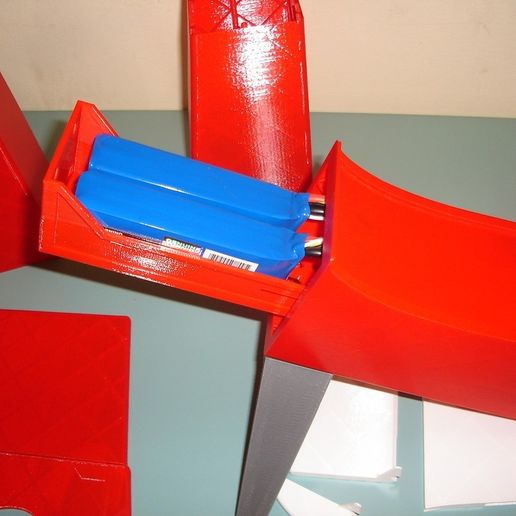

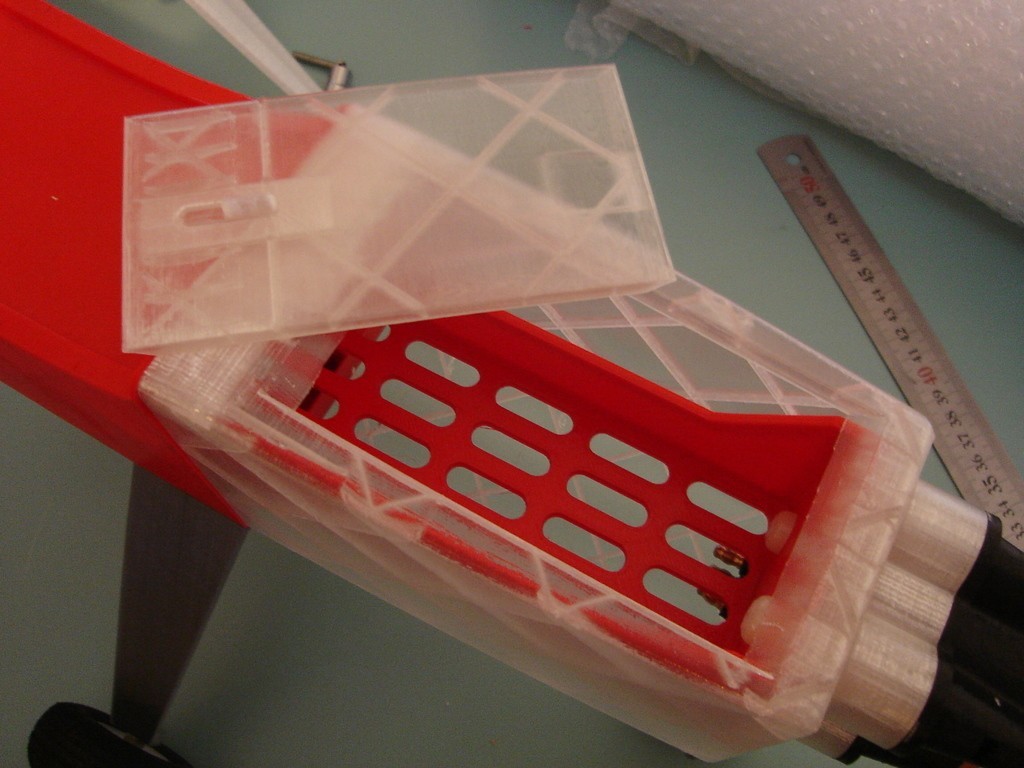

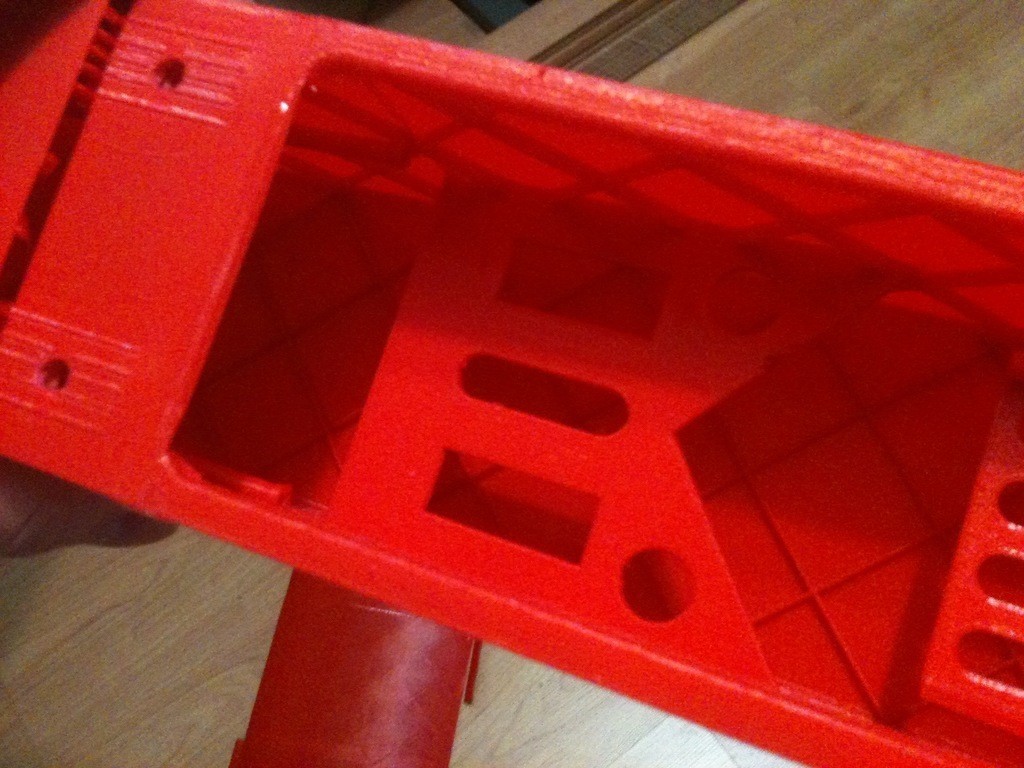

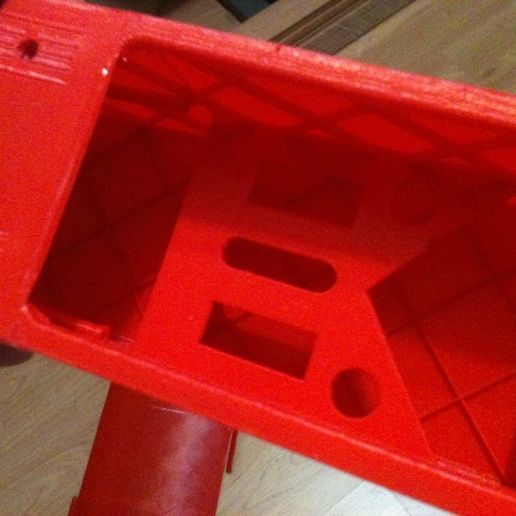

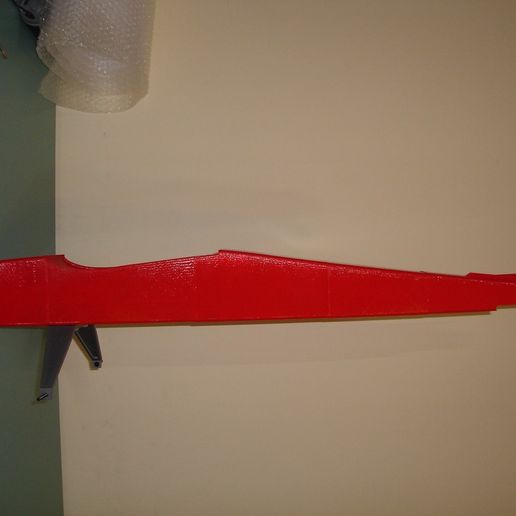

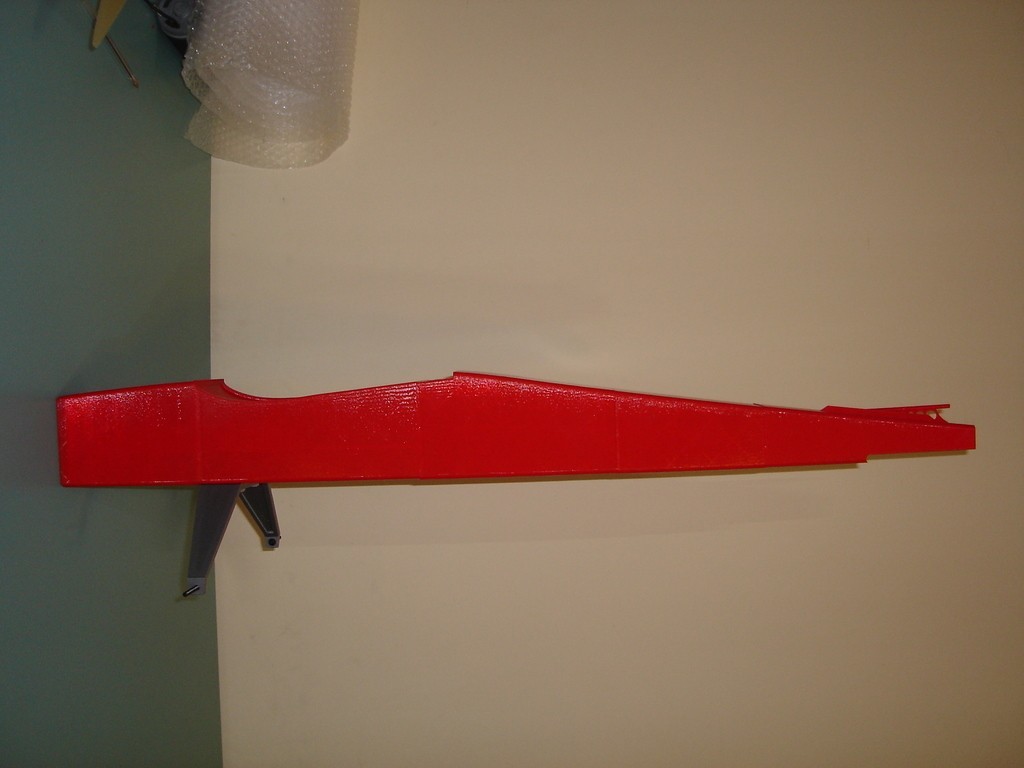

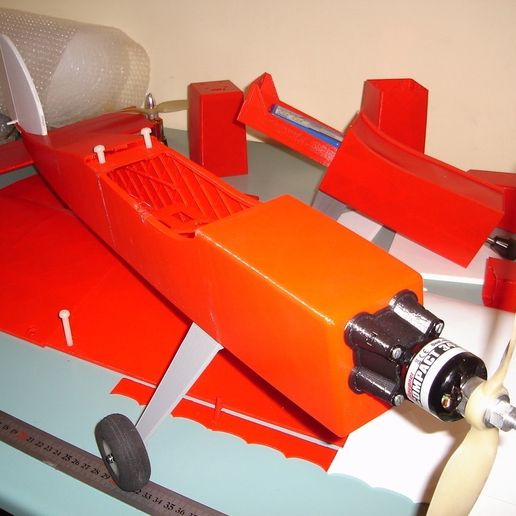

Added Fuselage V2 with battery hatch and reinforcement at the wing fixings, added motor mount spacers, reinforcement on wing trailing edge near fixing bolts.

Updated 2.1.18

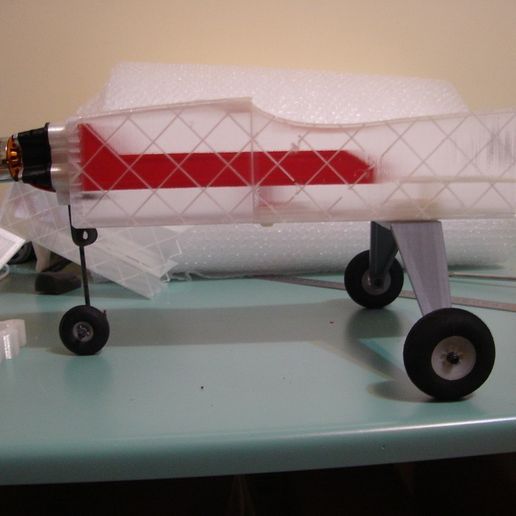

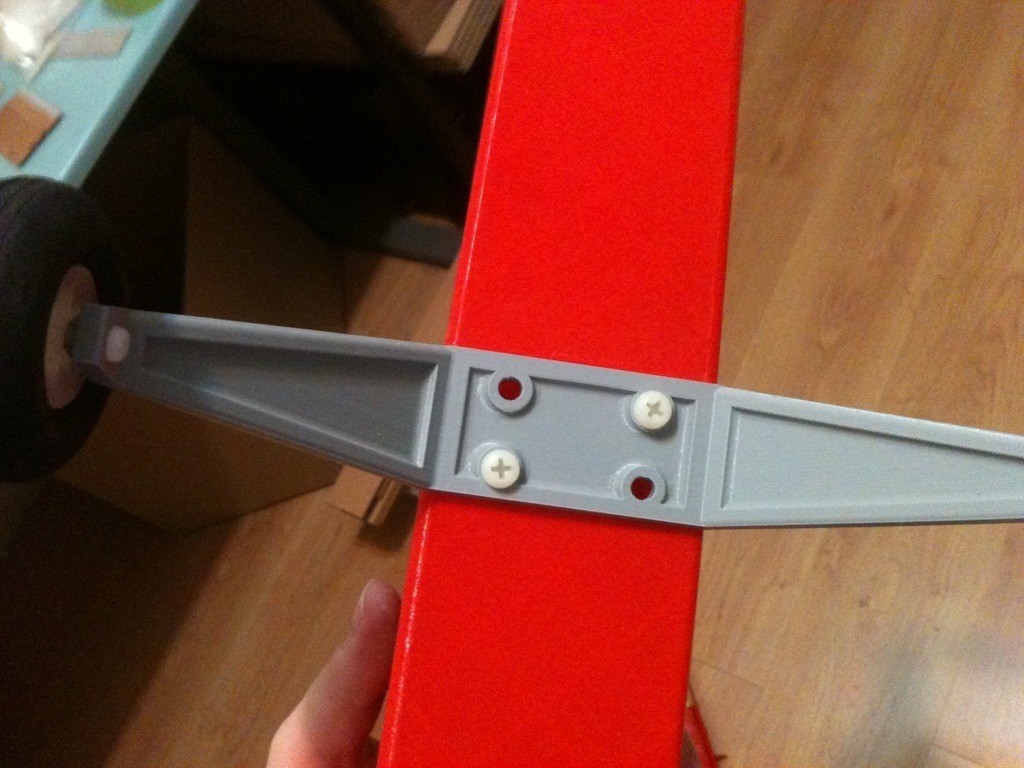

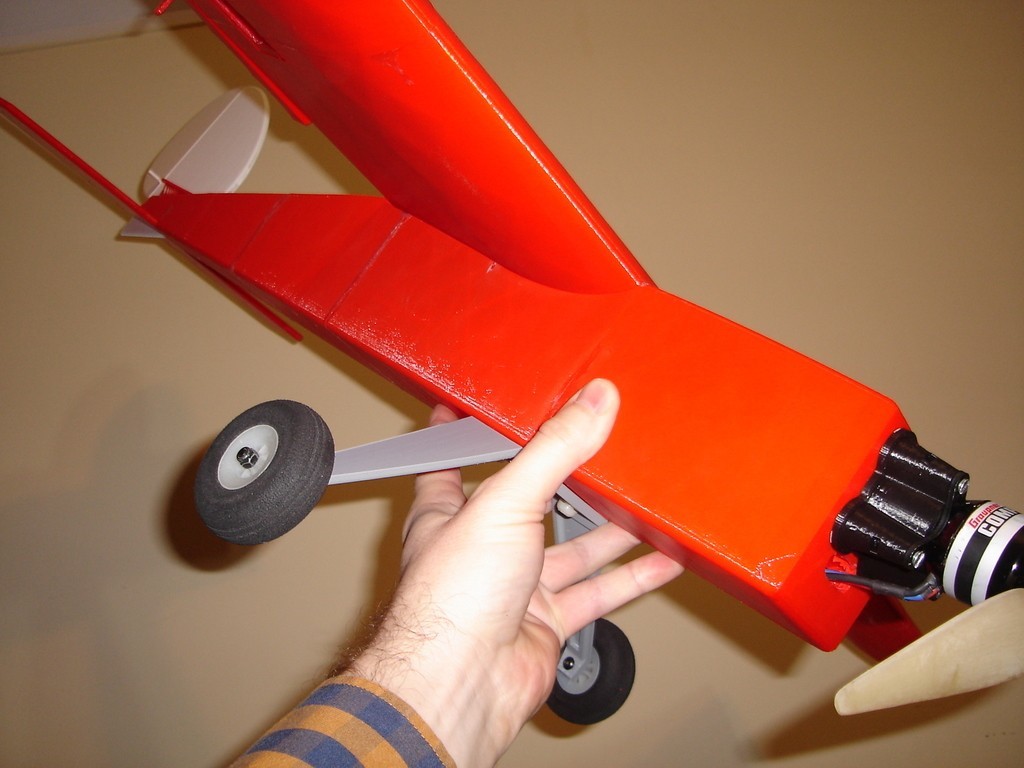

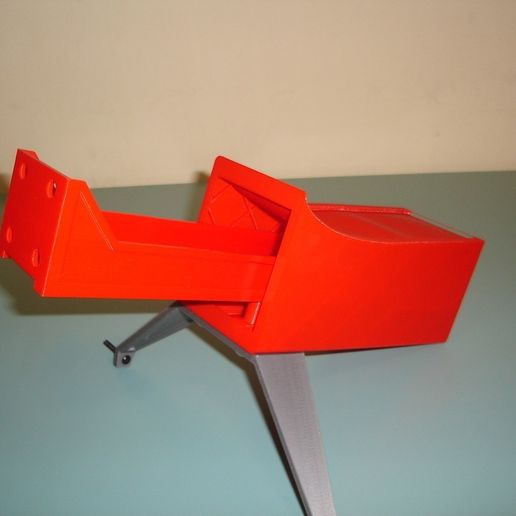

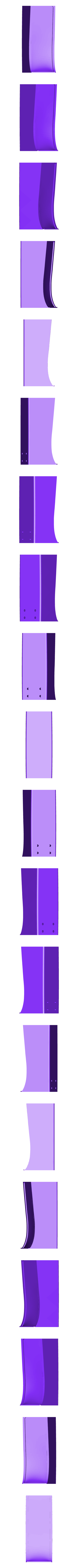

Added tricycle landing gear option, F2 and mount for front wheel.

Updated on 13.1.2018
Added all parts as a separate gcode for prusa i3 type printers.

Credits

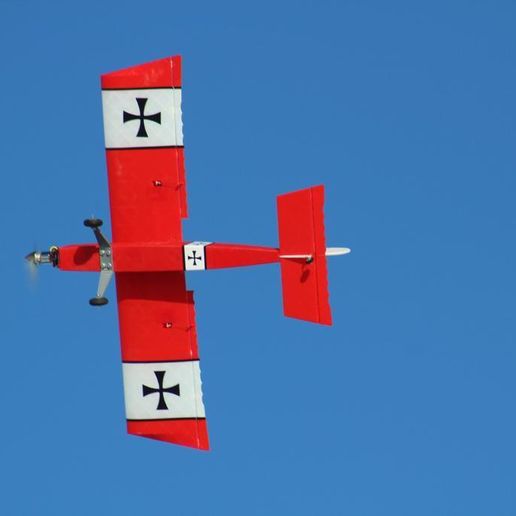

Flight photos and video thanks to Mr. Tom Mansell
https://www.youtube.com/watch?v=ul8IGv1h6iY
https://www.youtube.com/watch?v=PBOJEQwHUM4
https://www.youtube.com/watch?v=bb8KrTp91H8

The plane is done I won´t be adding any more features, only corrections if necessary.
