Bricks Marble Ramp

?
Creation quality: 4.5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

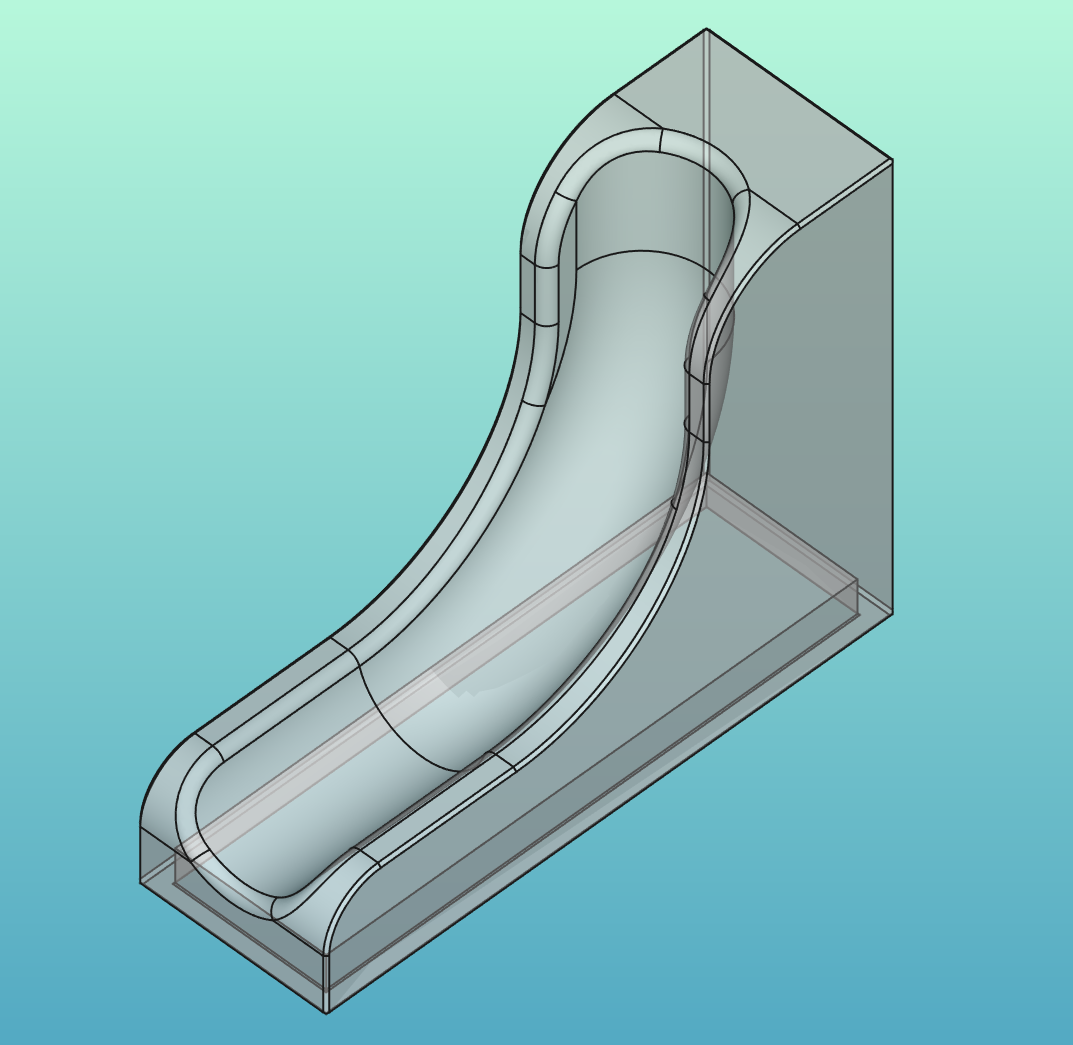

Ramp for a bricks marble run compatible with Duplo(R) / Lego(R) bricks. Is three Duplo(R) bricks long, one wide, and four high.

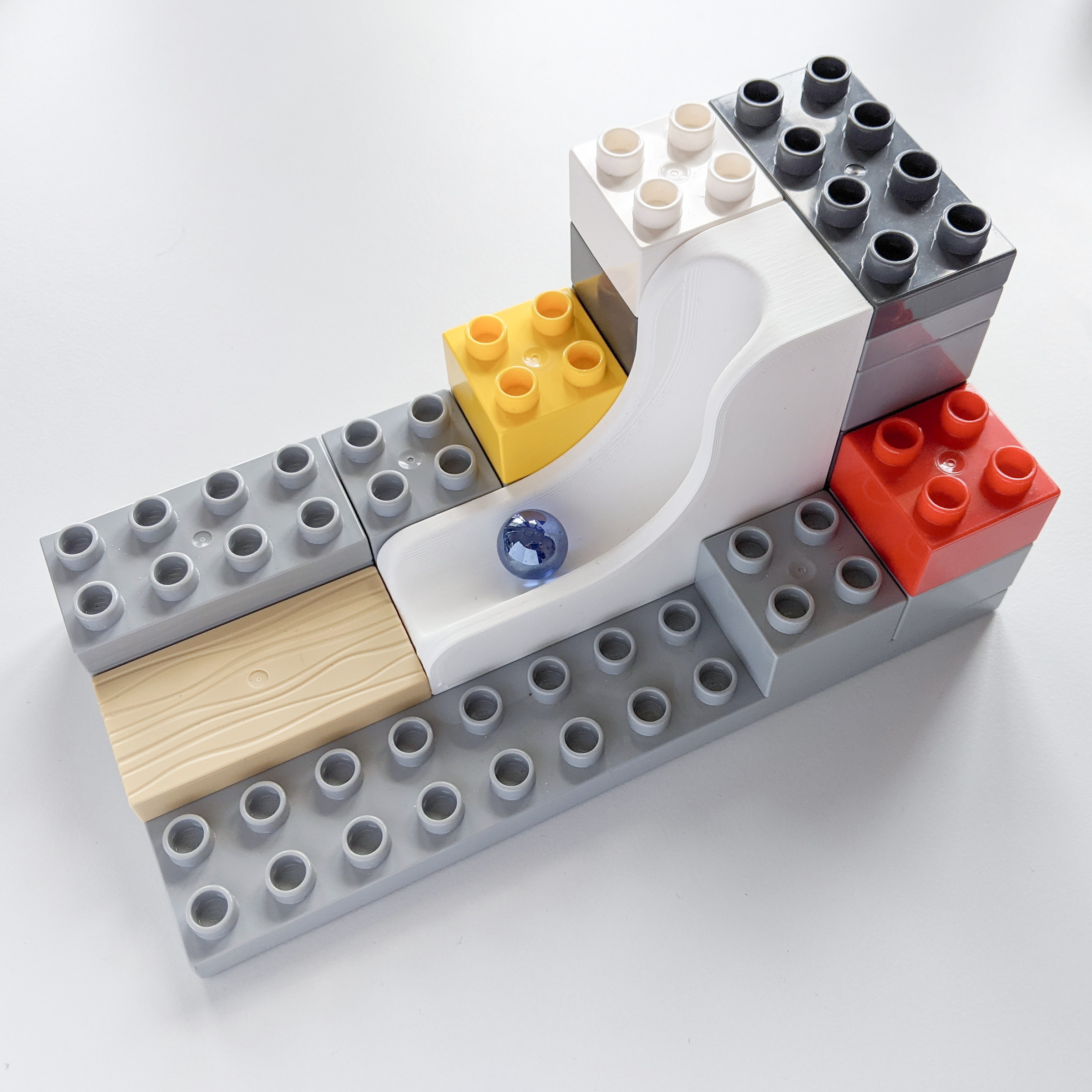

We use it to create makeshift marble runs, or a marble catapult with our bricks.


3D printing settings

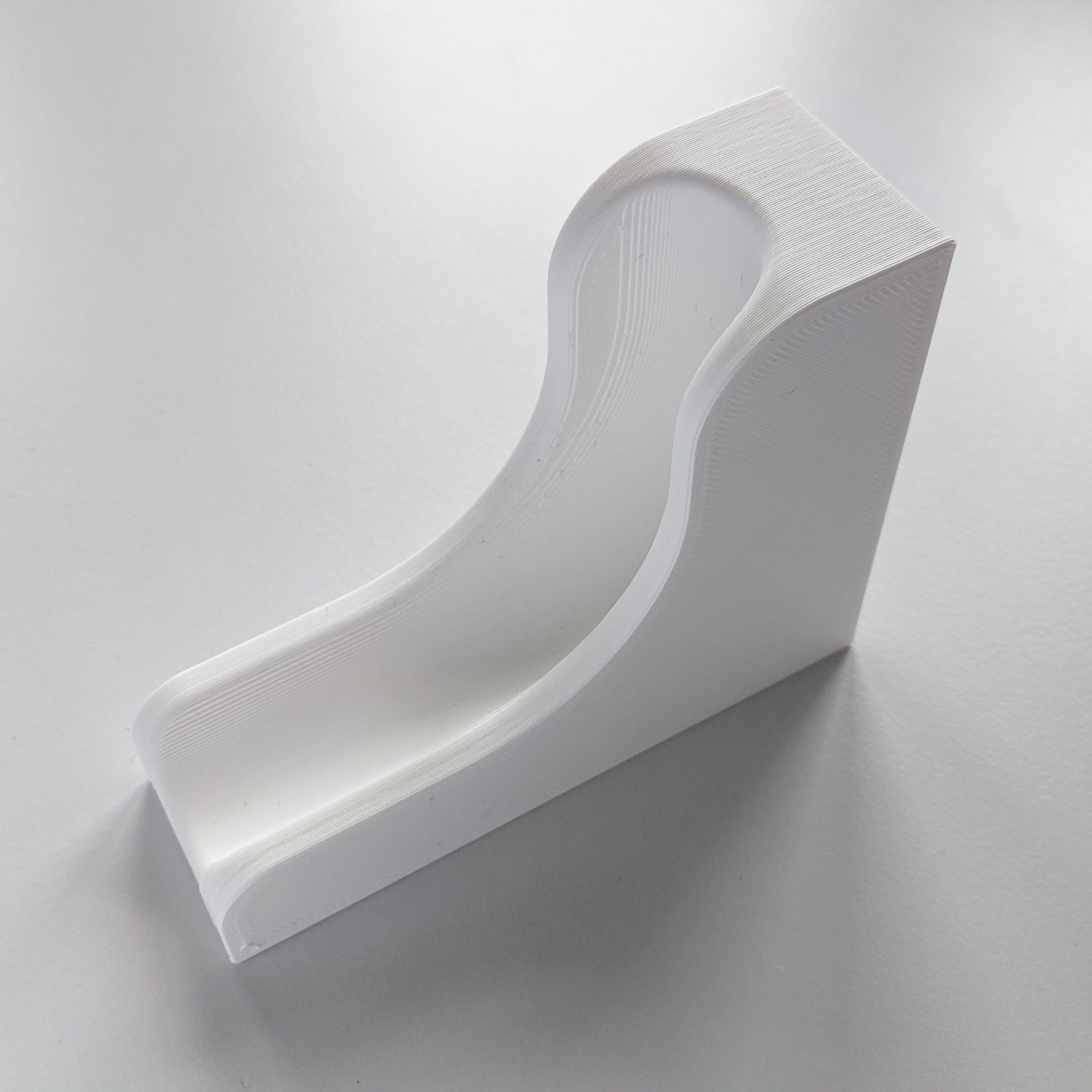

I laid it on one of its sides for printing, so that the layers go along the track of the marble. I then used 0.3 mm layer height and activated all supports. Also I set 4 perimeter walls for increased stability. I printed it in white PLA and it took around 3 hours.

3D printer file information

  • 3D design format: STL Folder details Close
    • bricks_marble_ramp.stl

    Learn more about the formats

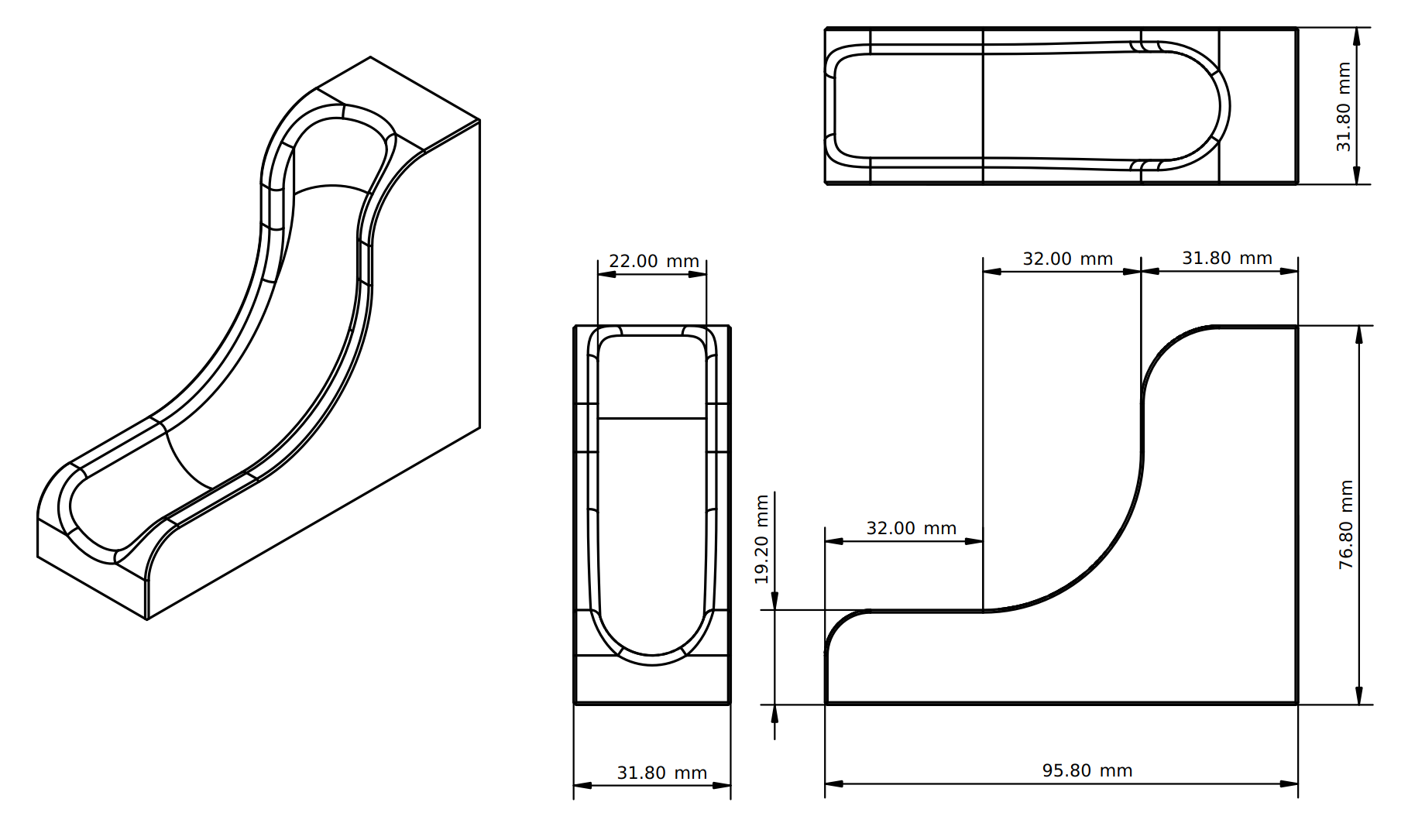

  • 3D model size: X 95.8 × Y 31.8 × Z 76.8 mm
  • Publication date: 2021-04-15 at 18:59

License

CC BY NC SA
