Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
🏆 Best ?
License
Usages
3D design format
4 files (STL) Close
  • Box corp.stl 95.0 × 70.0 × 145.0 mm
  • Box top.stl 78.400002 × 15.0 × 137.0 mm
  • Cards.stl 74.200004 × 58.0 × 93.199998 mm
  • Dice.stl 74.39999399999999 × 57.5 × 28.900002 mm

Learn more about the formats
Publication date
Design number 462896
Design author GamesCraft3D
GamesCraft3D

GamesCraft3D

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

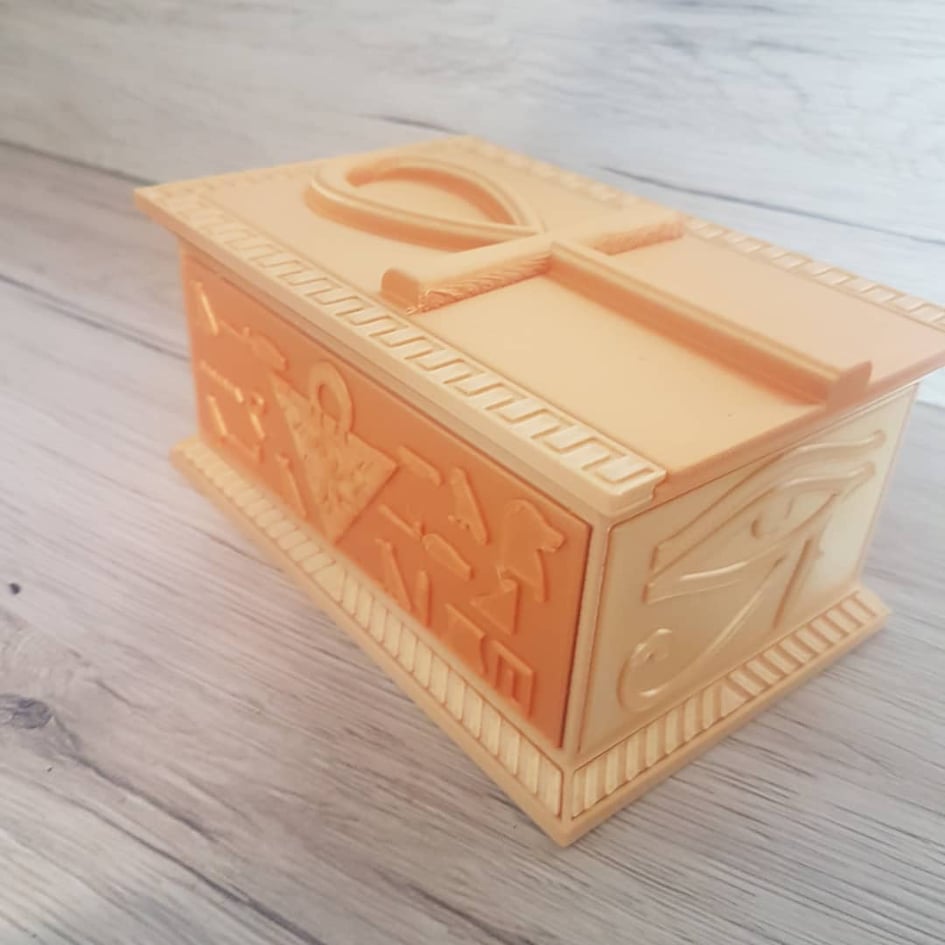

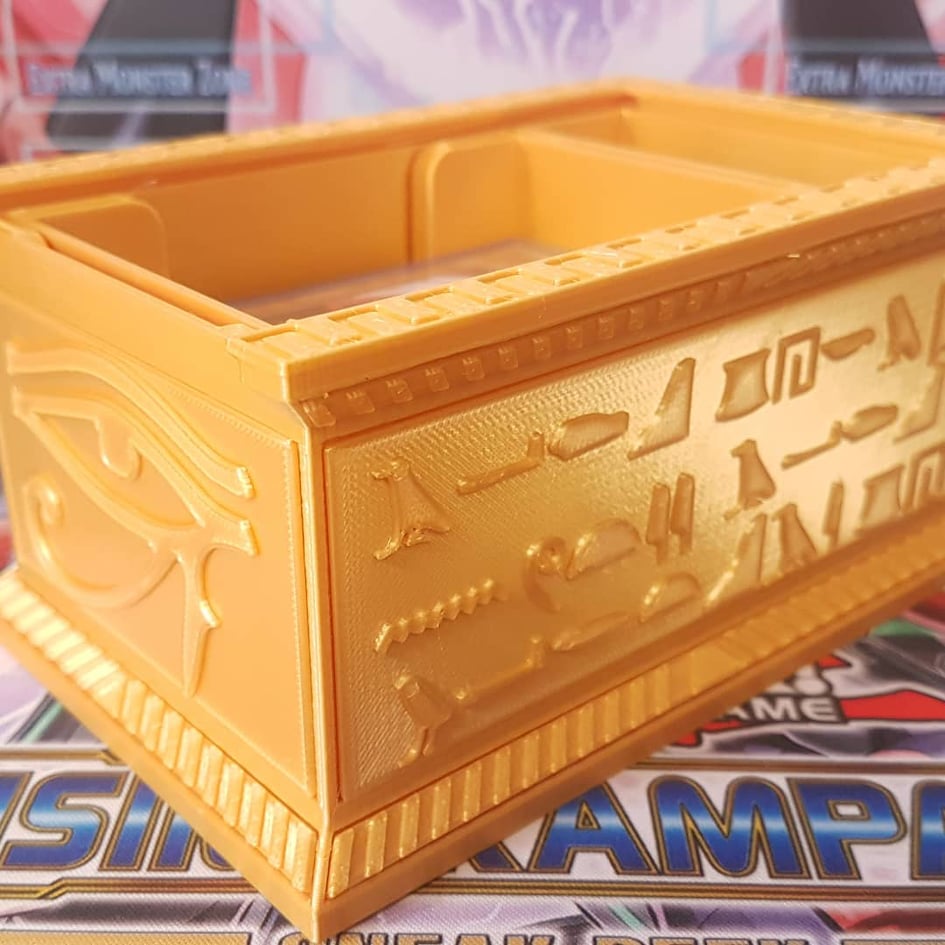

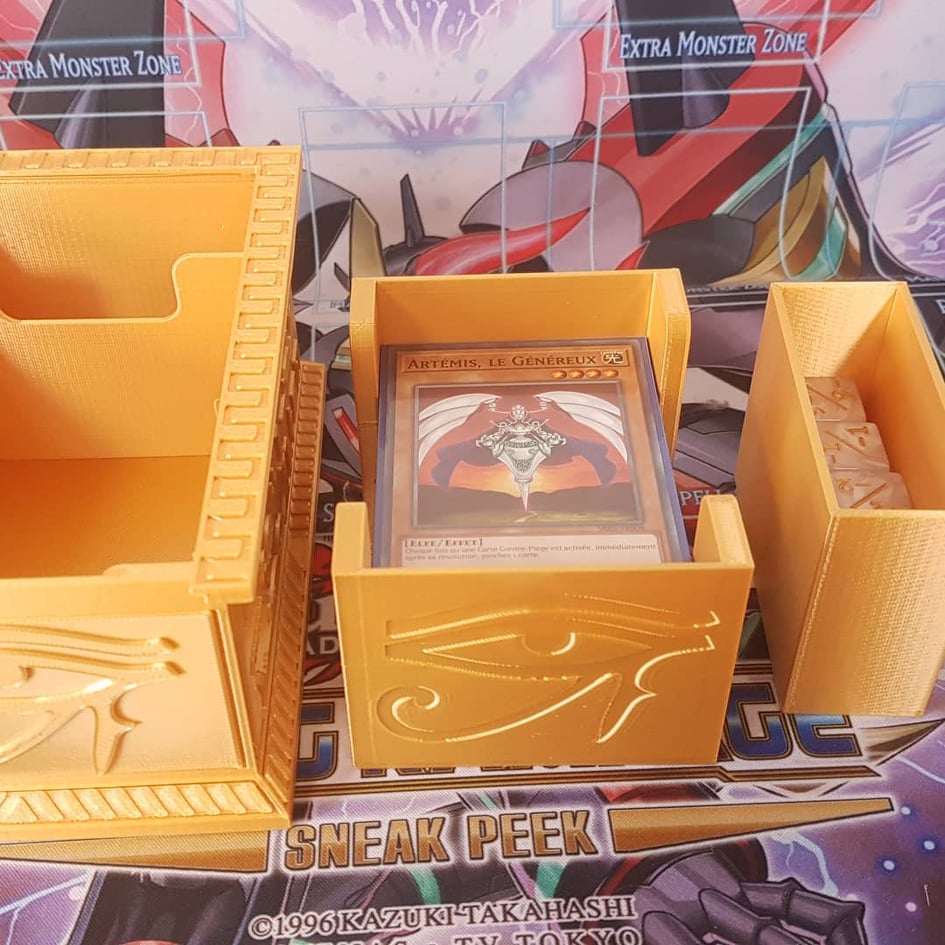

This is a Sarcophagus deckbox with a removable 70 card sleeves compartment and a removable dice compartment.

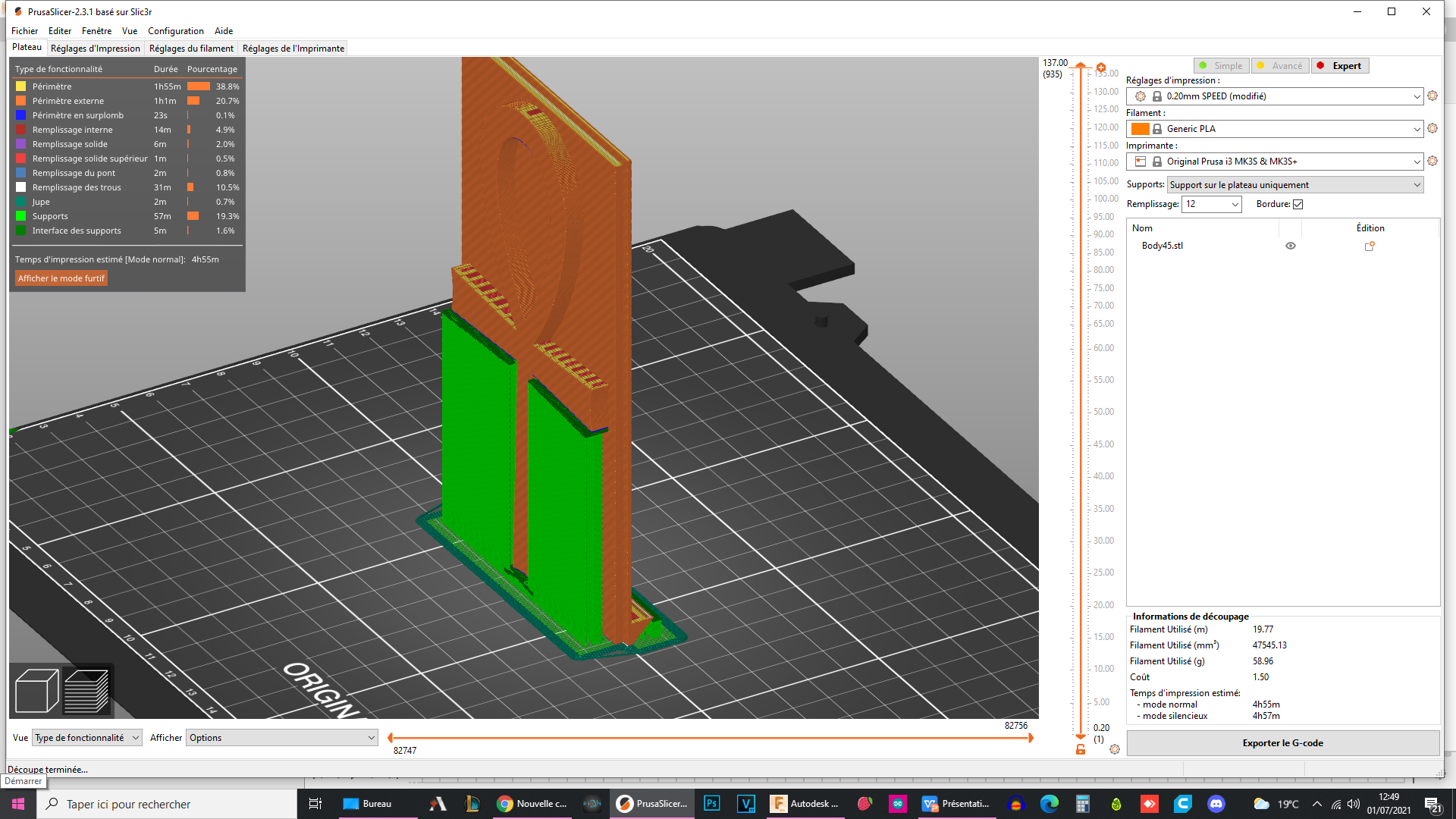

The cover slides on the top, for the print I advise you to do it on the edge with support and a small border as on the image

the deckbox can be printed without support but you will need a good ventilation for the printing of the sliding part so that the filament does not fall too much, it will fall a little but will still work

there are some improvements compared to the photos, I tested and approved this model that I created.

Thanks to you =)

3D printing settings

Printer : PrusaI3 Mk3s

quality: 0.2mms

number of walls: 4

speed: 60mm/s

nozzle temperature: 215

plate temperature: 70

Page translated by automatic translation. See the original version.
