3D model description

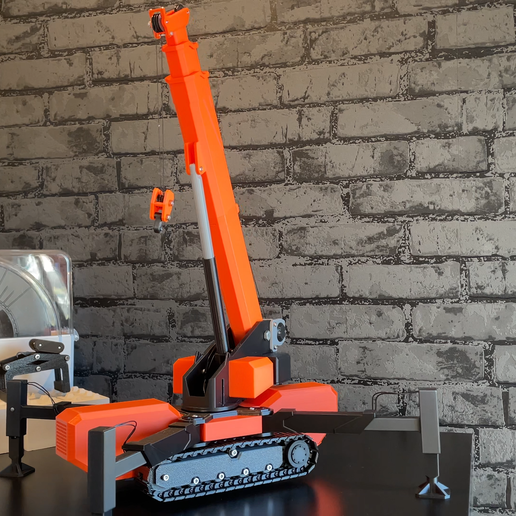

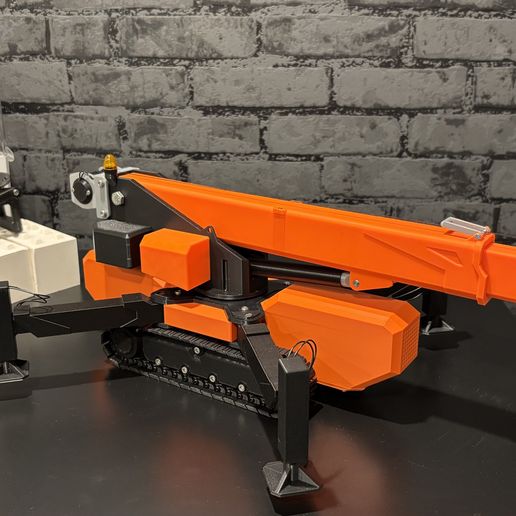

1/14 scale crane is a fully functional RC mobile crane with full functionality.

The crane has a width of 110mm, a length of 400mm and a height of 145mm when it is retracted. The crane can be extended to a height of 900 mm.

Every part on this crane is 3D printed, except the electronics, screws and threaded rods of course.

Build your own 1/14 scale crane. This is a fun and challenging build for anyone who likes to build models.

The crane can easily lift weights of around 500g, but I have not yet tested its limits. (The construction bricks in the picture weigh about 400g)

Printable on a 180x180mm printer as well as a 30x30 printer version. All parts are printable on a BambuLab A1 Mini.

Please share the link if you like this mobile crane.

It's not the size that matters, it's how you use it ;)

For those who buy this, thank you! And I hope you will enjoy the build!

Build video: https://youtu.be/W3emwcusEEc

what you need for the crane is listet one of the pictures above.

I have the following components, which I have not included in the list:

ESC
- https://amzn.eu/d/ikb58CS

Remote 14ch
- https://amzn.eu/d/8IwYcur
