Wii Controller Extension for GameCube controllers

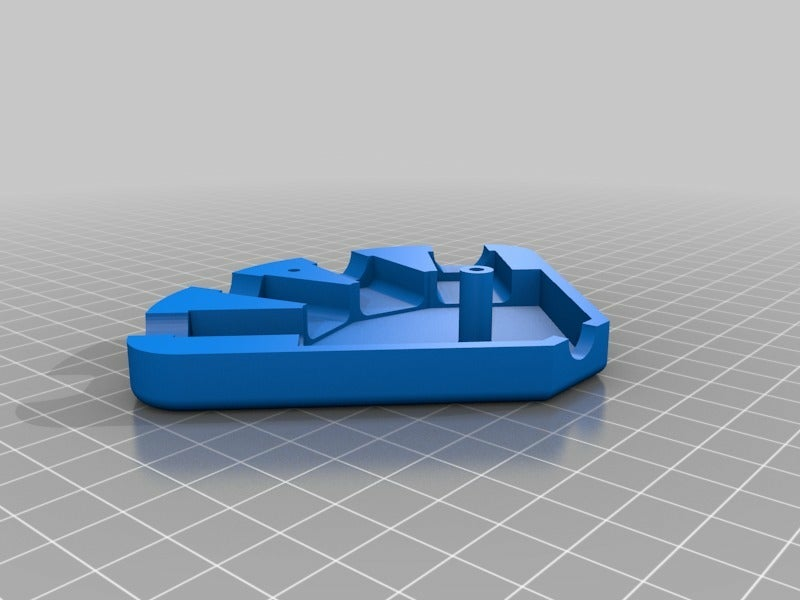

Hi everyone! This model was created due to the frustration of short controller lengths along with a high positioned console. So with really inexpensive controller extension cables, I was able to add ~6 feet with a tidy controller hub. This is an easy print, and it should have good tolerances with a standard printer. It uses common self tapping screws to clamp down the ports. Use 3-4 perimeters (shells) to increase the strength of the screw holes. If you find yourself unable to get the tolerances right, try scaling up or down by 1-2% depending on the disparity.

The cable extension that I used with this project:
https://www.aliexpress.com/item/1-8m-Controller-Extension-Cable-for-Nintendo-GameCube-Controller-Extension-Cable-for-GC-NI5L/32712823609.html?spm=a2g0s.9042311.0.0.27424c4dvJd7VD

Otherwise feel free to access the open-sourced design on OnShape. An awesome Cloud CAD system. https://cad.onshape.com/documents/cc264b1a0087ecf362239508/w/7f12d079771a2b738588dbf6/e/f7fe79b822601fb4aa19ed22

Happy printing!

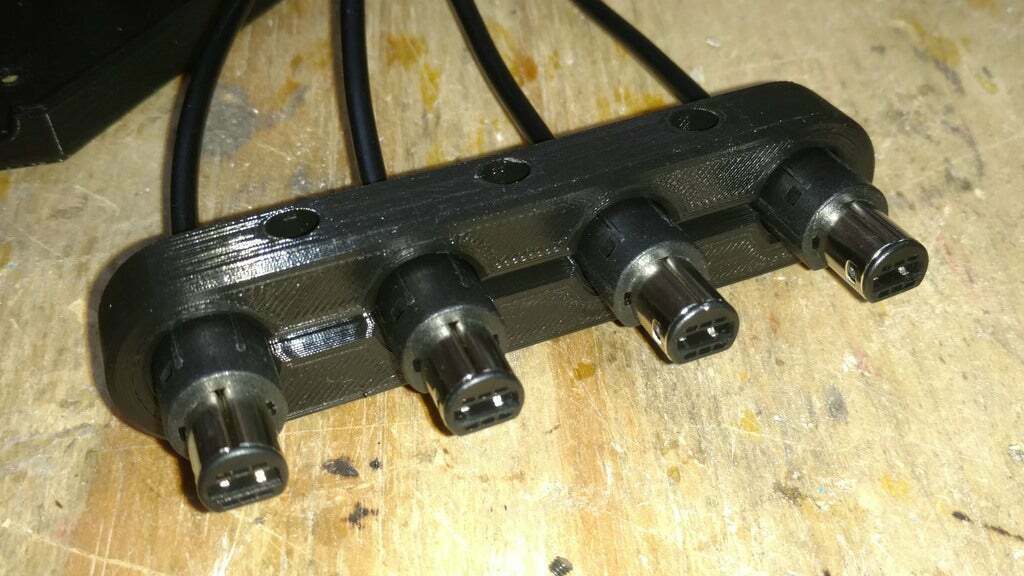

Some afterthoughts. It took me 3 attempts to get the male end properly aligned so that the clamps are tight, and it inserts into the 4 ports perfectly. The hub (female end) happened to be a perfect fit the first print. So I'm sorry if it might not have the tolerance on your first print.
