x-axis belt tensioner anet a8 plus

?
Creation's quality: 4.0/5 (5 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 5.1k views
  • 3 likes
  • 319 downloads

3D model description

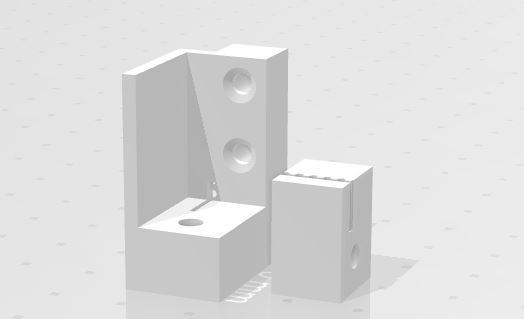

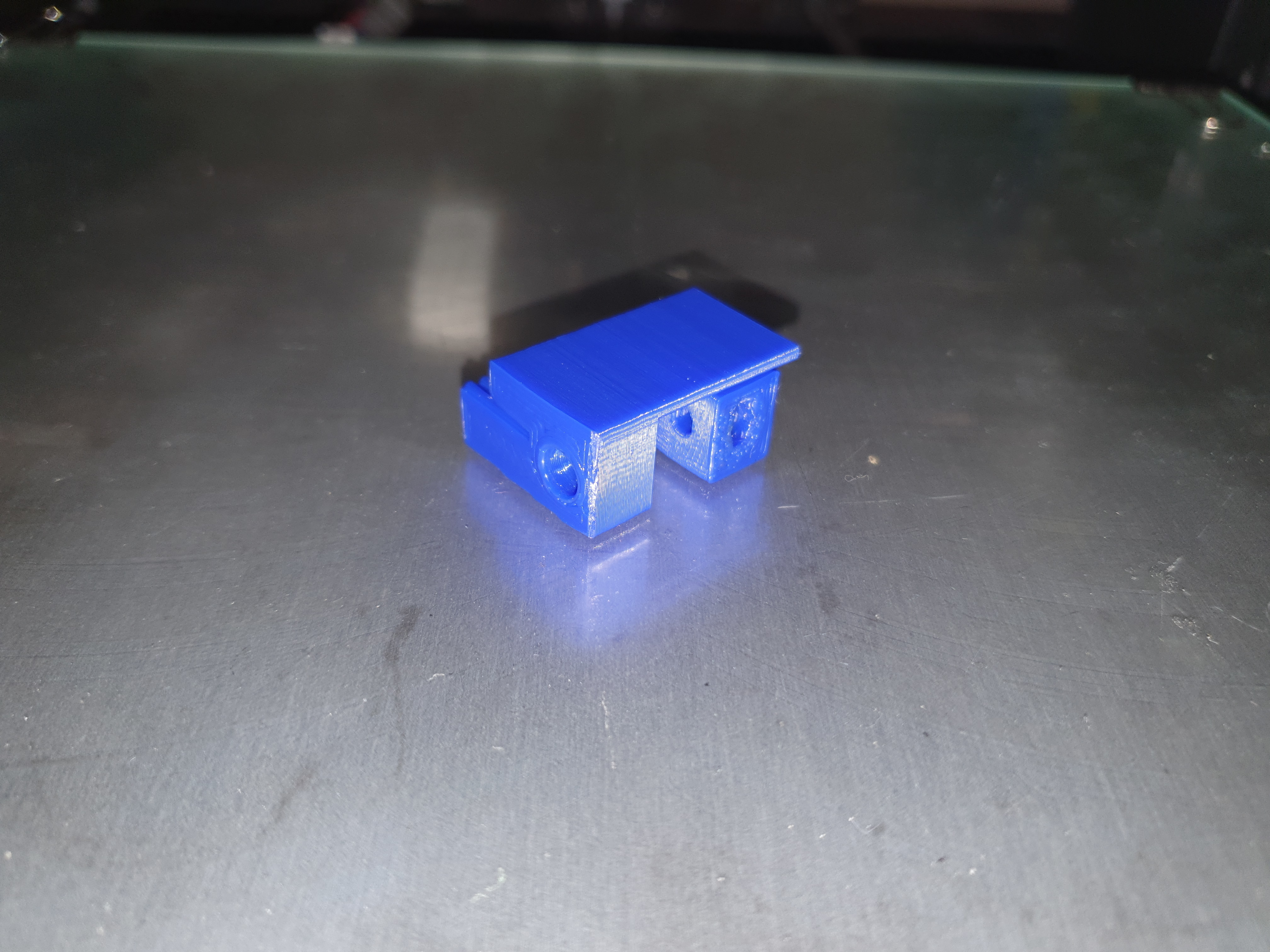

this tensioner has been designed for the X-axis belt of the anet a8 plus printer, starting from the original design which brings and improves the detail accuracy for the timing belt and screw adjustment, offers a straighter belt tension and improves the alignment.

Requires 1 screw M3x25mm and 1 nut 3mm. (serves the original screw and nut)


3D printing settings

PLA material

Hotend 210º

Bed 50º

100% filling

layer height 0.20

Speed 60mm/s

3D printer file information

  • 3D design format: STL Folder details Close
    • tensor correa carro anet a8 plus original.stl
  • 3D model size: X 24 × Y 29 × Z 30 mm
  • Publication date: 2020/05/07 at 11:31

License

CC BY NC SA

Tags

Creator

Page translated by automatic translation. See the original version.
Issue with this design? Report a problem

Best sellers of the category Gadget


Add a comment

One comment

Thing about this tensioner... it's very badly weakened in the vicinity of the screws. It's prone to breaking around the first screw. When it does that, your A8 Plus is completely out of the water until you can superglue it together enough to hammer out a replacement. If you make this tensioner, make it from something much stronger and tougher than PLA!
