Bike or motorcycle phone holder

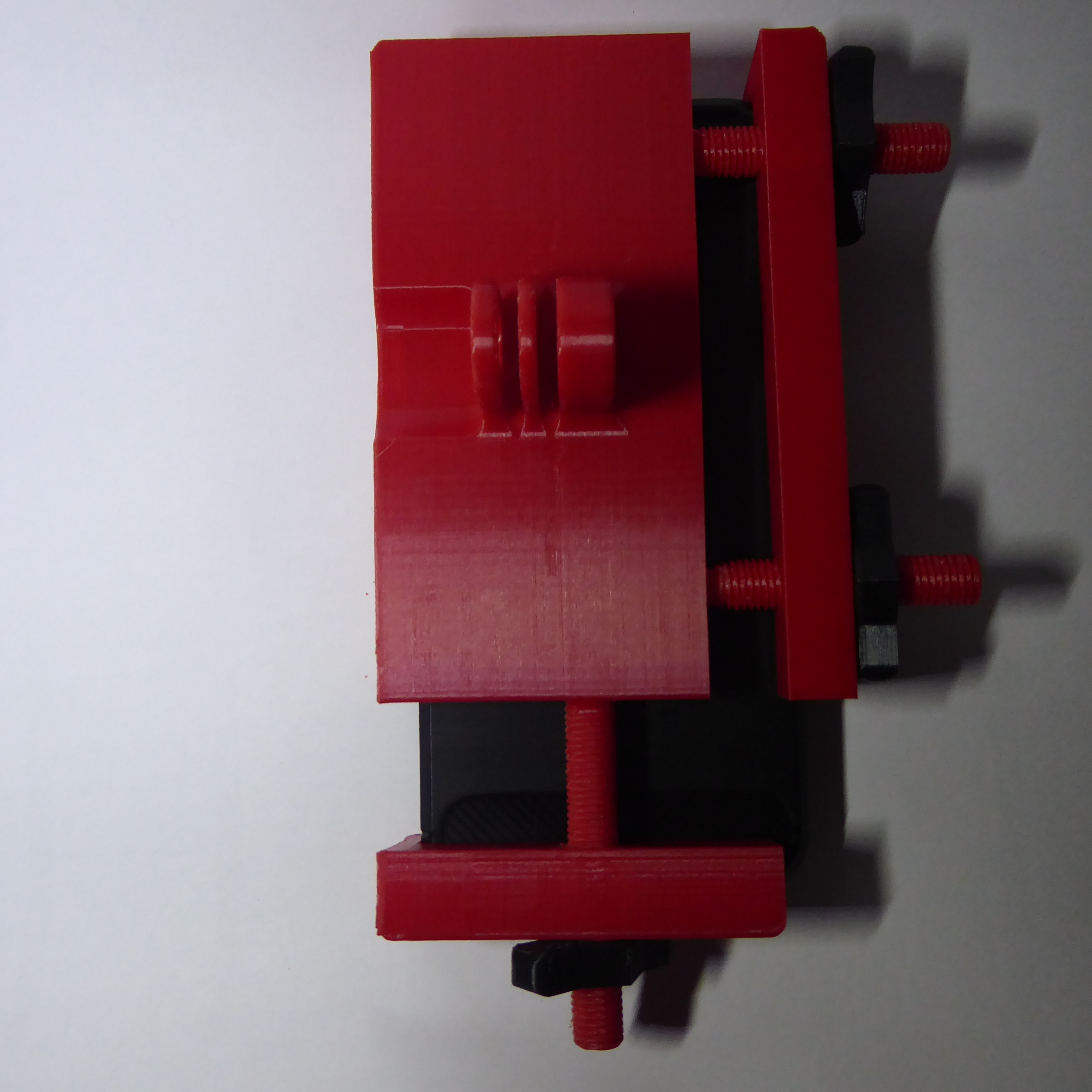

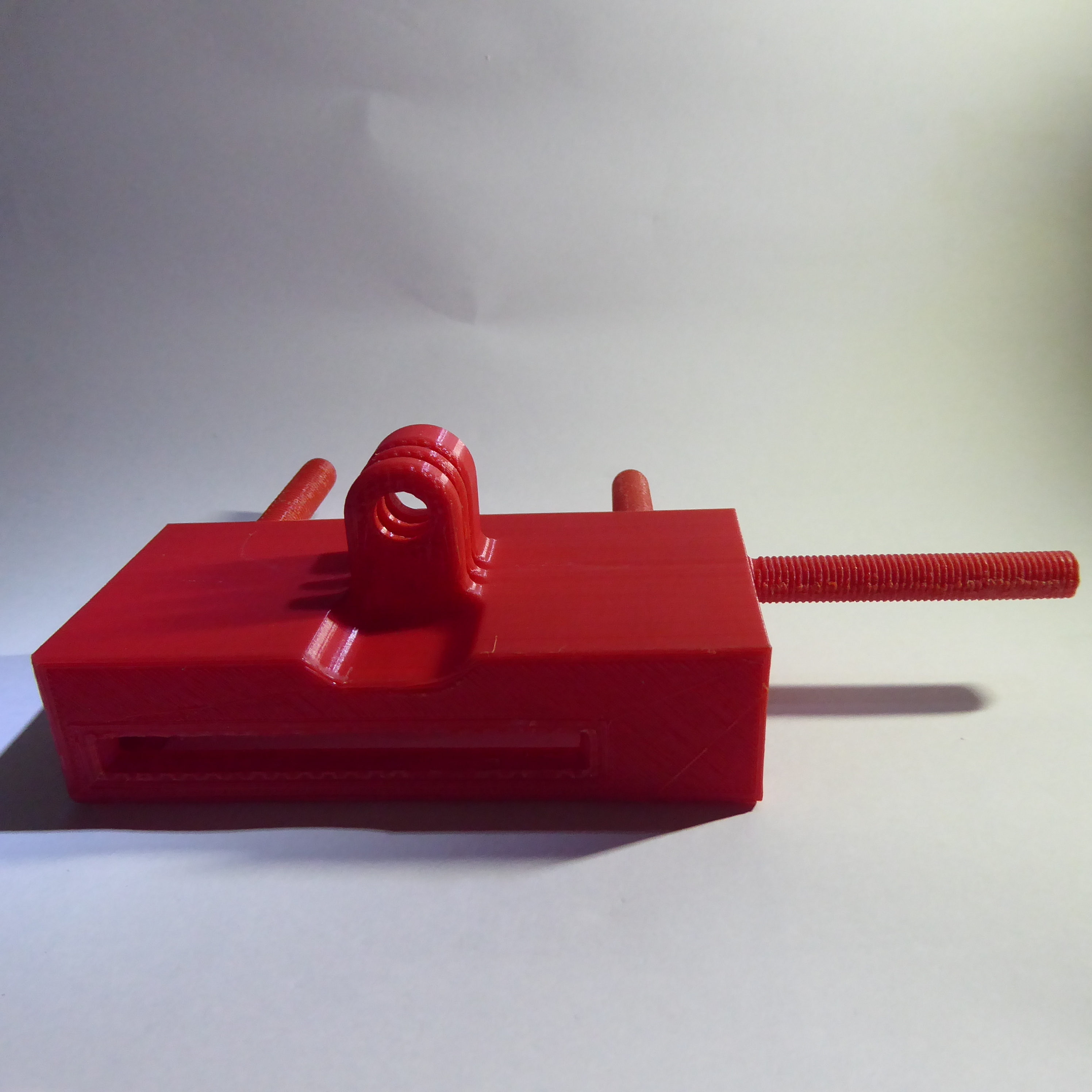

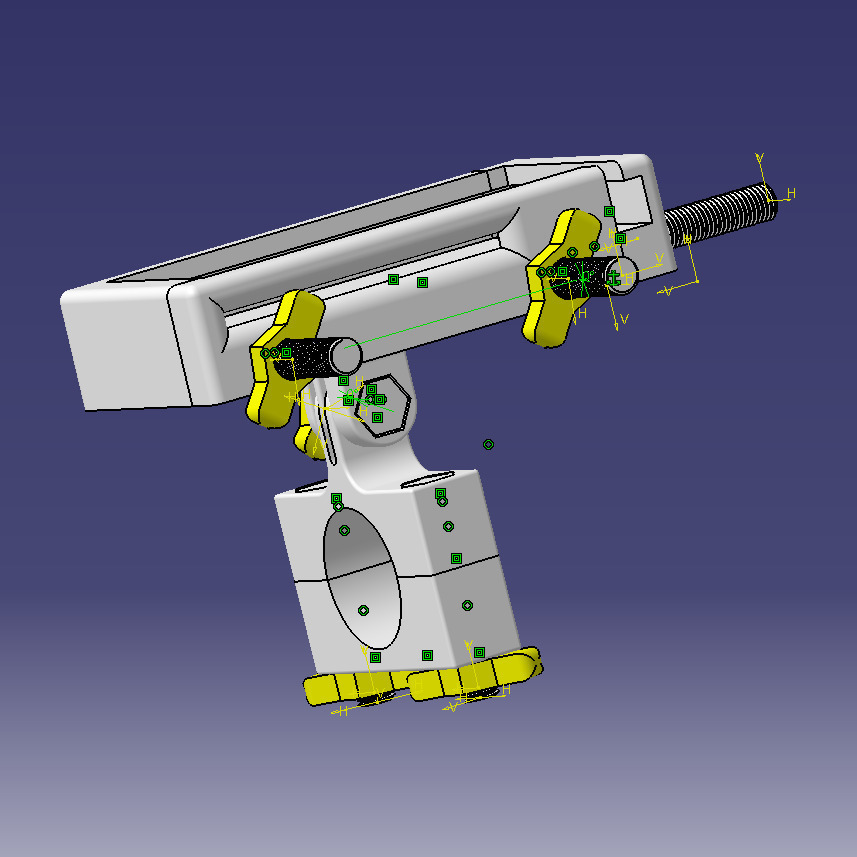

Here's a model of Bike Phone Holder.

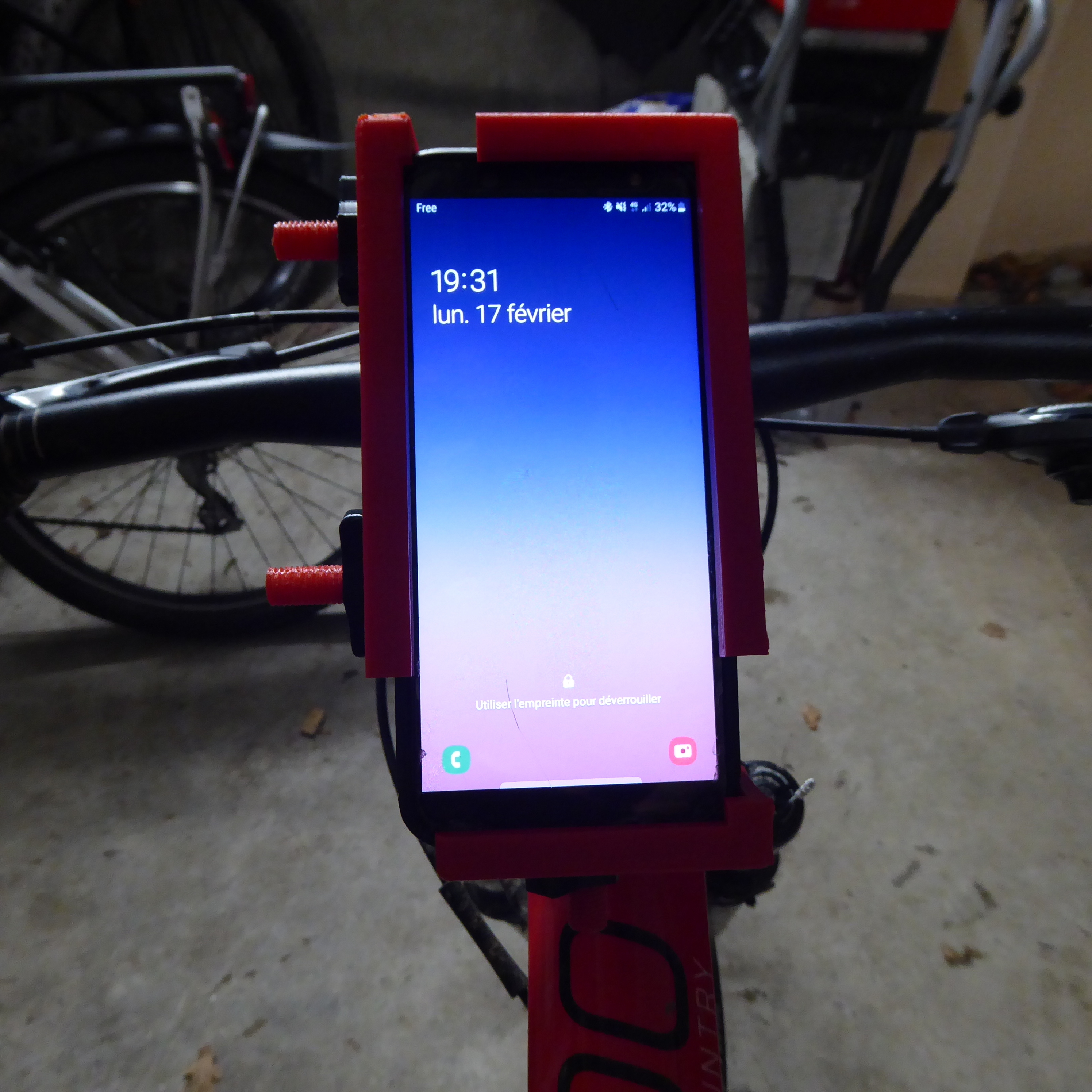

With this product you'll be able to carry your phone on your bike, no matter what the terrain.

This holder is designed to withstand rough terrain and high speeds.

This product is designed for phones of all sizes:

 - Minimum width 60 mm and maximum width 90 mm.


 - Minimum length 125 mm and maximum length 163 mm.


 - Maximum thickness: 11 mm.

You can also adapt it to any type of bike.

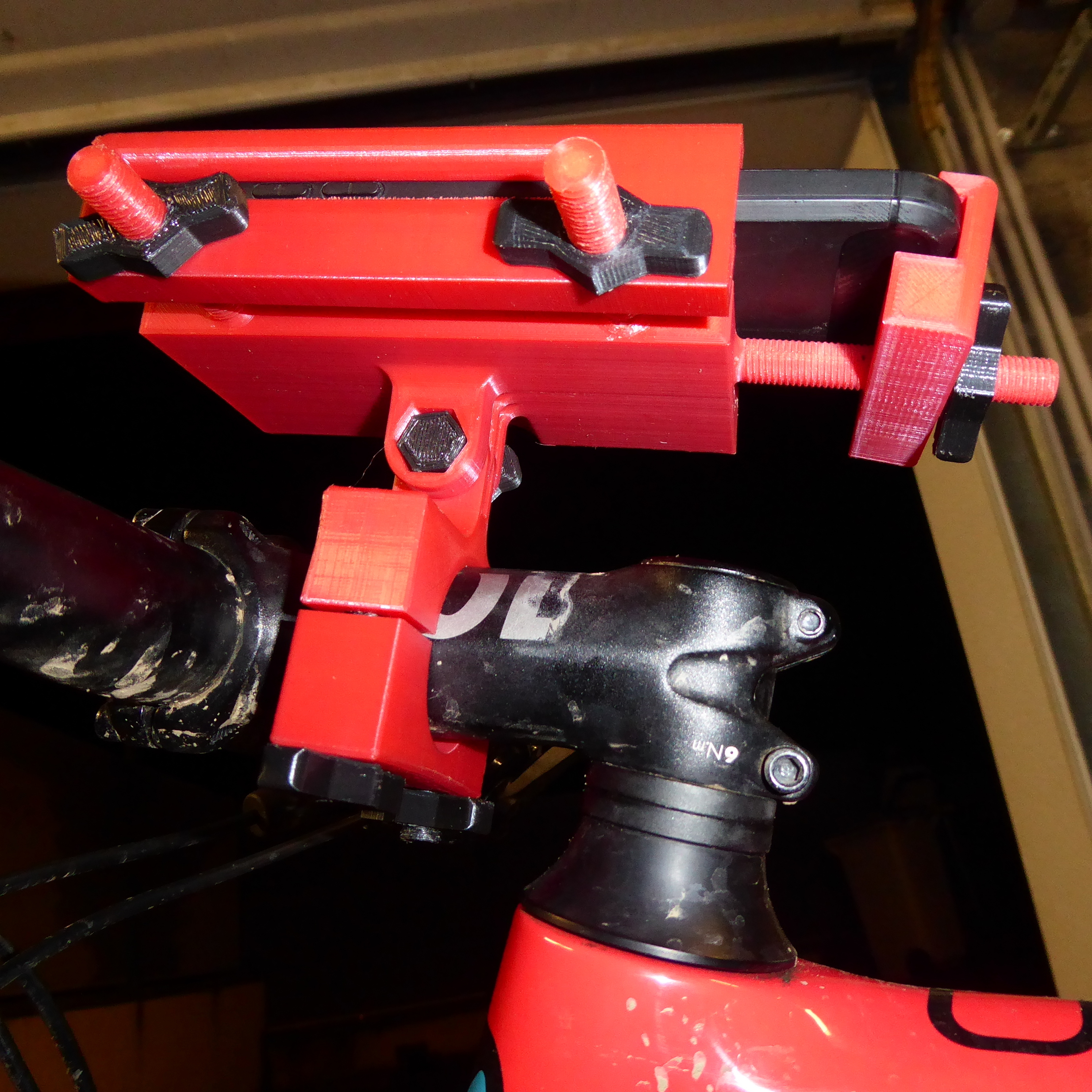

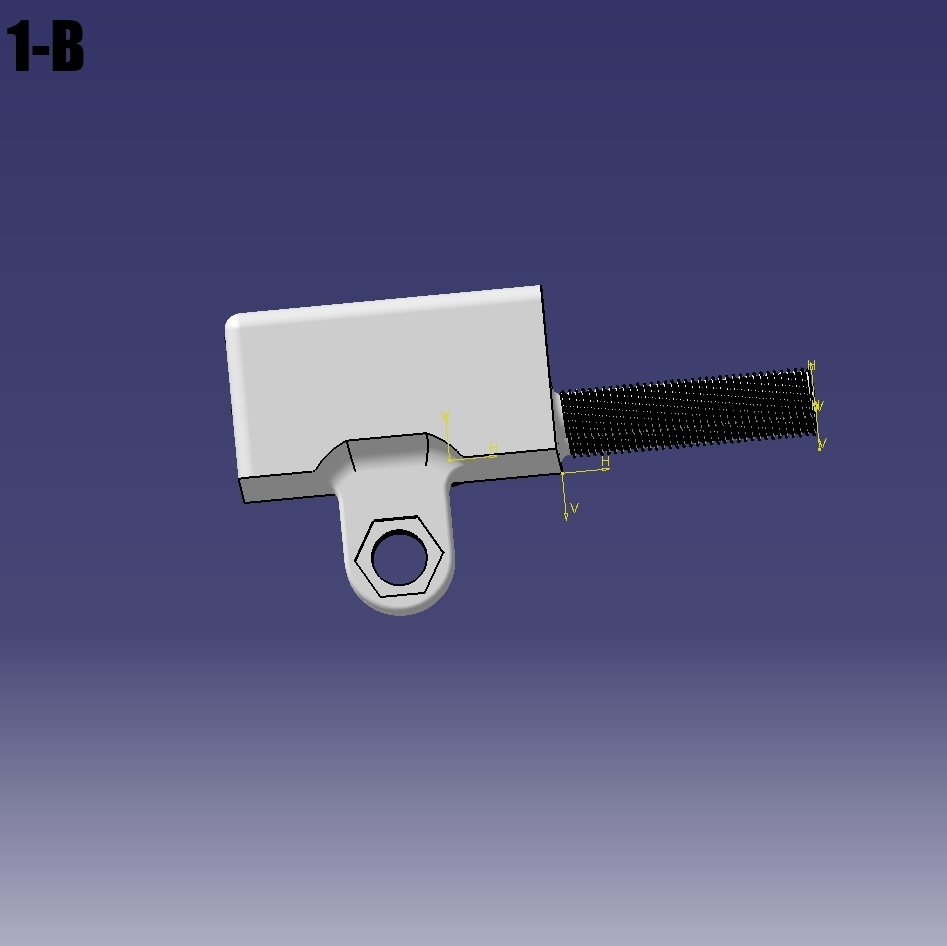

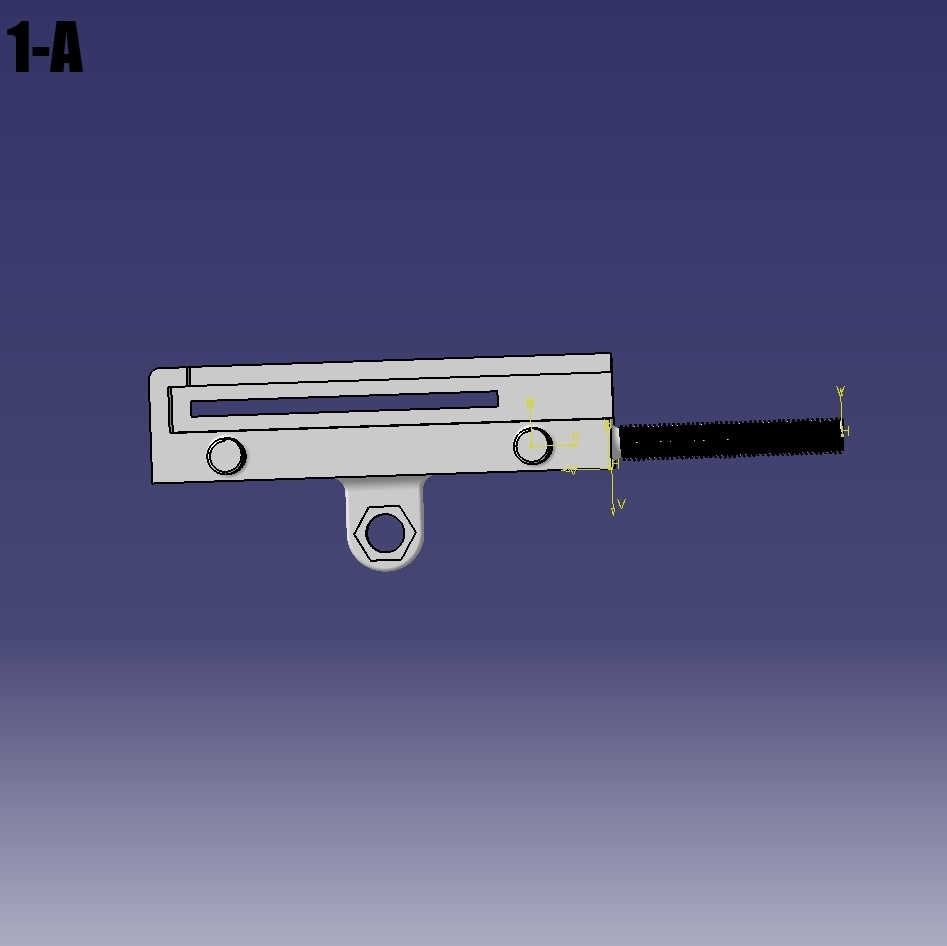

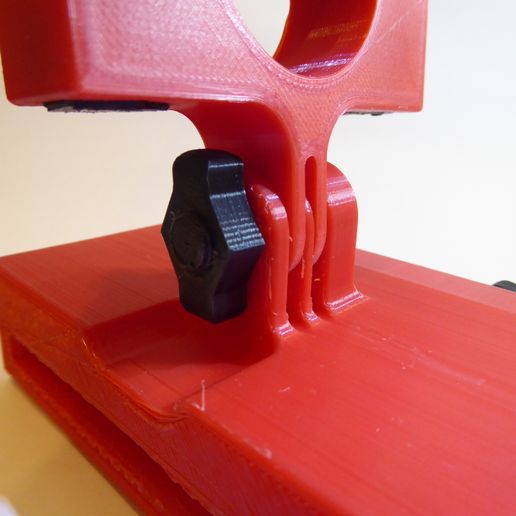

You can position the bracket on the handlebar stem or on the handlebar itself, depending on whether you're printing part 1-A or 1-B.

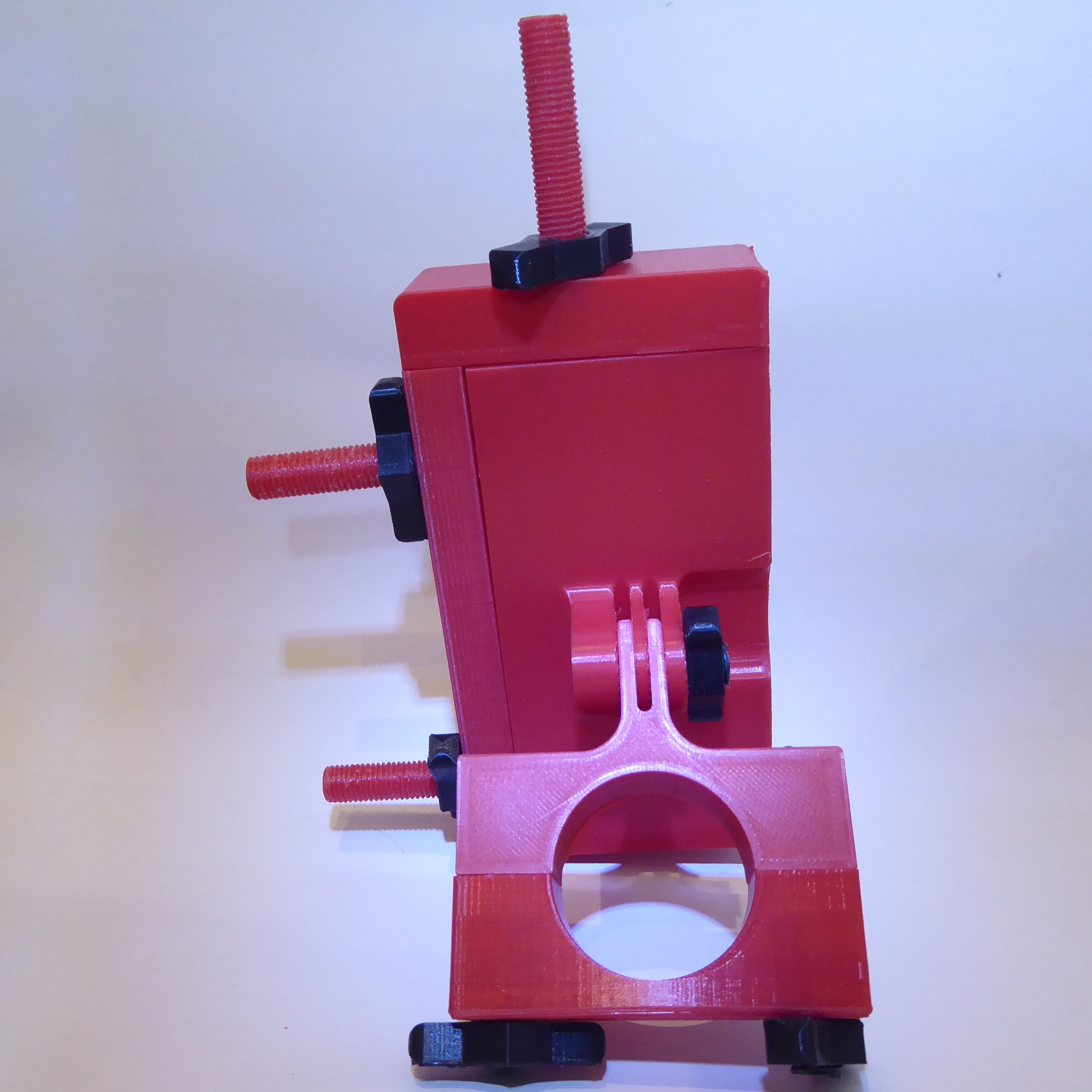

This product also adapts to a wide range of handlebar diameters: from 24 to 43 mm:

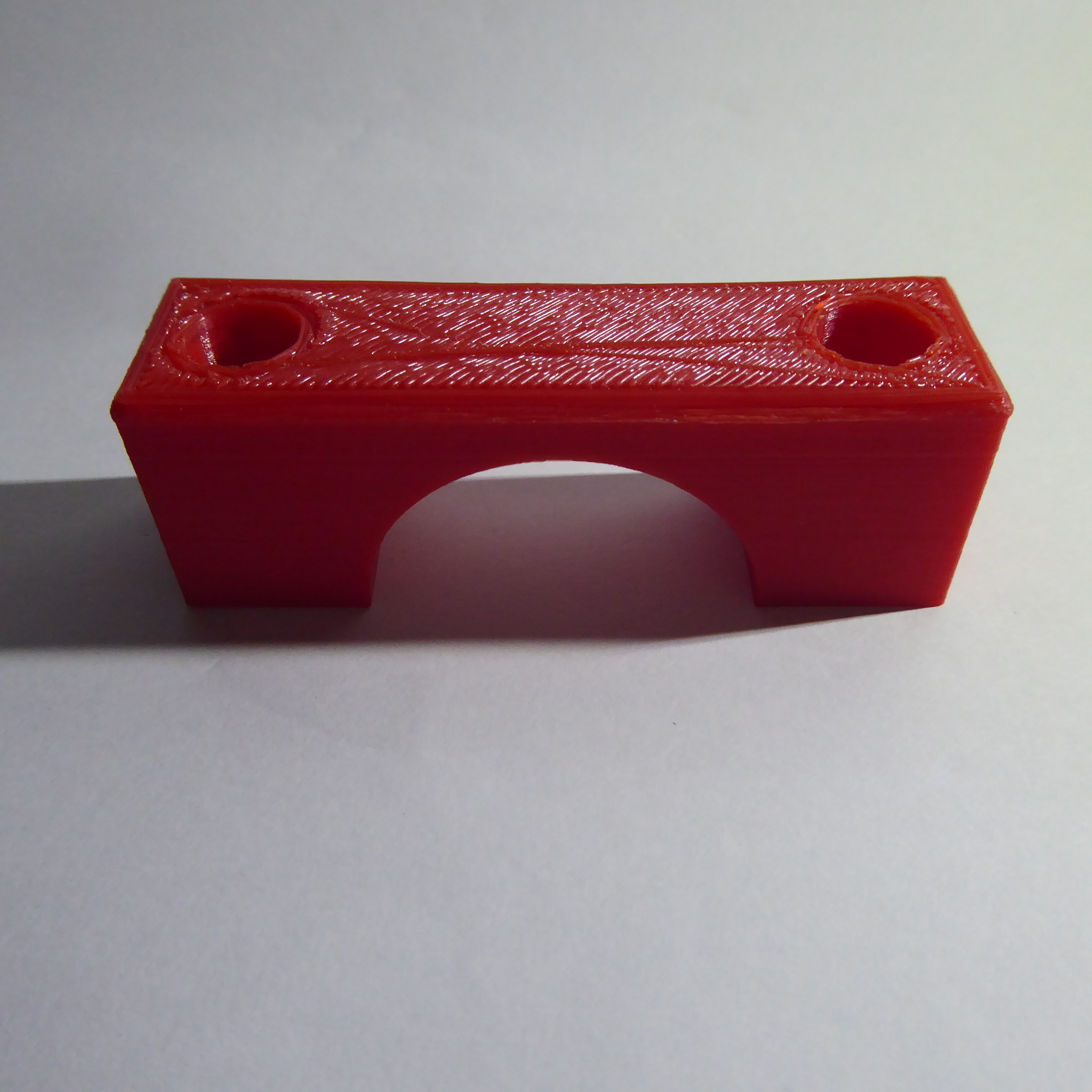

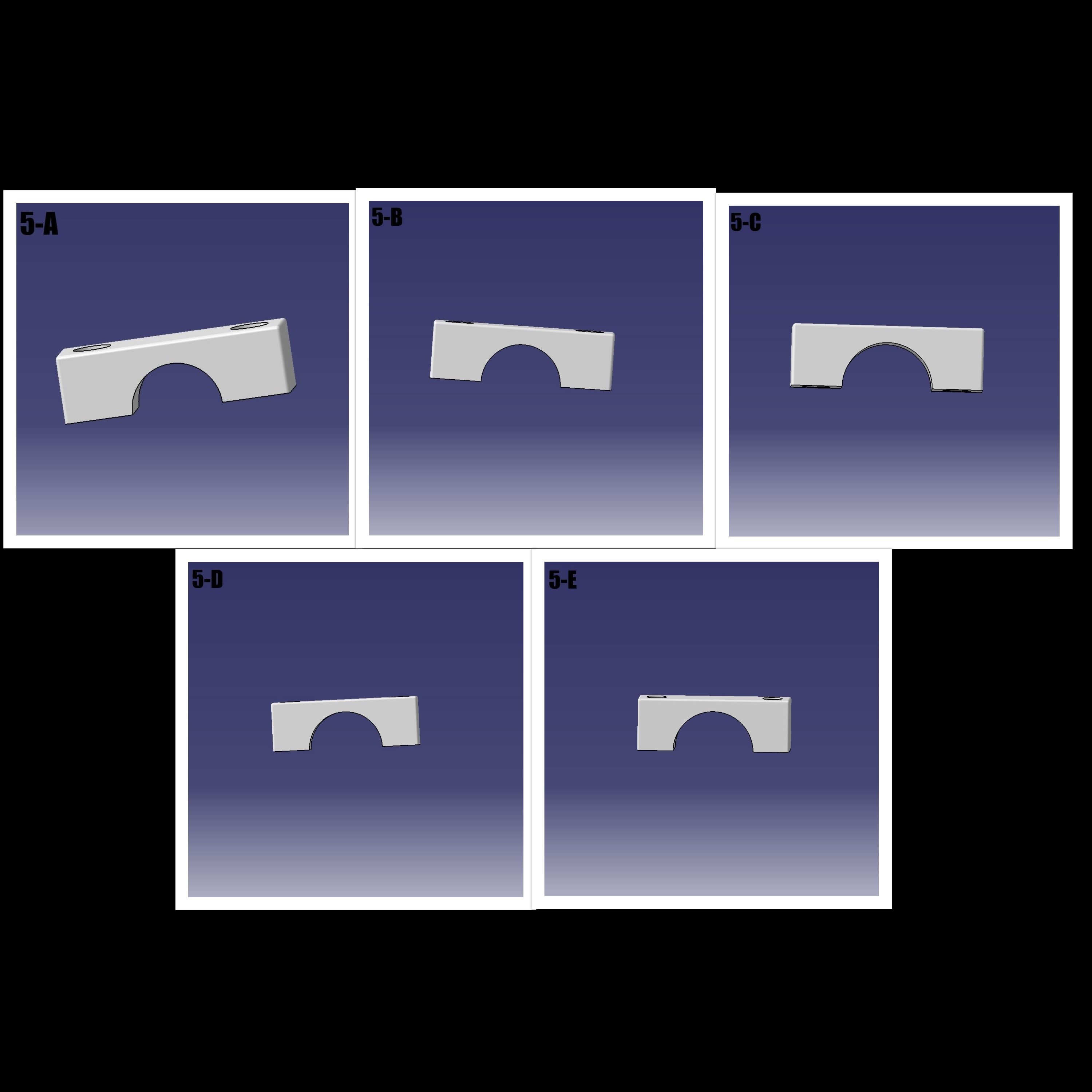

 - Part 4-A assembles with part 5-A, enabling the bracket to be fitted to handlebars with a diameter of 24 to 27 mm.


 - Part 4-B assembles with part 5-B and enables the bracket to be hooked onto handlebars with a diameter of 28 to 31 mm.


 - Part 4-C assembles with part 5-C and allows the bracket to be hooked onto handlebars with a diameter of 32 to 35 mm.


 - Part 4-D assembles with part 5-D and allows the bracket to be hooked onto handlebars with a diameter of 36 to 39 mm.


 - Part 4-E assembles with part 5-E and allows the bracket to be hooked onto handlebars with a diameter of 40 to 43 mm.

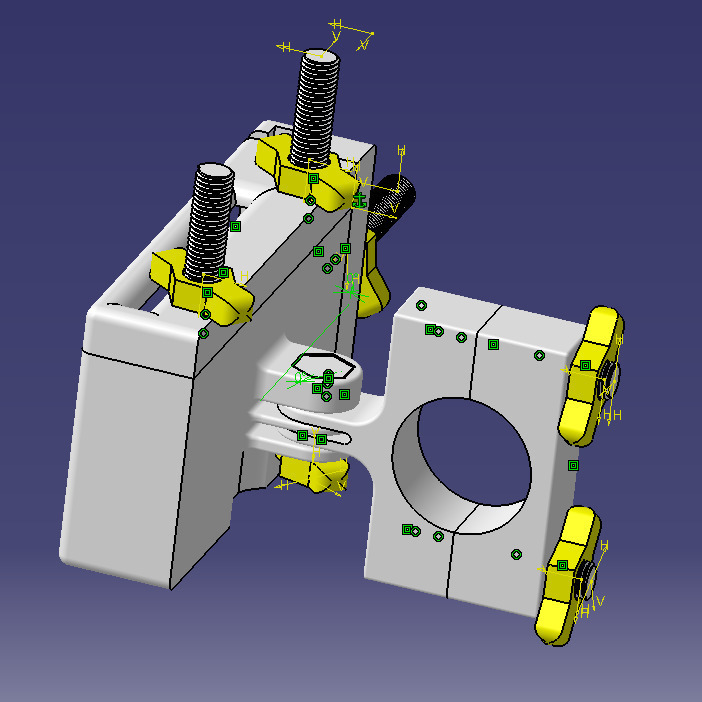

For a complete assembly you'll need :

 - 1x part 1

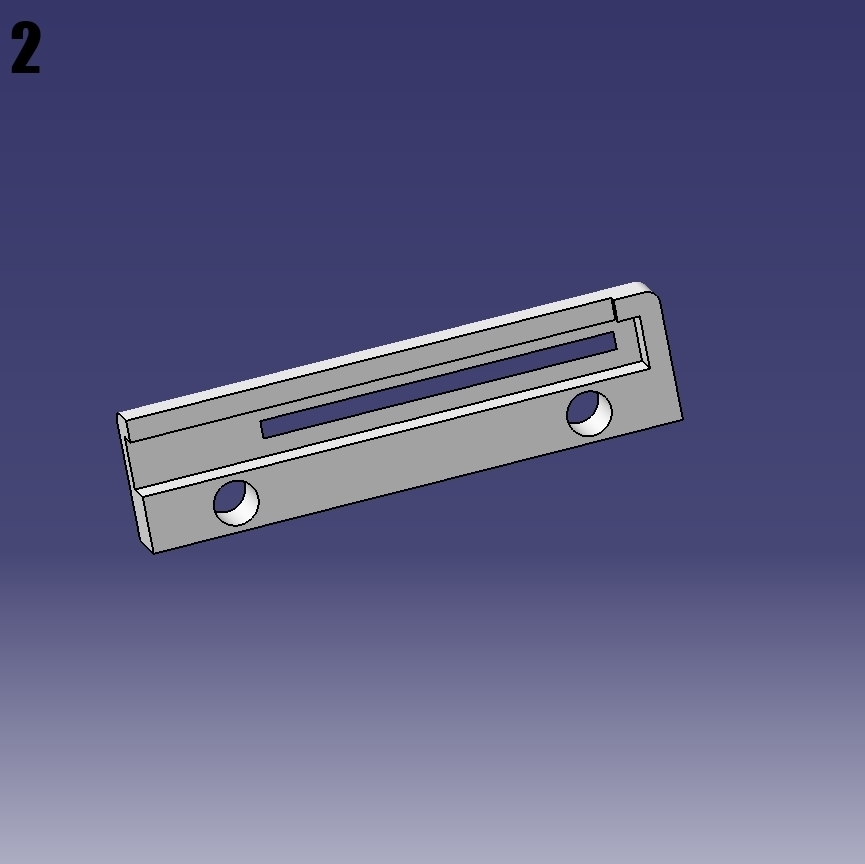

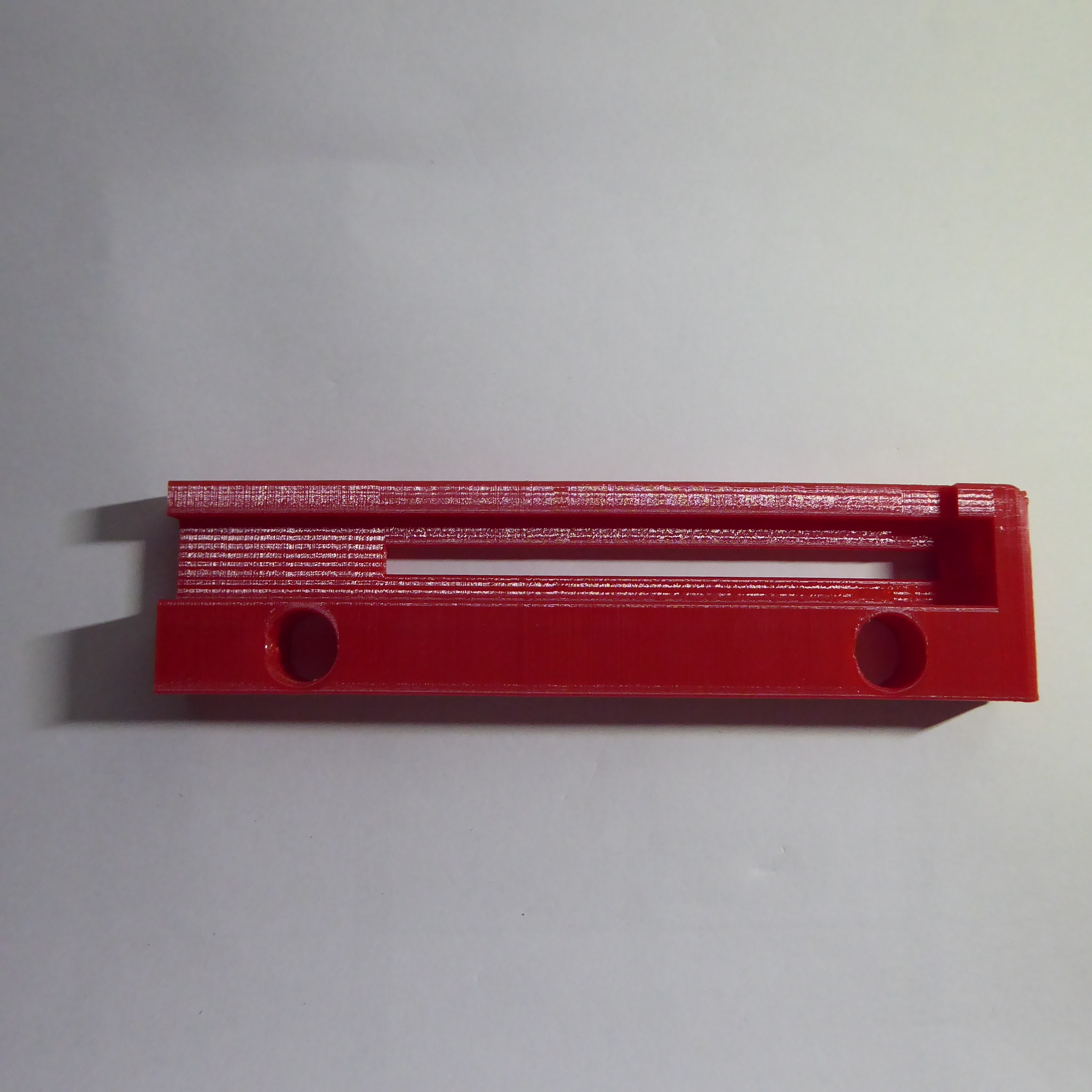

 - 1x part 2

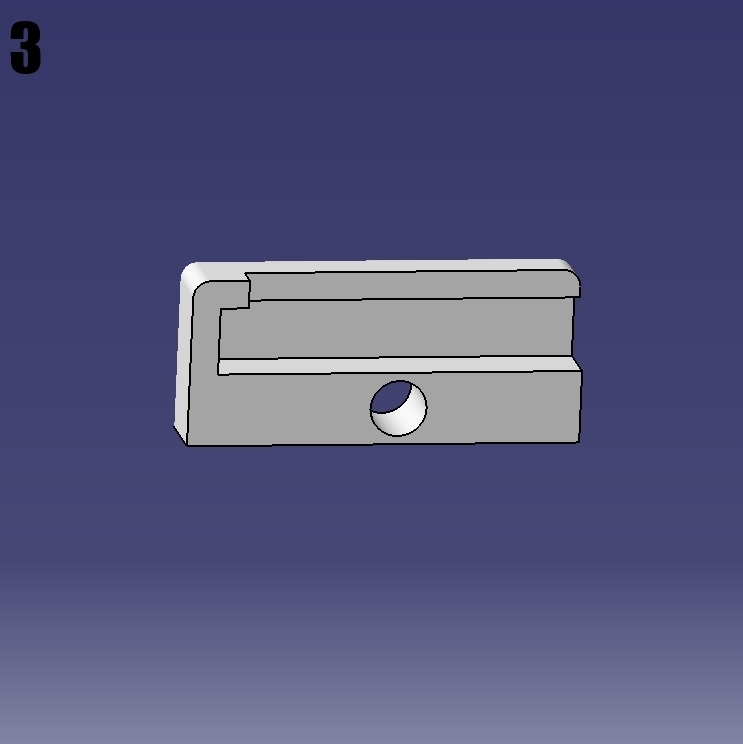

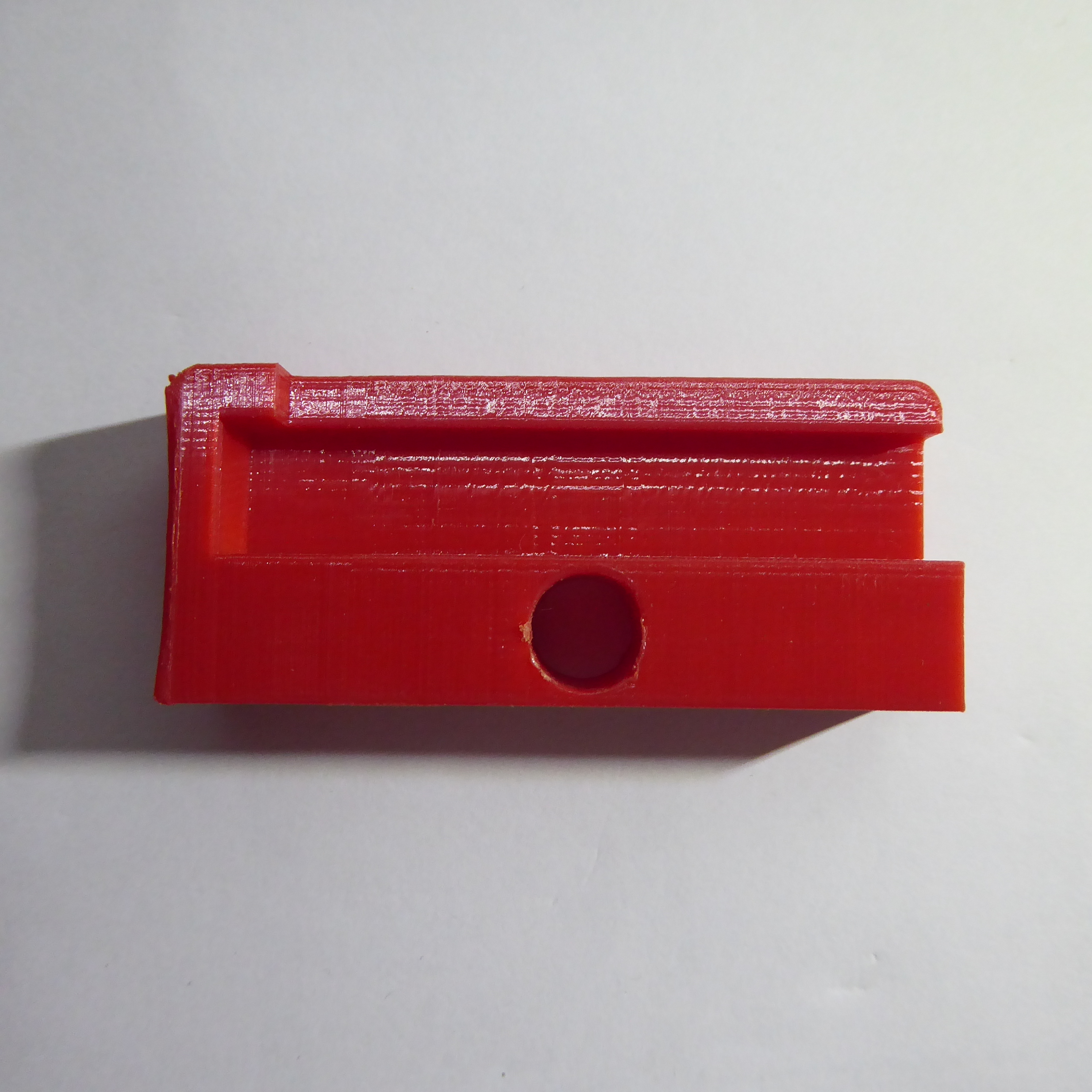

 - 1x piece 3


 - 1x piece 4


 - 1x piece 5


 - 1x piece 6


 - 2x part 7

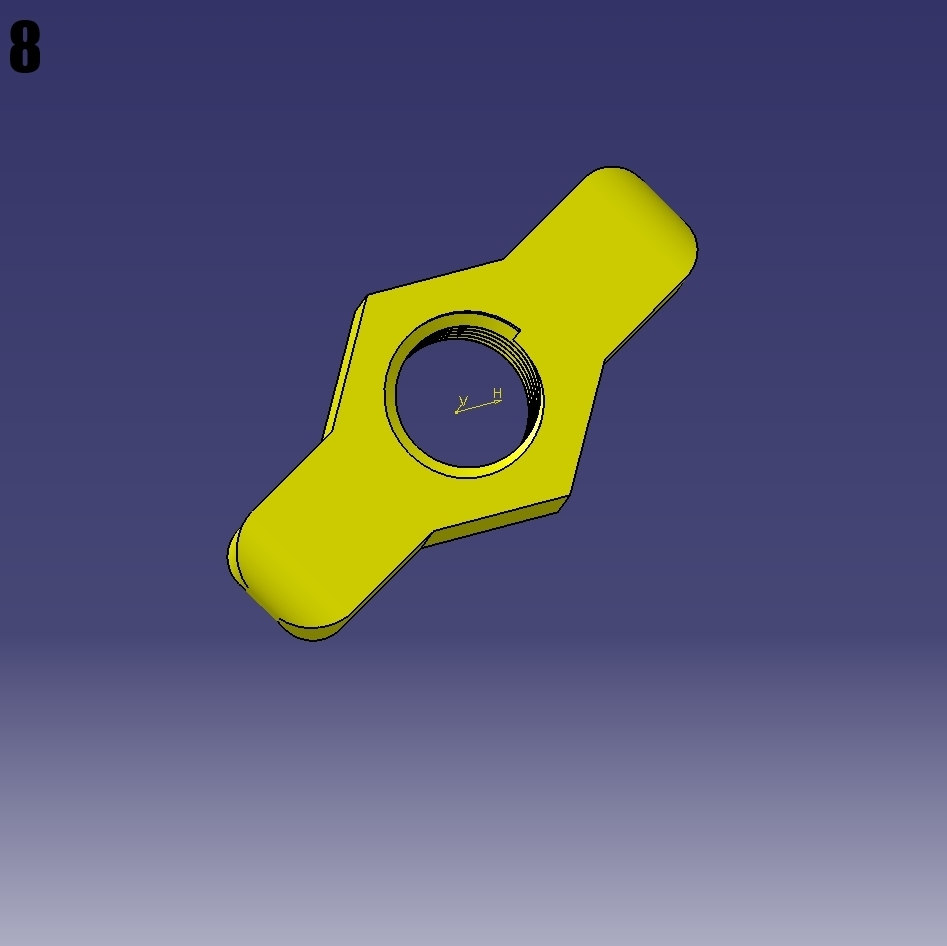

 - 5x piece 8


 - 1x piece 9

3D file format: STL

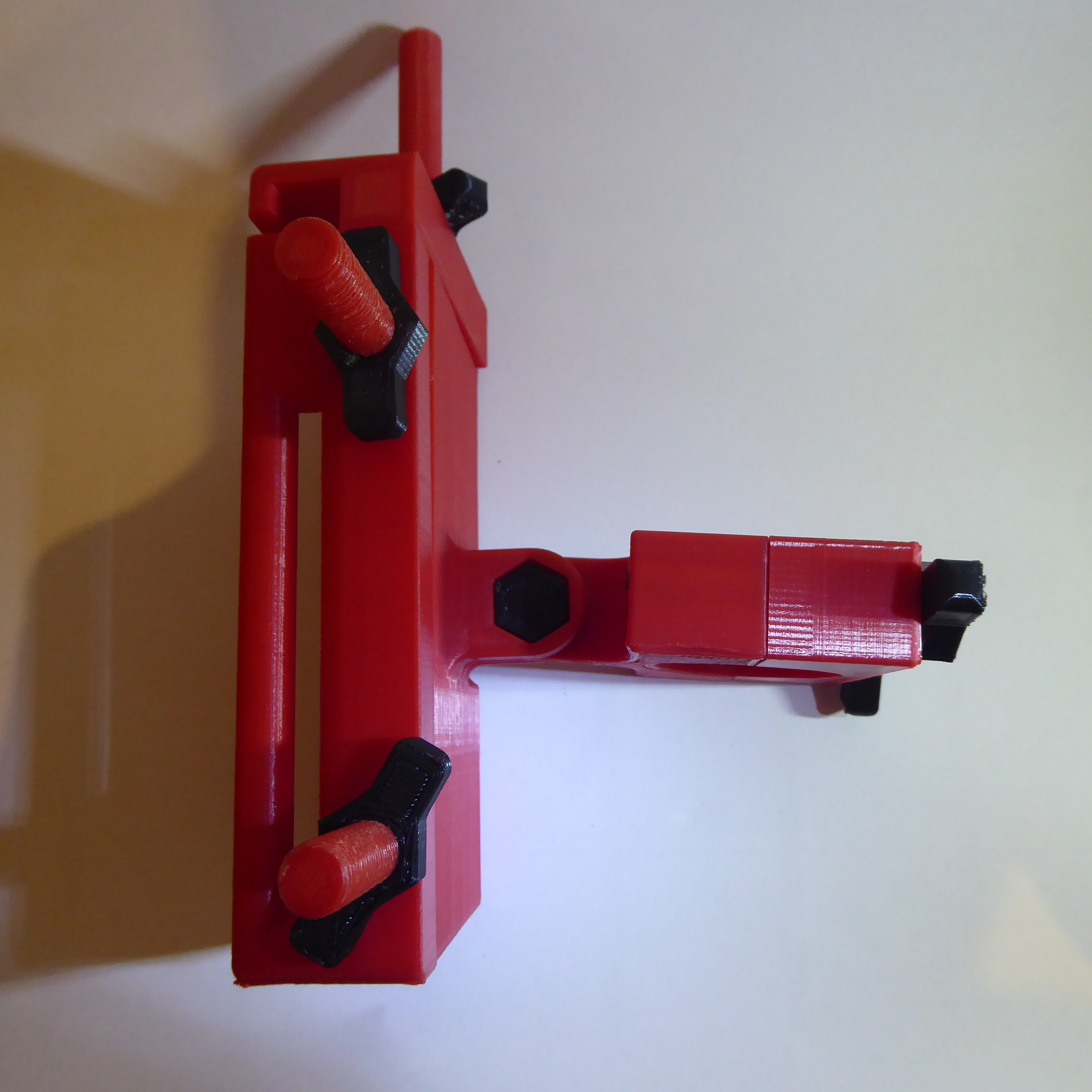

(In the photos I used to print an: Alfawise U30 pro)

Parameter for parts: 1-A and 1-B

Layer height: 0.2 mm

Wall thickness: 1.2 mm

Top/bottom thickness: 0.6 mm

Filling density: 50%.

Printing speed: 40 mm/s

Media density: 20%.

Parameter for parts: 2, 3, 4-A, 4-B, 4-C, 4-D, 4-E, 5-A, 5-B, 5-C, 5-D, 5-E, 8 and 9

Layer height: 0.2 mm

Wall thickness: 1.2 mm

Top/bottom thickness: 0.6 mm

Filling density: 15%.

Printing speed: 40 mm/s

Media density: 20%.

Parameter for parts: 6 and 7

Layer height: 0.2 mm

Wall thickness: 1.2 mm

Top/bottom thickness: 0.6 mm

Filling density: 90%.

Printing speed: 40 mm/s
