Sony CDX-GT540UI volume knob

IMG_20150131_121131.jpg Sony CDX-GT540UI volume knob
IMG_20150131_121124.jpg Sony CDX-GT540UI volume knob
IMG_20150131_120944.jpg Sony CDX-GT540UI volume knob
IMG_20150131_121059.jpg Sony CDX-GT540UI volume knob
sony_cdx-gt540ui_knob_v0-2.stl Sony CDX-GT540UI volume knob
sony cdx-gt540ui knob v2-2.stl Sony CDX-GT540UI volume knob
sony cdx-gt540ui knob v2-3.stl Sony CDX-GT540UI volume knob
IMG_20150131_121131.jpg Sony CDX-GT540UI volume knob
IMG_20150131_121124.jpg Sony CDX-GT540UI volume knob
IMG_20150131_120944.jpg Sony CDX-GT540UI volume knob
IMG_20150131_121059.jpg Sony CDX-GT540UI volume knob
sony_cdx-gt540ui_knob_v0-2.stl Sony CDX-GT540UI volume knob
sony cdx-gt540ui knob v2-2.stl Sony CDX-GT540UI volume knob
sony cdx-gt540ui knob v2-3.stl Sony CDX-GT540UI volume knob
Advertising
Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
3D design format
5 files (SCAD and STL) Close
  • sony cdx-gt540ui knob v2-2.scad
  • sony cdx-gt540ui knob v2-2.stl 22.0 Γ— 22.0 Γ— 6.0 mm
  • sony cdx-gt540ui knob v2-3.scad
  • sony cdx-gt540ui knob v2-3.stl 21.800456 Γ— 21.800456 Γ— 6.0 mm
  • sony_cdx-gt540ui_knob_v0-2.stl 21.0 Γ— 21.0 Γ— 7.35 mm

Learn more about the formats
Last update
Publication date
?
Published to Thingiverse on:
Design number 104349
Design author loclhst
loclhst

loclhst

Issue with this design? Report a problem.

3D printer file info

3D model description

NOTE: I will keep files updated on my Printables profile more frequently from here. So check out the profile.

EDIT 2022/06/21:
Uploaded version 2.3! I modified the last knob to now have little grips on the outside of it. This makes it easier to spin the knob with a flick of a finger.

EDIT 2020/06/17:
Uploaded version 2! I recently lost the original knob. It lasted over 5 years! So I took the time to remake it using OpenSCAD.
New print settings:
15% infil, 3 perimiter, 0.15mm layer height, black Zyltech PETG

Lost my volume knob a few years back. Been using the nub ever since.

Tried to contact Sony, but they said "we cant ship you a replacement, but you can buy it." When I asked where, they said "we don't know."

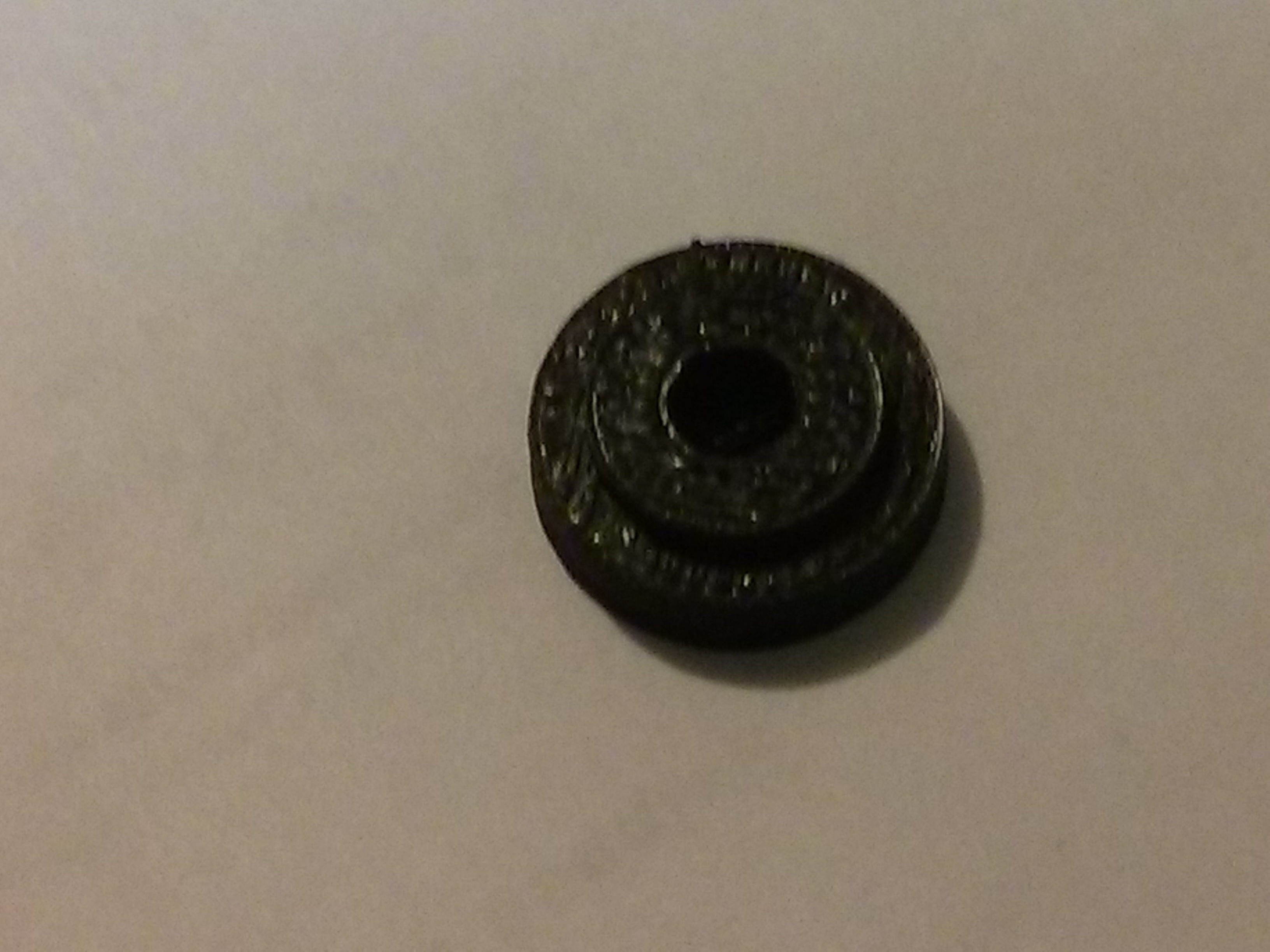

So now, after getting my printers working, I have made a replacement.

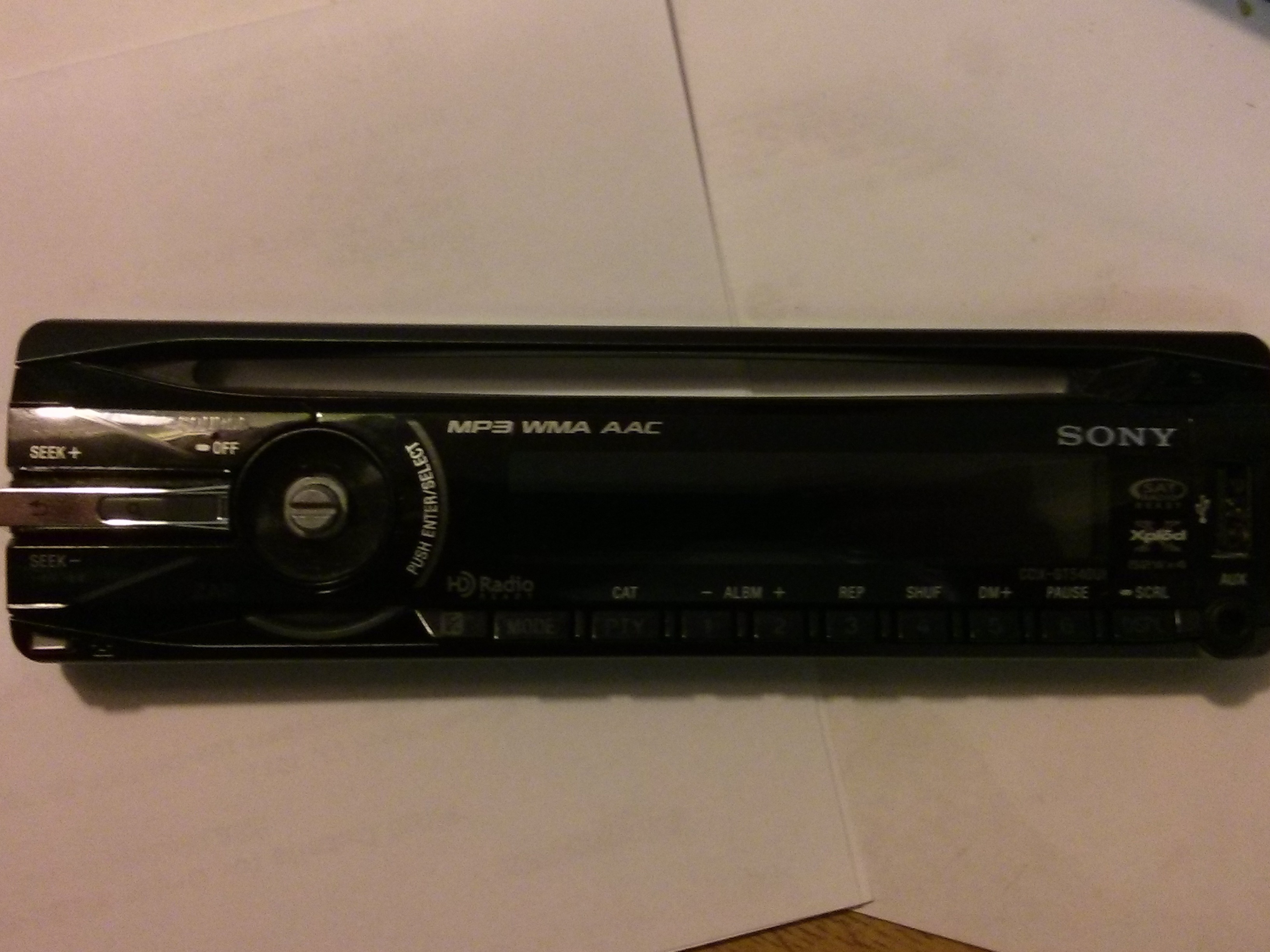

Snaps on easily and grips nicely to the nub.

Printed at 30% infill with 0.2mm layer and with 2 vertical perimeters. Will also most likely need to rotate 180 degrees.
