Soldering station

untitled8_20240326152946.webp Soldering station
432774370_1489187668686949_4180806403903626517_n.webp Soldering station
434403987_947555386483499_6515143718456959144_n.webp Soldering station
img_20240326_120615.webp Soldering station
img_20240326_120815.webp Soldering station
untitled8_20240326152946.webp Soldering station
432774370_1489187668686949_4180806403903626517_n.webp Soldering station
434403987_947555386483499_6515143718456959144_n.webp Soldering station
img_20240326_120615.webp Soldering station
img_20240326_120815.webp Soldering station
Advertising
Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
🏆 Best ?
License
Usages
3D design format
1 file (ZIP) Close
  • soldering-station-model_files.zip
    • STL files/main.stl
    • STL files/front.stl
    • STL files/light.stl
    • STL files/light arm.stl
    • STL files/ball-v13.stl
    • STL files/ball clip.stl
    • STL files/back filter.stl
    • DWG files/main.dwg
    • DWG files/front.dwg
    • DWG files/light.dwg
    • DWG files/light arm.dwg
    • DWG files/ball.dwg
    • 816773-soldering-station-52196428-cc90-4548-9321-bca3f3ac0226.pdf

Learn more about the formats
Publication date
Design number 2182657
Design author Zdrapek
Zdrapek

Zdrapek

Certified account
Issue with this design? Report a problem.

Template info

3D model description

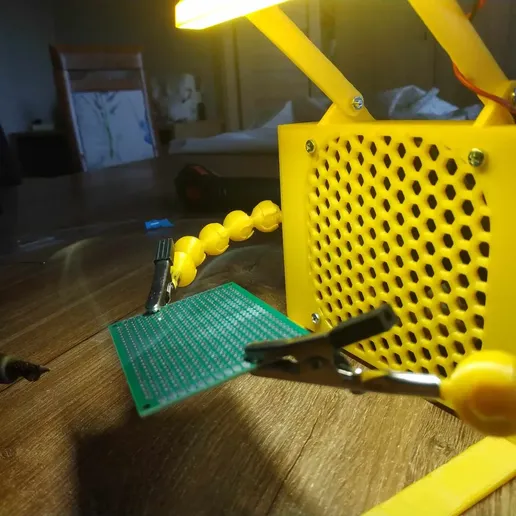

The smoke from a soldering iron has been annoying me for some time now, I'm used to it, but my roommates aren't, and what's more, the smoke is toxic, so it would be good to get rid of it somehow, so I took an old 12v fan from a PC, designed a case for it and that's it I wanted to print, but why limit yourself to just that? so I added an additional light, coming from the LED strip, and the classic ball arm that holds the pcb, and here is the result: a soldering station.

what you need:
-3D printer and filament
-fan 92x92x25
- a small piece of led strip
-switch and DC socket
-some wires
- screws M3x10 (4 pcs) M3X25 (4 pcs)
- M3 nuts (4psc)

-crocodile clips (2psc)

full assembly instructions can be found here:

https://www.instructables.com/Soldering-Station-6

UPDATE 23.05.2024

thanks to Juarmis (https://www.printables.com/pl/@Juarmis_713368), who created a back cover where to fit a carbon active filter.

I also improved the legs of the main part, now they are a bit thicker and more durable

Manufacturing settings

1.6mm layer high
PLA / PETG / ABS / ASA

Categories

All categories › Gadget › Electronics

Tags
