SketchUp Mini Sumo Robot

sumo_bot_display_large.jpg Free STL file SketchUp Mini Sumo Robot・3D printing design to download
sumo_detail_display_large.jpg Free STL file SketchUp Mini Sumo Robot・3D printing design to download
sumo_chassis.stl Free STL file SketchUp Mini Sumo Robot・3D printing design to download

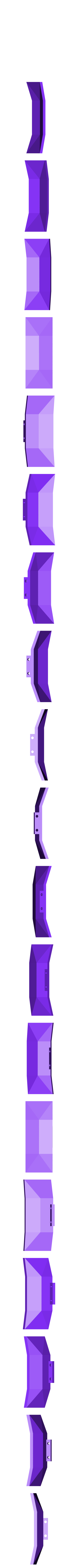

dozer_blade.stl Free STL file SketchUp Mini Sumo Robot・3D printing design to download
Share
Add to
Make
?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

Designer

FunnyJohnnyPrinter

FunnyJohnnyPrinter

3D model description

A mini sumo-bot modeled with SketchUp for Chapter 8 in Practical 3D Printers, www.apress.com/9781430243922. Works with Pololu motors and tracked wheel set along with a 4 AA battery pack and a mini solderless breadboard.

3D printing settings

Print the chassis and optional dozer blade and assemble. The parts list is as follows:

Part Description Supplier Part Number Price Quantity
Tracked wheel set, 22-tooth Pololu 1415 $13 1
50:1 micro metal gearmotor HP Pololu 998 $16 2
Baby Orangutan B-328 controller Pololu 1220 $20 1
170-point solderless breadboard SparkFun PRT-08803 $4 1
Momentary pushbutton SparkFun COM-09190 $0.5 1
4 AA battery holder RadioShack 270-391 $2 1
Double-sided foam tape RadioShack 64-2361 $3 1

3D printer file information

  • Design number: 36145
  • 3D design format: STL Folder details Close
    • dozer_blade.stl
    • sumo_chassis.stl

    Learn more about the formats

  • Publication date: 2018-10-30 at 11:00

License

CC BY-SA - Attribution - Share alike
