3D model description

See also www.sodys3d.com 3D printed planes

Join the Facebook Group sodys3d

There's a new and improved version - the SKYTrainer - just for your information!

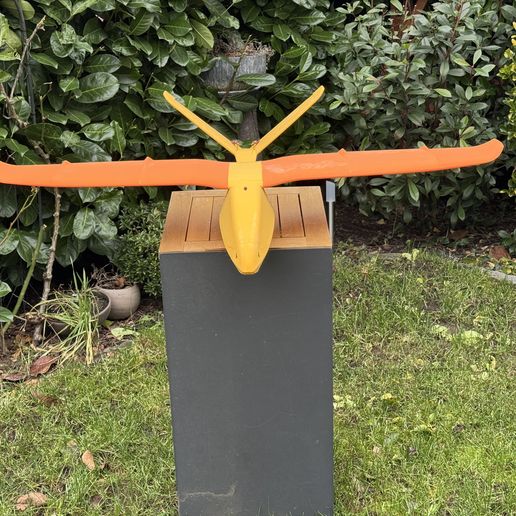

The SHARKY EDF 40/50mm is a 3D-printed beginner trainer with excellent gliding characteristics. With a wingspan of 1120 mm, a length of 920 mm, and a weight of 540 g (without LiPo), it offers up to 15 minutes of flight time. Perfect for beginners and relaxed flying. You have two alternative tail units! Starting from 2025-06-09, Fuselage 3 and 4 will be available for a 50mm EDF (FMS/QX50). These were designed upon customer request and have not been tested from me yet!

Part List:

Materials

  • EDF Unit: 1x XFly 40mm EDF / QX50mm or FMS 50mm EDF

  • ESC: Suitable for the EDF unt

  • Servos:

  • 4x 9g Miuzei (Chinese metal servos) or

  • Corona Servo DS939MG II (recommended)

  • Accessories:

  • 2x 30cm servo extensions

  • Aileron linkage (based on preference)

  • 2x 1.2x690mm steel rods (V-Tail)

  • 2x 1.2x730mm steel rods (standard tail)

  • 1x 2x1000mm carbon rod (Aileron/Rudder/Elevator)

  • 2x 4x185mm carbon rods/tubes

  • 1x 2x300mm Carbon Rods for the Elevator

  • Landing Gear (optional):

    Wheel Rod 2x M3x24mm or 3x24mm carbon or steel wave

    Back Wheel 2x24mm carbon/steel rod

    Swing axis 2x 3x16mm carbon/steel rod

    Spring: 4x 15x2.5mm-16x3mm O-ring or rubber band/tension spring

Smoke Flight:

https://youtu.be/fxtOXi8Ufaw

Alternative Tail Unit:

https://youtu.be/9hgiCHT2QQk

Build Video:

https://youtu.be/JAvj8eFeon0

3D printing settings

  • LW-PLA Parts: Print all LW-PLA parts (winglets and canards) with 5% infill for winglets and canards, 3% gyroid infill for other parts. Use 1 wall, 2 bottom layers, and 4 top layers.

  • PLA/PETG/ASA/ABS (CF): Use materials of your choice. My recommendation is at least 2 wall lines, 15-25% grid infill, and more for landing gear components.

  • TPU Tires: Print tires with 2 walls and 12-15% gyroid infill.

  • For up-to-date print settings recommendations, please check my website SODYs3D.com, where I continuously update these settings.
