Scaled Model of Flat 6 Engine

Advertising
Make an offer
Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
Usages
3D design format
31 files (STL and ZIP) Close
  • 1-3-5 Block Bottom-V2.stl
  • 1-3-5 Block Top-V2.stl
  • 1-3-5 Cam Wheel.stl
  • 1-3-5 DOHC.stl
  • 1-3-5 Exhaust Cam Shaft.stl
  • 1-3-5 Intake Cam Shaft.stl
  • 2-4-6 Block Bottom-V2.stl
  • 2-4-6 Block Top-V2.stl
  • 2-4-6 Cam Wheel.stl
  • 2-4-6 DOHC.stl
  • 2-4-6 Exhaust Cam Shaft.stl
  • 2-4-6 Intake Cam Shaft.stl
  • 6 Cylinder Assembly-2.stl
  • 6 Cylinder Assembly.stl
  • 6 Cylinder Oil Pan.stl
  • Belt Tensioner Bracket.stl
  • Cam Cap.stl
  • Conecting Rod Cap.stl
  • Conecting Rod.stl
  • Crank Timing Gear.stl
  • F6 Crank Shaft.stl
  • F6 Intake Manifold.stl
  • Flat 6 - V2.zip
    • 1-3-5 Block-Bottom.stl
    • 1-3-5 Block-Top.stl
    • 1-3-5 Cam Wheel-P.stl
    • 1-3-5 DOHC.stl
    • 1-3-5 Exhaust Cam Shaft.stl
    • 1-3-5 Front Cam Cap.stl
    • 1-3-5 Header Mid Pipe.stl
    • 1-3-5 Headers.stl
    • 1-3-5 Intake Cam Shaft.stl
    • 1-3-5 Valve Cover.stl
    • 2-4-6 Block-Bottom.stl
    • 2-4-6 Block-Top.stl
    • 2-4-6 Cam Wheel-P.stl
    • 2-4-6 DOHC.stl
    • 2-4-6 Exhaust Cam Shaft.stl
    • 2-4-6 Flex bend Pipe.stl
    • 2-4-6 Front Cam Cap.stl
    • 2-4-6 Header Flex Mid Pipe.stl
    • 2-4-6 Header Mid Pipe.stl
    • 2-4-6 Headers.stl
    • 2-4-6 Intake Cam Shaft.stl
    • 2-4-6 Valve Cover.stl
    • 36-Timing Gear-P.stl
    • Belt Tensioner Assembly.stl
    • Cam Cap.stl
    • Collector Pipe.stl
    • Connecting Rod Cap.stl
    • Connecting Rod.stl
    • Coolant Cross Over Pipe.stl
    • F6 CrankShaft.stl
    • F6 Intake Manifold.stl
    • Fly Wheel-1.stl
    • FlyWheel.stl
    • Harmonic Balancer.stl
    • Idler Gear Pully.stl
    • Internal Exhaust Cam Gear.stl
    • Internal Intake Cam Gear.stl
    • Lower Left Idler Pully.stl
    • Oil Pump.stl
    • Piston.stl
    • Pressure Plate Assembly.stl
    • Pressure Plate Assembly-2.stl
    • Tensioner Bracket.stl
    • Tensioner Idler Pulley.stl
    • Timing Belt-Q-P.stl
    • Up Pipe.stl
    • Upper Left Idler Pully.stl
    • Water Pully.stl
    • Water Pump-1.stl
    • Wrist Pin.stl
  • FlyWheel.stl
  • Harmonic Balencer.stl
  • Internal Exhaust Cam Gear.stl
  • Internal Intake Cam Gear.stl
  • Oil Pump.stl
  • Piston Wrist Pin.stl
  • Piston-2.stl
  • Water Pump.stl

Learn more about the formats
Last update
Publication date
Design number 976144
Lams

Lams

Issue with this design? Report a problem.

3D printer file info

3D model description

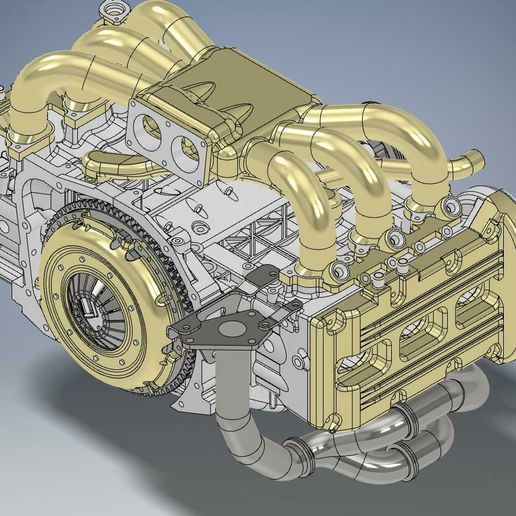

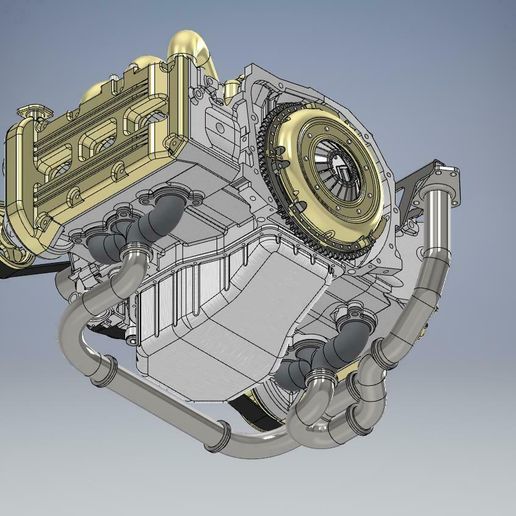

This Engine is a custom design based off a Subaru EJ22.
