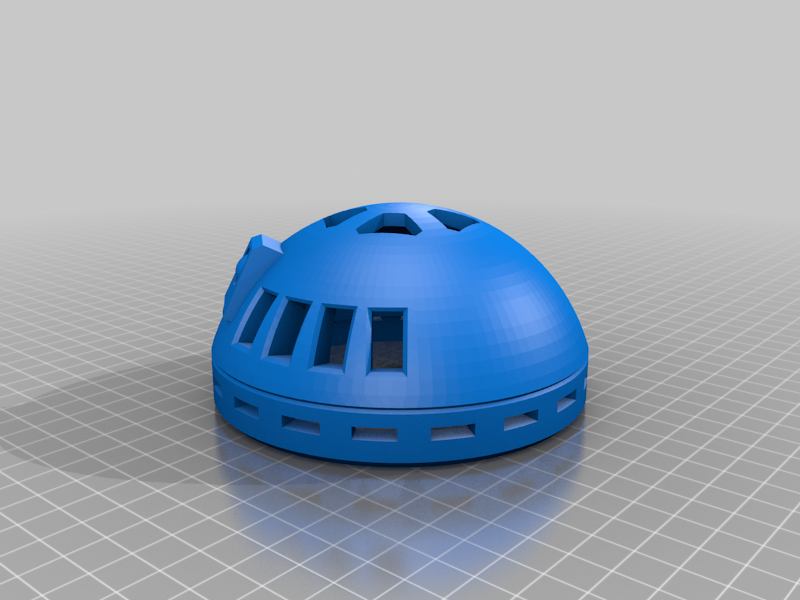

r2d2_head.png Free STL file R2D2 Echo Dot 3rd Gen Stand・Design to download and 3D print
r2d2_center_foot.png Free STL file R2D2 Echo Dot 3rd Gen Stand・Design to download and 3D print

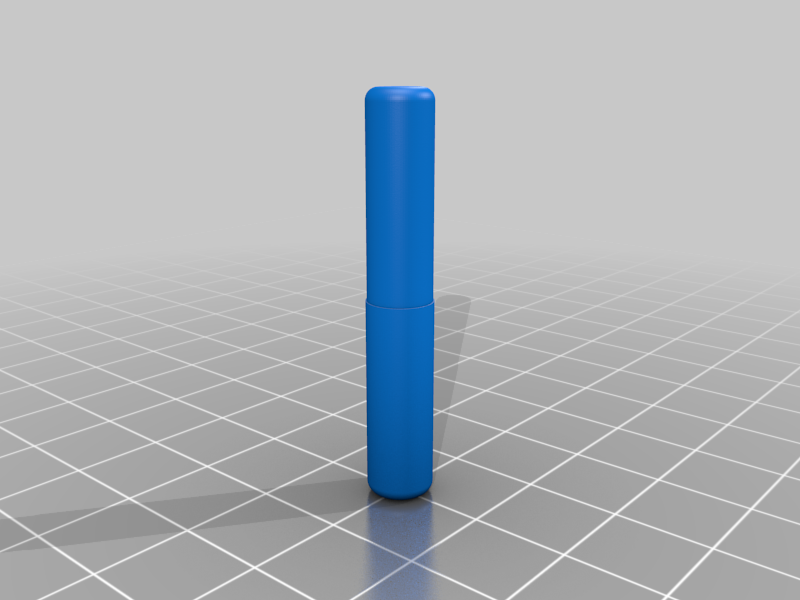

pin_breiter_r2d2-export.png Free STL file R2D2 Echo Dot 3rd Gen Stand・Design to download and 3D print

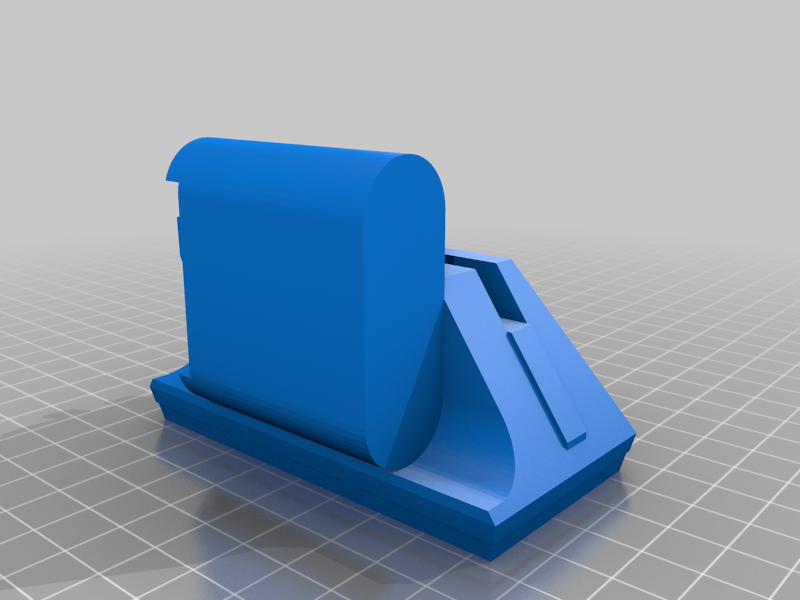

Fixed_right_foot.png Free STL file R2D2 Echo Dot 3rd Gen Stand・Design to download and 3D print
4.JPG Free STL file R2D2 Echo Dot 3rd Gen Stand・Design to download and 3D print
1.JPG Free STL file R2D2 Echo Dot 3rd Gen Stand・Design to download and 3D print
3.JPG Free STL file R2D2 Echo Dot 3rd Gen Stand・Design to download and 3D print
2.JPG Free STL file R2D2 Echo Dot 3rd Gen Stand・Design to download and 3D print
5.JPG Free STL file R2D2 Echo Dot 3rd Gen Stand・Design to download and 3D print
R2D2_Alexa.stl Free STL file R2D2 Echo Dot 3rd Gen Stand・Design to download and 3D print
Adapterring.stl Free STL file R2D2 Echo Dot 3rd Gen Stand・Design to download and 3D print
Fixateur.stl Free STL file R2D2 Echo Dot 3rd Gen Stand・Design to download and 3D print
Fixed_left_foot.stl Free STL file R2D2 Echo Dot 3rd Gen Stand・Design to download and 3D print
Fixed_right_foot.stl Free STL file R2D2 Echo Dot 3rd Gen Stand・Design to download and 3D print
r2d2_center_foot.stl Free STL file R2D2 Echo Dot 3rd Gen Stand・Design to download and 3D print
r2d2_left_leg.stl Free STL file R2D2 Echo Dot 3rd Gen Stand・Design to download and 3D print
r2d2_right_leg.stl Free STL file R2D2 Echo Dot 3rd Gen Stand・Design to download and 3D print
r2d2_main_body_fixed.stl Free STL file R2D2 Echo Dot 3rd Gen Stand・Design to download and 3D print
r2d2_head.stl Free STL file R2D2 Echo Dot 3rd Gen Stand・Design to download and 3D print
pin_breiter_r2d2-export.stl Free STL file R2D2 Echo Dot 3rd Gen Stand・Design to download and 3D print
R2D2_Vent.stl Free STL file R2D2 Echo Dot 3rd Gen Stand・Design to download and 3D print
R2D2_Arm.stl Free STL file R2D2 Echo Dot 3rd Gen Stand・Design to download and 3D print
Share
Add to
Make
?
Creation quality: 4.8/5 (5 votes)
Evaluation of members on the printability, utility, level of detail, etc.

Designer

Doenermaker

Doenermaker

3D model description

Most of the files are just scaled up by 121% to fit the third gen Echo Dot.

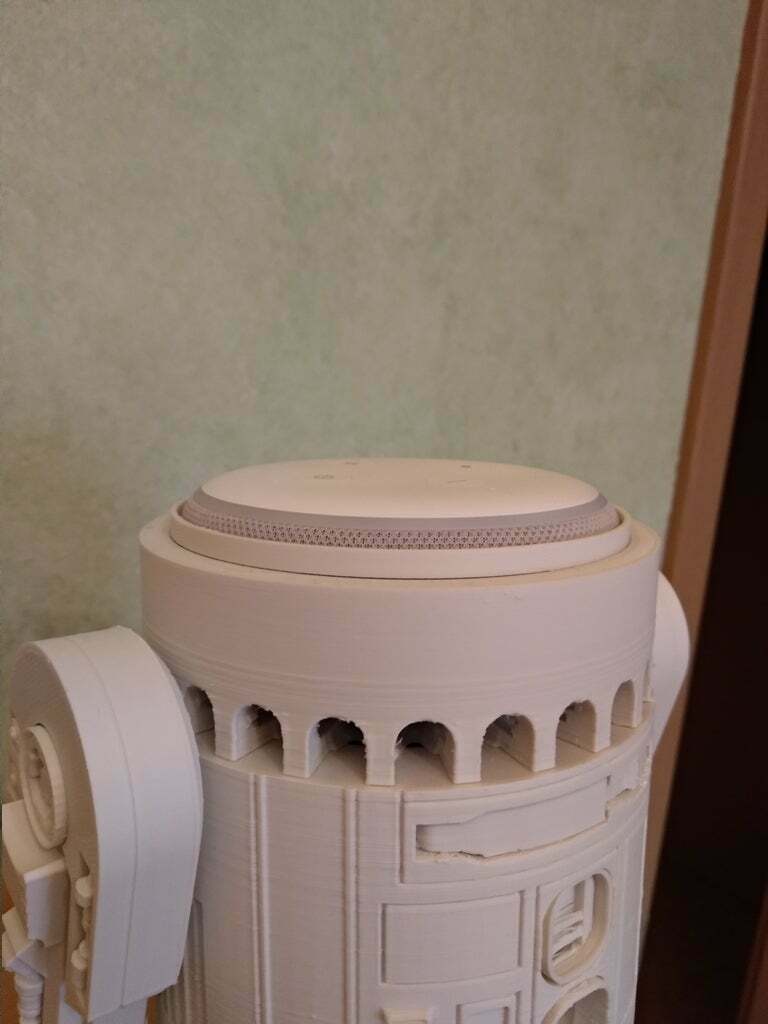

However I modified the Alexa part (R2D2_Alexa) so the cutout matches it's power port. And I made it slightly taller so the head sits flush. I'm not really happy with the mesh but I'm not experienced in meshbending. The errors are on the inside though, so they don't really matter.

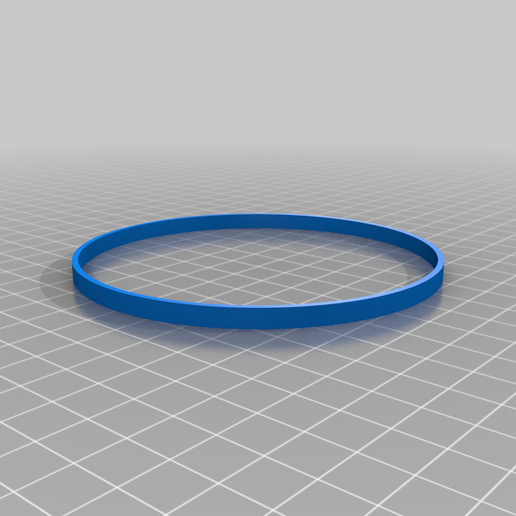

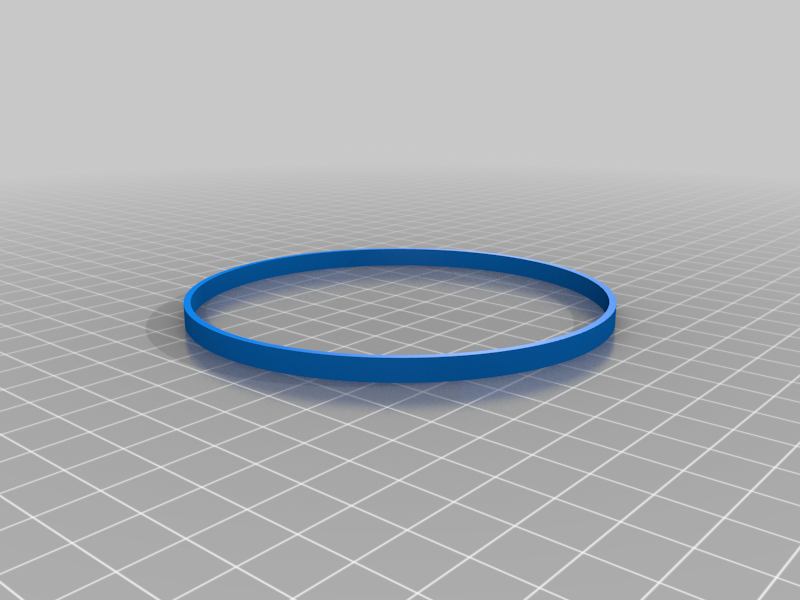

I also designed the "Adapterring" and the "Fixateur". The Adapterring sits between R2D2_Alexa and R2D2_Head and makes it so the head doesn't slide around. It might be a little to big and you have to cut a small segment out of it, but then it still works fine.
The Fixateur is screwed to the underside of R2D2_Alexa by two flathead M4x8 (or 10, doesn't really matter; if your holes are to wide you could also use longer bolts with nuts on the underside) and holds R2D2_Alexa to r2d2_main_body without glue. I also added the .step and .f3d files if you want to change something.

Update 12.06.2020:

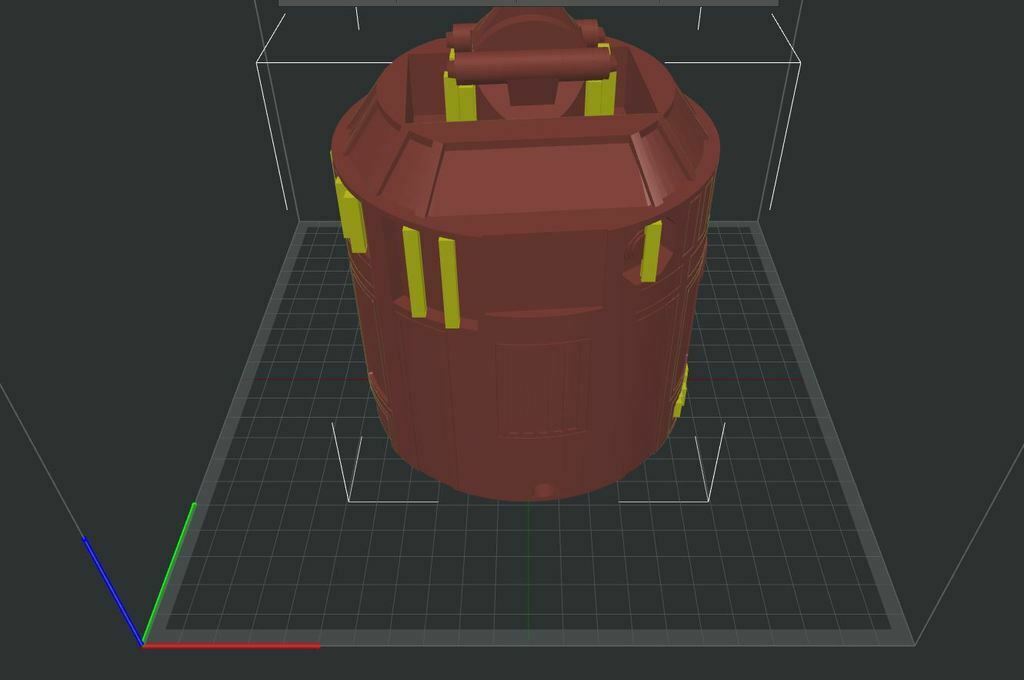

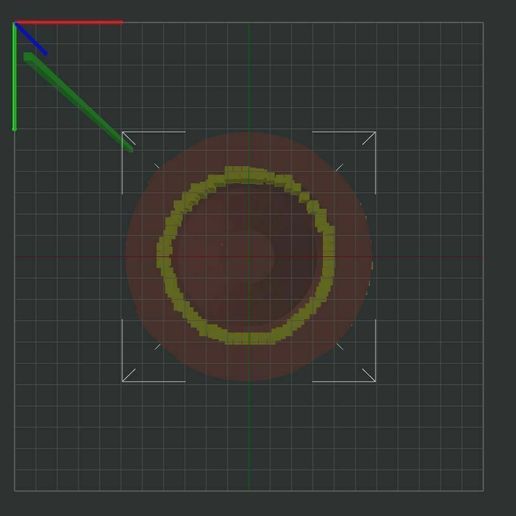

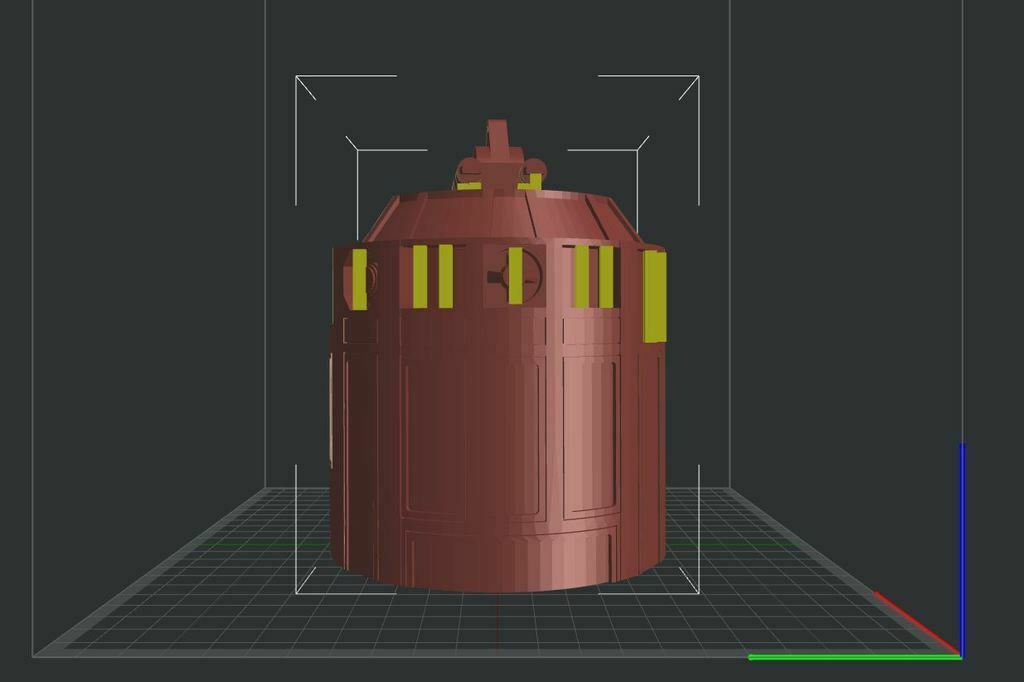

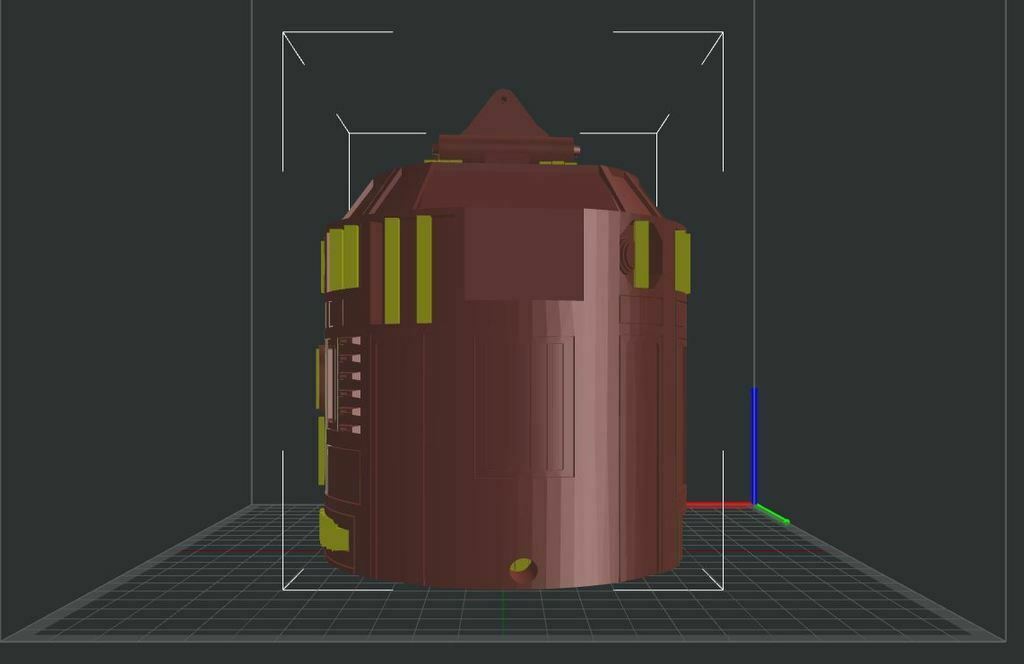

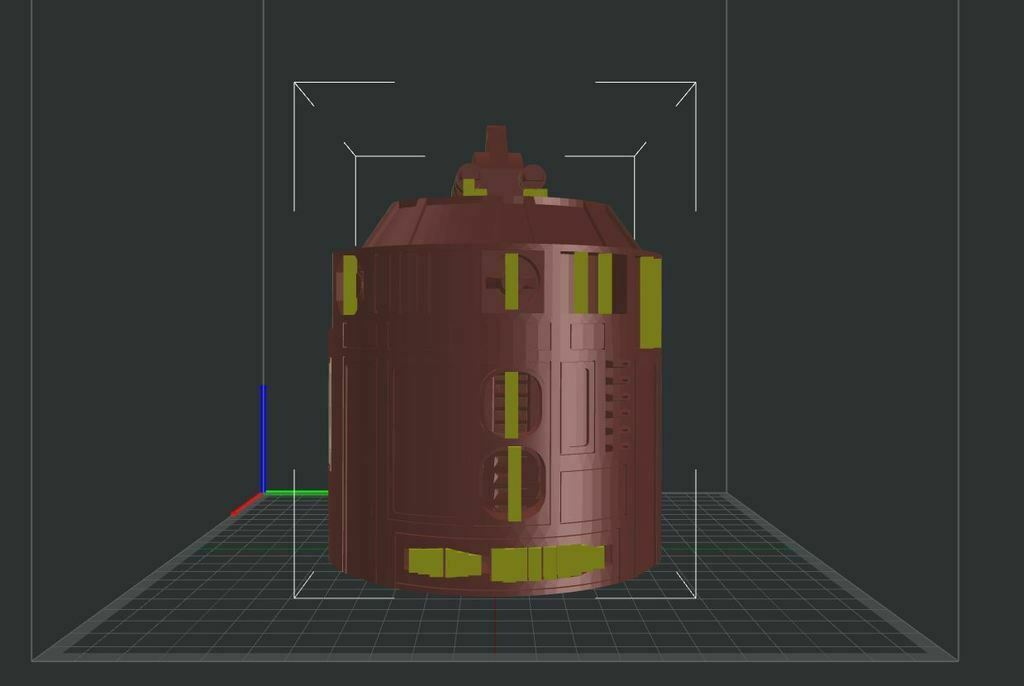

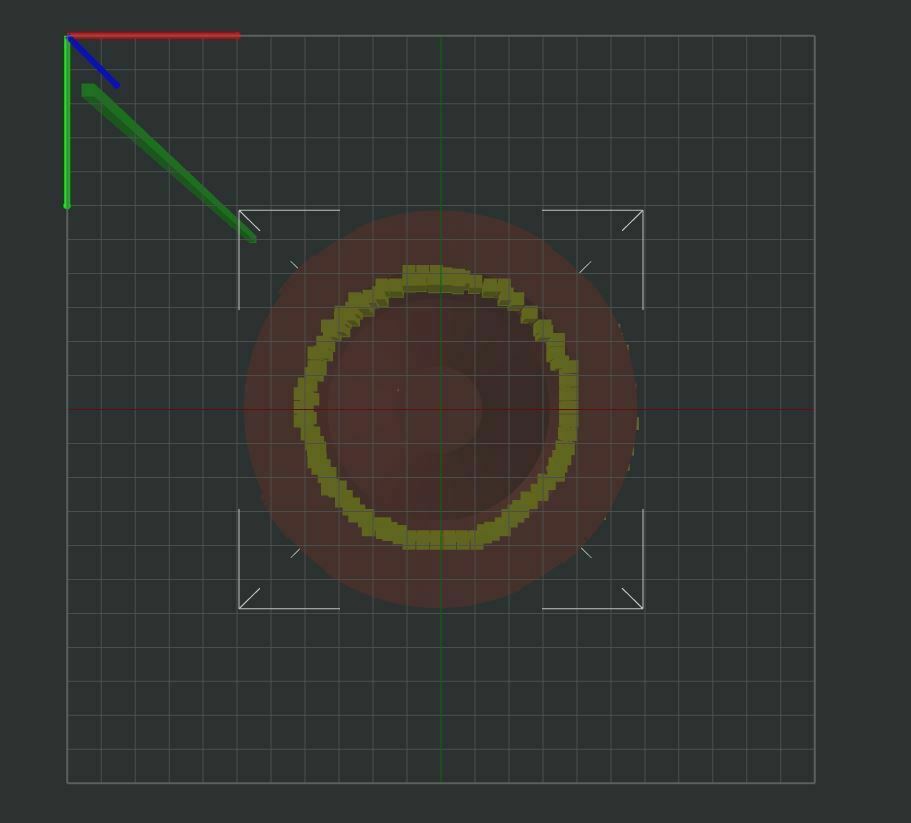

Since a few people asked about the support of the main body I uploaded 5 pictures showing how I would place the supports and an .idea file which should include the supports if opened with Ideamaker (the slicer of my choice; I'm not entirely shure sharing this file works as intended). If your slicer supports tree supports you might wanna use them for the outside and the inner ring, however remember to support the overhangs on top of the body (the thing, where the middle foot goes) as well.

3D printer file information

  • Design number: 283500
  • 3D design format: F3D, STEP, and STL Folder details Close
    • Adapterring.stl
    • Fixateur.f3d
    • Fixateur.step
    • Fixateur.stl
    • Fixed_left_foot.stl
    • Fixed_right_foot.stl
    • R2D2_Alexa.stl
    • R2D2_Arm.stl
    • R2D2_Vent.stl
    • pin_breiter_r2d2-export.stl
    • r2d2_center_foot.stl
    • r2d2_head.stl
    • r2d2_left_leg.stl
    • r2d2_main_body_fixed.stl
    • r2d2_right_leg.stl

    Learn more about the formats

  • Publication date: 2021-02-03 at 18:33
    ?
    Published to Thingiverse on: 2020-05-11 at 09:27
