PCI-E Riser Card Mounting Base Plate

pci-express-riser-card.jpg PCI-E Riser Card Mounting Base Plate
12814863364267d88b2d1f632f7f0f73.png PCI-E Riser Card Mounting Base Plate
6e0c1fadf26f7b0c5ac84c8af094acb7.png PCI-E Riser Card Mounting Base Plate
4mm_thick_PCI-E_riser_base.stl PCI-E Riser Card Mounting Base Plate
2mm_thick_PCI-E_riser_base.stl PCI-E Riser Card Mounting Base Plate
pci-express-riser-card.jpg PCI-E Riser Card Mounting Base Plate
12814863364267d88b2d1f632f7f0f73.png PCI-E Riser Card Mounting Base Plate
6e0c1fadf26f7b0c5ac84c8af094acb7.png PCI-E Riser Card Mounting Base Plate
4mm_thick_PCI-E_riser_base.stl PCI-E Riser Card Mounting Base Plate
2mm_thick_PCI-E_riser_base.stl PCI-E Riser Card Mounting Base Plate
Advertising
Make an offer
Share
Add to
Make
?
Creation quality: 0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
License
3D design format
2 files Close
  • 2mm_thick_PCI-E_riser_base.stl
  • 4mm_thick_PCI-E_riser_base.stl

Learn more about the formats
Publication date
?
Published to Thingiverse on:
Design number 1524228
Superflex_Plastic_Fantastic

Superflex_Plastic_Fantastic

Issue with this design? Report a problem.

3D printer file info

3D model description

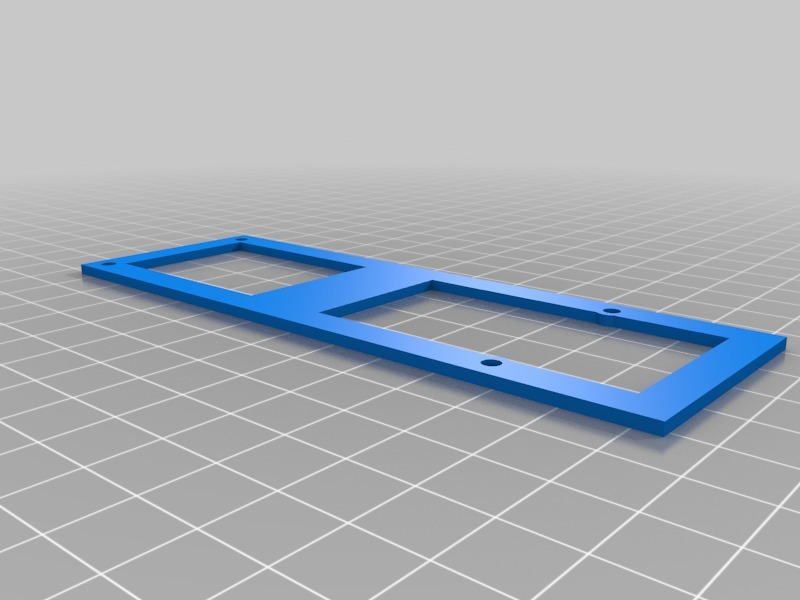

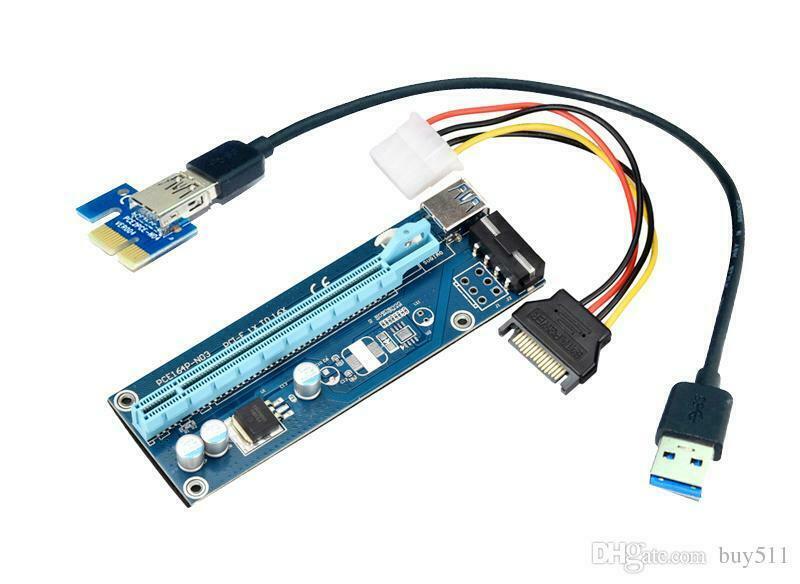

Base plate for PCI-E riser card. Rather than fiddling with standoffs I designed this base plate to space the board from the mounting surface which in my case was a plate of highly conductive aluminum. I use the 2mm thick one as the risers I get have an insulating dense foam. I provided a 4mm thick version if you end up with barebones un-padded cards. Mount with 3mm screws and nyloc nuts. Snug but do not over tighten as you may snap or warp the riser card hence the use of nyloc nuts is recommended.
