LiftPod - Easy Lock Edition

Advertising
Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
πŸ†Β BestΒ ?
License
3D design format
16 files (STL) Close
  • Arm Extender A v1.stl 140.000007 Γ— 44.575888 Γ— 8.000206 mm
  • Arm Extender B v1.stl 140.000004 Γ— 45.443713 Γ— 8.001304 mm
  • Arm First Symm v1.stl 115.00005 Γ— 43.338101 Γ— 8.000893 mm
  • Arm Last v1.stl 140.00000799999998 Γ— 44.859145 Γ— 8.001324 mm
  • Bar Printed v2.stl 142.800293 Γ— 15.014628 Γ— 10.500618000000001 mm
  • Bar Sleeve Symm.stl 19.232696000000004 Γ— 19.23261 Γ— 71.999695 mm
  • Bar Symm v1.stl 118.00585600000001 Γ— 15.072756 Γ— 10.502174 mm
  • Base Feet.stl 31.000056999999998 Γ— 30.117348 Γ— 4.600048 mm
  • Base Plate v1.stl 123.999897 Γ— 89.999931 Γ— 26.200039 mm
  • Bolt Printed v2.stl 60.048637 Γ— 35.404616999999995 Γ— 10.500837 mm
  • Clamp Bolt v2.stl 40.845162 Γ— 9.235993000000008 Γ— 5.5289980000000005 mm
  • Clamp Frame v2.stl 69.999984 Γ— 79.984252 Γ— 51.499925 mm
  • Knob for Locking Washer v1.stl 19.232742000000002 Γ— 19.232731 Γ— 16.000038 mm
  • Nut Symm v1.stl 44.949974 Γ— 19.995605 Γ— 14.400192 mm
  • Washer Friction v1.stl 42.593702 Γ— 18.797901000000003 Γ— 1.00037 mm
  • Washer Locking v1.stl 40.799994999999996 Γ— 17.899929 Γ— 1.7999990000000001 mm

Learn more about the formats
Last update
Publication date
Design number 214890
Design author HeyVye
HeyVye

HeyVye

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

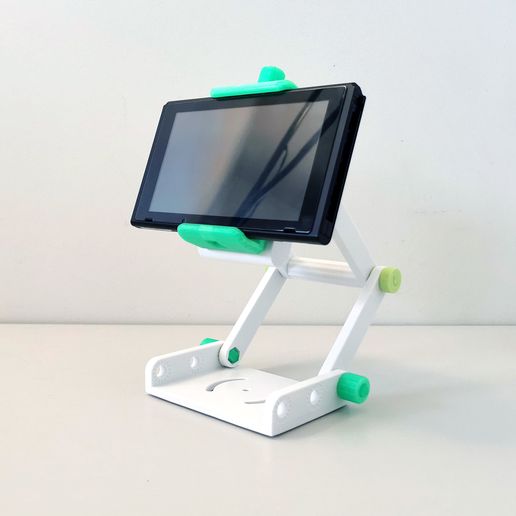

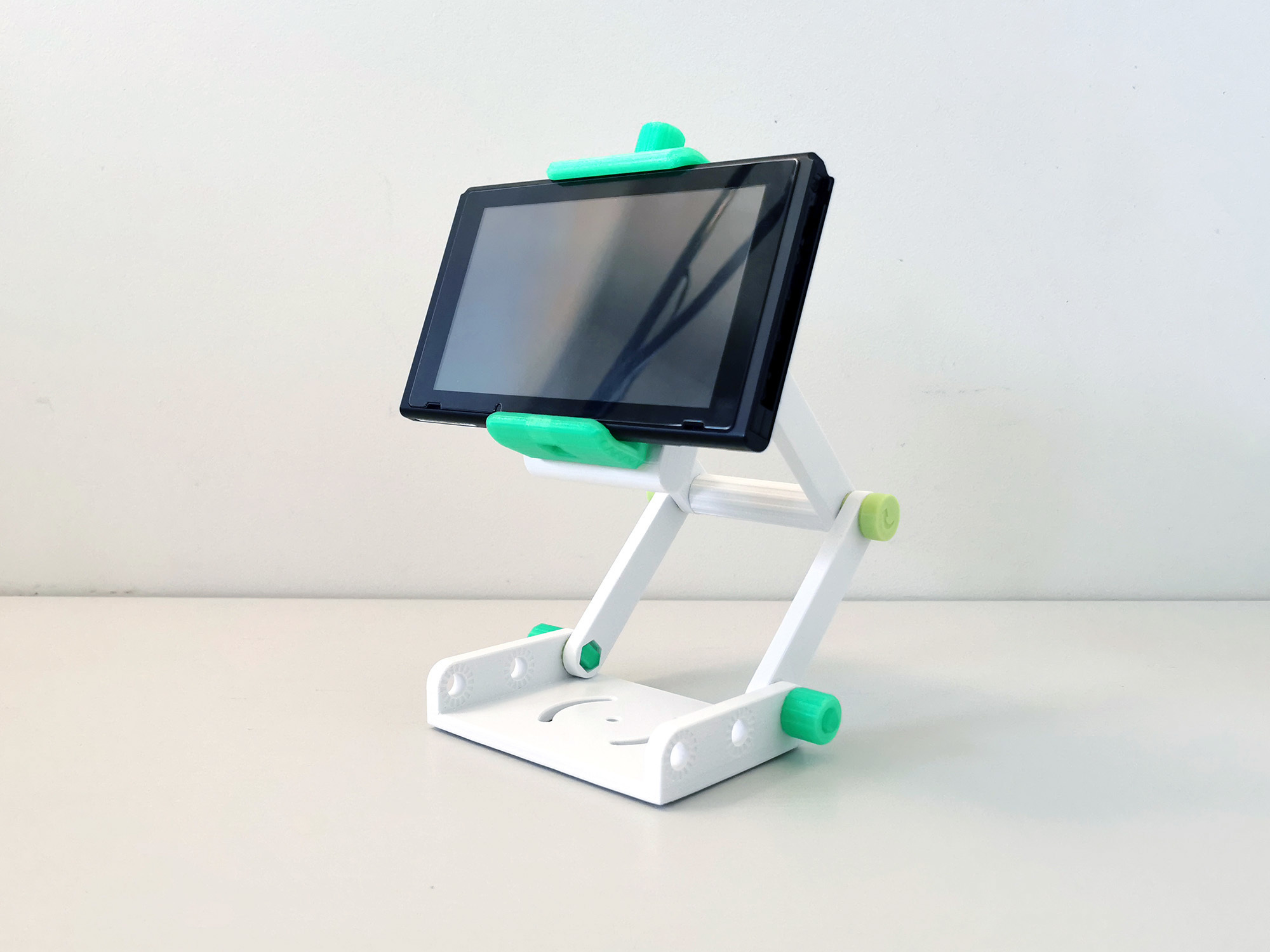

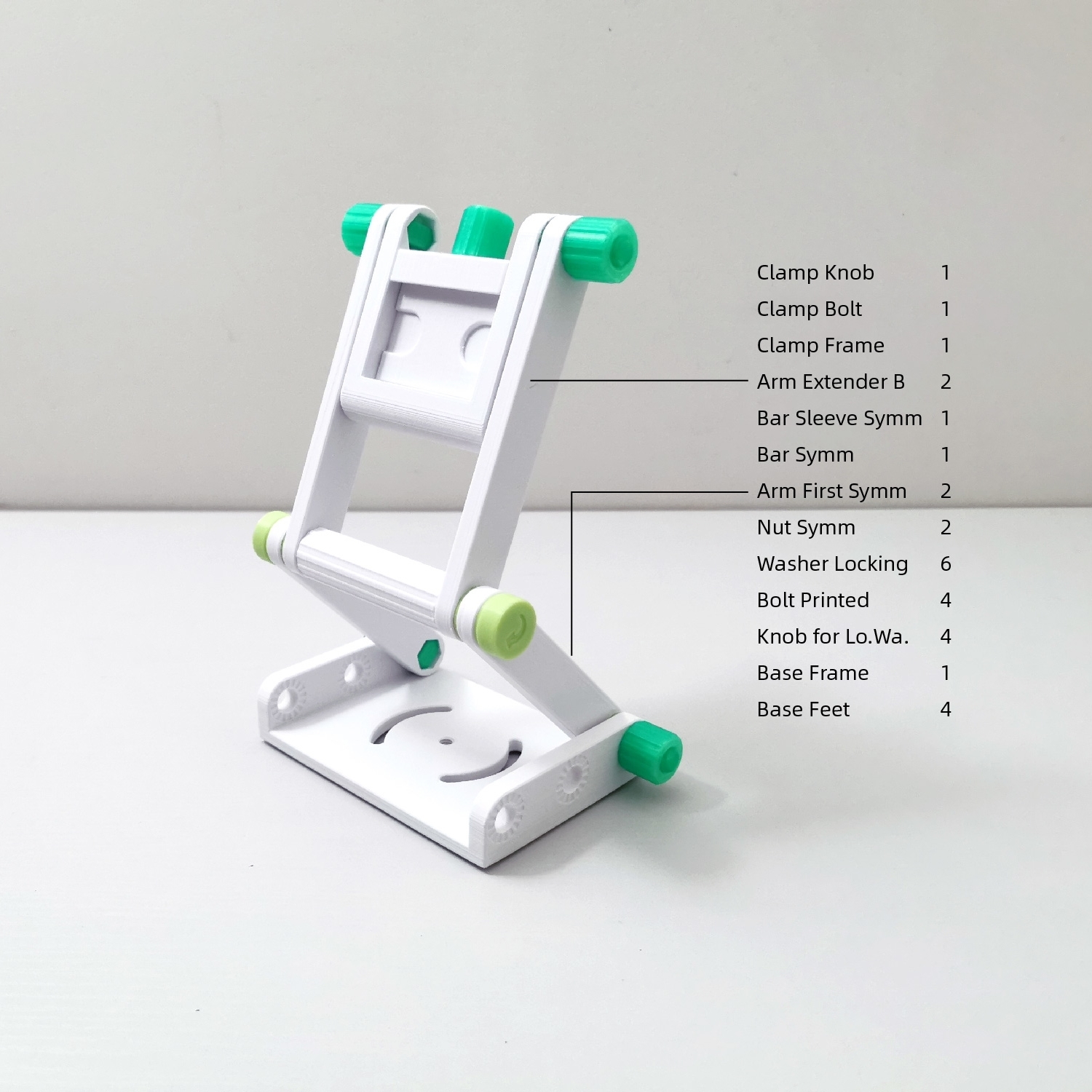

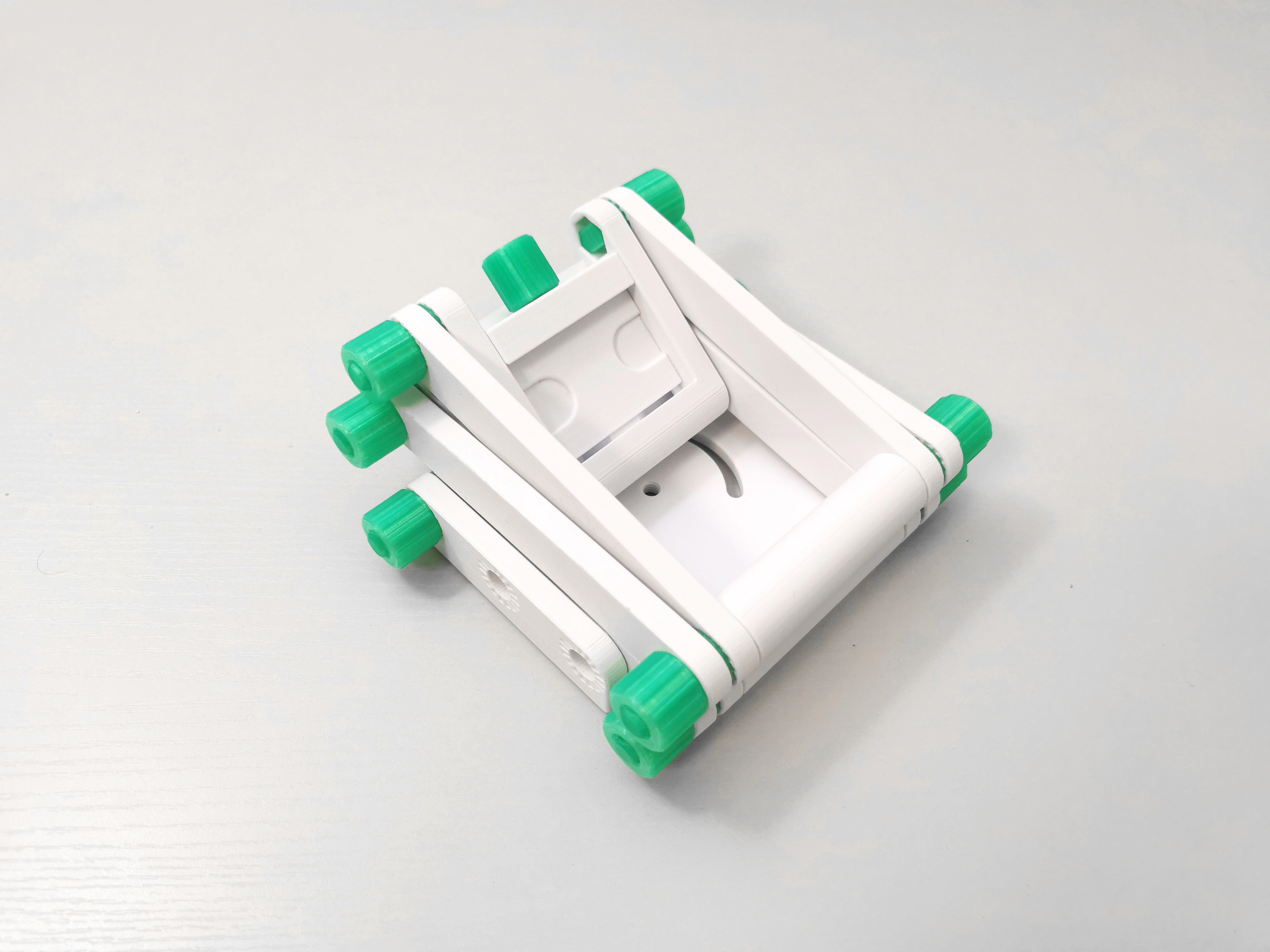

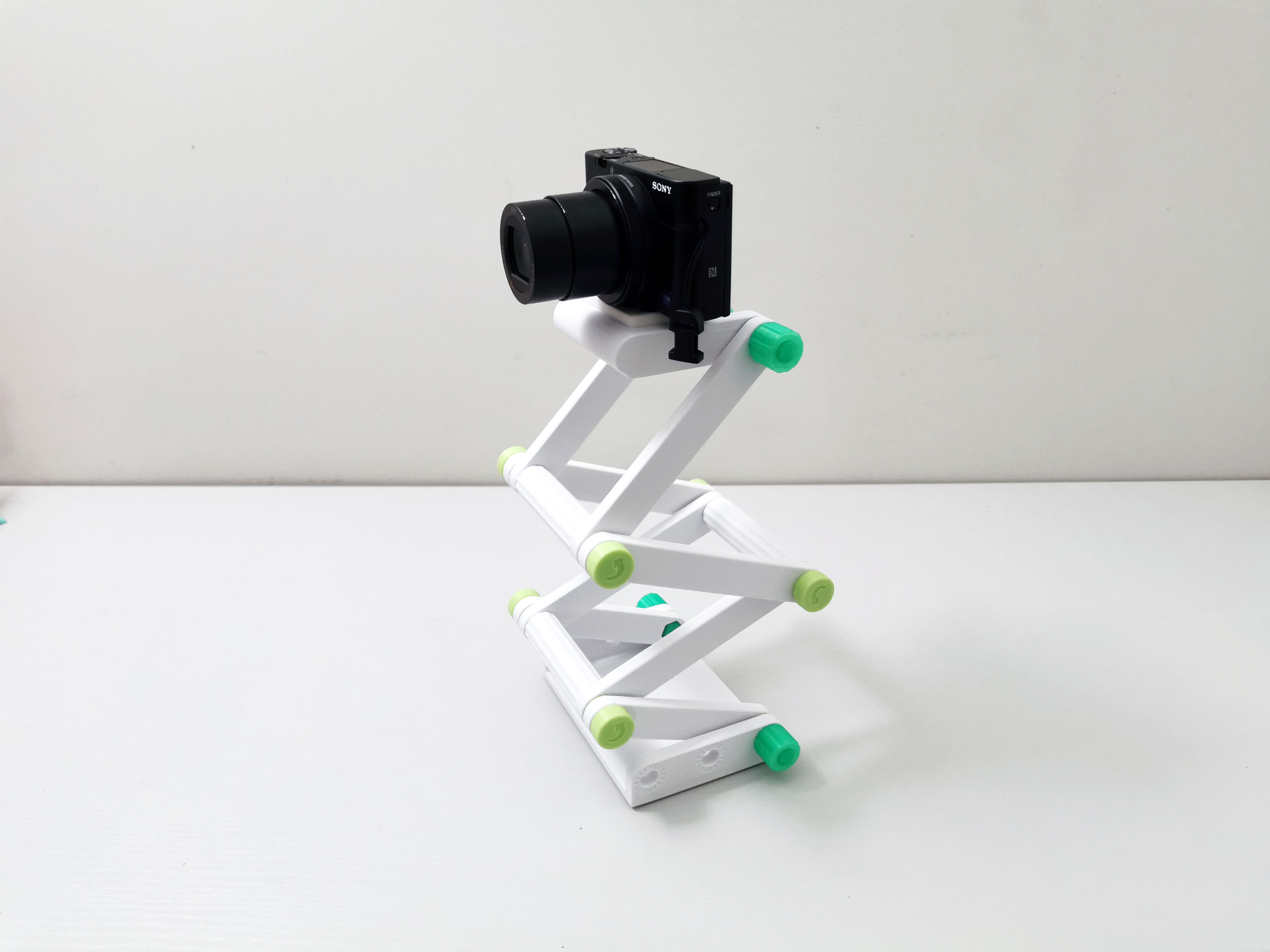

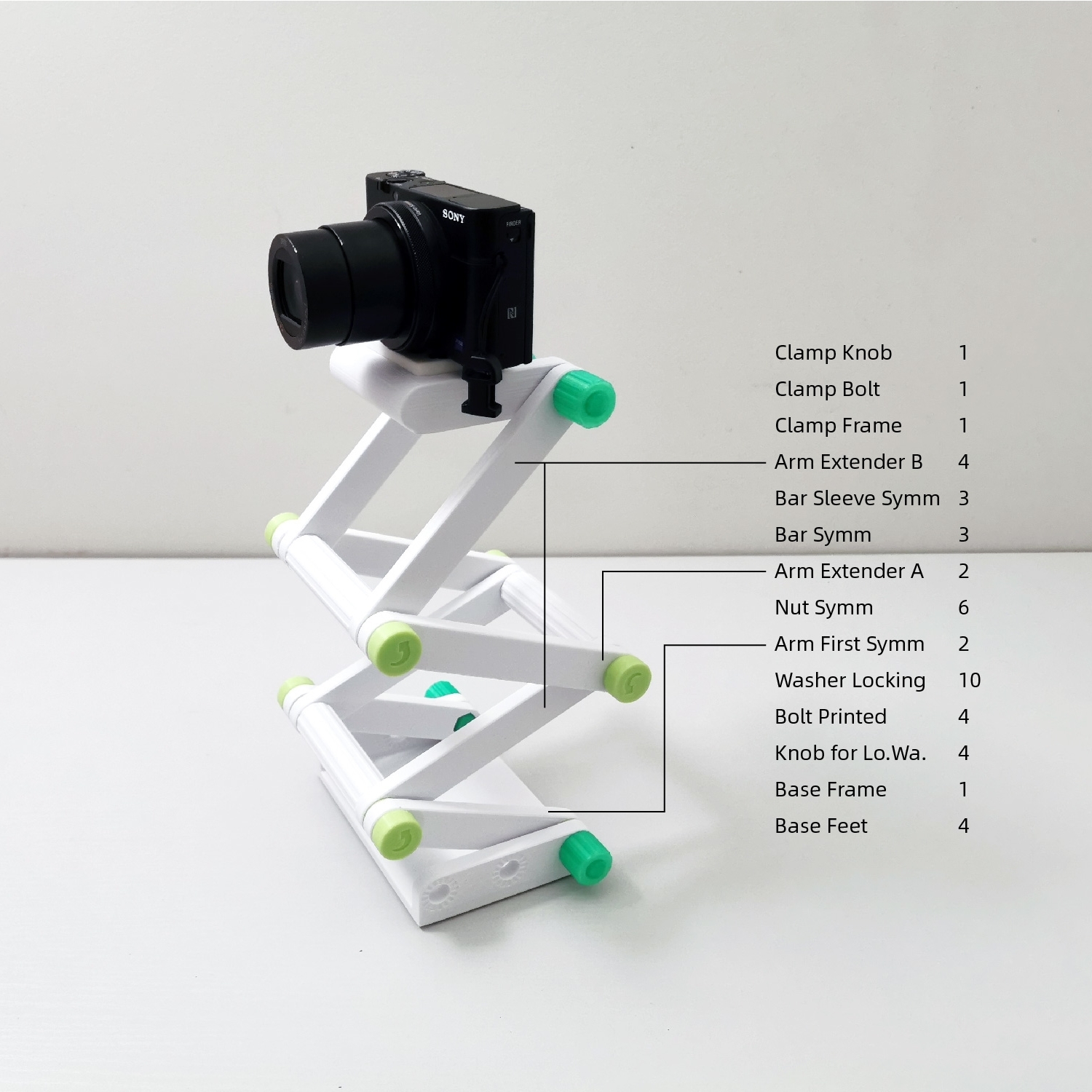

This is a fully printed multipurpose stand to mount cameras, phones, Nintendo Switch, or tablets.
The clamp is compatible with common Arca-Swiss style camera tripod plate.
It's a remix of LiftPod (https://cults3d.com/en/3d-model/gadget/liftpod-multipurpose-foldable-stand) with horizontal bars as knob. It has symmetrical threads, making it easier to tighten with multiple locking joints.

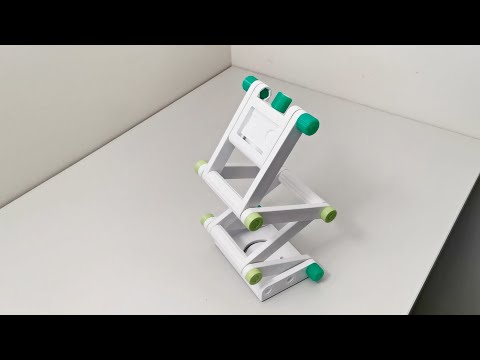

Assembly video: https://www.youtube.com/watch?v=VFM1dJ0Mx8Q

Download object holders such as camera plate, tablet holders from here: https://cults3d.com/en/3d-model/gadget/object-holders-for-liftpod
Download the phone clamp from here: https://cults3d.com/en/3d-model/gadget/modular-mounting-system
Download the vice clamp from here: https://cults3d.com/en/3d-model/gadget/machine-vise-with-m5-mount-nuts

If you need freedom of angle, use friction washer for the end clamp instead of locking washer.
All objects are orientated properly. The bolts are printed horizontally.
Print "Base feet" with FLEXIBLE material for friction.

PRINT SETTINGS:
0.2mm layer height
No support
4 Wall lines
At least 35% infill

UPDATE HISTORY:
2020-10-30 - Clamp Frame v2 update: tray made slightly shallower so objects stay still when unclamping.
