Hobby Servo Pulley Module *TINY_CNC_COLLECTION

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 394 views
  • 2 likes
  • 4 downloads

3D model description

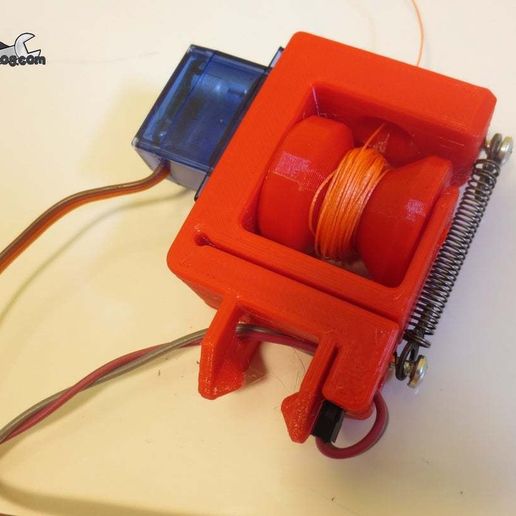

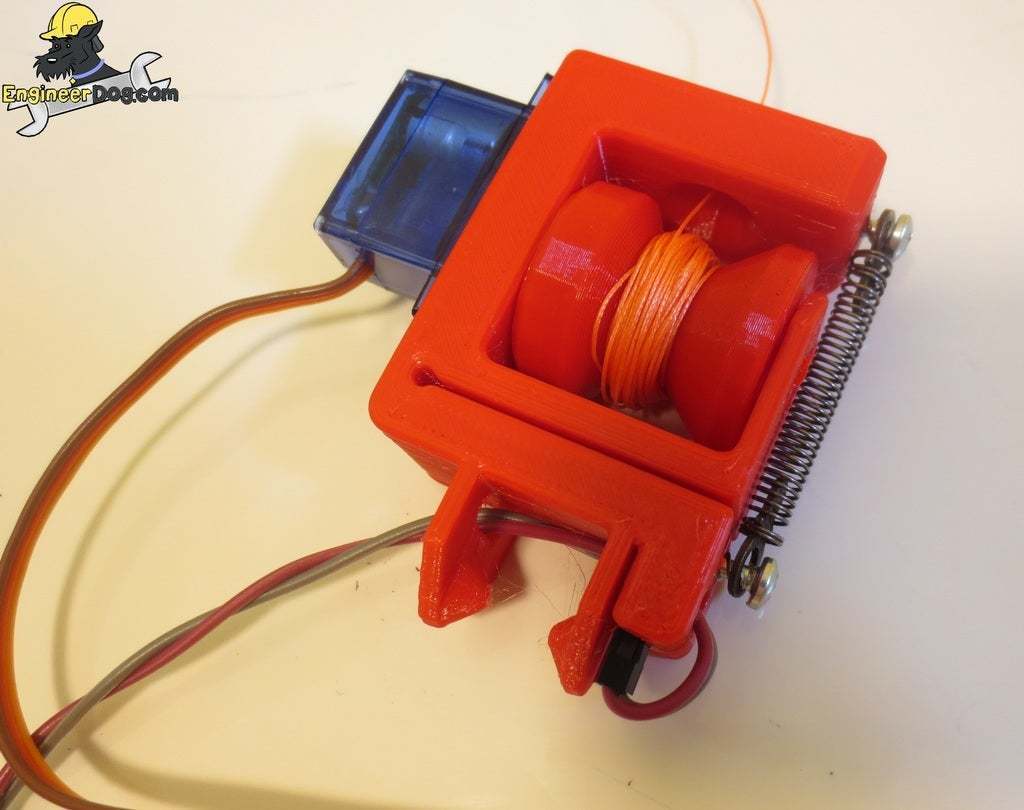

This is a modular hobby servo PULLEY JOINT assembly. It is part of the Tiny_CNC_Collection of parts designed to facilitate entry into robot building fun!

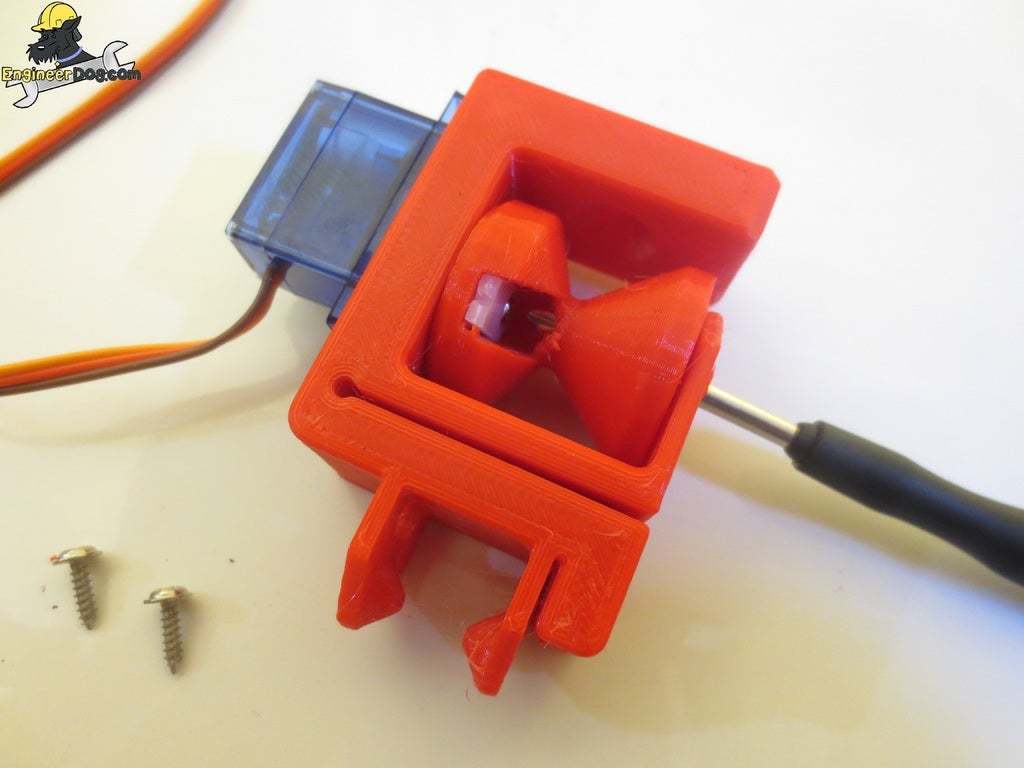

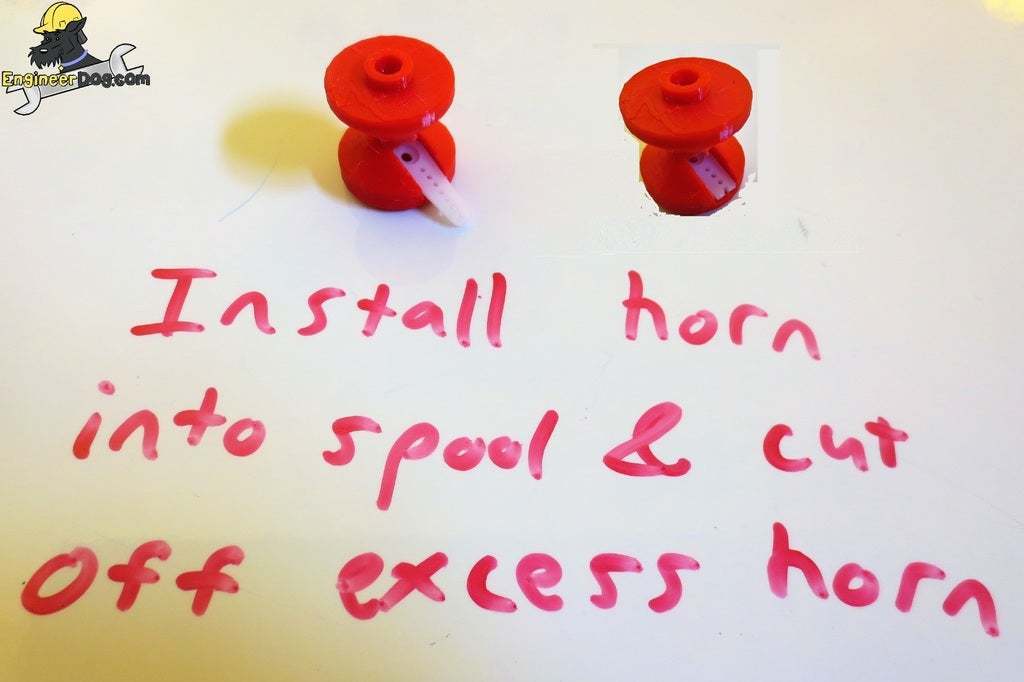

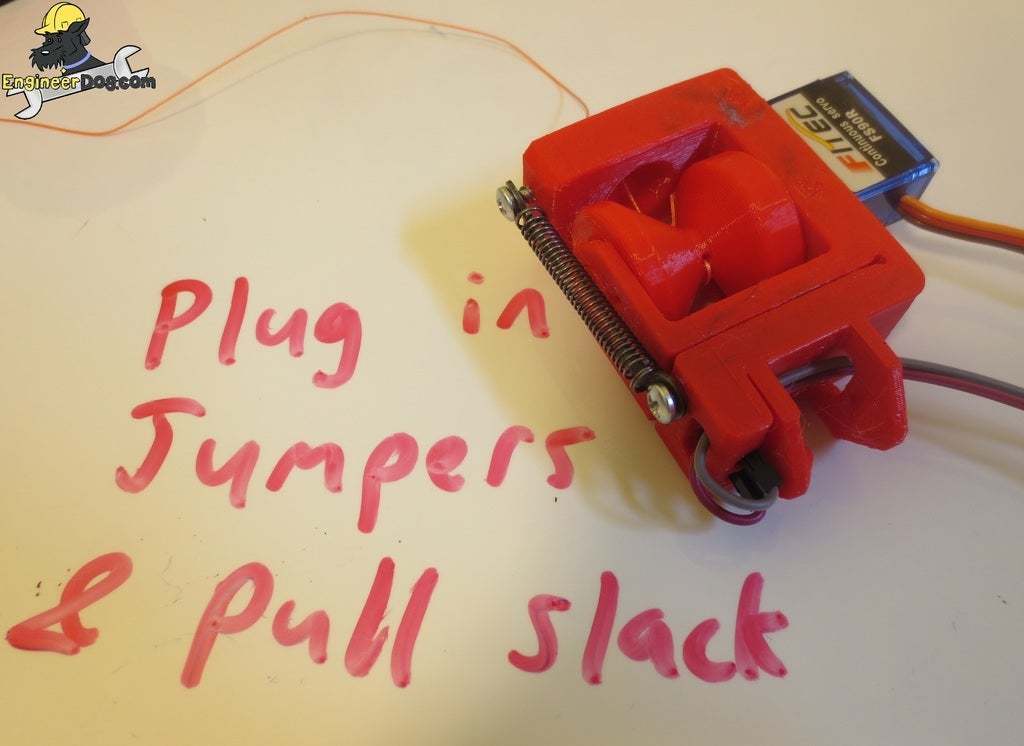

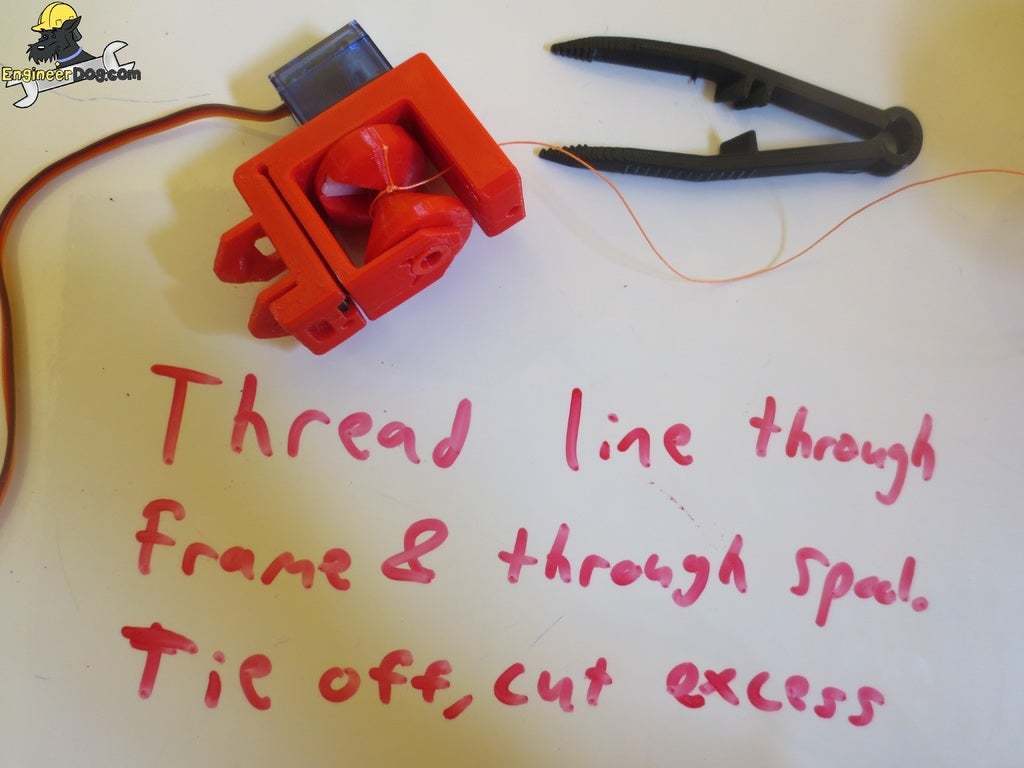

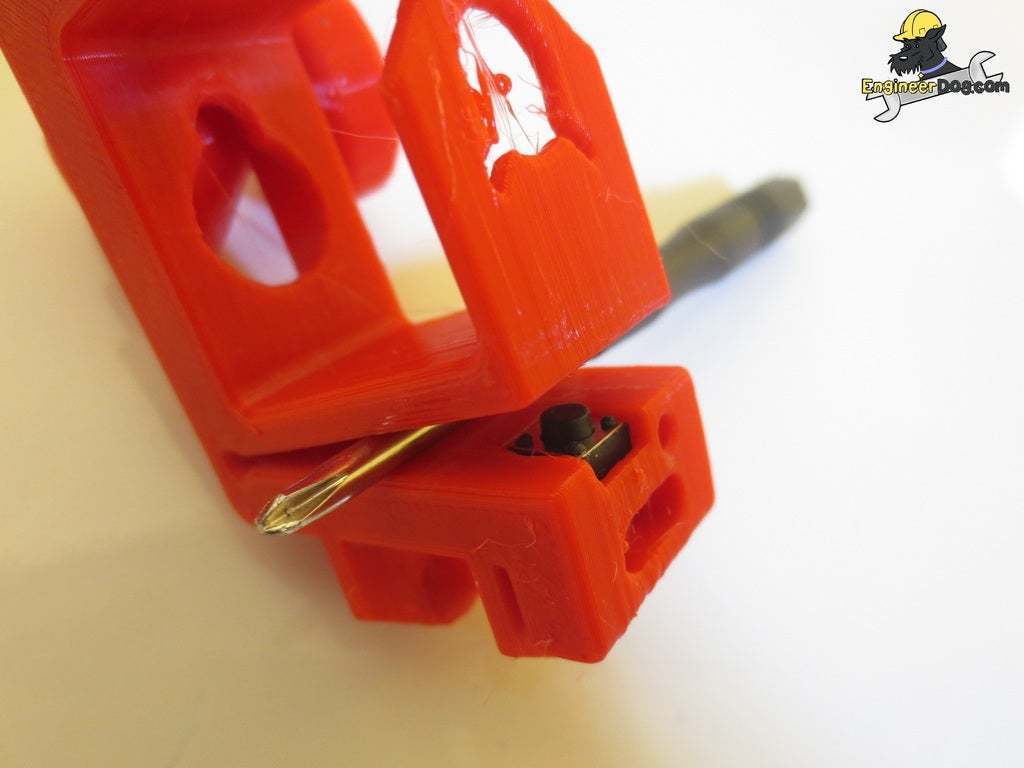

All parts print without supports or post processing! See Photos for assembly directions.

**All information regarding this project is on this page:
http://engineerdog.com/tinycnc
.

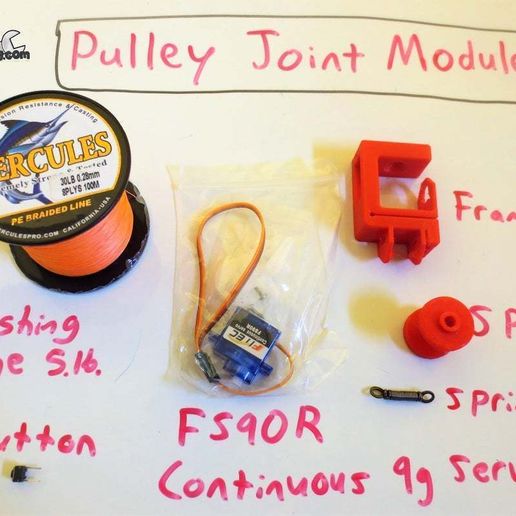

FS90R Continuous 9g Servo: https://amzn.to/2Bg0n5E
Fishing Line: https://amzn.to/2MJ3uUM
Momentary button (6x6xmm): https://amzn.to/2KOKqCM
Printing Material: https://amzn.to/2MmNOGA

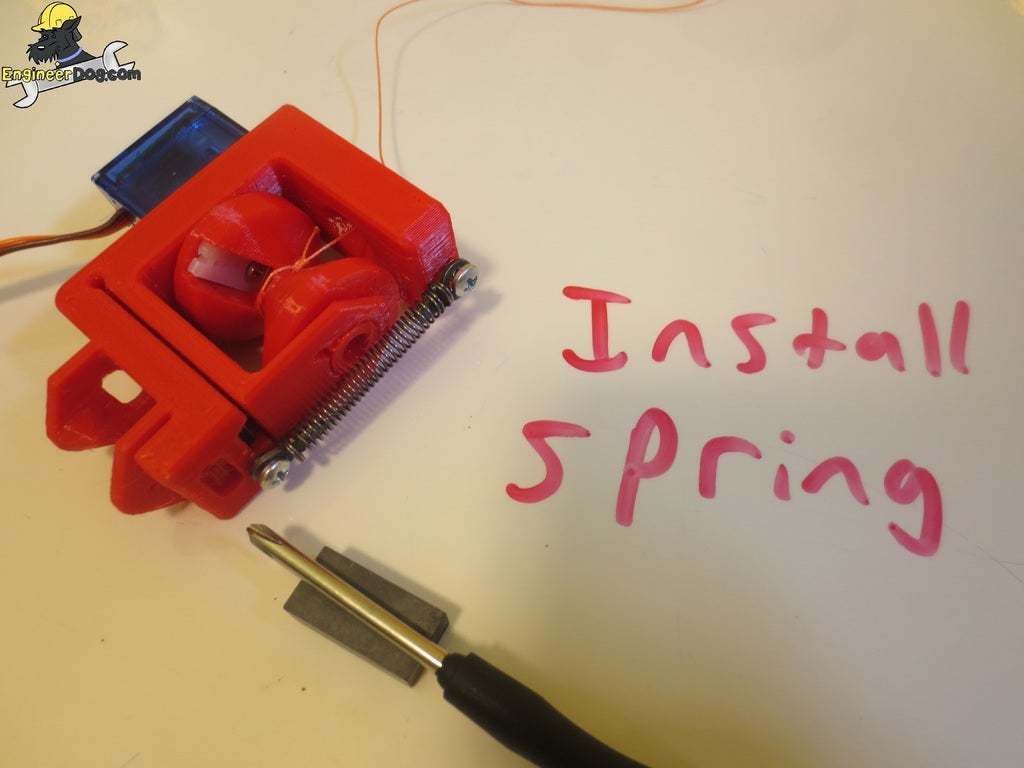

Spring of your choice: Link TBD
*Can be printed in any material as long as all parts are the same material.
.
.
.
.
.

*Note 1: Included are STEP files so you can further modify these to your needs. Please enjoy these files and use them as you wish while respecting the attribution aspect of the sharing license.
**Note 2: If you print these out snap a pic and share your make! I'd love to see how these designs are put to use.
.
Video Demo @ 5min-36sec: https://youtu.be/EGnOKyPqEH8?list=PLxT-reigvGs1LH1x2Emq-B8s_OtdUZwxE&t=336

  • 3D file format: STL
  • Publication date: 2020/10/14 at 17:29
