HC -SR04 Fully Articulating Enclosure - Ultrasonic Sensor Mount

?
Creation's quality: 2.5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 5.5k views
  • 4 likes
  • 9 downloads

3D model description

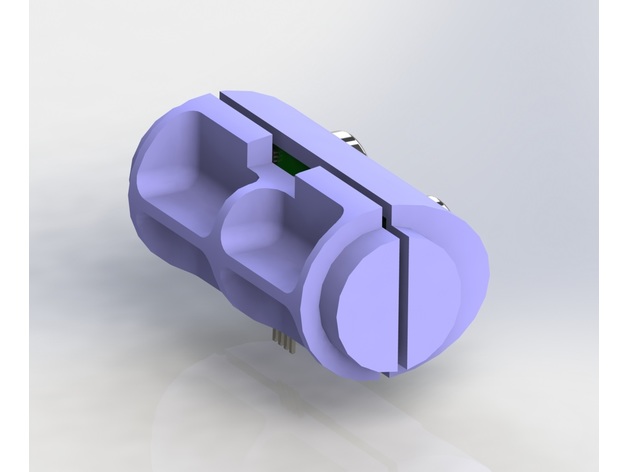

This is designed for the newer iterations of HC-SR04 that employ a more convenient female JST plug. But it can be used for the normal one too.

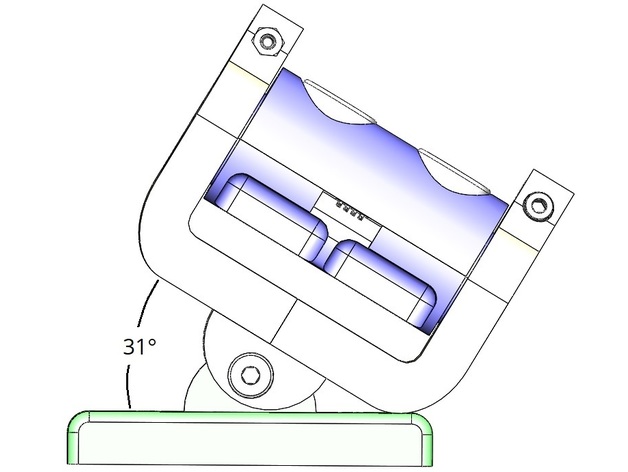

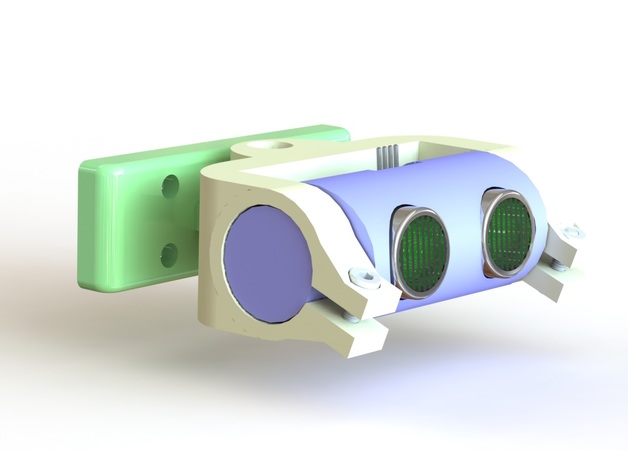

Mount has 2 planes of motion: transverse and sagittal.

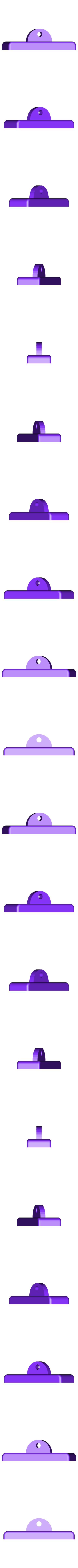

Frame attachment can be modified easily to suit where you'll attach.
Parts are all easy to print on different orientations, which is by design.

You will want to have bolts similar or close to this size:
1 of the M5 × 0.8 × 20 mm Screw & Nut
2 of the M3 × 0.5 × 10 mm Screw & Nut

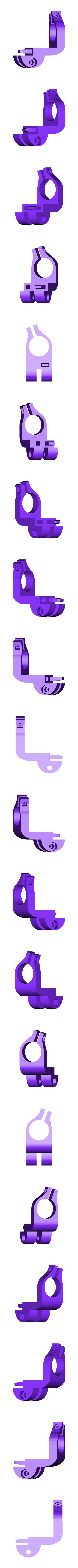

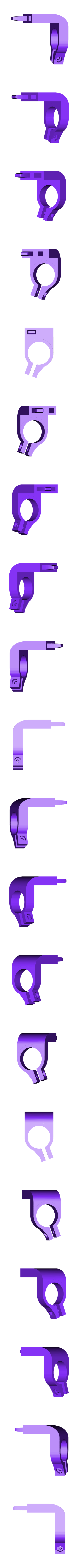

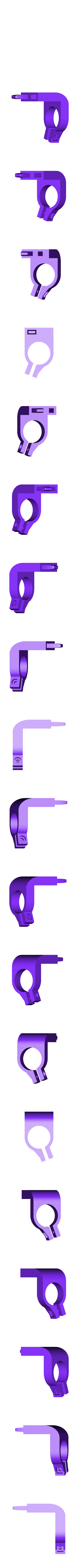

For the M3 nut, it can either be a hex or a square nut. You have both options for the "Base Half 1" & "Base Half 2"
The advantage of having these is that you can make it exactly as tight as you prefer it to be

3D printing settings

Tolerances are tight and work best on a smaller nozzle like 0.4 and 0.5mm. But I personally use a 0.7mm nozzle so some sanding was necessary for me. Once assembled, you'll never have to disassemble it.

Rafts: No
Supports: Yes
Infill: 20
Filament_brand: Village Plastics
Filament_material: PLA

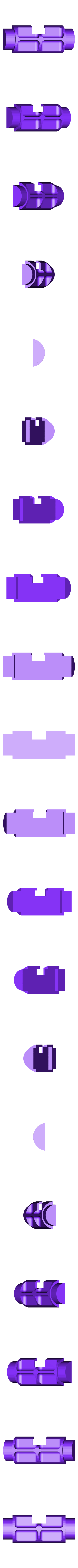

  • 3D file format: STL
  • Last update: 2021/03/15 at 12:46
  • Publication date: 2019/05/15 at 09:11
