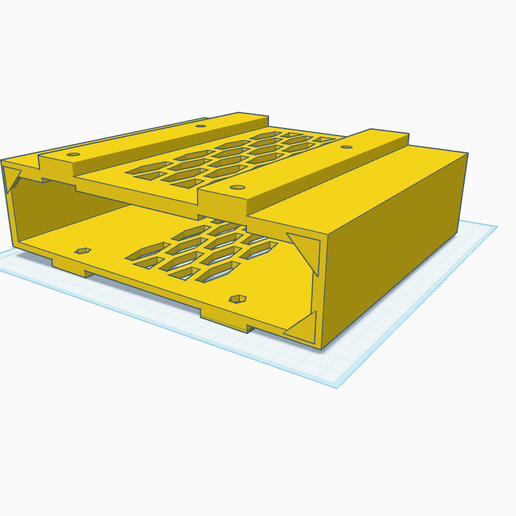

Dell Omniplex 7060 Micro - Dual Screen and Post Bracket Mounted Bracket

We got new PCs at work for the touchscreens.

The existing brackets we had didn't fit, so rather than wait for management to organise new brackets (because the new PCs took 12 months to arrive), I designed this to do the job and keep the PCs safe from damage.

The Micro PC were a Dell Omniplex 7060 Micro's

Both the screen mount and bracket mount were 100mm spacing. Bolt heads and nuts sit flush, so the PC itself fits snug without a gap to wobble around, and has stoppers at one end to stop it sliding out the other side.

Hardware:

4 x 12mm M4 bolts - Screen Mount

4 x 10mm M4 bolts and nuts - Post Bracket Mount

optional 4 M5 washers for between the printed bracket and the post mount.

Printed these in translucent Grey and Green PETG, but ABS or ASA would work too, I guess (for heat resistance).
