Mechanical RGB Keyboard

Advertising
Share
Add to
Make
?
Creation quality: 4.9/5 (6 votes)
Evaluation of members on the printability, utility, level of detail, etc.
🏆 Best ?
License
Usages
3D design format
19 files (STL) Close
  • Parite milieu droite.stl 157.37390100000016 × 105.27789300000003 × 11.0 mm
  • Partie inférieur droite.stl 166.82409700000017 × 105.277893 × 7.0 mm
  • Partie inférieur gauche.stl 162.0532229999999 × 105.277893 × 7.0 mm
  • Partie inférieur.stl 314.74768100000006 × 105.277893 × 7.0 mm
  • Partie milieu gauche.stl 162.0532229999999 × 105.27789300000003 × 11.0 mm
  • Partie milieu.stl 314.74768100000006 × 105.27789300000003 × 11.0 mm
  • Partie supérieur droite.stl 166.82409700000017 × 105.27789300000003 × 7.971984999999989 mm
  • Partie supérieur gauche.stl 162.0532229999999 × 105.27789300000003 × 7.971984999999989 mm
  • Partie supérieur.stl 314.74768100000006 × 105.27789300000003 × 7.971984999999989 mm
  • Touche Cntr Win Alt.stl 17.636865999999998 × 8.636723 × 21.616596 mm
  • Touche Maj.stl 17.636752 × 8.902000999999998 × 32.616295 mm
  • Touche R1 V2.stl 17.621294 × 11.22383 × 17.621407 mm
  • Touche R2 V2.stl 17.637382 × 8.684083999999999 × 17.617484 mm
  • Touche R3 V2.stl 17.633385 × 8.524078 × 17.616567 mm
  • Touche R4 V2.stl 17.640679000000002 × 9.829428 × 17.646459 mm
  • Touche Tab.stl 17.637463 × 8.901045 × 27.615237999999998 mm
  • Touche delete.stl 17.636494000000003 × 8.902000999999998 × 37.622908 mm
  • Touche entrer.stl 17.637549 × 8.902000999999998 × 41.621382999999994 mm
  • Touche espace.stl 17.655289000000003 × 10.571209 × 116.179421 mm

Learn more about the formats
Last update
Publication date
Design number 212601
Design author Abrege
Abrege

Abrege

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

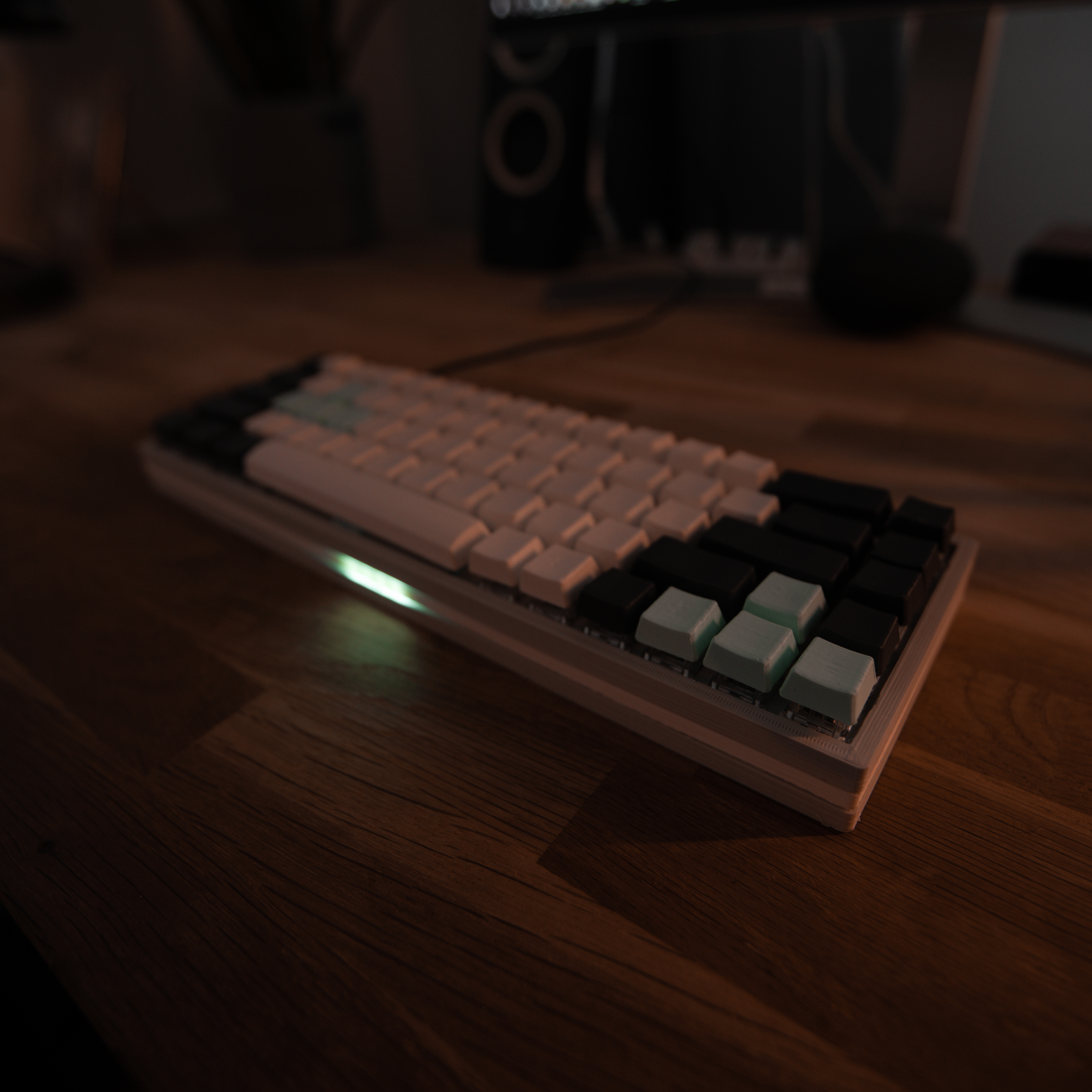

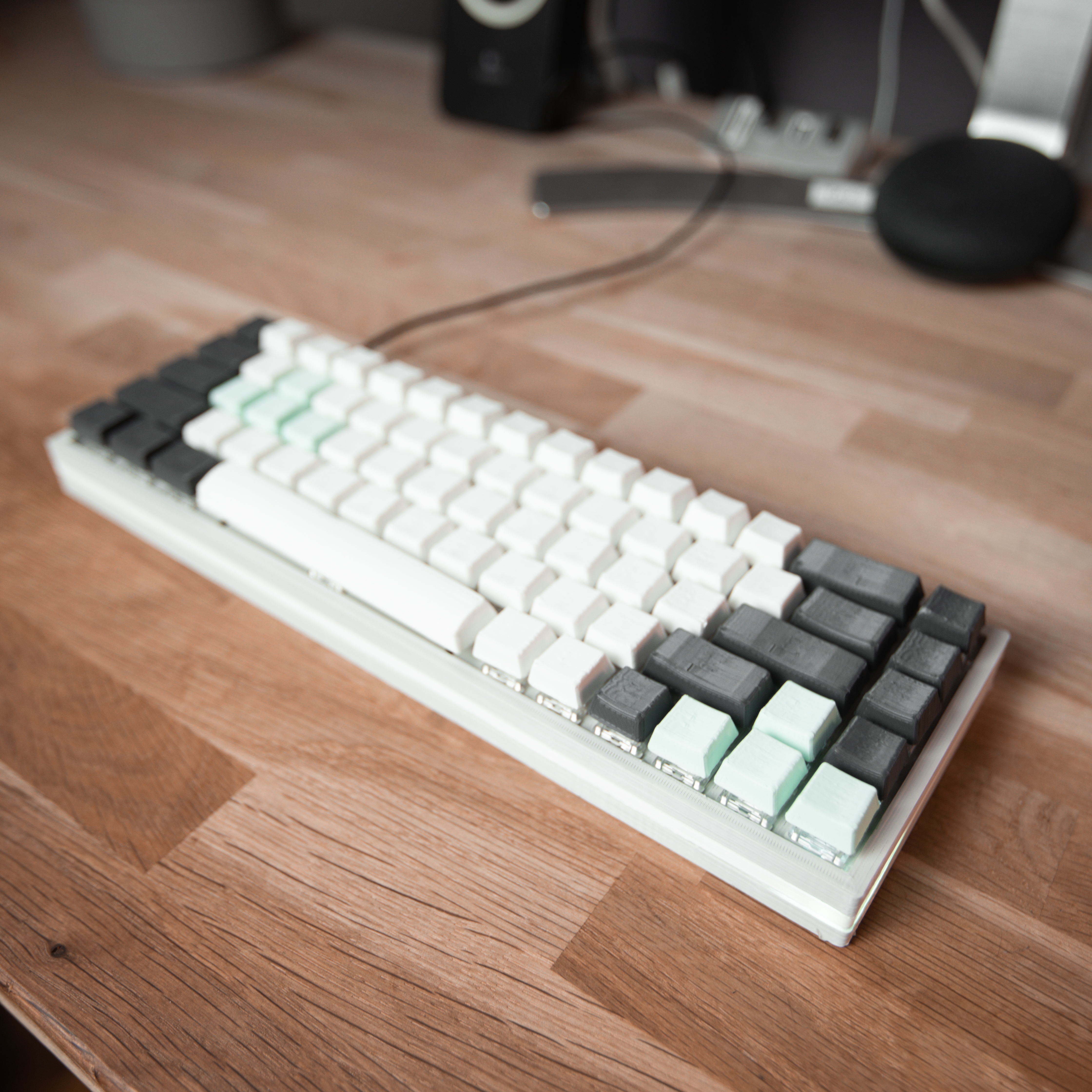

Fully printable mechanical keyboard 💥! (based on the SICK-68 project) ! To print the individual parts in one piece, the minimum required tray size is :

55 cm x 40.5 cm

For the electronics, I used the following parts:

LED strip (1m, 144 led) ▶ https://fr.aliexpress.com/item/32832420003.html?

Diode ▶ https://fr.aliexpress.com/item/32947233235.html?

Switch Gateron brown ▶ https://fr.aliexpress.com/item/32899833333.html?

Teensy 2.0 ▶ https://fr.aliexpress.com/item/4000991785942.html?

Mini usb cable ▶ https://fr.aliexpress.com/item/32965249712.html?

Feel free to watch the tuto for more info 👍:

https://www.youtube.com/watch?v=8NTH36BTq4Y&feature=youtu.be

#FIVERRCULTS

3D printing settings

For PLA:

Filling rate: 100%.

Printing speed: 5500 mm/min

Layer height: 0.2 mm (0.4mm nozzle)

Support needed for keycaps, and the middle part.

Page translated by automatic translation. See the original version.

Categories

All categories › Gadget › Audio & Music / Computers / Phones & Tablets
