Hey my 3D friends!

I have designed an easy wall mount for this ASUS-Router:

  • RT-AX89X (AX6000)

What you need:

  • 6 Screws 3x12mm (countersunk head)

  • 2 Screws 4x35mm (countersunk head)

Installation:

The arrow on the bracket must look up. Align the bracket exactly with the slots provided in the grid.

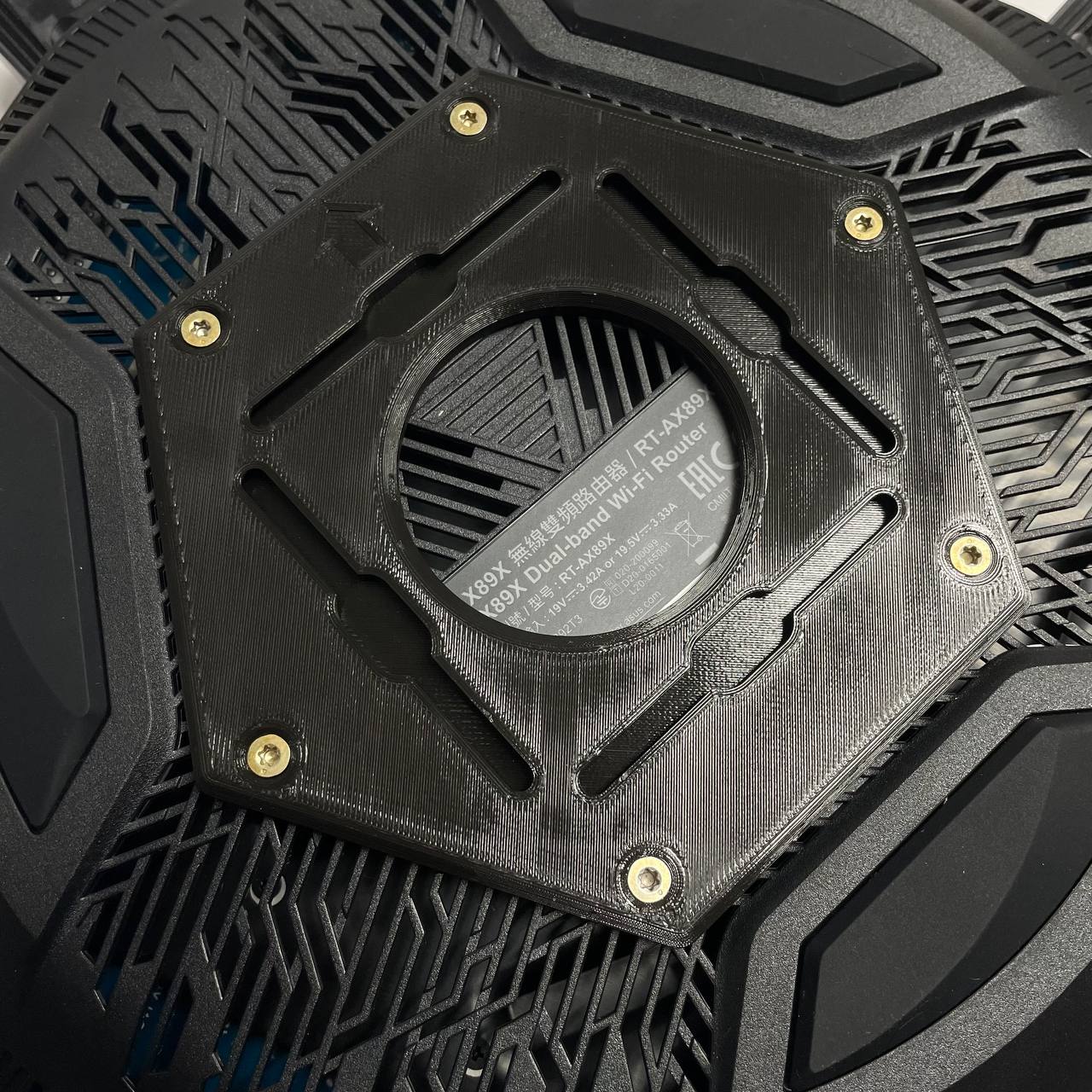

Screw all 6 of the 3x10 screws through the Mount Plate in the Router Back in the grid holes (Take a look on the pictures).

The holes in the Mount Plate are exactly to the grid holes.

The 2 screws 4x35 must be screwed horizontally next to each other with a distance of 7cm into the wall or ceiling. You can use the template for this. The head must protrude about 4mm from the wall.

Because of the design of the bracket, you can rotate the router on the wall in 90 degree steps.

Do it with caution. Use at your own risk!

UPDATE: I did an update for the mount plate. Now there is a bit more space for the wall screws in the plate. (v3)

Here do you find the Instruction as PDF:

http://shop.investegate.de/asus-router-ax89x-mount-instruction.pdf

I can produce the mount for you, if you want.

Write me an email to: shop@investegate.de

https://investegate.de

Or here on etsy:

https://www.etsy.com/de/listing/1086283754/asus-router-wall-ceiling-mount-bracket

3D printing settings

I recommend to print it with PLA , PETG or ABS at 0.2. Infill 50% or more.

Supports: No

Files:

  • ASUS Router Wall Mount (Main File)

  • Template ASUS Router Mount (For an easy Wall Sketch)
