"open book" #XYZCHALLENGE

?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

Determined to read more in 2019?

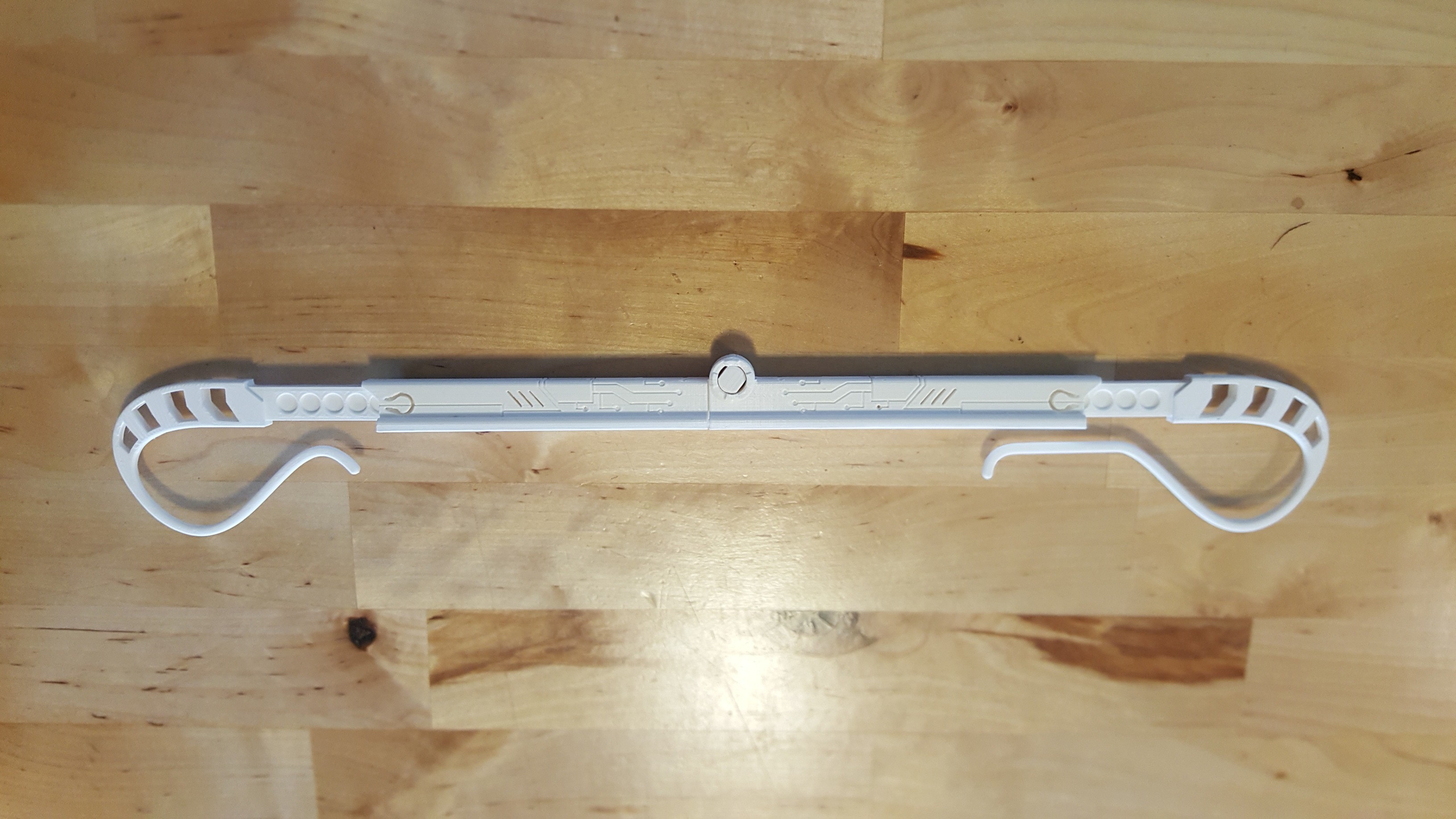

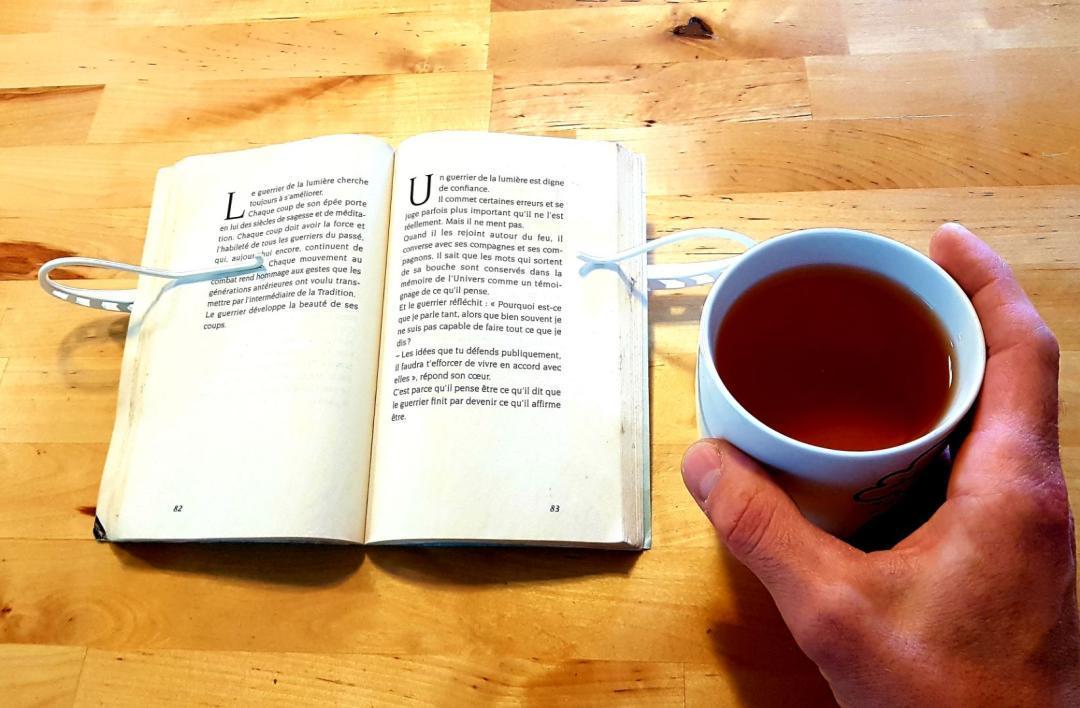

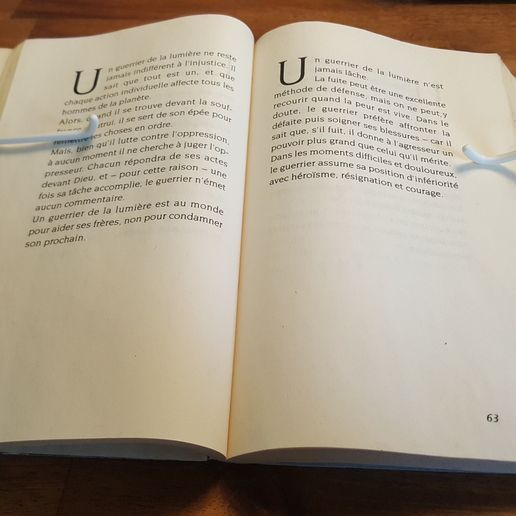

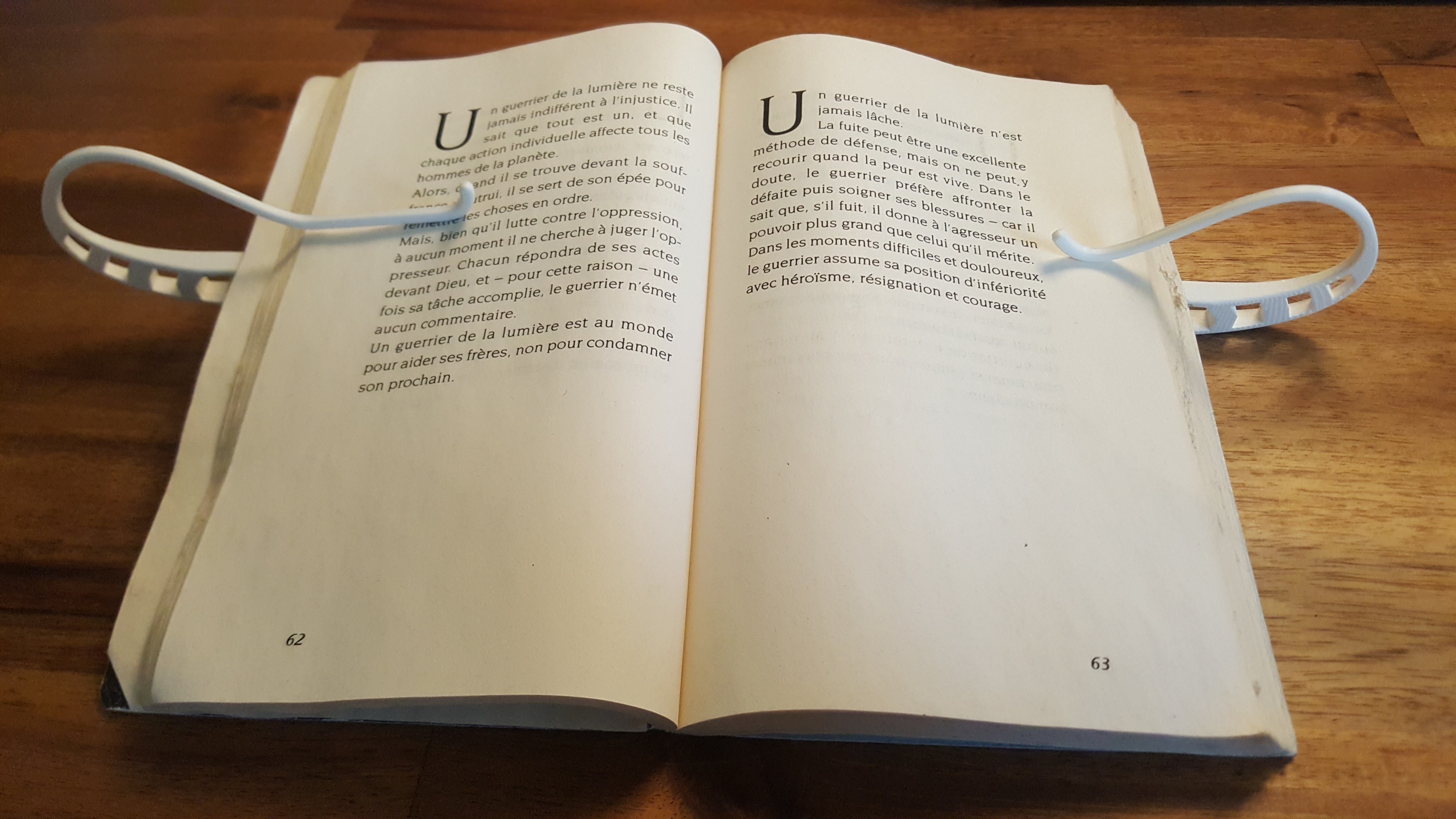

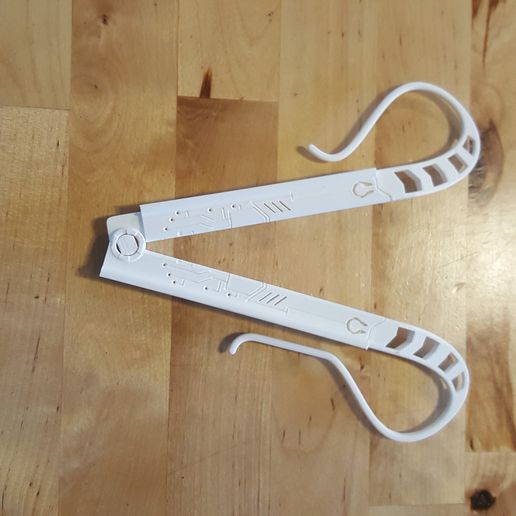

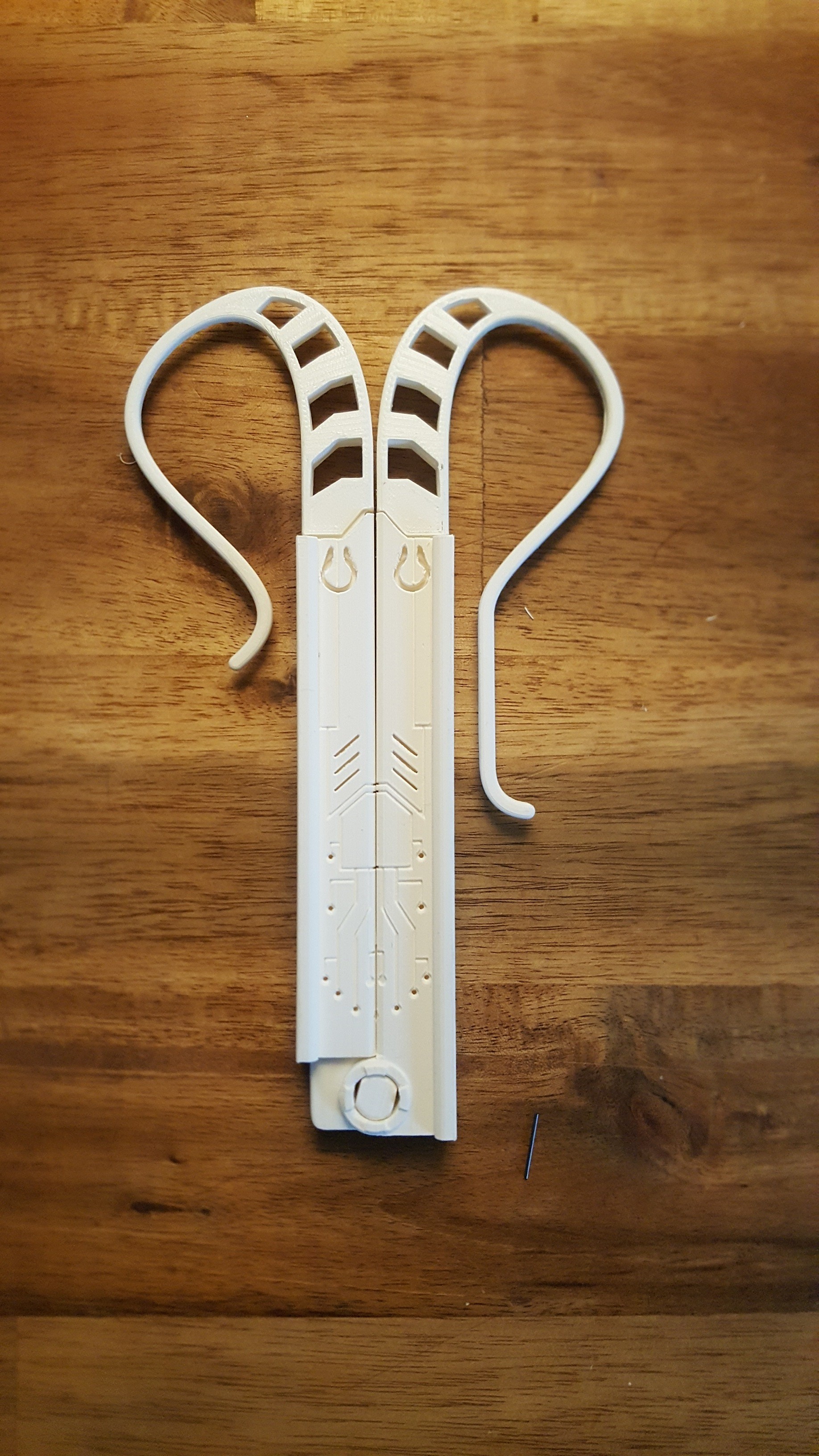

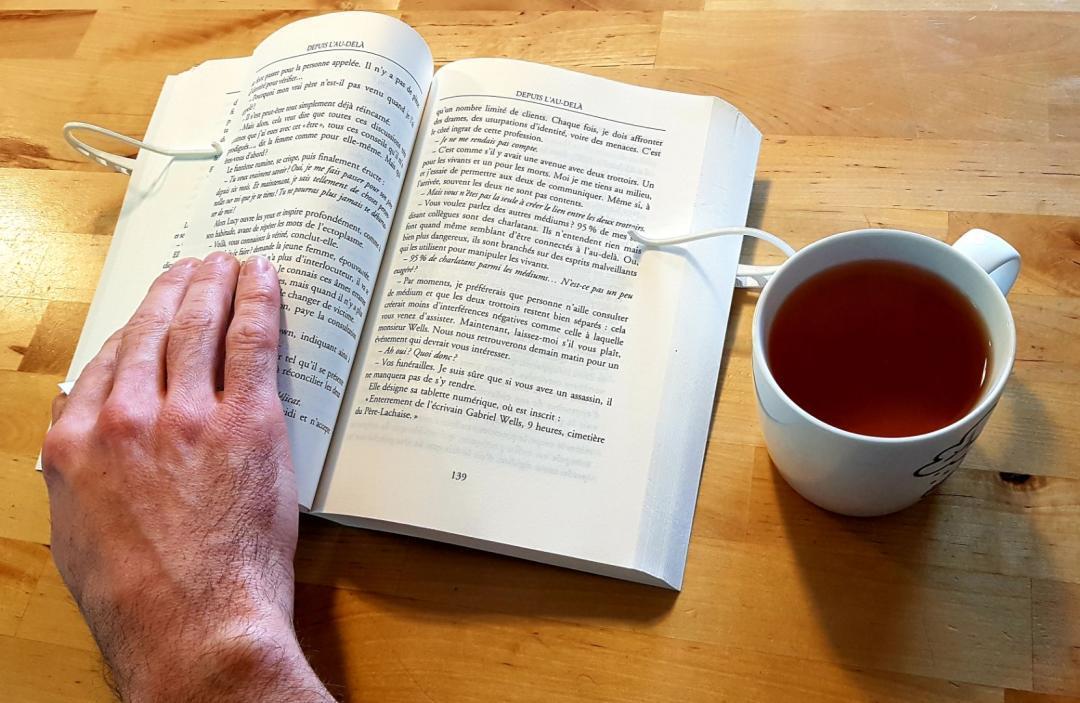

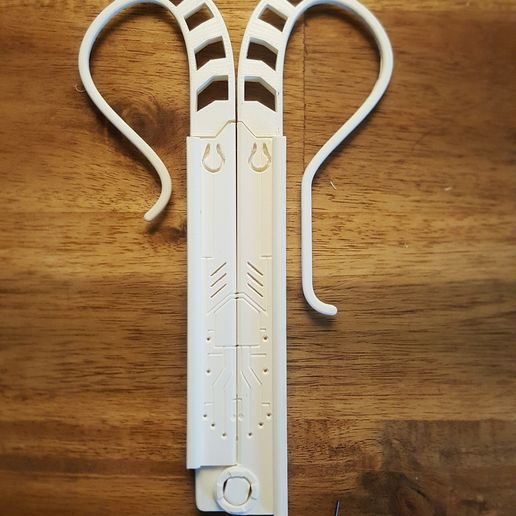

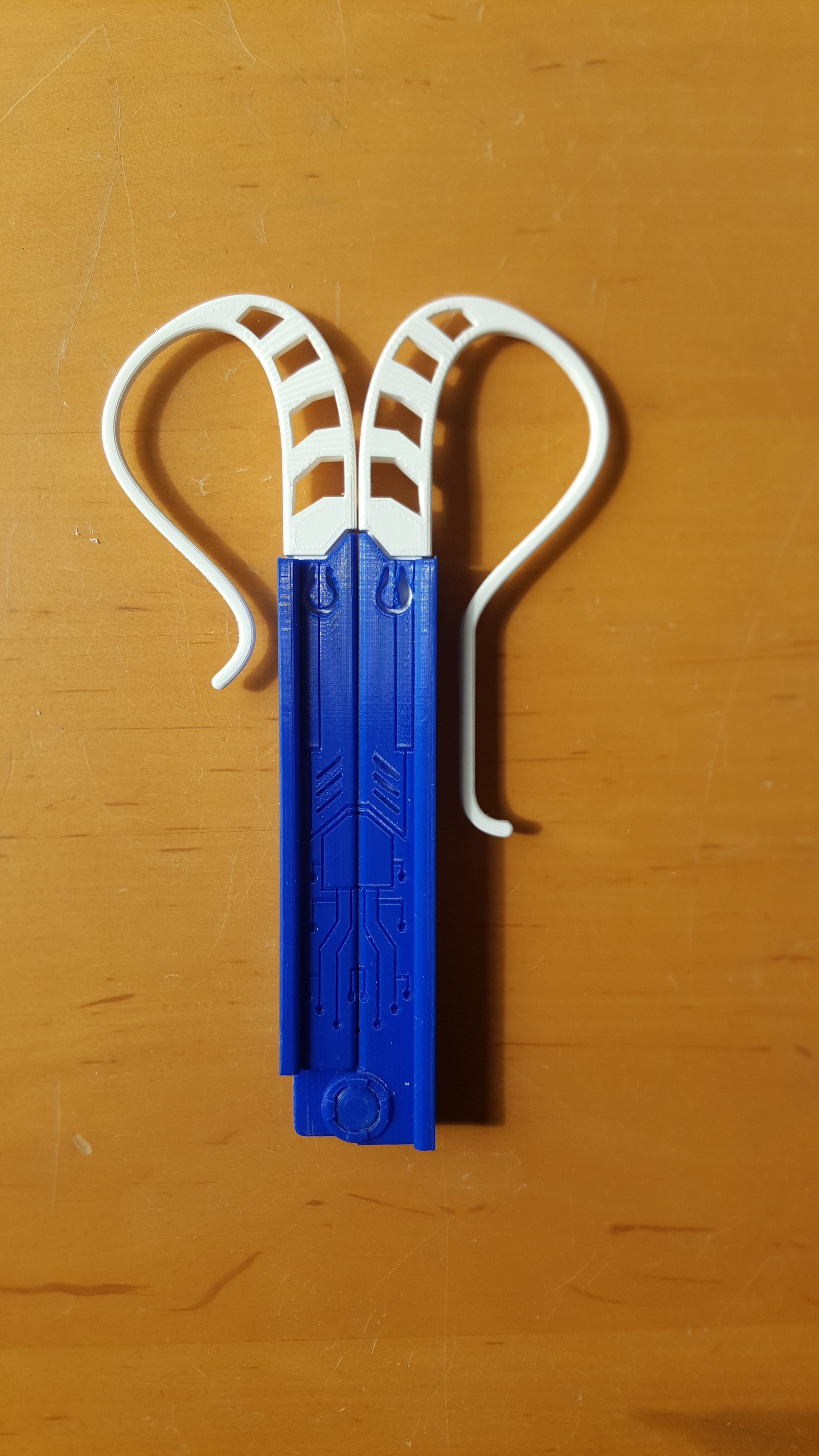

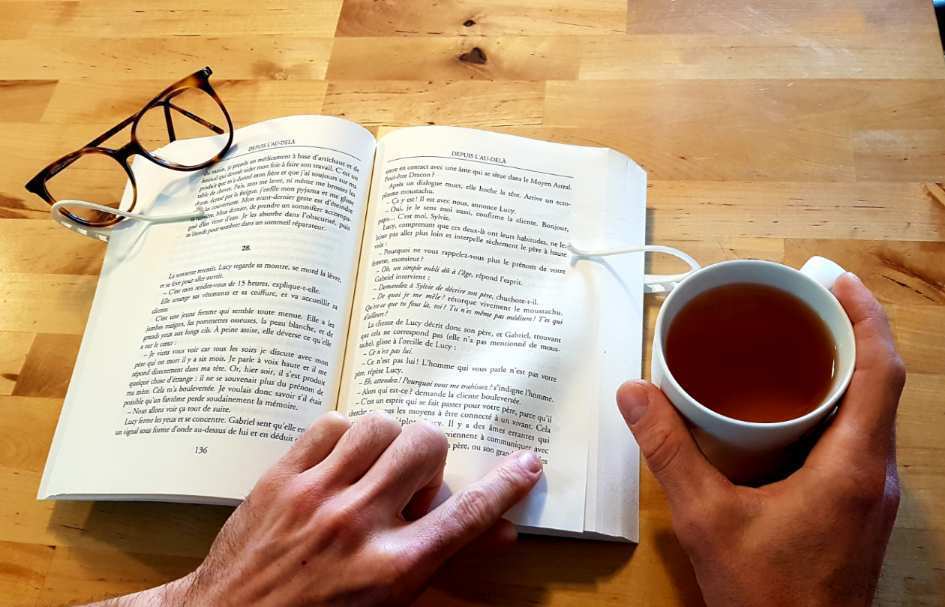

This 100% 3D print tool allows you to keep your book open. You can enjoy a good cup of coffee/tea, or keep your hands warm under the duvet while reading. The two branches, of different shapes, allow the pages to be turned ergonomically with one hand, their flexibility makes it easier to adapt to the volume of the book. Both pocket and editor formats can be kept open thanks to the variable length of the tool. Foldable, it is easy to print and transport.


3D printing settings

The model presented was printed with a layer thickness of 0.15mm and a printing speed of 50mm/s.

The filling is at 30%.

The models all have a flat surface to make printing easier (it is up to you to flatten them).

The outer slides are printed with carrier material (distance z from the carriers 0.2mm).

To remove the support materials from the outer slides there are rectangular openings on the underside of the model that allow the supports to slide outwards (I remove them with a small flat screwdriver).

Good impression, and good reading to you.

3D printer file information

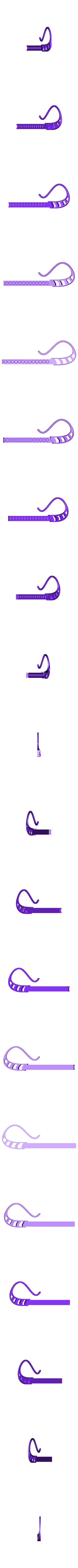

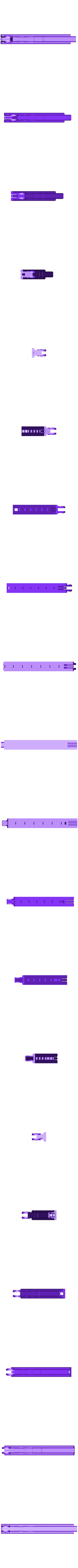

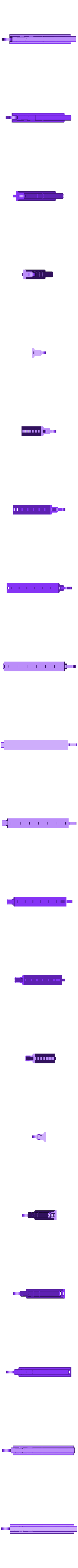

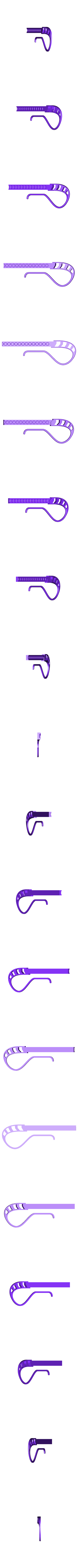

  • 3D design format: STL Folder details Close

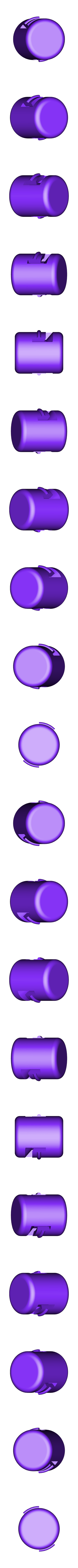

    • axe.STL
    • glissière exterieur droit.STL
    • glissière exterieur gauche.STL
    • glissière interieur droit.STL
    • glissière interieur gauche.STL

    Learn more about the formats

  • Last update: 2019-04-15 at 17:43
  • Publication date: 2019-04-06 at 16:55
