15mm Rail System Clamp

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 950 views
  • 2 likes
  • 56 downloads

3D model description

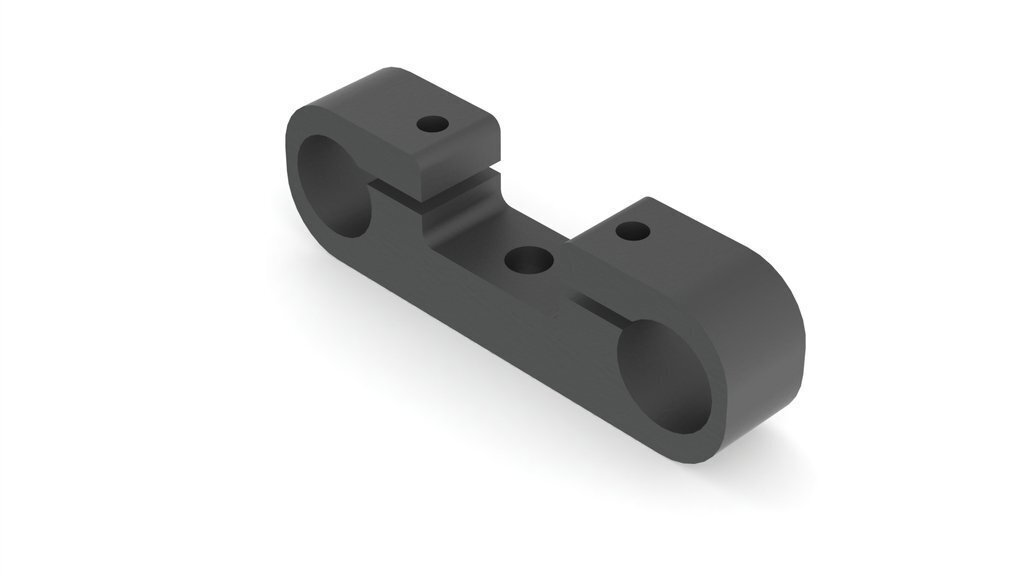

Finally purchased a rail-based rig. Getting started making some parts for it.

Centre hole is sized for a 1/4" bolt.

Requires two M4 nuts, and two 24mm M4 bolts.

Hole dimensions calculated with:

y = 1.0155x + 0.2795 vertical

y = 0.9927x + 0.3602 horizontal

(source: https://innovationstation.utexas.edu/tip-design)
