Working Stargate Mk2

Advertising
Make an offer
Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
3D design format
72 files Close

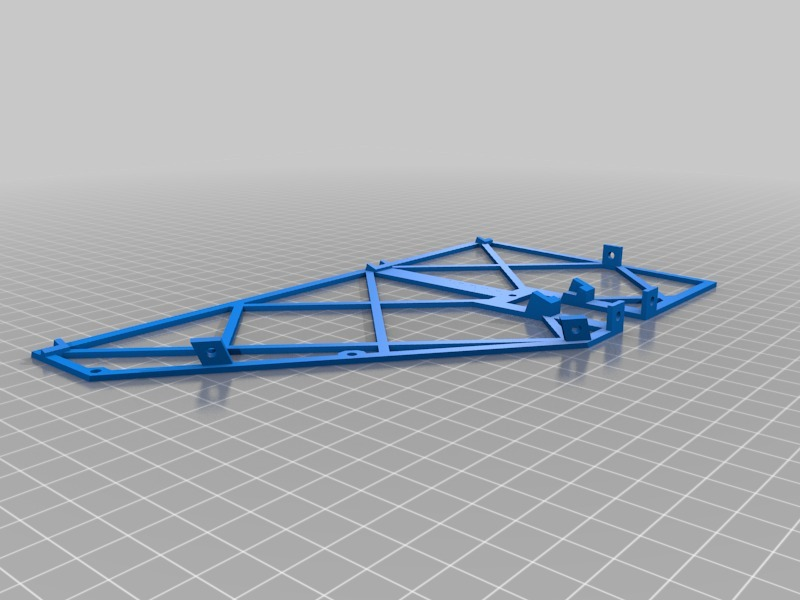

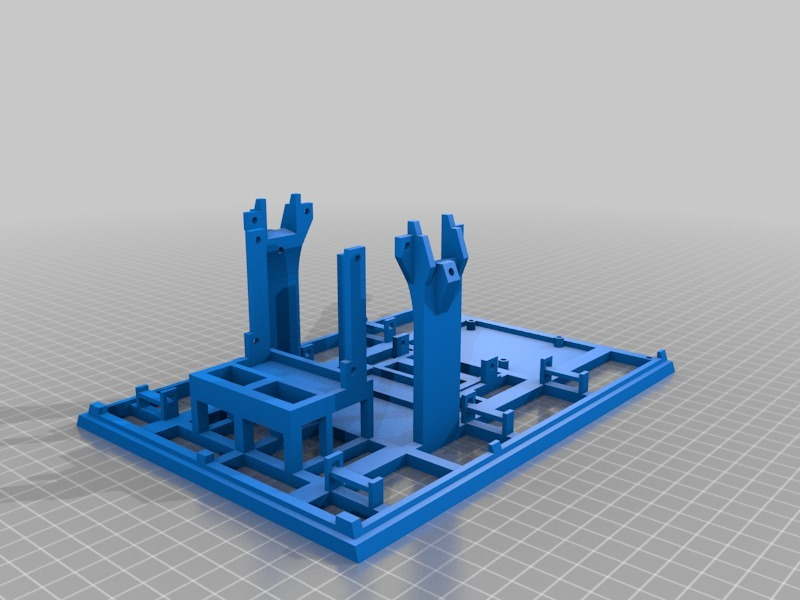

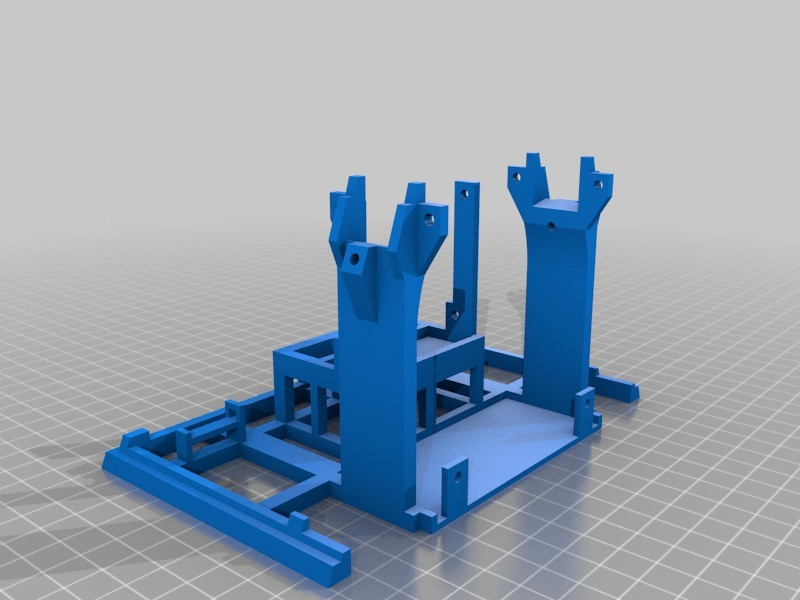

  • base_full_x1.stl 222.47602799999999 Γ— 158.83200100000005 Γ— 89.080002 mm

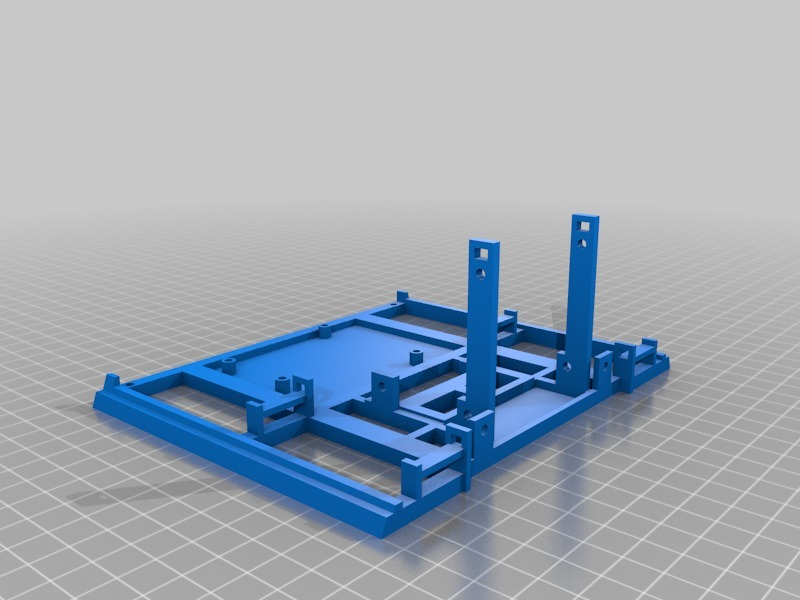

  • base_half_back_x1.stl 158.832001 Γ— 98.91400099999998 Γ— 89.078003 mm
  • base_half_front_x1.stl 158.833282 Γ— 127.0625 Γ— 62.299999 mm
  • base_l_1_x1.stl 40.422545999999954 Γ— 37.352661000000126 Γ— 13.420843 mm
  • base_l_1_x1.stl 40.422545999999954 Γ— 37.352661000000126 Γ— 13.420843 mm
  • base_l_1_x1.stl 40.422545999999954 Γ— 37.352661000000126 Γ— 13.420843 mm
  • base_l_2_x1.stl 221.90002500000003 Γ— 117.21203599999996 Γ— 9.982 mm

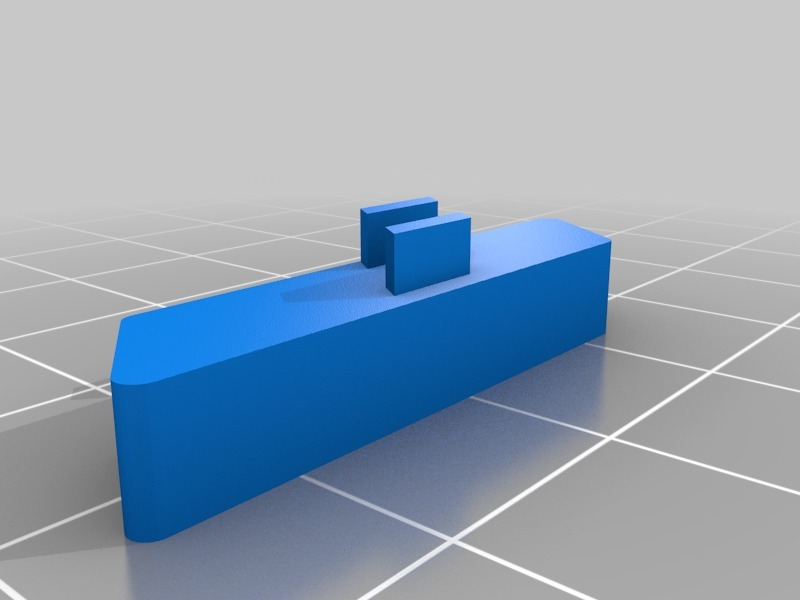

  • base_l_3_x1.stl 98.507995 Γ— 17.739989999999807 Γ— 9.902001 mm
  • base_r_1_x1.stl 40.42254600000001 Γ— 37.352661000000126 Γ— 13.420843 mm
  • base_r_2_x1.stl 221.90002400000003 Γ— 117.21398899999986 Γ— 9.982 mm
  • base_r_3_x1.stl 98.50799500000005 Γ— 17.739989999999807 Γ— 9.902001 mm

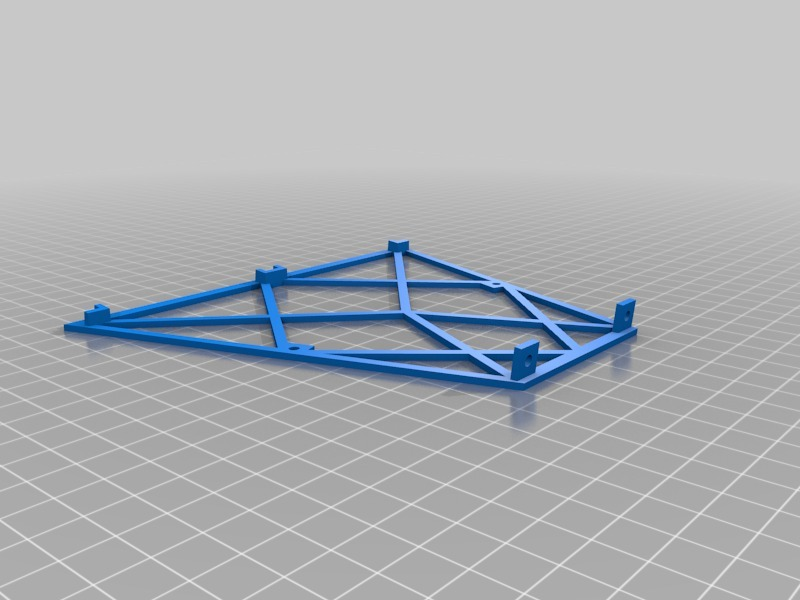

  • base_rear_x1.stl 149.87402300000002 Γ— 127.76806699999997 Γ— 10.358001 mm

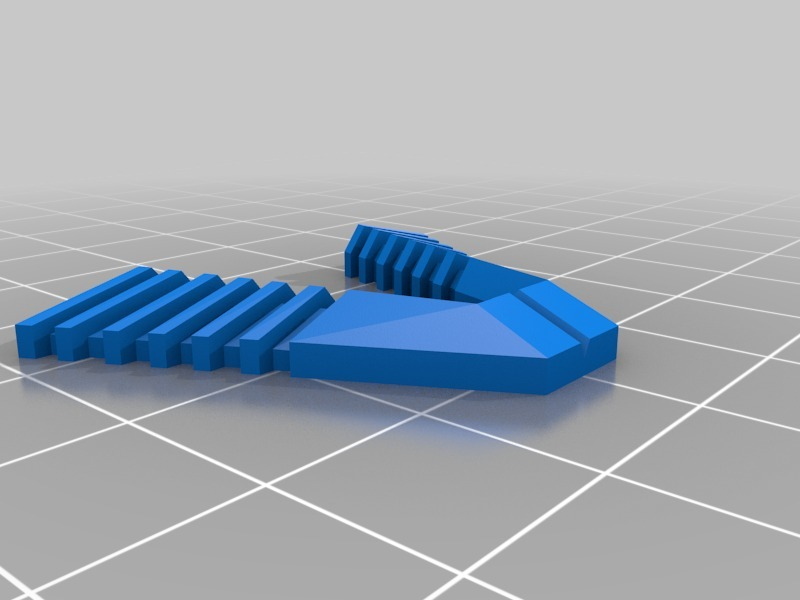

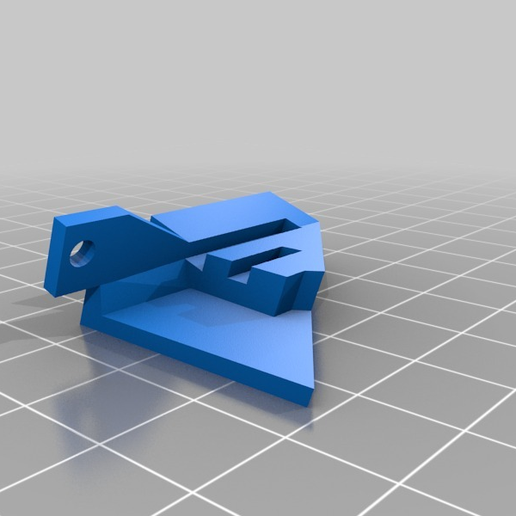

  • chevron_1_x9.stl 37.15600599999999 Γ— 26.385986000000003 Γ— 4.014 mm
  • chevron_1_x9.stl 37.15600599999999 Γ— 26.385986000000003 Γ— 4.014 mm
  • chevron_2_a_x9.stl 21.076966000000027 Γ— 12.00256400000012 Γ— 4.014009 mm
  • chevron_2_b.stl 14.384831 Γ— 13.896441 Γ— 4.014009 mm
  • chevron_2_b_x9.stl 13.936621 Γ— 14.384831 Γ— 4.014009 mm
  • chevron_2_c_x9.stl 13.936621 Γ— 14.384831 Γ— 4.014009 mm
  • chevron_3_a_x9.stl 37.15597500000007 Γ— 26.385986000000003 Γ— 4.014 mm

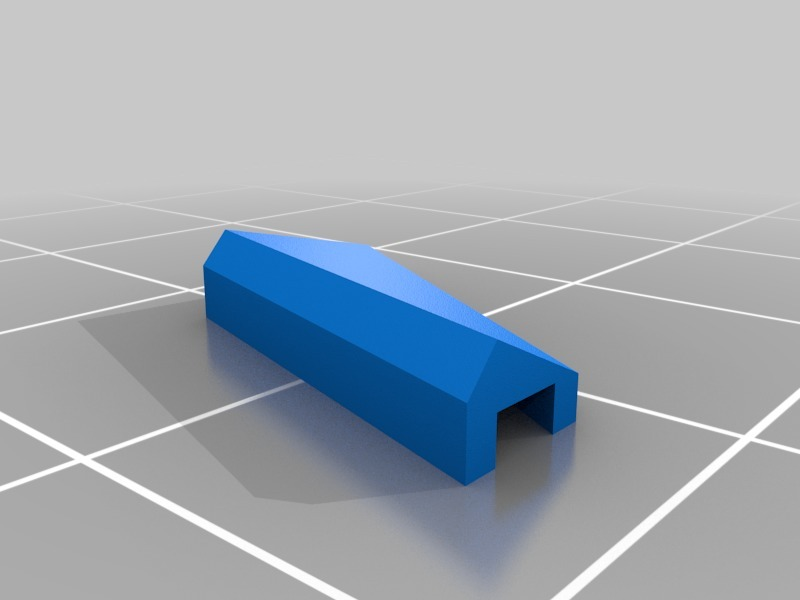

  • chevron_3_b_x9.stl 11.575268000000001 Γ— 13.231621 Γ— 2.714974 mm
  • chevron_3_c_x9.stl 11.575268000000001 Γ— 13.231621 Γ— 2.714974 mm

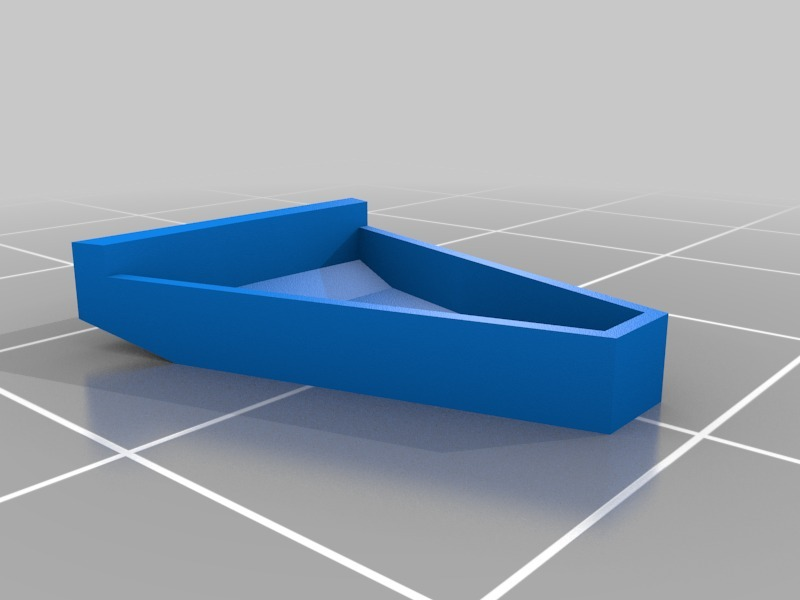

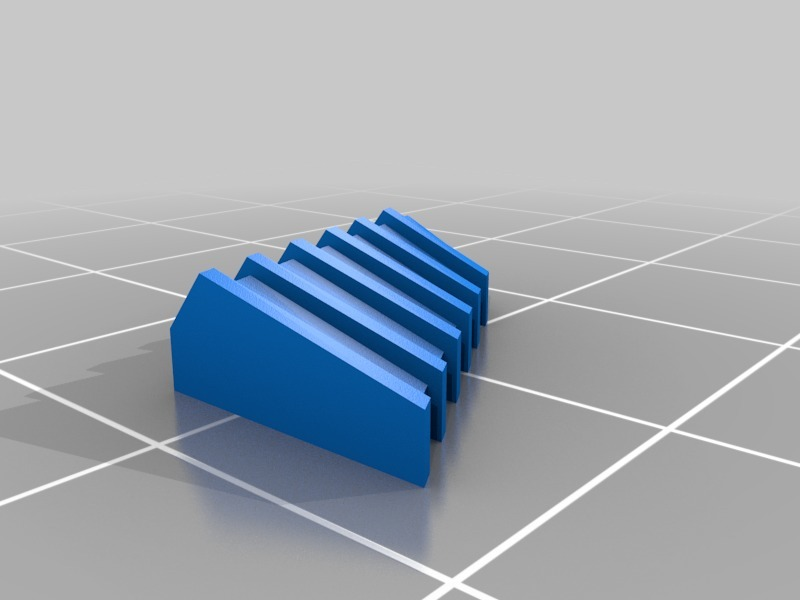

  • chevron_4_x9.stl 12.753906000000029 Γ— 16.309814999999844 Γ— 3.514009 mm
  • circuit_x.stl 77.40002400000003 Γ— 55.80004900000017 Γ— 11.5 mm

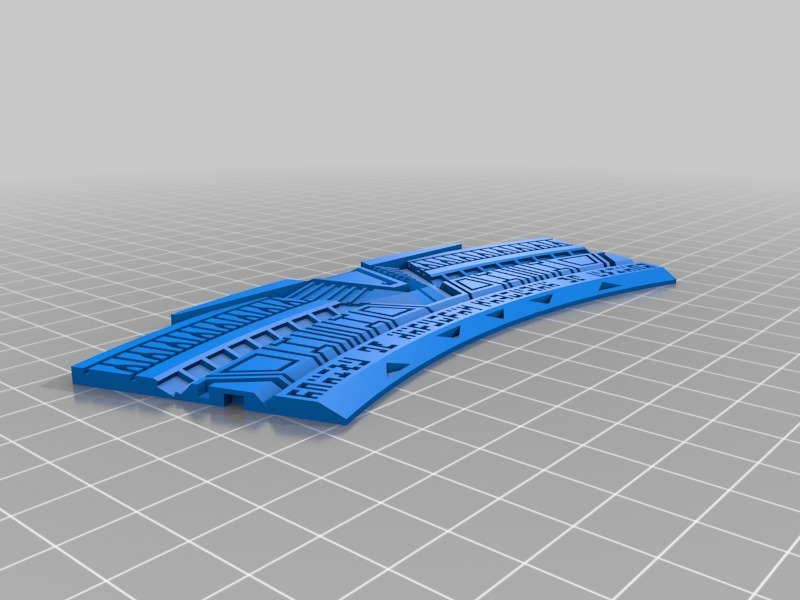

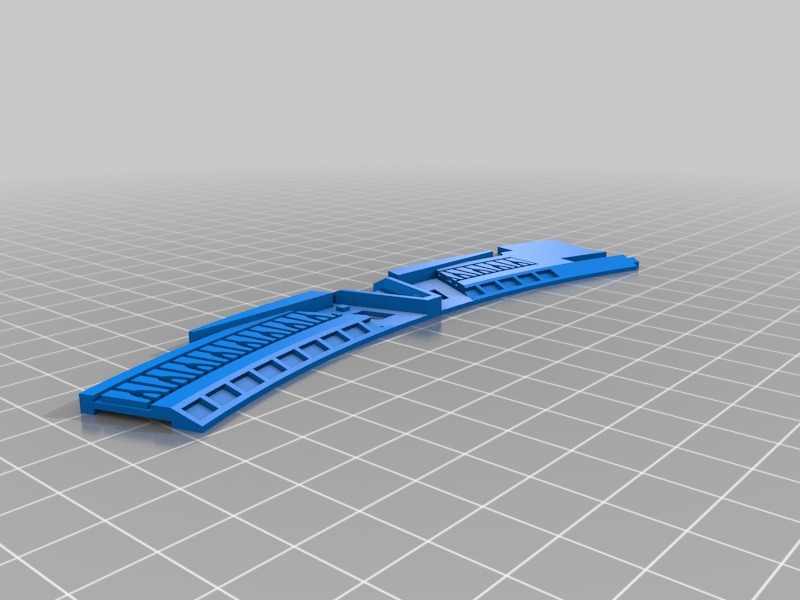

  • gate_1_a_x8.stl 144.07800300000008 Γ— 61.20202599999993 Γ— 4.012 mm
  • gate_1_b_x1.stl 144.077972 Γ— 61.202027000000044 Γ— 4.012 mm
  • gate_2_a_x8.stl 144.861367 Γ— 61.22314500000002 Γ— 3.64 mm
  • gate_2_b_x1.stl 144.861374 Γ— 63.629973999999976 Γ— 3.64 mm
  • gate_3_a_x1.stl 147.031586 Γ— 36.14349299999998 Γ— 4.0 mm
  • gate_3_b_x6.stl 147.031594 Γ— 36.143501 Γ— 4.0 mm
  • gate_3_c_x1.stl 151.203057 Γ— 37.555256 Γ— 4.0 mm
  • gate_3_d_x1.stl 148.574814 Γ— 37.555252 Γ— 4.0 mm
  • gate_4_a_x1.stl 144.07898699999998 Γ— 35.35938999999999 Γ— 4.014009 mm
  • gate_4_b_x6.stl 144.077995 Γ— 35.358002 Γ— 4.014 mm
  • gate_4_c_x1.stl 147.940528 Γ— 36.67794799999999 Γ— 4.014009 mm
  • gate_4_d_x1.stl 148.88464299999998 Γ— 36.84149199999999 Γ— 4.014009 mm
  • gate_5_x9.stl 120.25133899999999 Γ— 20.007843000000037 Γ— 7.0 mm

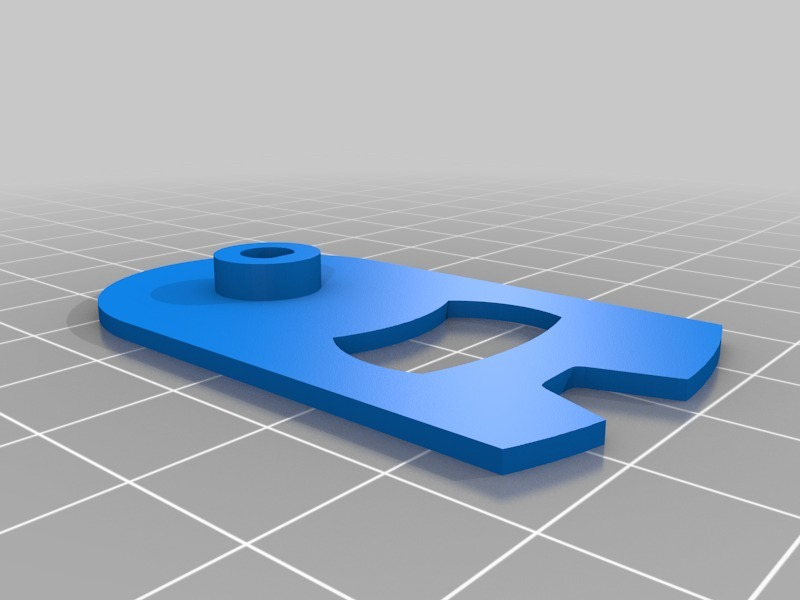

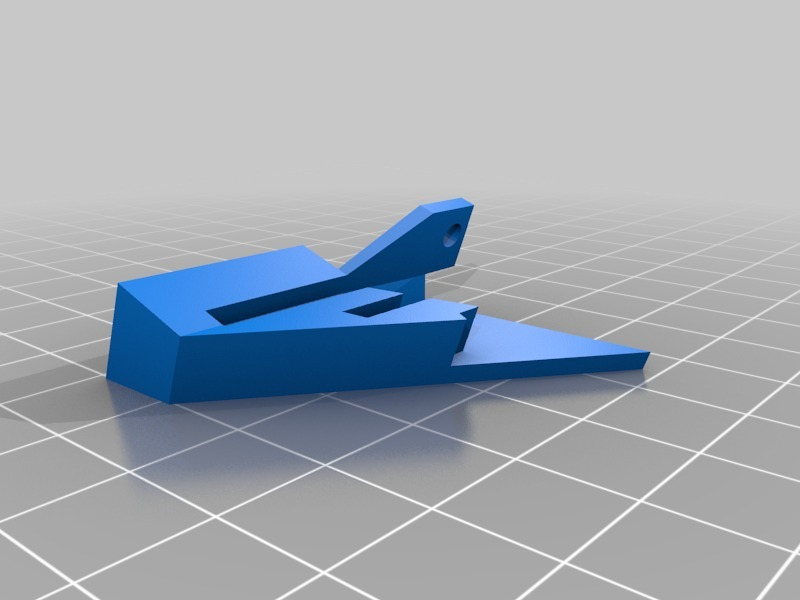

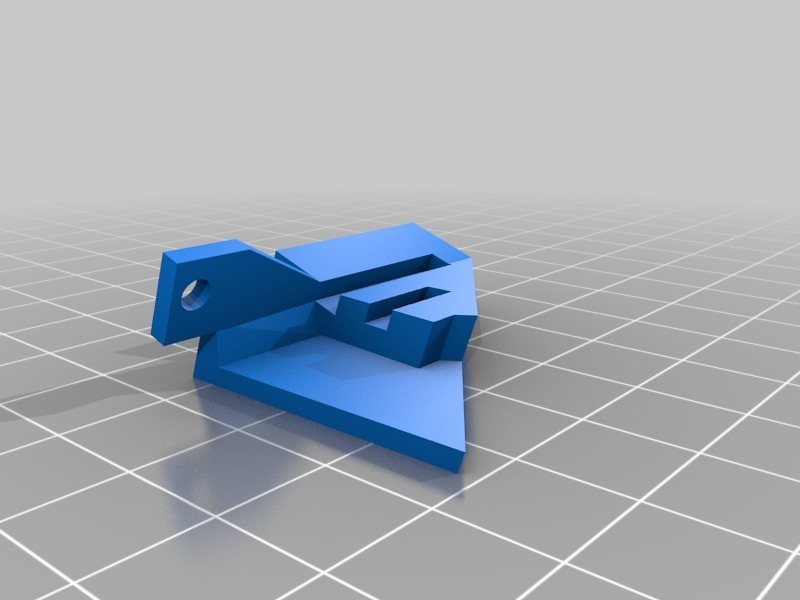

  • gear_chevron_x1.stl 31.576744000000005 Γ— 56.10891700000002 Γ— 5.0 mm

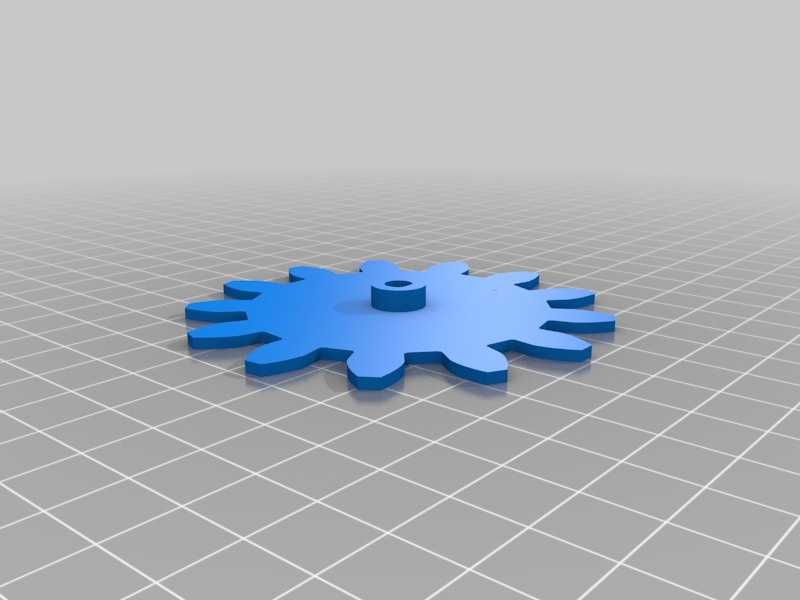

  • gear_symbol_x1.stl 77.04057399999999 Γ— 76.48193400000002 Γ— 6.0 mm

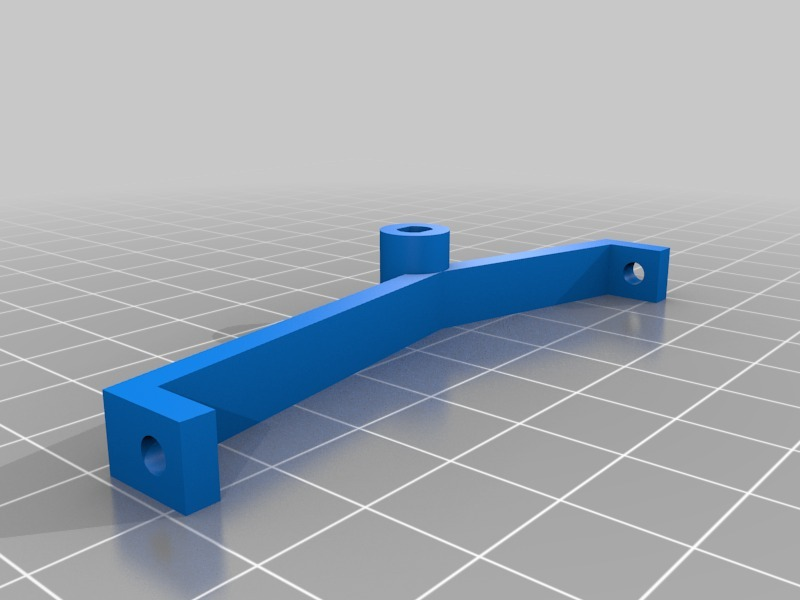

  • ldr_x1.stl 77.50000299999999 Γ— 22.51400799999999 Γ— 11.514001 mm
  • ldr_x1.stl 77.50000299999999 Γ— 22.51400799999999 Γ— 11.514001 mm

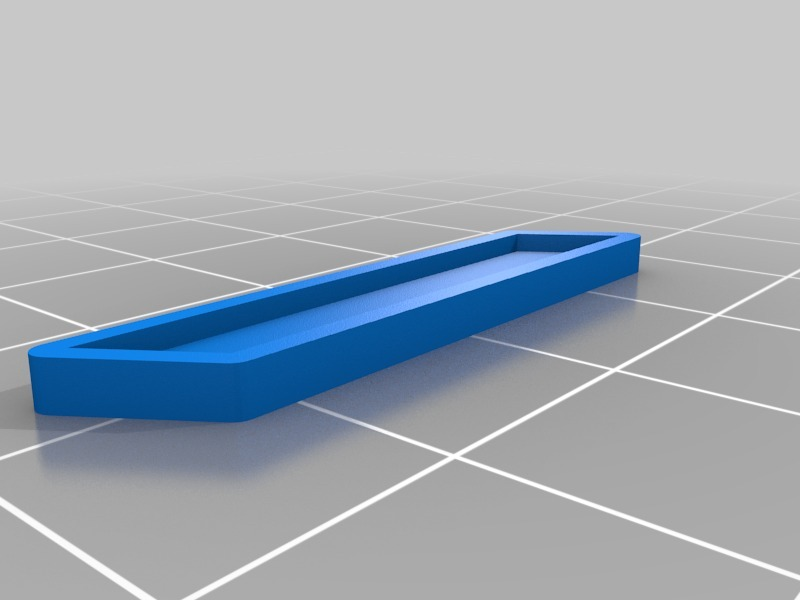

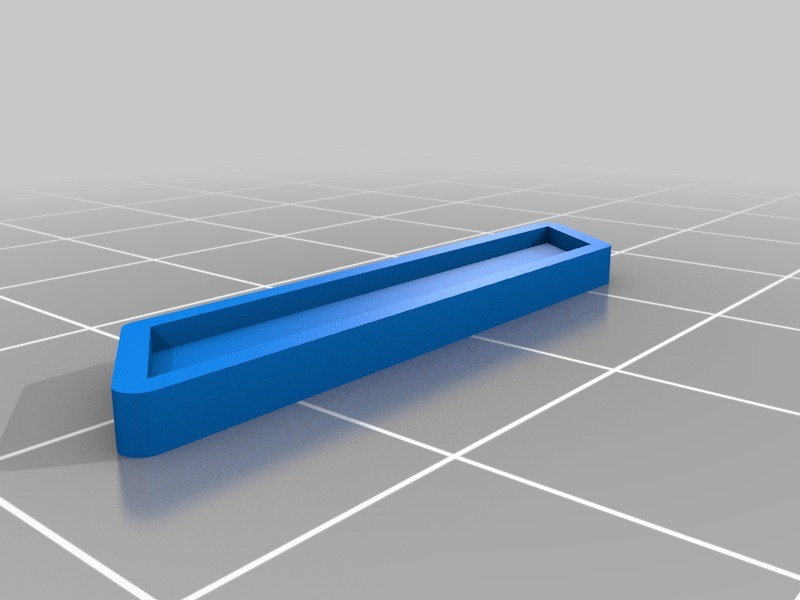

  • led_x1.stl 77.499683 Γ— 23.014282999999978 Γ— 7.0 mm

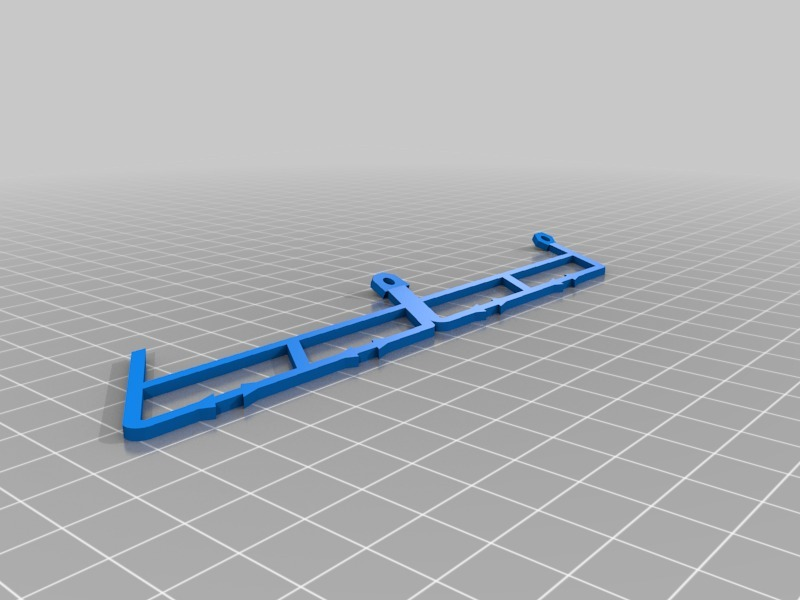

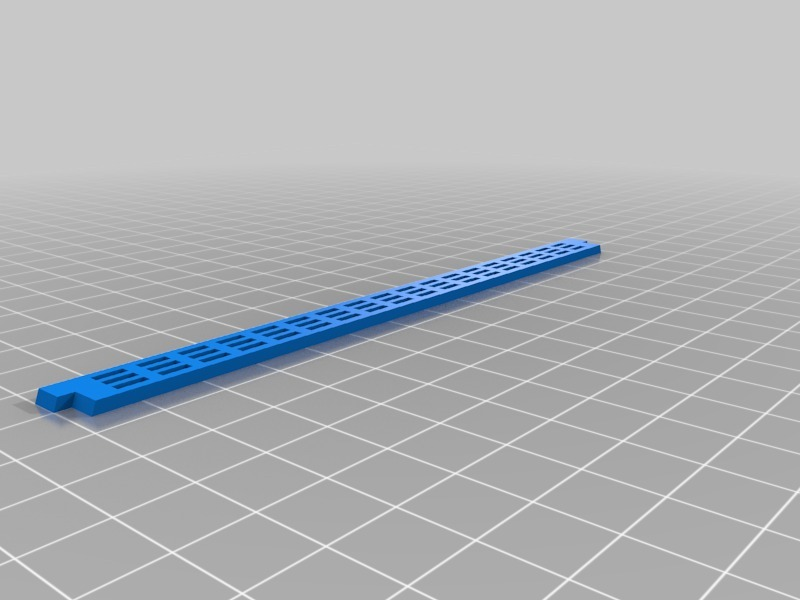

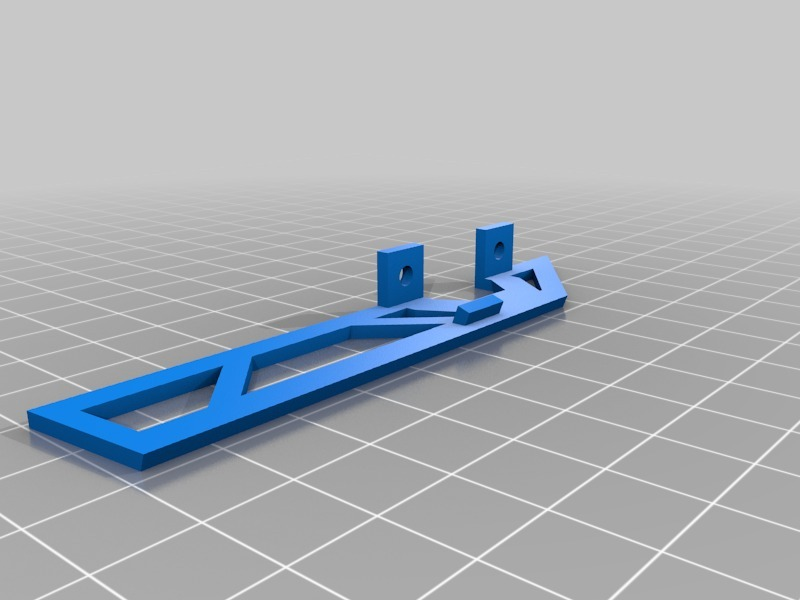

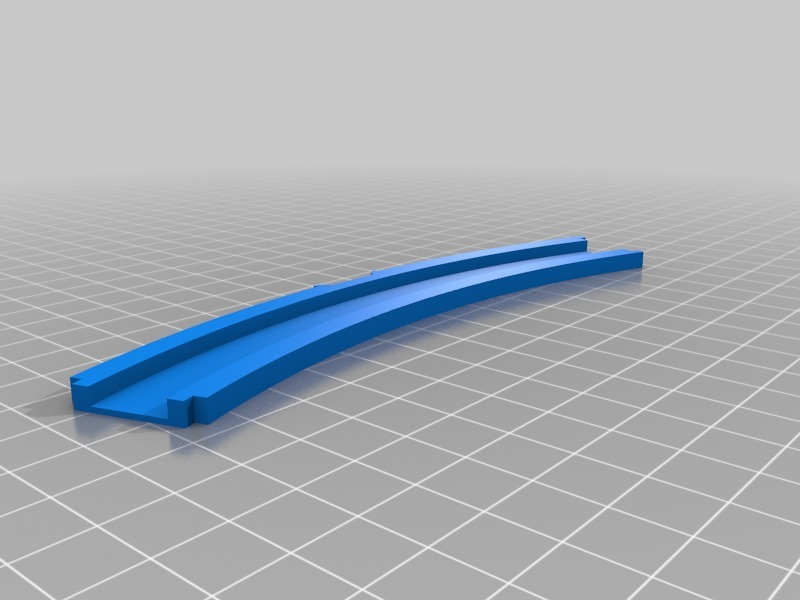

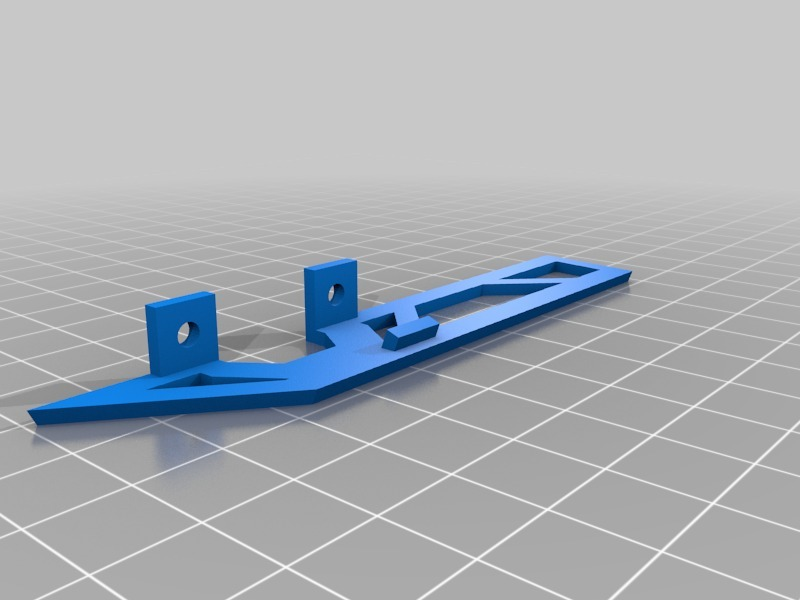

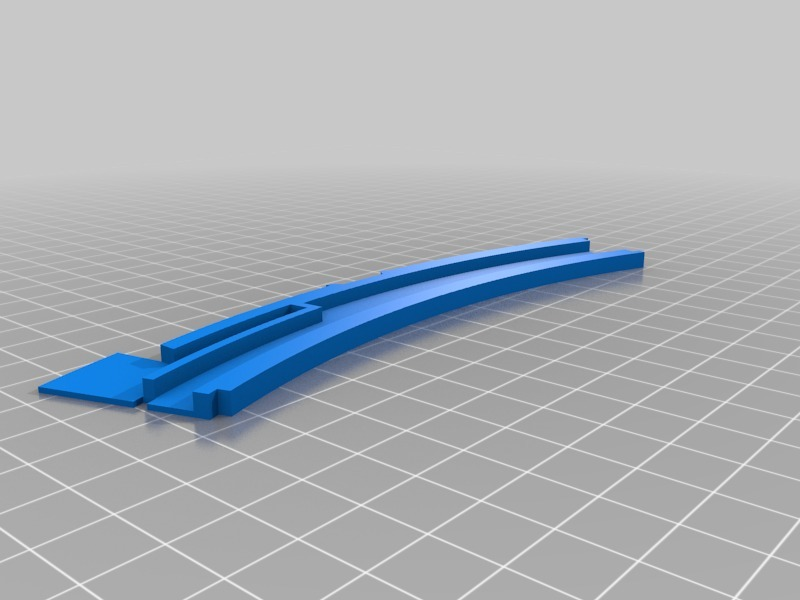

  • rail_l_1_x1.stl 160.188004 Γ— 34.536009999999976 Γ— 4.49 mm
  • rail_l_1_x1.stl 160.188004 Γ— 34.536009999999976 Γ— 4.49 mm
  • rail_l_2_x4.stl 32.37876899999999 Γ— 6.556243999999992 Γ— 7.484053 mm
  • rail_l_3_x4.stl 32.378777 Γ— 6.556244000000049 Γ— 2.0 mm

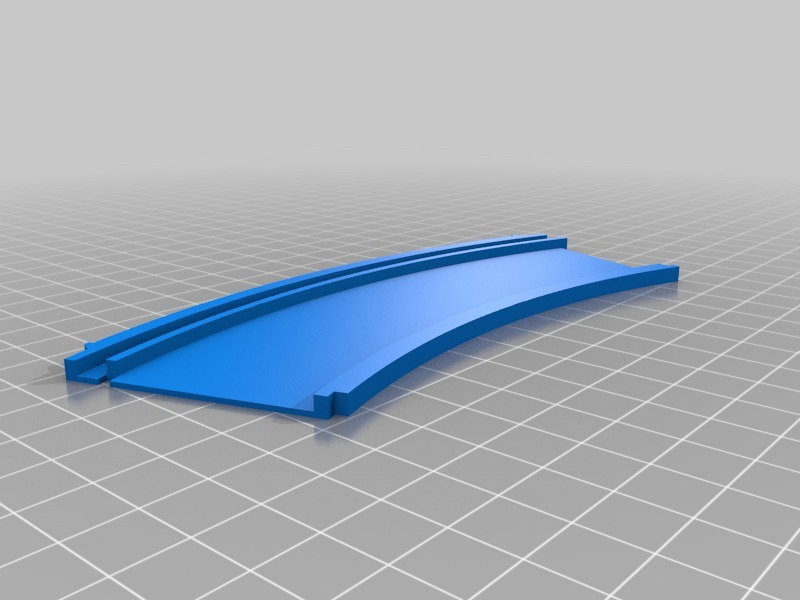

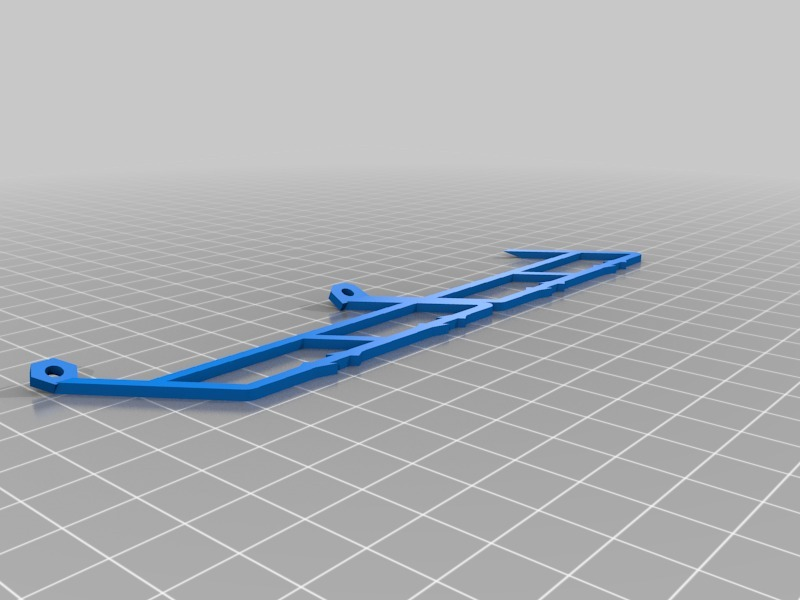

  • rail_r_1_x1.stl 160.304001 Γ— 34.175995 Γ— 4.486 mm
  • rail_r_2_x4.stl 32.37876900000002 Γ— 6.556243999999992 Γ— 7.484053 mm
  • rail_r_2_x4.stl 32.37876900000002 Γ— 6.556243999999992 Γ— 7.484053 mm
  • rail_r_3_x4.stl 32.378776 Γ— 6.556212999999957 Γ— 2.0 mm
  • rail_r_3_x4.stl 32.378776 Γ— 6.556212999999957 Γ— 2.0 mm
  • rail_r_3_x4.stl 32.378776 Γ— 6.556212999999957 Γ— 2.0 mm
  • ramp_1_x1.stl 142.16906699999998 Γ— 9.691773000000012 Γ— 2.0 mm
  • ramp_2_x1.stl 138.585892 Γ— 9.691773000000012 Γ— 2.0 mm
  • ramp_3_x1.stl 60.394501 Γ— 71.35556100000002 Γ— 2.0 mm

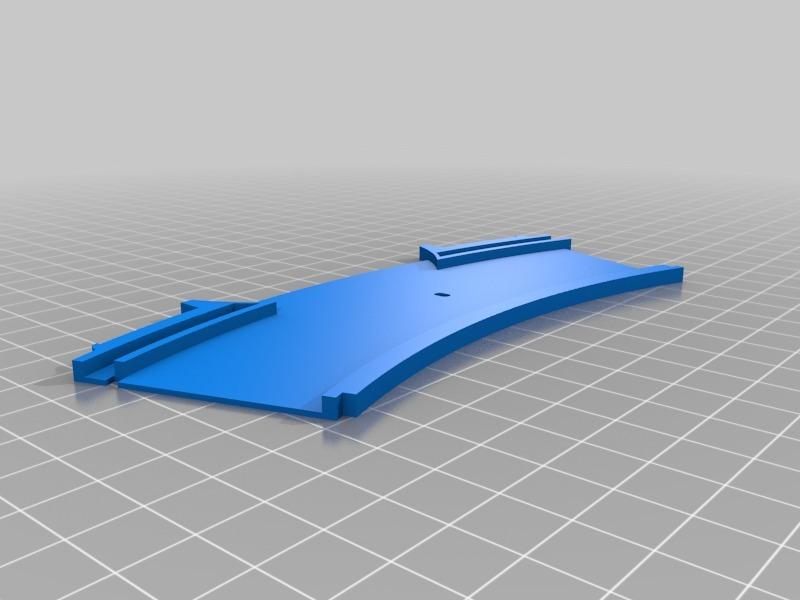

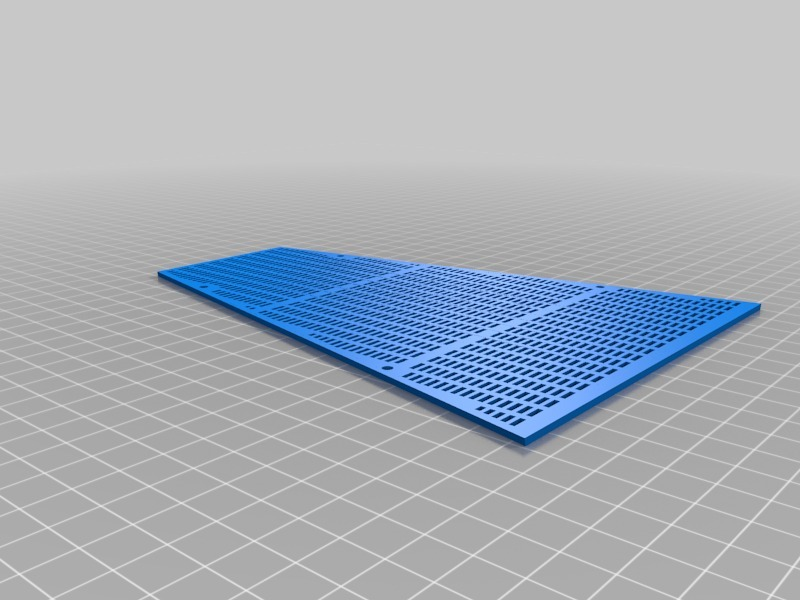

  • ramp_4_x1.stl 137.868004 Γ— 185.23803700000002 Γ— 1.998 mm

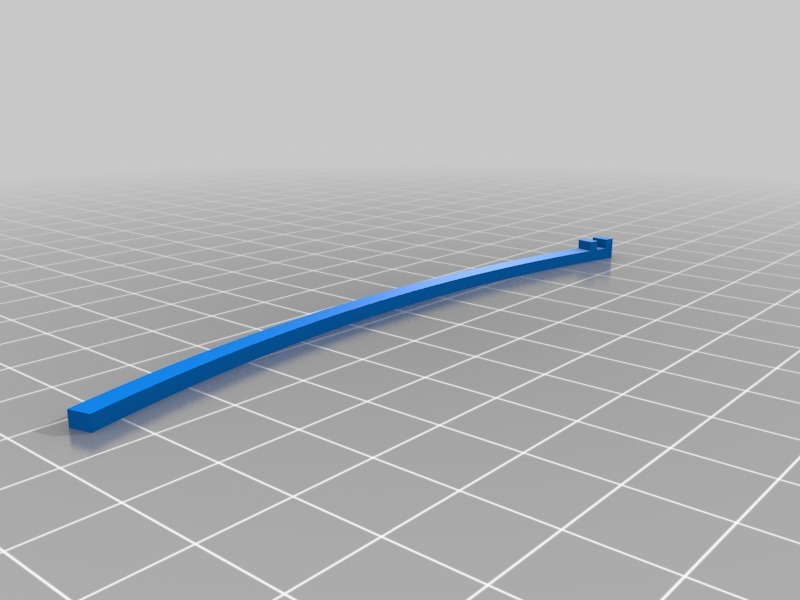

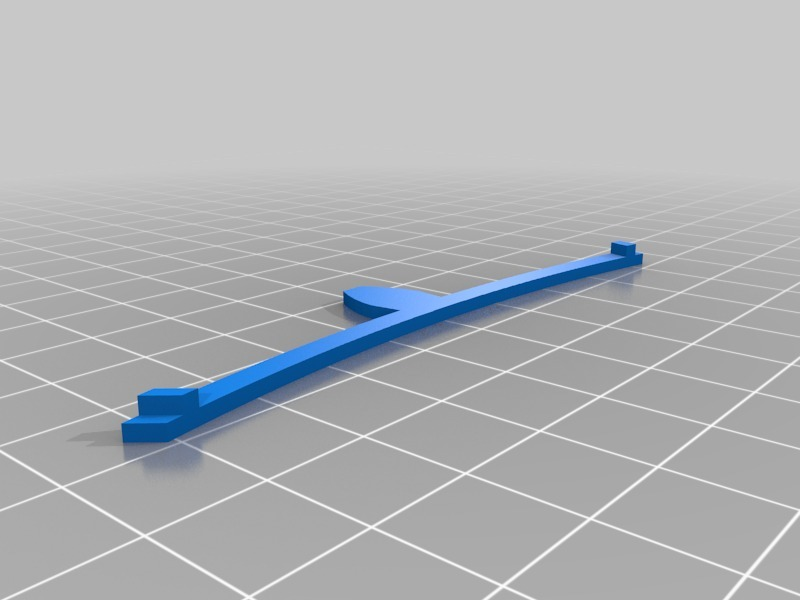

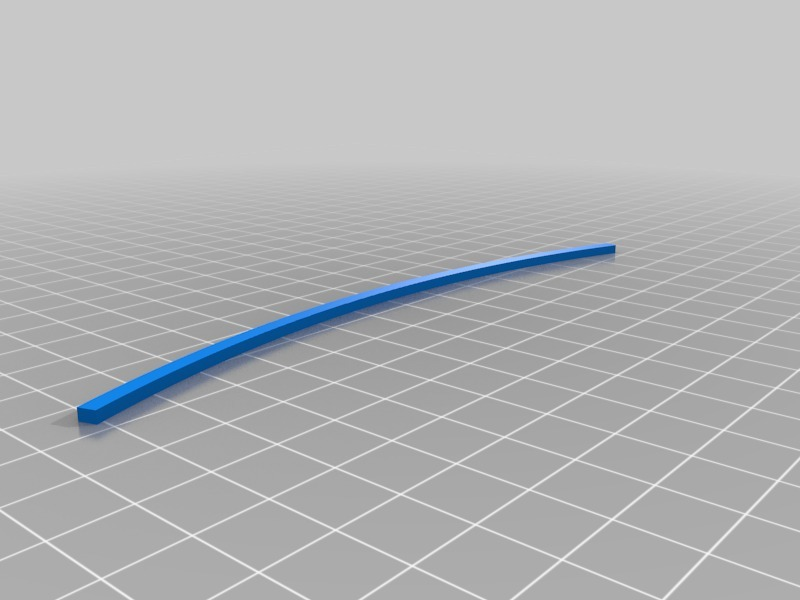

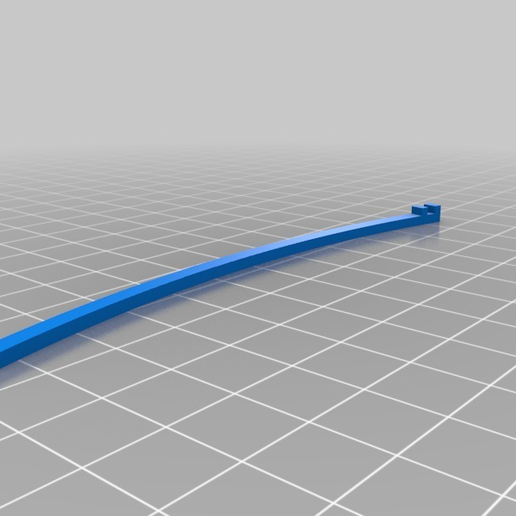

  • ring_1_x1.stl 112.848542 Γ— 10.74267599999996 Γ— 3.680908 mm
  • ring_2_x6.stl 142.93174 Γ— 15.387023999999997 Γ— 2.0 mm
  • ring_2_x6.stl 142.93174 Γ— 15.387023999999997 Γ— 2.0 mm
  • ring_3_x1.stl 142.93160600000002 Γ— 15.471984999999904 Γ— 2.0 mm
  • ring_4_x1.stl 108.419044 Γ— 10.085204999999974 Γ— 3.64 mm
  • ring_4_x1.stl 108.419044 Γ— 10.085204999999974 Γ— 3.64 mm
  • ring_5_x1.stl 85.296005 Γ— 18.271973000000003 Γ— 3.24 mm
  • ring_6_x1.stl 50.516388000000006 Γ— 11.318968999999925 Γ— 4.34 mm
  • ring_6_x1.stl 50.516388000000006 Γ— 11.318968999999925 Γ— 4.34 mm
  • ring_7_x1.stl 33.239262 Γ— 5.496581999999989 Γ— 6.701304 mm

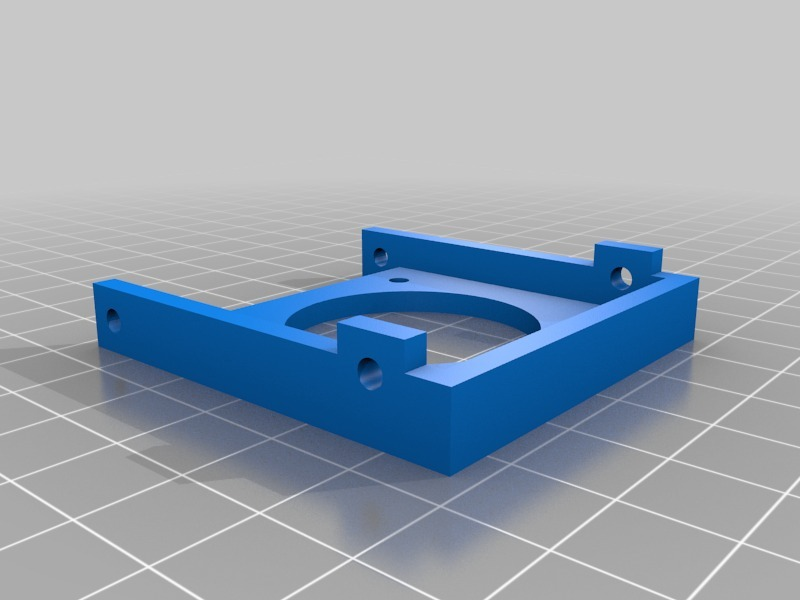

  • stepper_mount_x2.stl 50.402004 Γ— 54.300048999999944 Γ— 11.000001 mm

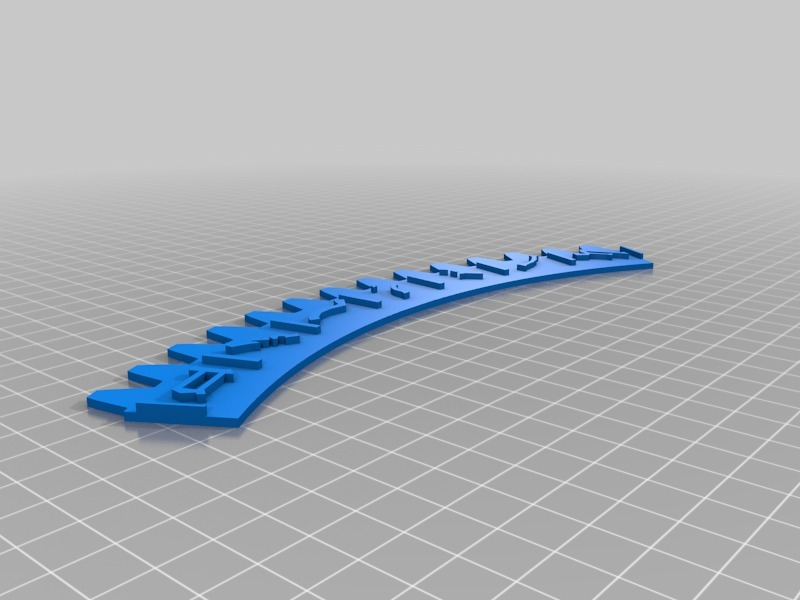

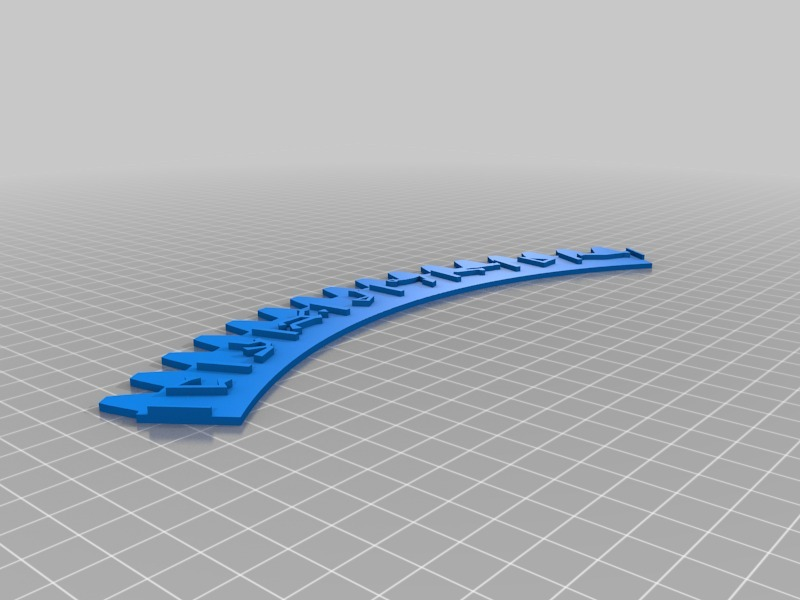

  • symbol_1_x1.stl 232.354004 Γ— 72.0399779999999 Γ— 3.998 mm
  • symbol_1_x1.stl 232.354004 Γ— 72.0399779999999 Γ— 3.998 mm
  • symbol_2_x1.stl 233.63960199999997 Γ— 67.82159399999989 Γ— 4.0 mm
  • symbol_3_x1.stl 233.639603 Γ— 67.82162499999998 Γ— 4.0 mm
  • symbol_4_x1.stl 233.662017 Γ— 67.82797300000004 Γ— 4.0 mm
  • symbol_5_x1.stl 206.220021 Γ— 60.10000600000001 Γ— 4.0 mm

Learn more about the formats
Publication date
?
Published to Thingiverse on:
Design number 1312618
Design author Glitch
Glitch

Glitch

Issue with this design? Report a problem.

3D printer file info

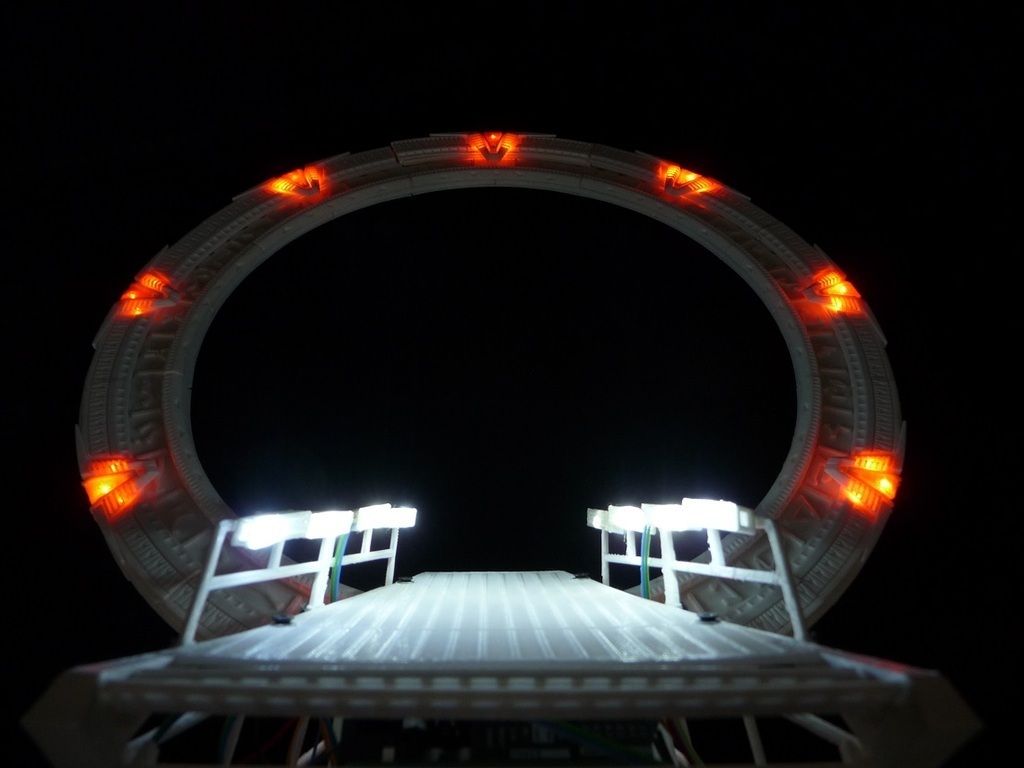

3D model description

Estimated print time is 112 hours. There are 117 parts.

This stargate model contains additional pieces to move the top chevron as part of the dialling sequence.

Note: The model is slightly larger than the Working Stargate Mk1. Therefore the SGC base on this model will not hold the Mk1 gate firm. Please use the SGC Ramp for Working Stargate Mk1 http://www.thingiverse.com/thing:1603663

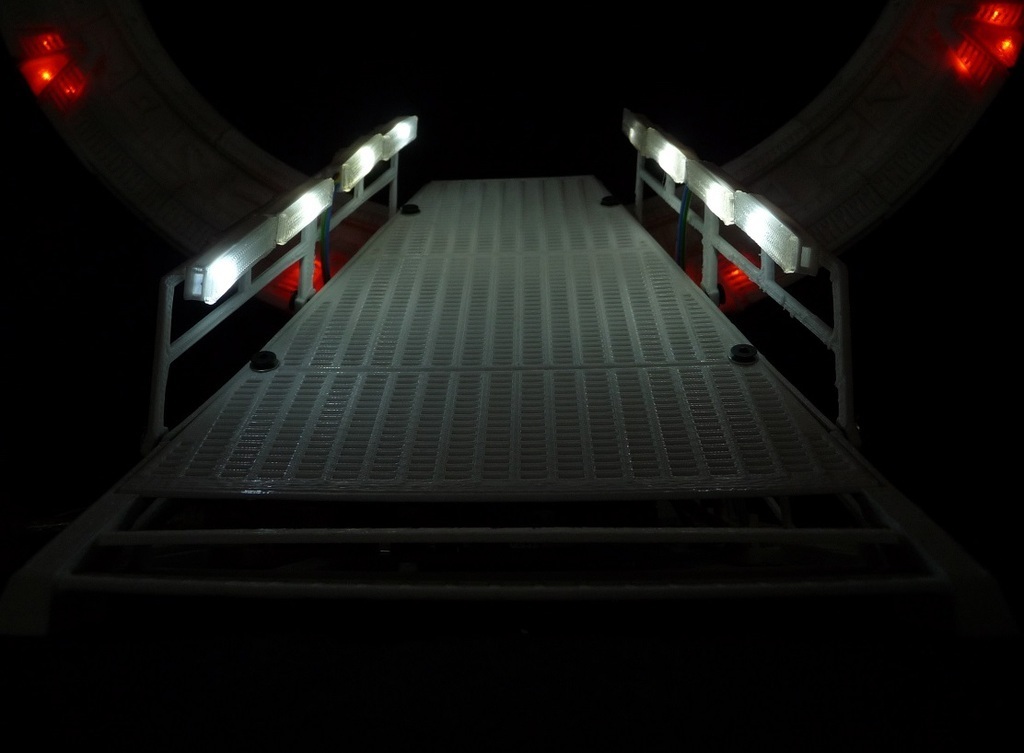

Due to the additional parts for the moving chevron. The space for wires and LED's is much less. I have used surface mount LED's in the model.

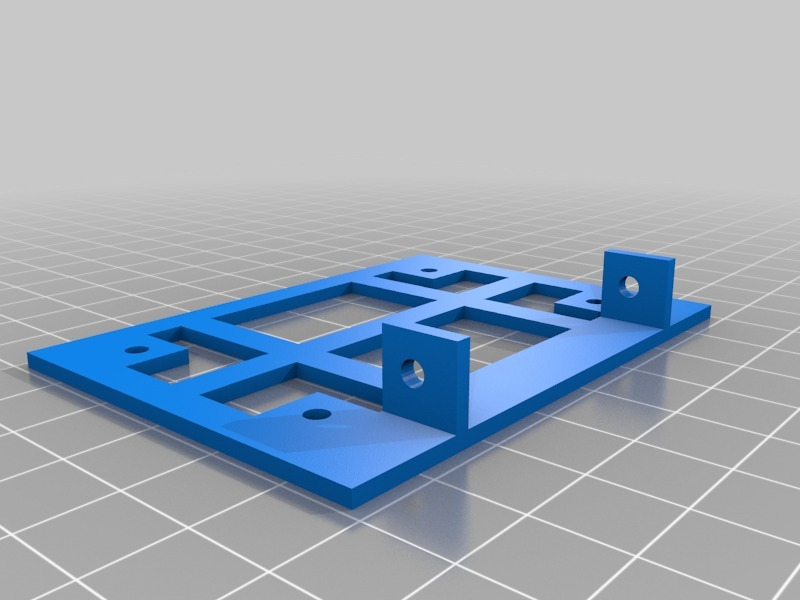

Two stepper motors are required for the model. Since the two motors face each other, I have used mounting brackets. If you intend to use a different size motor, you only need to customize the 'stepper_mount_x2.stl' file and not the base.

Besides the Arduino and Adafruit Motor Shield, there is also an optional bracket for an additional circuit board. I have used an additional board to mount the resistors and transistors for the LED's.

The "x" number on the end of the filenames indicate how many times that part should be printed. For instance, "gate_1_a_x8.stl" should be printed eight times.

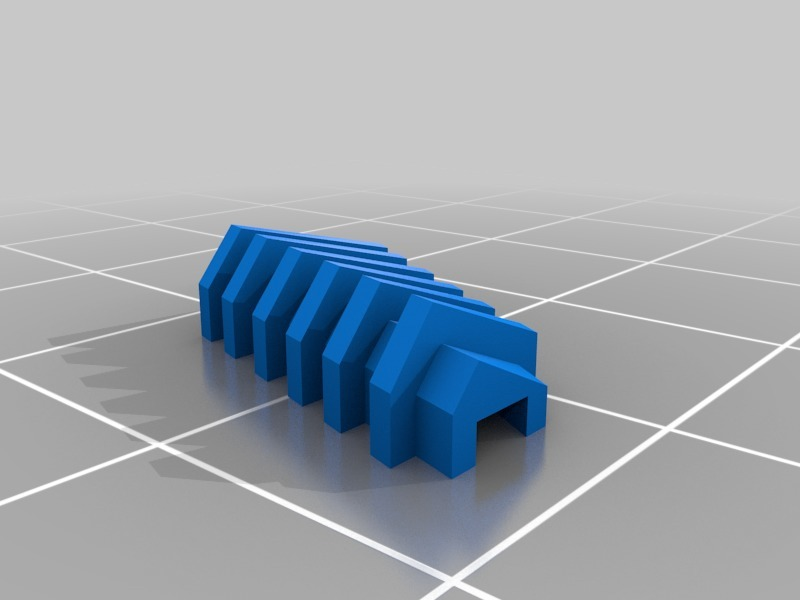

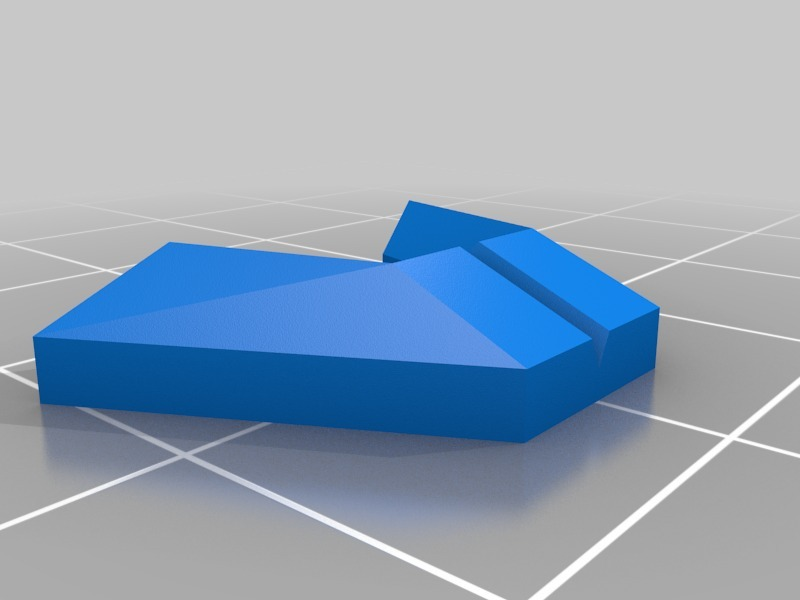

There is a choice of three types of chevrons.
"chevron_1" is on piece which can be printed as opaque or transparent.

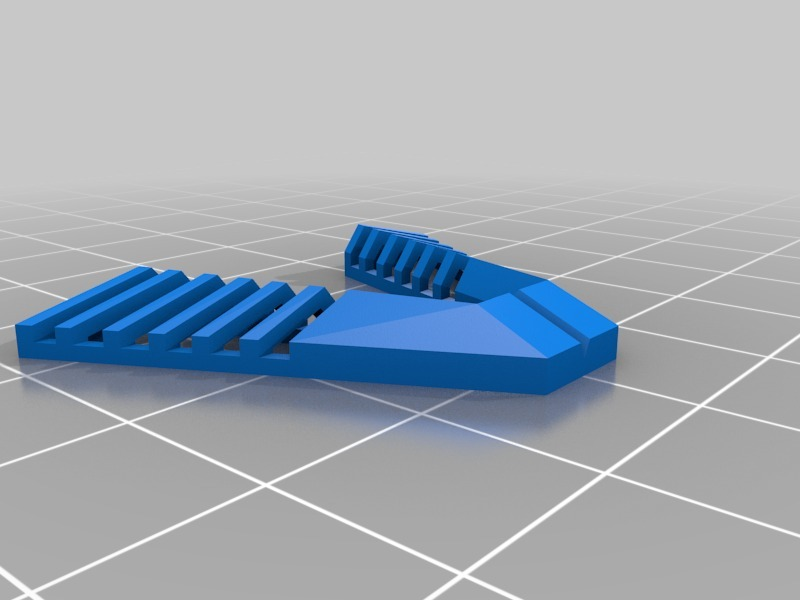

"chevron_2" is three pieces. "a" should be printed opaque and "b" as transparent.
"chevron_3" is three pieces, but is dependant on the print quality. "a" should be printed opaque and "b" as transparent.

In my experience, only the "chevron_4_x9.stl", "rail_l_1_x1.stl" and "rail_r_1_x1.stl" needed to be printed with supports.

Two Arduino scripts are included. "stargate_mk2_full.ino" includes dialling, calibration and light display. "stargate_mk2_dial.ino" includes only dialling and calibration.

Please see the youtube video for a complete assembly guide.

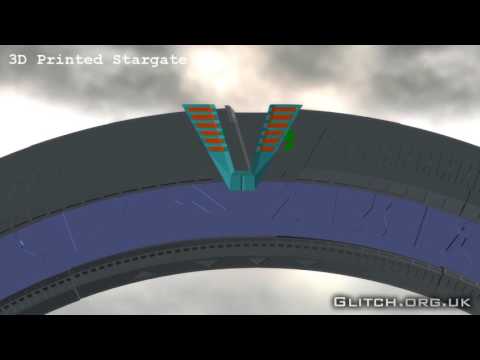

https://youtu.be/6X2FbyxViao

Videos of the Stargate in action

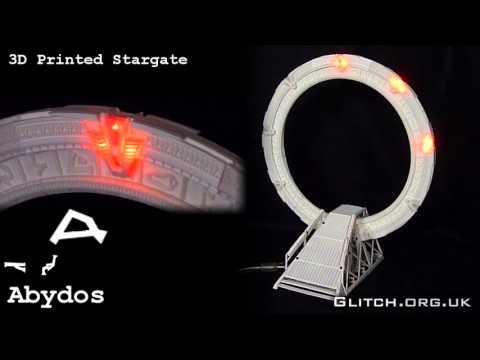

Seven symbol address for Abydos
https://youtu.be/Kvjv6q3YDGc

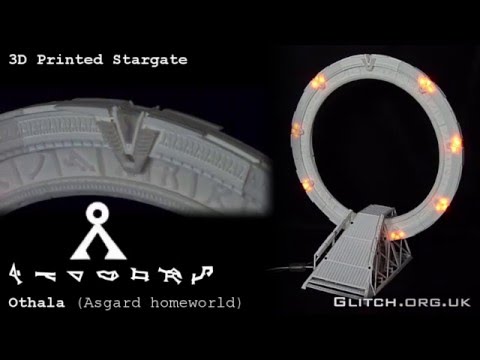

Eight symbol address for Asgard homeworld.
https://youtu.be/6TiuwvPgPVY

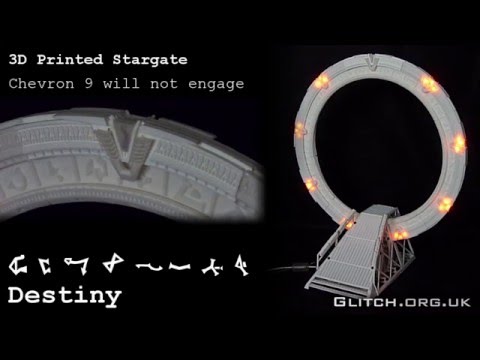

Nine symbol address for Destiny with wrong ninth symbol
https://youtu.be/Wdfw2u-thgw

There are eight videos on my youtube playlist.
https://www.youtube.com/playlist?list=PLv5wdS9O16OsT9xOpAUaj0T6JiPvgujXB

Edit 15th Jan 2017
Some of you have contacted me or commented here about problems slicing the parts. Although all the files worked in Makerbot Desktop, they didn't all work in other programs such as Slic3r.

Producing files that worked in both Makerbot Desktop and Slic3r was slightly more challenging than expected. Files fixed in Slic3r didn't all work in Makerbot Desktop or still had errors when re-imported into Slic3r.

An unlikely application came to the rescue. Files fixed in Microsoft's 3D Builder (included in Windows 10) worked in both Makerbot Desktop and Slic3r. I've run all the files through 3D Builder, even the ones without an issue.

If you've had an issue slicing the files then please download the new ones and try again. Comment here or contact me via my website if you have further issues.

Note: The smaller file size is expected as the files are now in binary not ascii format.

Estimated print time assumes standard quality with raft on Makerbot Replicator 5th Generation.

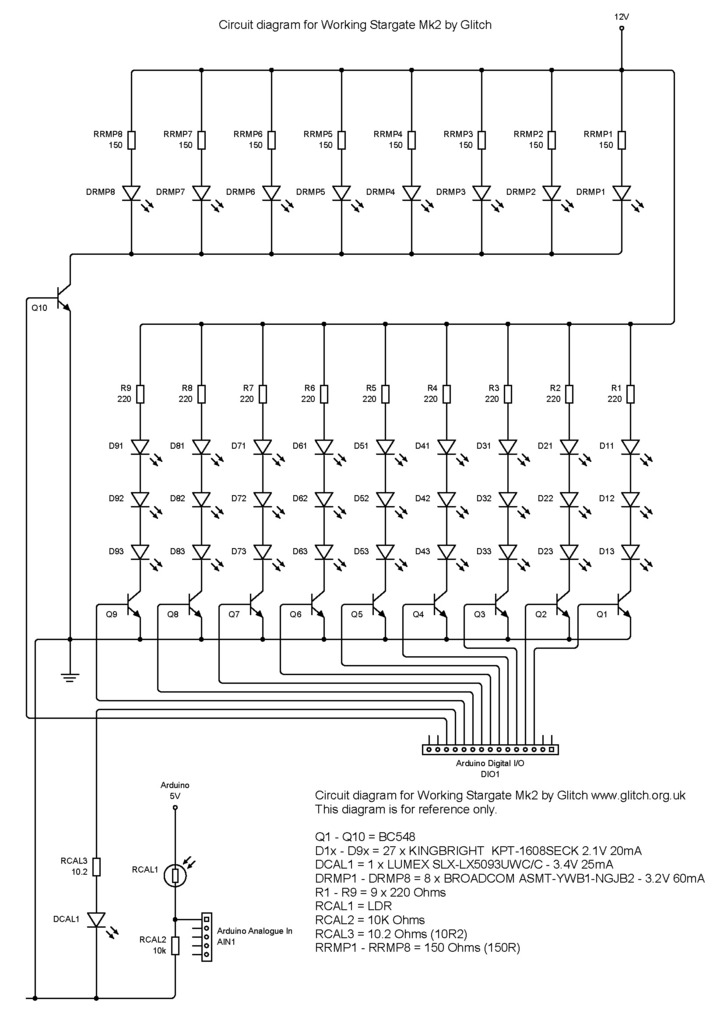

By popular demand. Here's my electronics parts list. Please see the reference circuit diagram.

Note : Components can be swapped with equivalents. Also, LED and resistor values will need to be adjusted appropriately.

1 x Arduino
1 x Adafruit Motor/Stepper/Servo Shield for Arduino
2 x Adafruit Stepper motor - NEMA-17 size - 200 steps/rev, 12V 350mA (one stepper could be replaced with a servo).
27 x Kingbright KPT-1608SECK 2.1V 20mA
8 x Broadcom ASMT-YWB1-NGJB2 - 3.2V 60mA
1 x Lumex SLX-LX5093UWC/C - 3.4V 23mA
10 x BC548 NPN transistor
9 x 220 Ohms resistor
8 x 150 Ohms resistor (150R)
1 x 10K Ohms resistor
1 x 10.2 Ohms resistor (10R2)
1 x Photoresistor / light dependent resistor (I used one from the Arduino starter kit)

The diagram is only for the LED's.

I haven't included the Arduino or steppers in the diagram as you can use their standard power inputs. The Arduino needs 5v input, which is either provided by USB or dedicated PSU. The Adafruit Motor/Stepper/Servo Shield needs 12v input (which can share the 12v for the LED's).
