Ripley’s Pet- by SPARX

Advertising
Share
Add to
Make
?
Creation quality: 4.5/5 (10 votes)
Evaluation of members on the printability, utility, level of detail, etc.
License
3D design format
18 files (STL and ZIP) Close
  • Assembly tips.zip
  • _Alien_Head_FDM_pinned.stl 38.220924999999994 × 111.157028 × 79.11483 mm
  • _Alien_Head_v3_pinned.stl 53.856021999999996 × 108.07880399999999 × 74.768799 mm
  • _Alien_Male_Torso.stl 54.069431 × 66.966744 × 130.853424 mm
  • _Left_Leg.stl 55.80954 × 112.49949699999999 × 143.014191 mm
  • _Right_Leg.stl 38.150894 × 105.822586 × 79.490479 mm
  • _Tail_partA.stl 33.384201 × 104.99792500000001 × 52.934296 mm
  • _Tail_partB.stl 20.217726 × 91.014069 × 78.323555 mm
  • _Torso2_Topless.stl 58.635245999999995 × 88.808762 × 132.169281 mm
  • _Torso2_Tshirt.stl 60.290527 × 88.918014 × 131.841125 mm
  • _Torso2_ripped.stl 57.679558 × 89.94122300000001 × 131.44162 mm
  • _left_arm.stl 37.616799 × 67.597717 × 126.169014 mm
  • _left_shin.stl 33.623799000000005 × 39.654474 × 112.812408 mm
  • _left_thigh.stl 37.592376 × 37.442297999999994 × 86.961197 mm
  • _right_arm.stl 24.657559 × 84.303109 × 146.817322 mm
  • _right_shin.stl 19.345148000000002 × 50.234321 × 113.09391 mm
  • _right_thigh.stl 37.495582999999996 × 29.584640999999998 × 93.706161 mm
  • _tube_vent_group.stl 46.682713 × 68.786635 × 75.163559 mm

Learn more about the formats
Last update
Publication date
Design number 108632
Design author SparxBM
SparxBM

SparxBM

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

update 1/4/2020 - link to screen shot creation of model
https://youtu.be/fk_g6SB214k

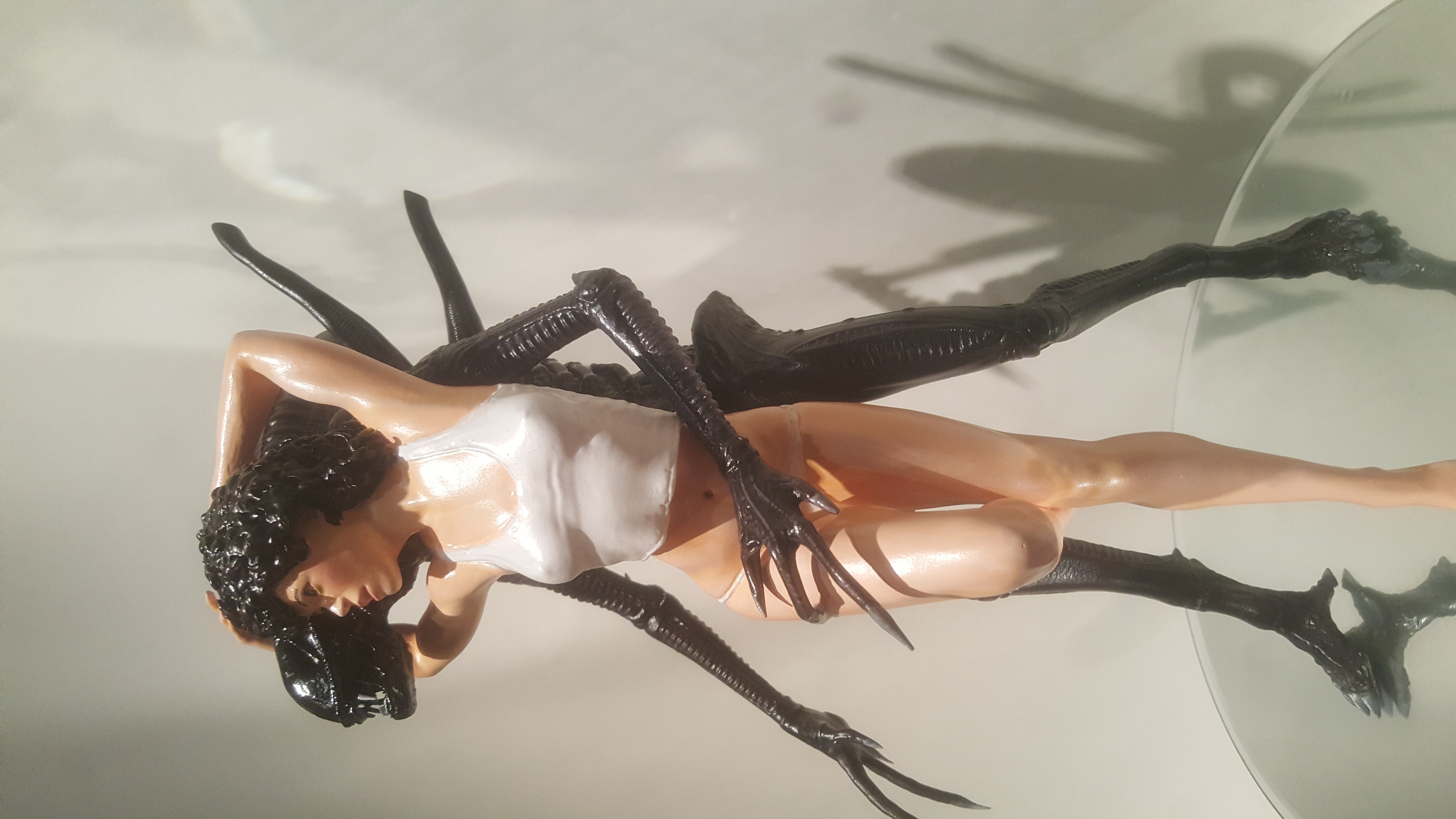

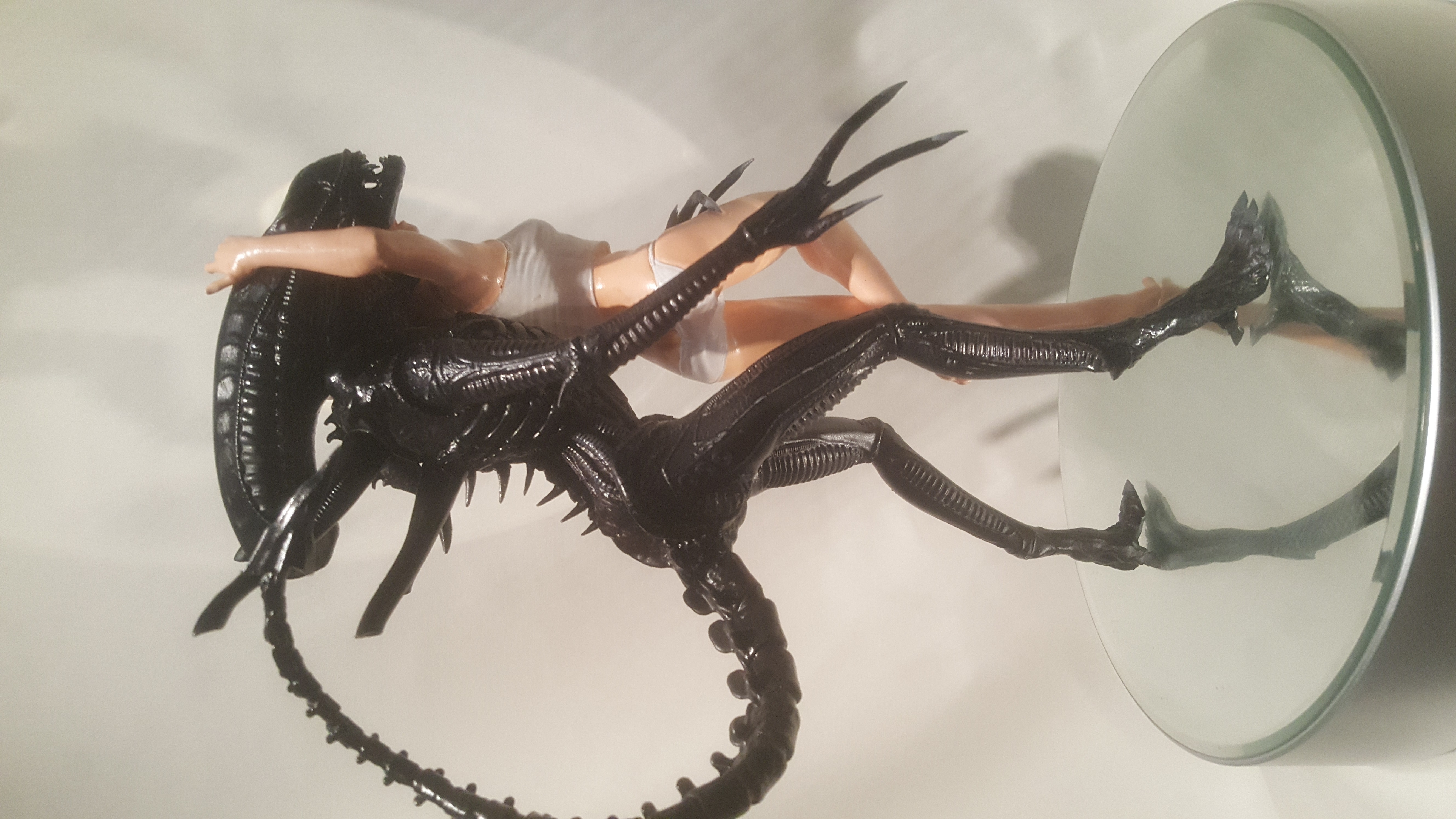

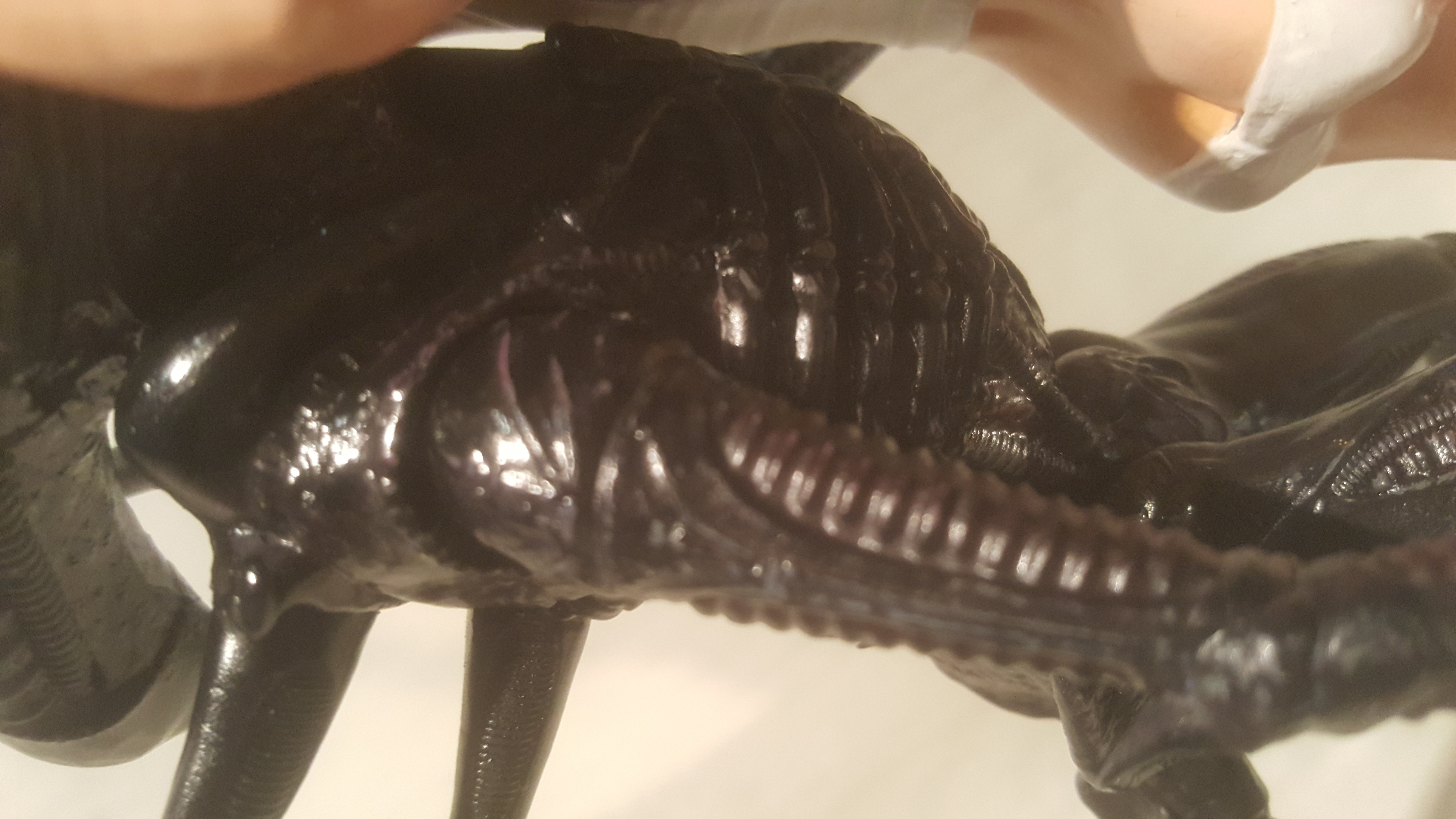

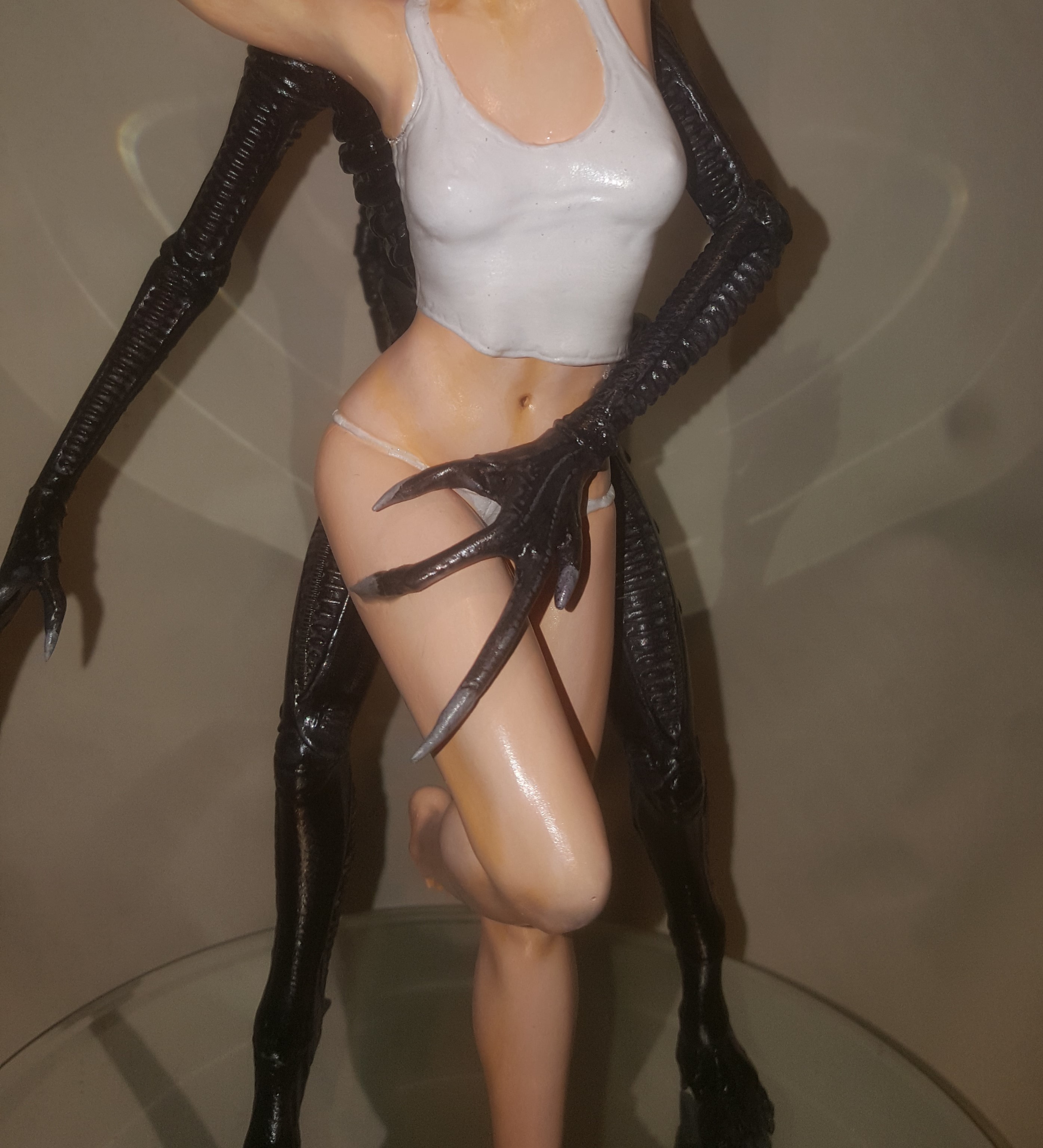

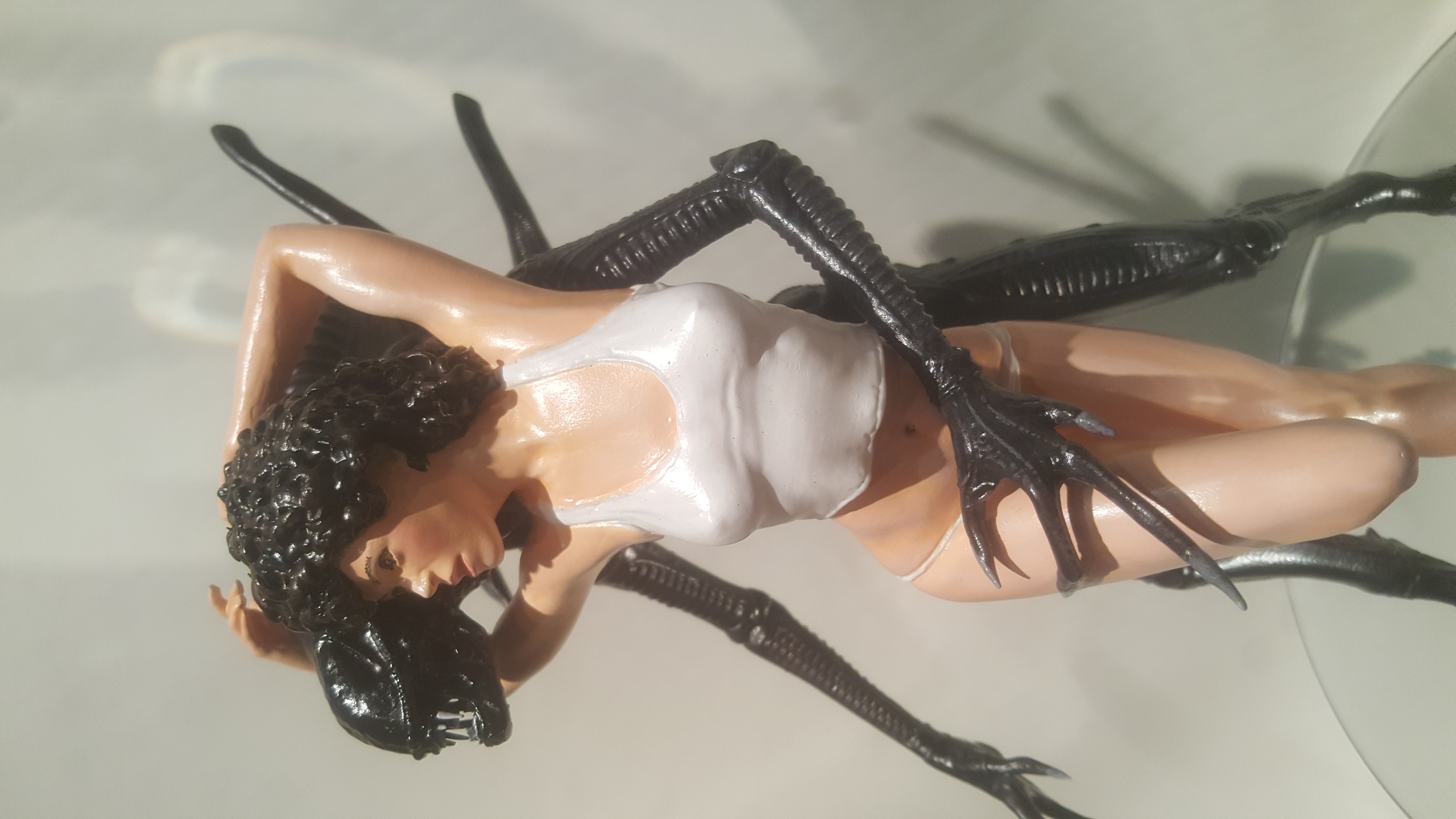

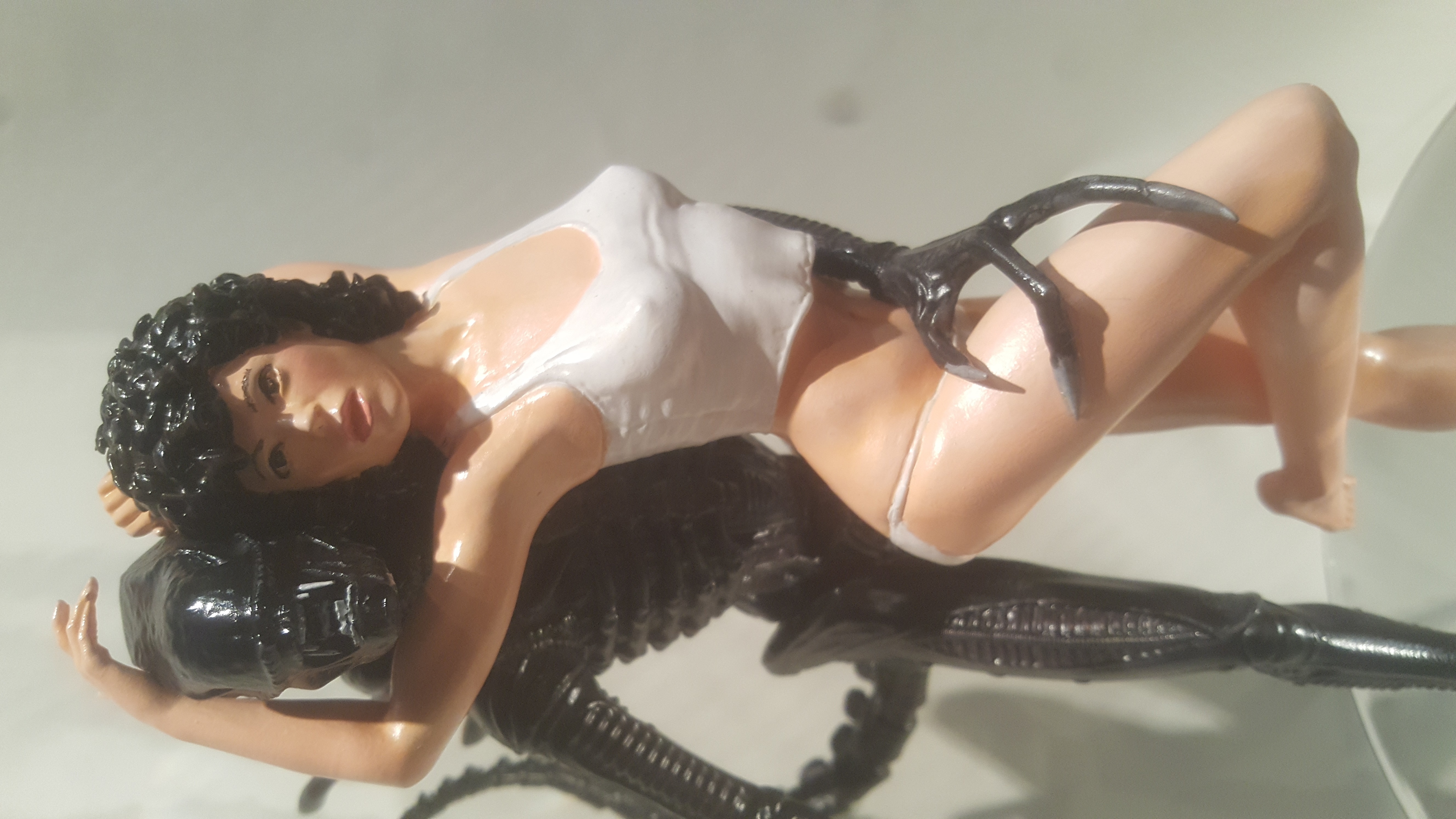

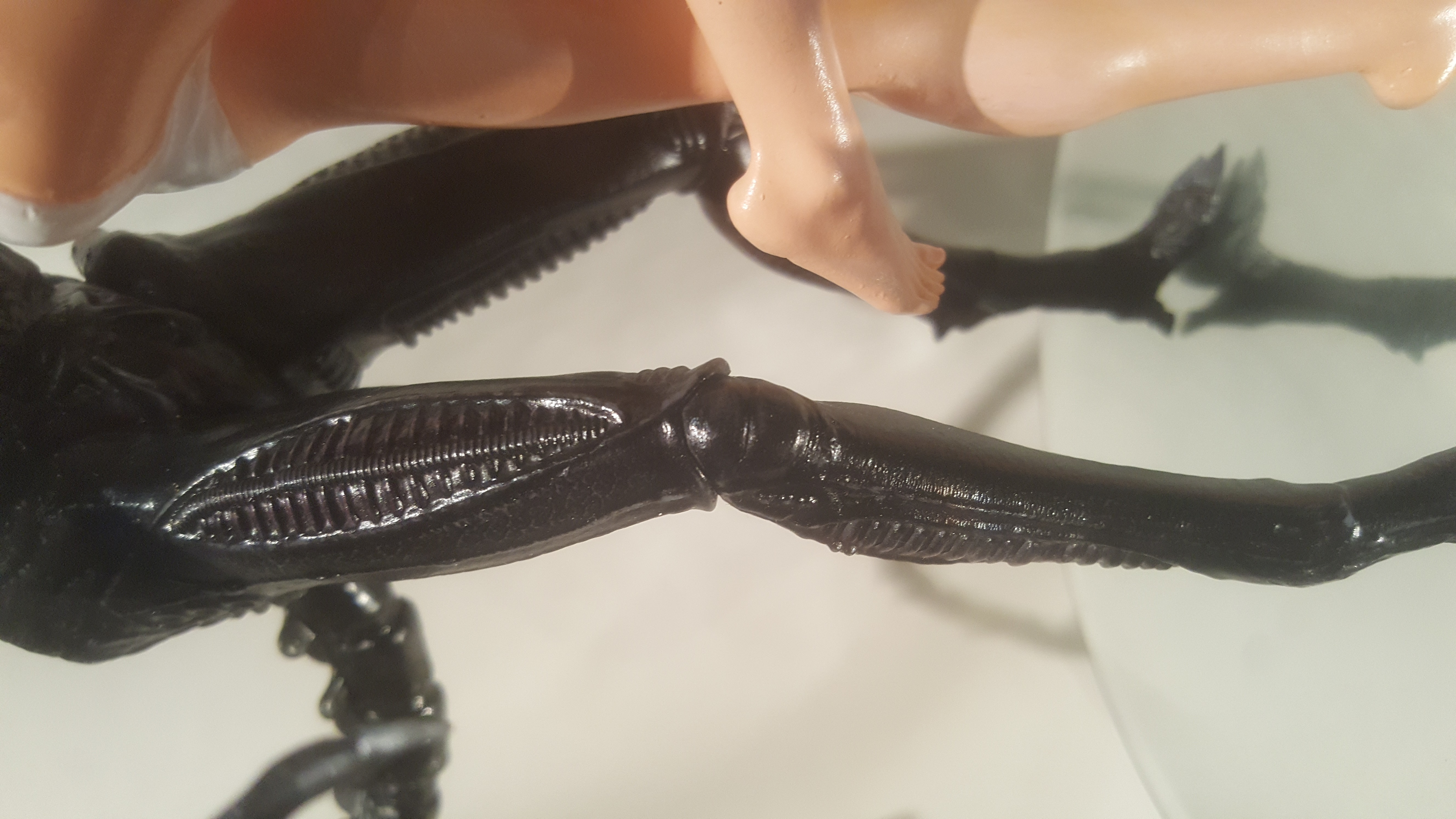

update 16/2/2020-some pics of finished model.

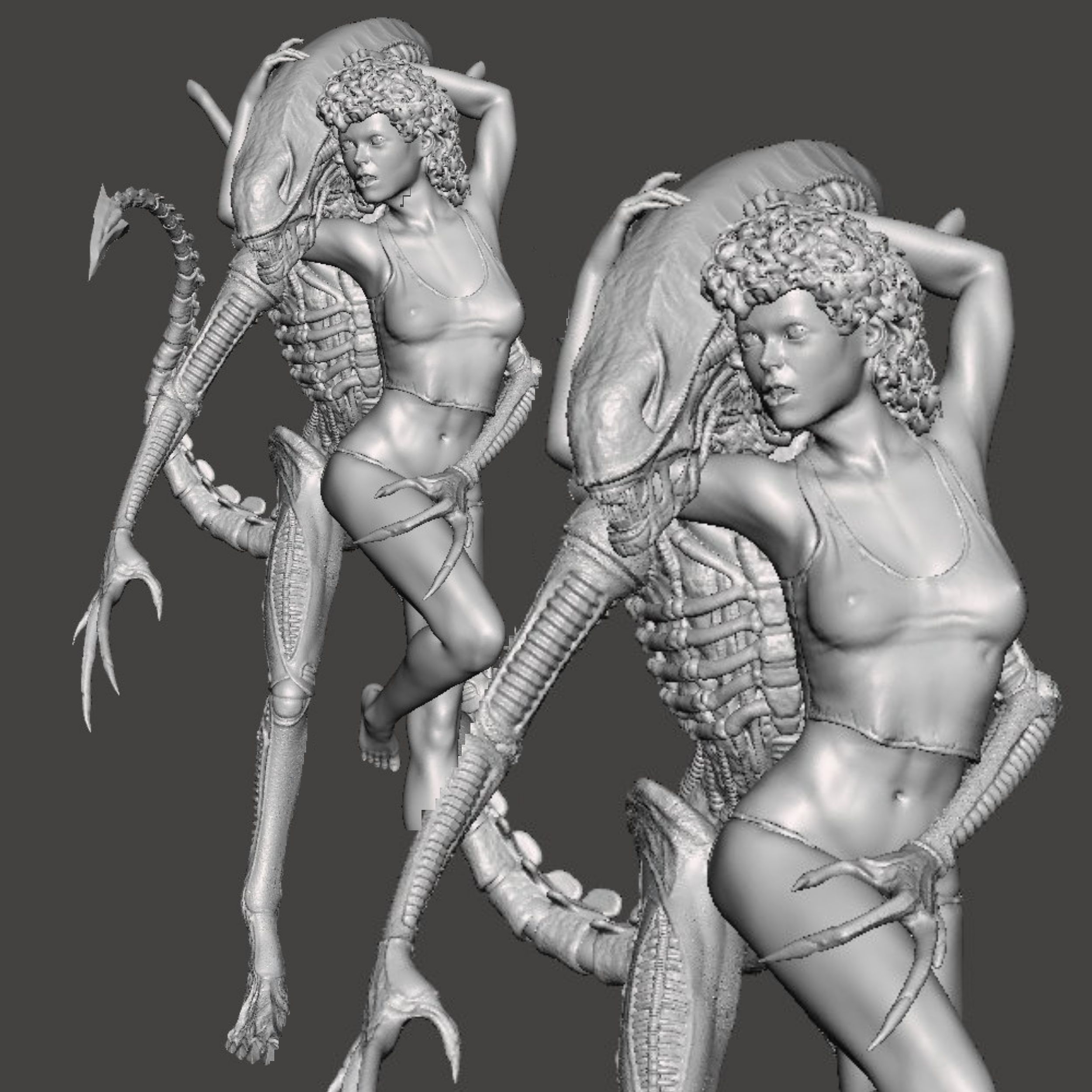

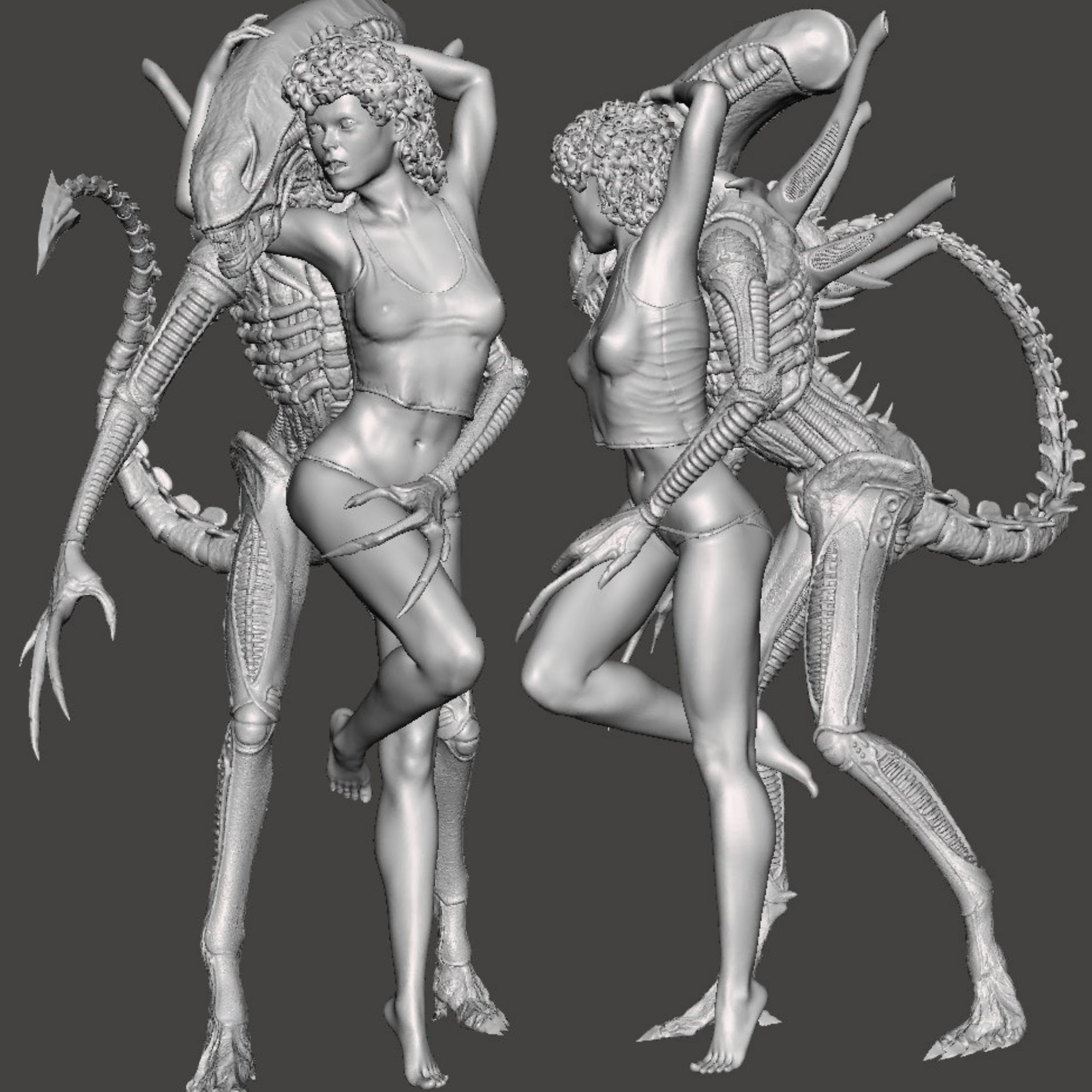

While looking for references for the Element Fire I stumbled across a few pics of Ripley and an Alien not actually killing each other . .and I was HOOKED! So here they are in a loving mood . . enjoy.

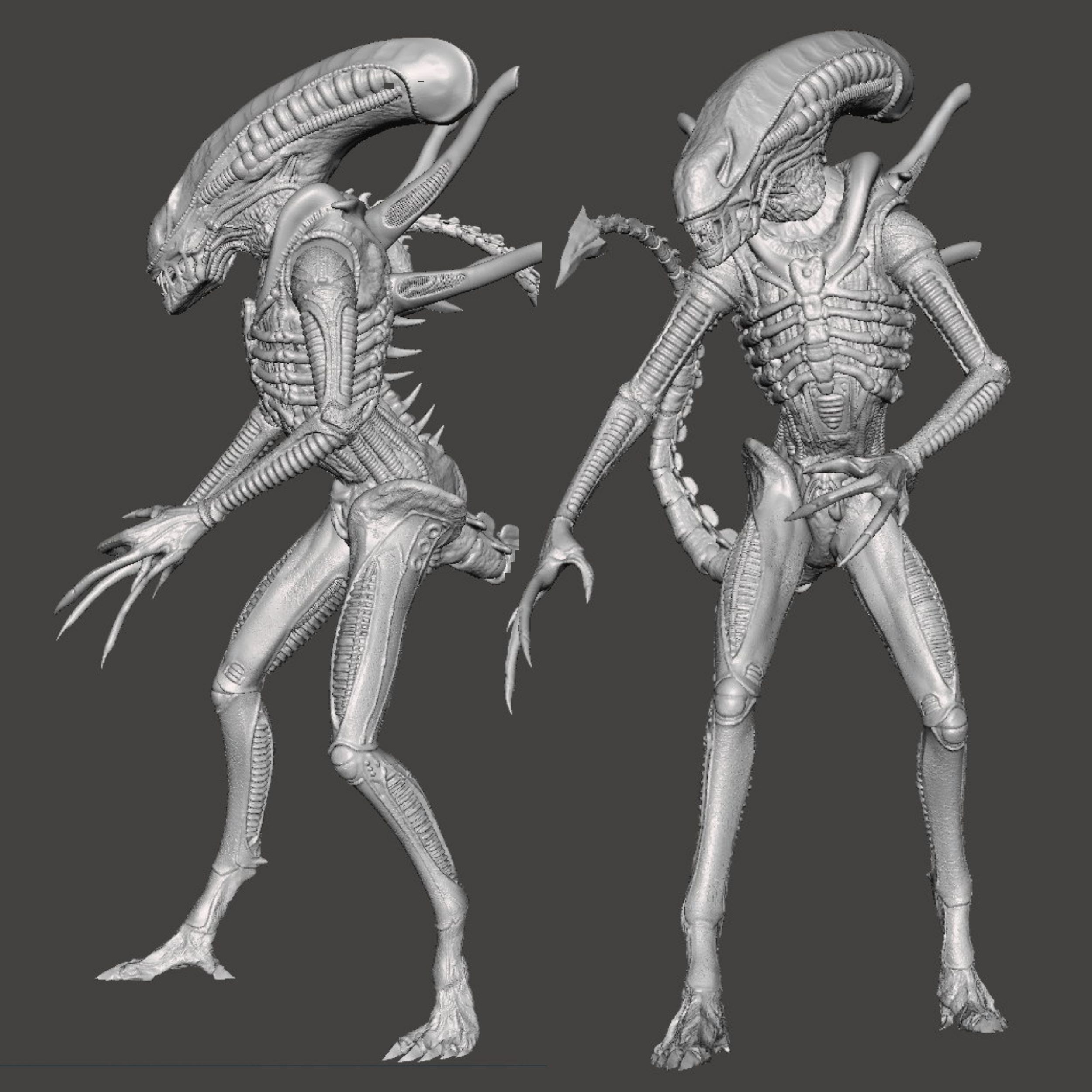

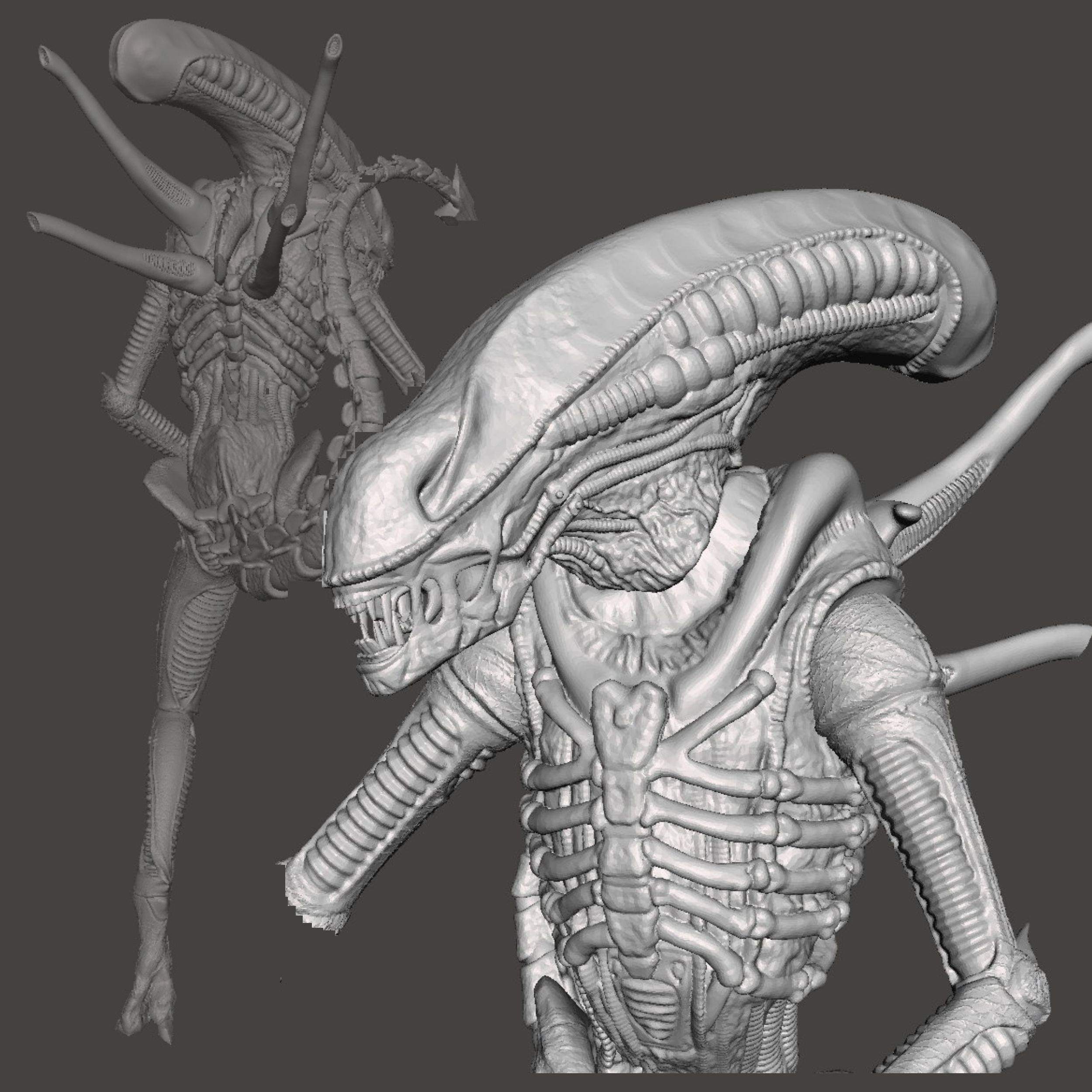

Alien
15 pieces plus a separate head more suitable for FDM print.(12 STL files Total)
Some joints are slot/pinned and others are a ball/socket design to allow you to easier join/line up parts.

Ripley

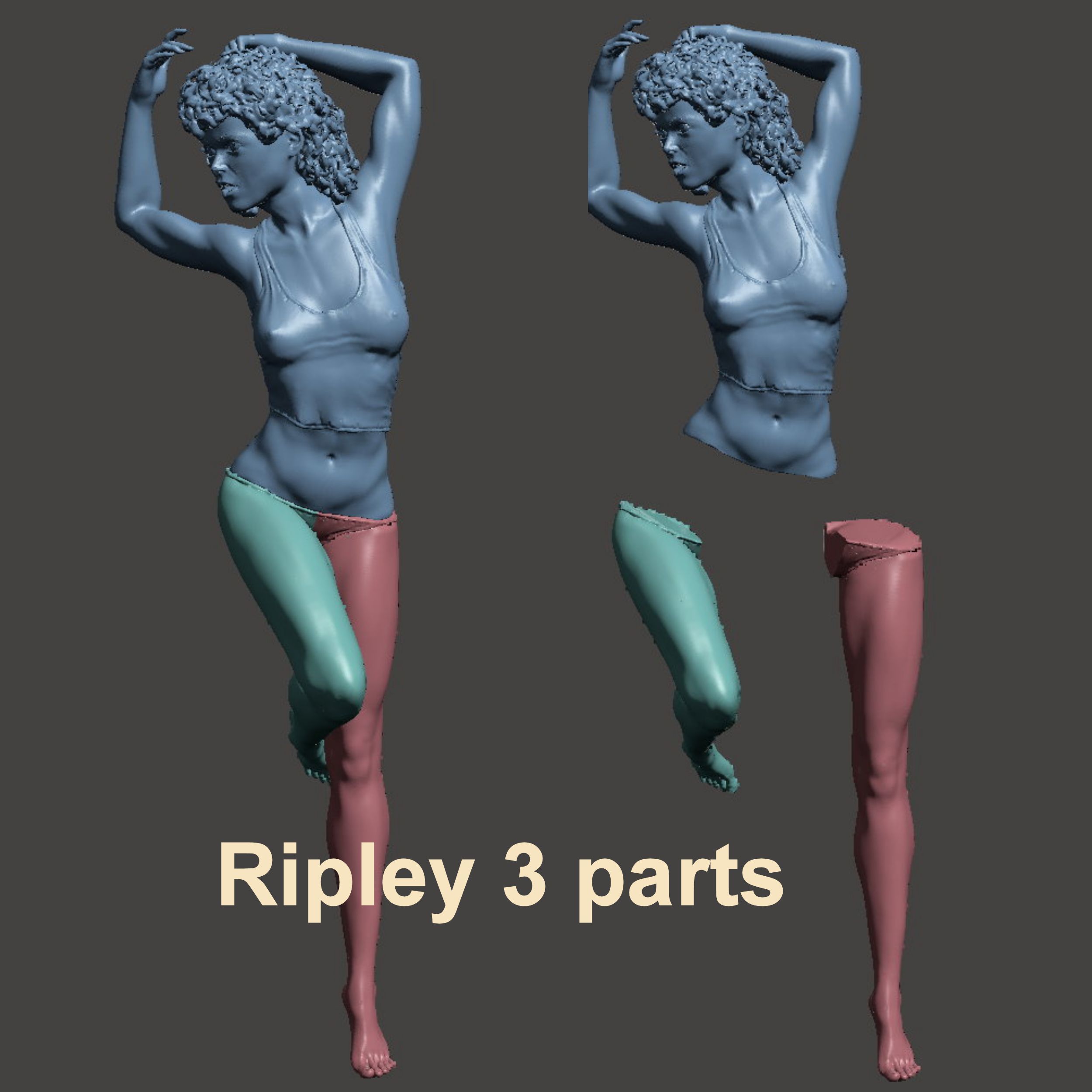

3 pieces an easy construction, join both legs then attach torso of choice.

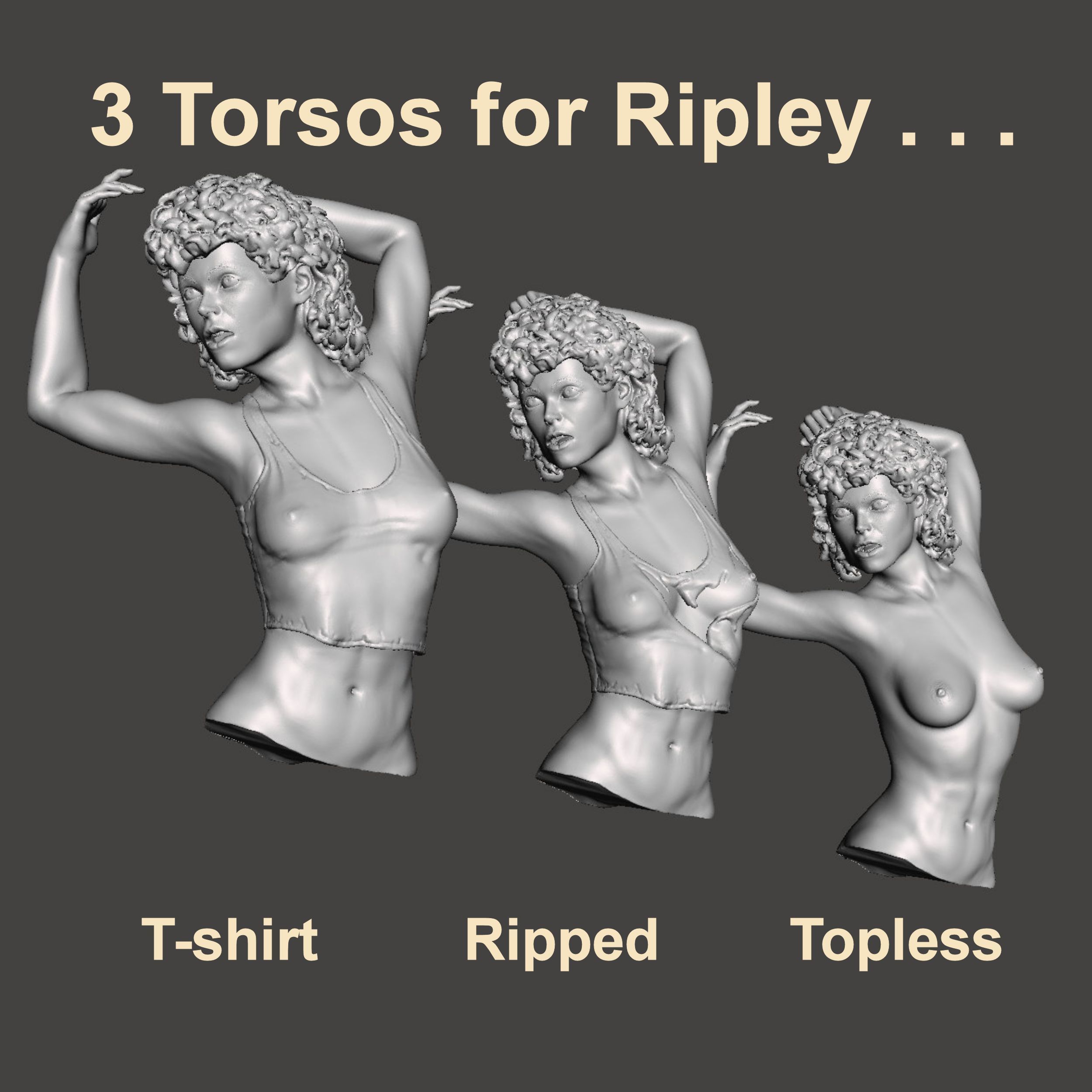

3 torso variant’s with this one . so take you pick before construction. .(5 STL files Total)
Download should be 18 files including the Assembly instructions

I SHARE MY WORK FOR OTHERS TO ENJOY. . .PLEASE DO NOT SHARE THESE FILES ON SOCIAL MEDIA OR OTHER WEBSITES. LINKS TO THIS PAGE ARE ACCEPTED

Assembly.PDF tips included.
All of the parts are orientated to print base ready to print with your favorite slicer . .

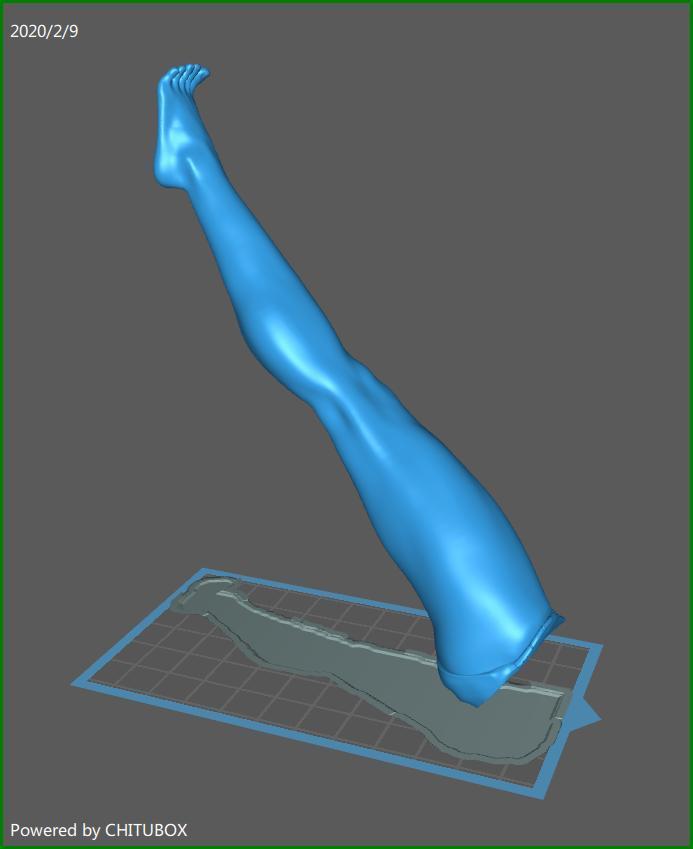

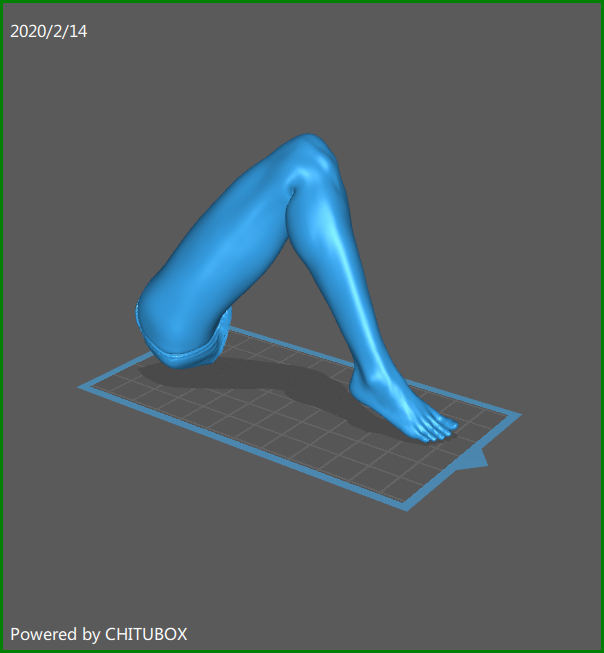

All parts are cut files to fit build plate of small resin printers like the Photon, examples in images SLA orientated for least support and strongest print orientation, as seen in the images.
These orientations work for FDM printing but you may find a better orientation that reduces support.
There is no base as the model is designed to stand on its own when fully assembled.
All the parts have been printed and developed to print, A lot of prints have been produced to get the figures corrected and fault free.
The model is 1/6 scale and is 320mm to top of Alien head. Ripley 303mm making her 1.82mtrs tall in real life . . !
Why cut into many smaller parts I have been asked?
1. If you try and assemble this, then paint it . .it would be nearly impossible to get into all the areas especially between Ripley and the Aliens chest, head etc. . !
2. Smaller parts not only allow for Resin print at full scale, but also allow individual parts to use less supports than one larger part on FDM printers
3. As I design/sculpt I already have in mind how it will split into parts and design these as I go. Trying them in slicers to see the effect of the design on supports.
So now you know!
All parts have been printed and I will post pics later when painted . . ENJOY

3D printing settings

Do not hollow Alien Vents, center back horn or tail partB. If printing Resin.
All other parts where hollowed at 2.1mm in Resin printing.
All parts FDM were print tested at 0.16 speed 50
