EDEN IRONHEAD MARK 03

Advertising
Make an offer
Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
Usages
3D design format
13 files (STL and ZIP) Close
  • BACK.stl 147.389008 × 54.718201 × 151.412201 mm
  • Corpo10.stl 196.730346 × 135.50006100000002 × 57.594463000000005 mm
  • FRONT.stl 147.362396 × 43.434402999999996 × 148.030799 mm
  • LEFT.stl 55.888301999999996 × 155.478996 × 157.7808 mm
  • RICEVER.stl 140.106301 × 47.42580000000001 × 85.353927 mm
  • STRUTTURA INTERNO 02.stl 202.46500400000002 × 175.904 × 58.603403 mm
  • VTX LEFT.stl 80.66420000000001 × 121.2966 × 79.938653 mm
  • VTX RIGHT.stl 80.66420000000001 × 121.2966 × 79.938653 mm
  • bottom 02.stl 147.060592 × 142.601097 × 43.55830000000001 mm
  • interno1.zip
    • ELICA.stl
    • STRUTTURA INTERNO 02.stl
    • STRUTTURA SOPRAO2.stl
    • STRUTTURA SOTTO 02.stl
  • right.stl 55.888301999999996 × 155.478996 × 157.7808 mm
  • sotto ventole.stl 116.893738 × 116.893738 × 48.6 mm
  • top.stl 147.027206 × 147.3825 × 44.936302999999995 mm

Learn more about the formats
Publication date
Design number 669015
Design author mirkuspierli
mirkuspierli

mirkuspierli

Issue with this design? Report a problem.

3D printer file info

3D model description

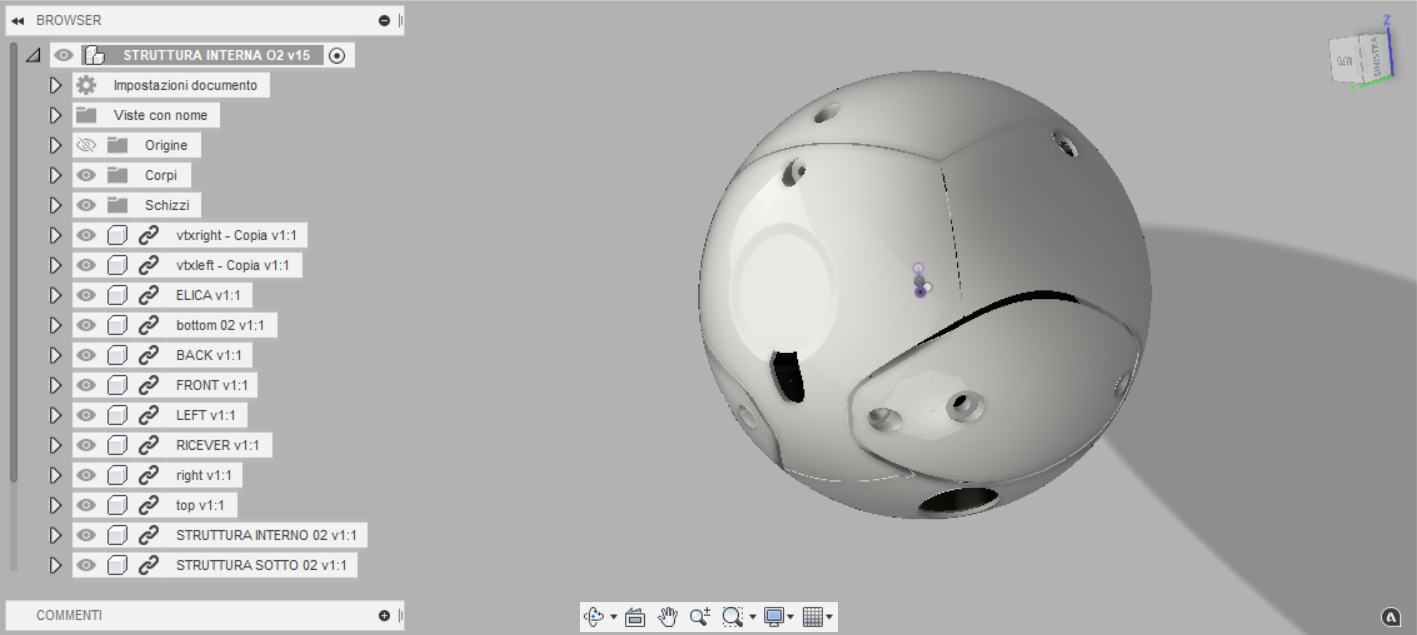

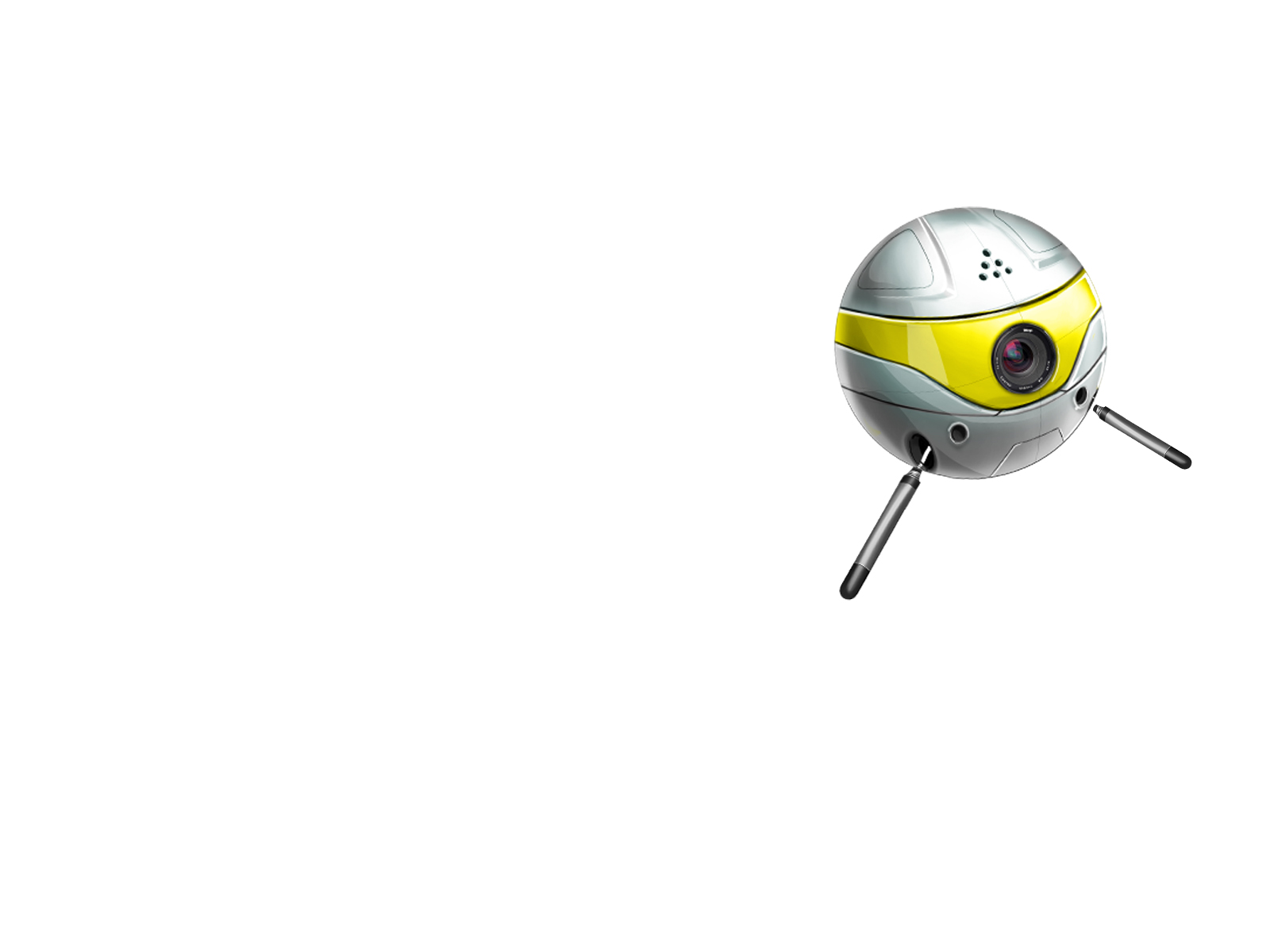

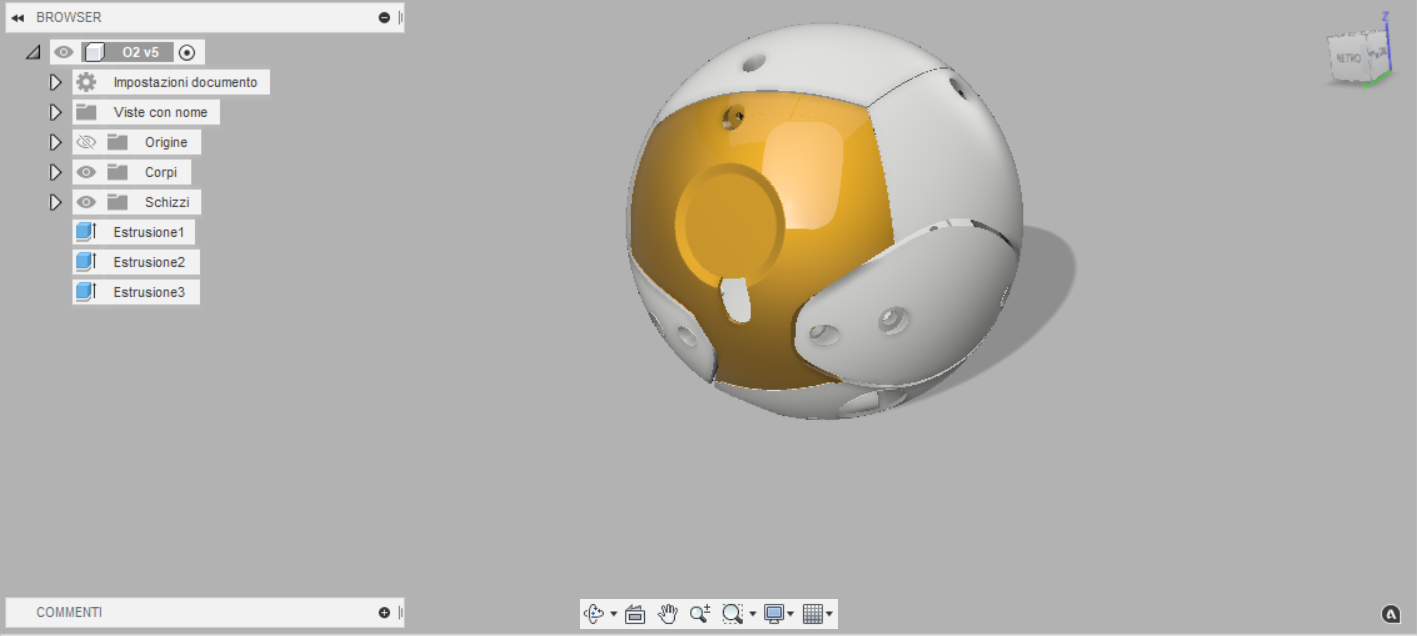

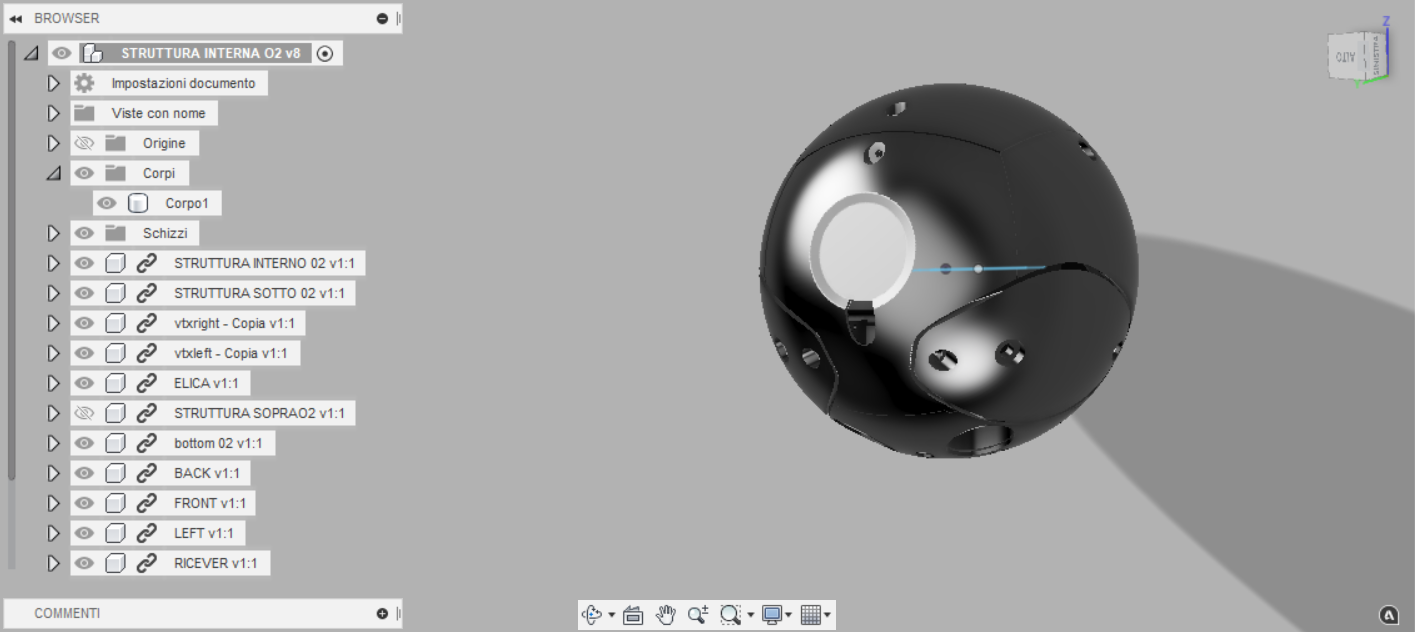

Sferic drone O2 8 proppellers 6 cm build with 3 intern structure and 9 external structure. this is unit by 30 countersunk head screws to 0.8 mm or 1 cm and 10 countersunk head screws to 2 cm. Peso 700g

COMPONENT RECOMENDED:

TATTU TA-RL-95C-1050-6S1P - Batteria per modellismo (LiPo), 22,2 V, 1050 mAh, numero celle: 6 95 C, custodia morbida XT60

FancyWhoop 2 Paia XT60 Connettore Maschio Femmina con Connettore di Alloggiamento Guaina con Cavo di Silicone 150mm 12AWG per Batteria Lipo FPV Drone

UAV. Motore Senza Spazzole 1/2/4. PCS. For Iflight. Xing 2207 X2207 1800KV 1900KV 2450KV 2750KV 2-6S Motore Senza Brushless For Rc Fpv. Motore Del Braccio Del Fotogramma Quadcoptero Del Drone Da Corsa

RFElettronica Mamba F405 MK2 Betaflight Flight Controller di Volo F40 40A 3-6S DSHOT600 FPV Racing Brushless ESC

LMIAOM Runcam Split 3 Micro Whoop Dc5-20v 1080p/ 60fps Hd Recording& wdr Fpv Camera Pal/ntsc commutabile 40ms bassa latenza per Rc accessori fai da te installazione (Colore: Split 3 Nano)

LMIAOM Matek. M8Q-5883. Ublox mateksys. GPS W. BUSSOLA Modulo SAM- M8Q GLONASS Ricevitore Galileo con bussola antenna QMC5883L. for FPV. Droni Parti di montaggio accessori fai da te

LMIAOM Rush VTX Tank 5. 8G Hz 4. 8CH PIT / 25/200/ 00/500/ 80 Trasmettitore da 0mw for FPV. Corse drone Parti di montaggio accessori fai da te

ICQUANZX Rilevatore cicalino Perdita Segnale RC LED Light Finder 110dB Allarme cicalino ， con Batteria scarica Drone Allarme Tracker 110dB funzionante ， per Controller di Volo BF e CF Drone RC

Flysky FS-i6X Telecomando 10CH 2.4GHz Trasmettitore RC con Ricevitore FS-iA10B per Aereo RC FPV Racing Drone Quadcopter [Mode 2]

2.4G 5.8G per FPV TX Antenna RP-SMA Maschio Dipole Whip FPV PC Antenna (2 pezzi)

4 Pezzi di Pale Dell'elica per Droni, Pezzi di Ricambio per Pale Dell'elica per Droni Parrot Minidroni Rolling Spider

Eightwood TS9 SMA Cavo 4G Antenna Adattatore SMA a TS9 Ad angolo retto Pigtail Cavo RG174 6 ft 15cm 2 pz per Netgear

Hsdpa Huawei 2G 3G 4G LTE Antenna UMTS Mobile Broadband
