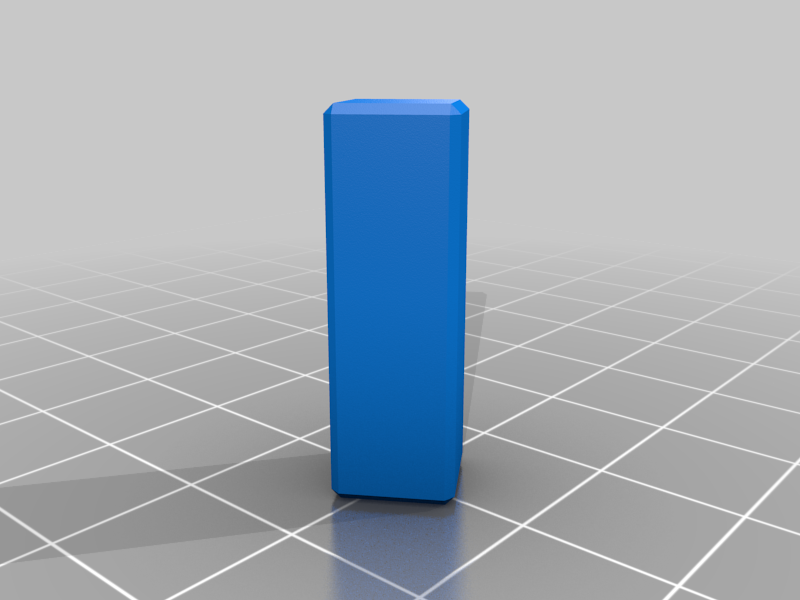

  • Key_H25mm.stl 10.399095999999998 × 10.399097 × 25.0 mm
  • Key_H50mm.stl 10.399095999999998 × 10.399097 × 50.0 mm
  • ScarfJoint_H25mm.stl 50.000001999999995 × 50.0 × 25.0 mm
  • ScarfJoint_H25mm_LooseAll.stl 50.000001999999995 × 50.0 × 25.0 mm
  • ScarfJoint_H50mm.stl 50.000001999999995 × 50.0 × 50.0 mm
  • ScarfJoint_H50mm_LooseAll.stl 50.000001999999995 × 50.0 × 50.0 mm
  • ScarfJoint_H8mm_LooseAll.stl 50.000001999999995 × 50.0 × 8.0 mm
  • ScarfJoint_L50W30H40mm_LooseAll.stl 50.000001999999995 × 30.0 × 40.0 mm
  • ScarfJoint_L50W30H40mm_LooseAll_Shelled.stl 50.000001999999995 × 30.0 × 40.0 mm
  • ScarfJoint_L50W30H8mm_LooseAll.stl 50.000001999999995 × 30.000001 × 8.0 mm

Learn more about the formats
Publication date
?
Published to Thingiverse on:
Design number 183072
Design author LGBU
LGBU

LGBU

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

####Japanese Scarf Joint/Splice

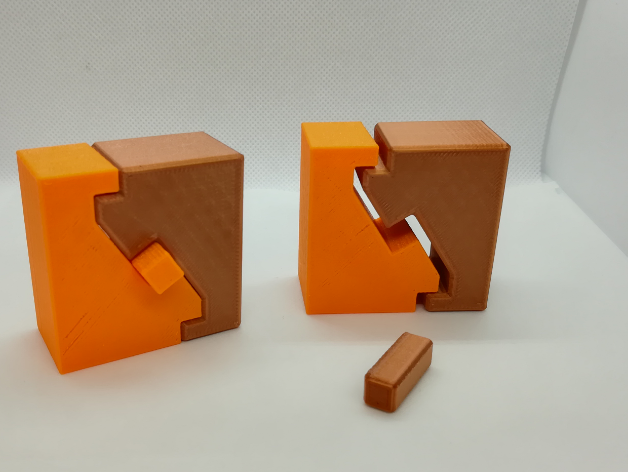

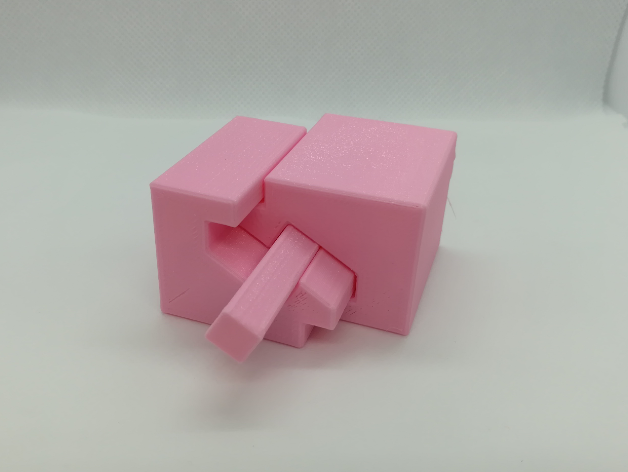

The Japanese Scarf Joint (JSJ) is a simple and functional joint or splice, which connects two wood beams into a longer one. It is mathematically appealing – a direct application of rotational symmetry of a rectangle (including a square, of course). To make a 3D design, one can just play around or make use of the rotational symmetry, starting from the center of rotation. There are many variations in terms of the connector length and the middle pin (key) shape. According to Sumiyoshi and Matsui, it can be properly called a “Pinned Rabbeted Oblique Scarf Splice.”

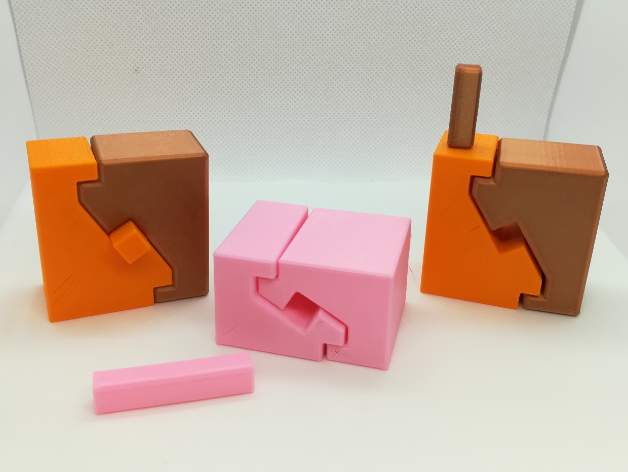

Among the files are a few Scarf Joints of various thickness and dimensions. The loose version can be printed in one piece. The filenames speak for themselves. Have fun!

####References
1. Sumiyoshi, Torashichi., & Matsui, Gengo. (1991). Wood joints in classical Japanese architecture (F. Kovacs, Trans.). Japan: Kajima Institute Publishing.
2. https://en.wikipedia.org/wiki/Scarf_joint
3. https://www.thingiverse.com/thing:2632180
