TOP FUEL Engine Hemi Supercharged Complete with Options

Advertising
Make an offer
Share
Add to
Make
?
Creation quality: 5/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
License
Usages
3D design format
23 files (3MF, OBJ, STEP, and STL) Close
  • HEMI Titanium valve cover top.stl 20.0 Γ— 6.3875890000000055 Γ— 7.473074 mm
  • HEMI Titanium valve cover.stl 21.878504999999997 Γ— 9.400436999999997 Γ— 10.45965 mm
  • HEMI Top Fuel block N heads.stl 25.55422999999999 Γ— 26.763764 Γ— 17.536178999999997 mm
  • HEMI blower strap plate.stl 31.879417000000004 Γ— 15.520000000000003 Γ— 1.0 mm
  • HEMI top fuel Sump 2.stl 25.0 Γ— 11.700000000000003 Γ— 8.742842 mm
  • HEMI top fuel hat complete.3mf
  • HEMI top fuel hat complete.obj 0.04217699999999999 Γ— 0.023471 Γ— 0.02221499999999999 mm
  • HEMI top fuel hat complete.step
  • HEMI top fuel hat complete.stl 42.176697000000004 Γ— 23.471291 Γ— 22.215248000000003 mm
  • Top Fuel HEMI Blower Hat.stl 38.324692999999996 Γ— 19.2 Γ— 22.215248 mm
  • Top Fuel HEMI Blower Strap Mounts.stl 25.500000999999997 Γ— 42.258503 Γ— 5.862972 mm
  • Top Fuel HEMI Blower belt tensioner.stl 7.915260999999999 Γ— 11.531656 Γ— 12.483887 mm
  • Top Fuel HEMI Blower.stl 43.544021 Γ— 15.600000000000001 Γ— 10.109634999999999 mm
  • Top Fuel HEMI Crank Pulley.stl 6.035625 Γ— 6.032572000000001 Γ— 5.029433 mm
  • Top Fuel HEMI Fuel Pump.stl 13.629348 Γ— 6.12293 Γ— 12.364821000000001 mm
  • Top Fuel HEMI Gear drive.stl 13.916236 Γ— 9.545665 Γ— 11.169373 mm
  • Top Fuel HEMI Ignition Plug.stl 2.578857 Γ— 2.582798 Γ— 4.962926 mm
  • Top Fuel HEMI Intake.stl 21.136958999999997 Γ— 13.366491 Γ— 7.324832000000001 mm
  • Top Fuel HEMI MSD Ignition.stl 20.160823 Γ— 15.315559 Γ— 8.476484 mm
  • Top Fuel HEMI Sump.stl 25.008999000000003 Γ— 11.7 Γ— 6.122857999999999 mm
  • Top Fuel HEMI Valve Cover.stl 21.878504999999997 Γ— 10.233639 Γ— 7.086842 mm
  • Top Fuel HEMI Zoomies.stl 23.772049000000003 Γ— 13.884247 Γ— 6.494836 mm
  • Top Fuel HEMI oil pump.stl 19.495878 Γ— 4.546642 Γ— 5.063288999999999 mm

Learn more about the formats
Last update
Publication date
Design number 557128
Design author MCSDesign
MCSDesign

MCSDesign

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

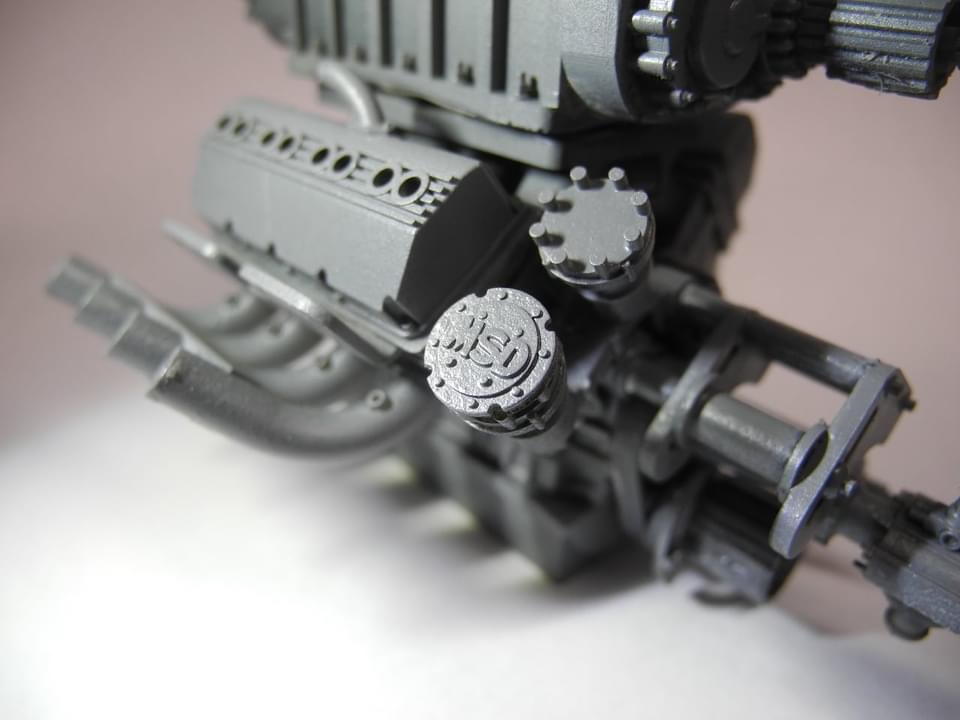

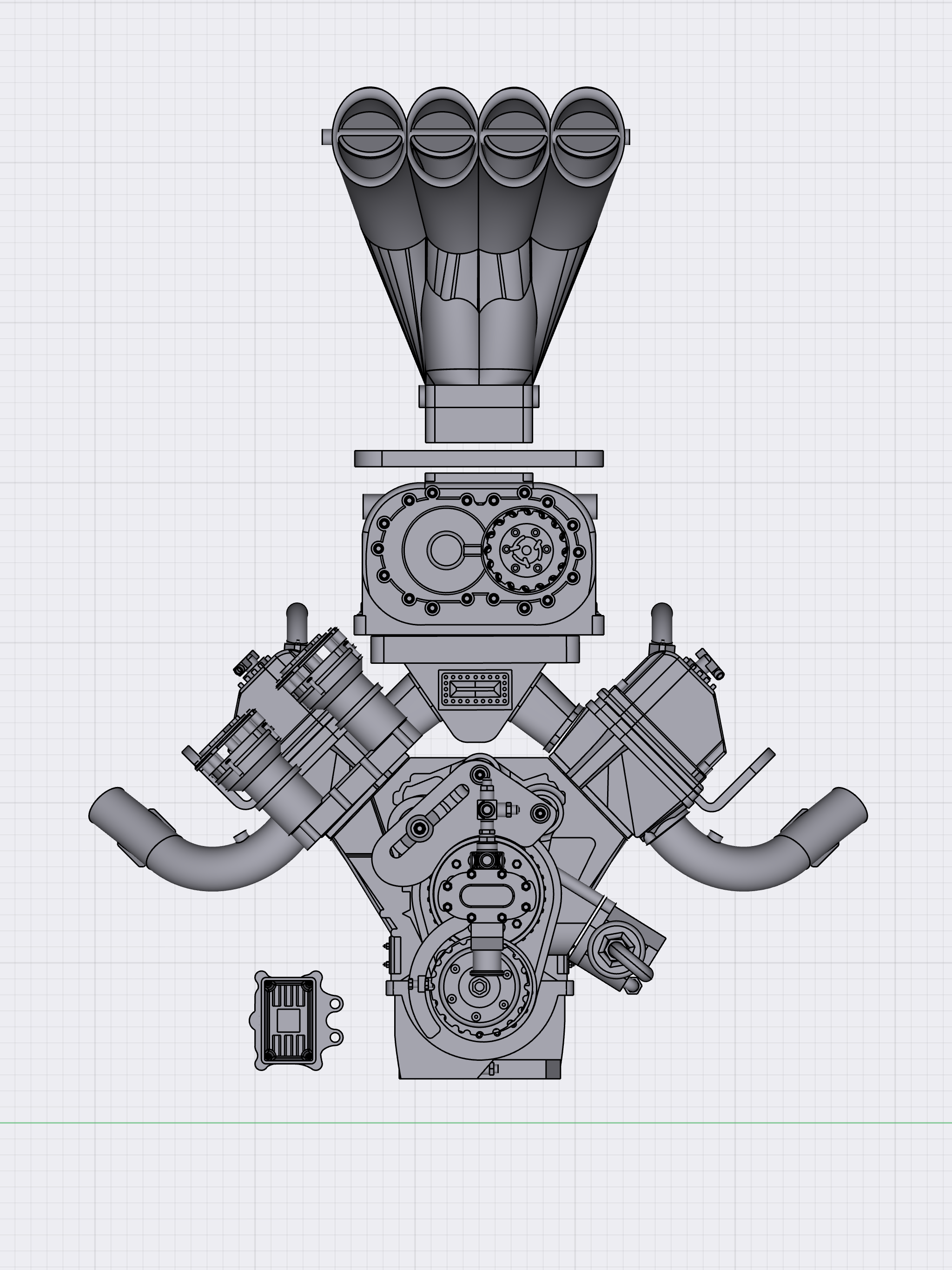

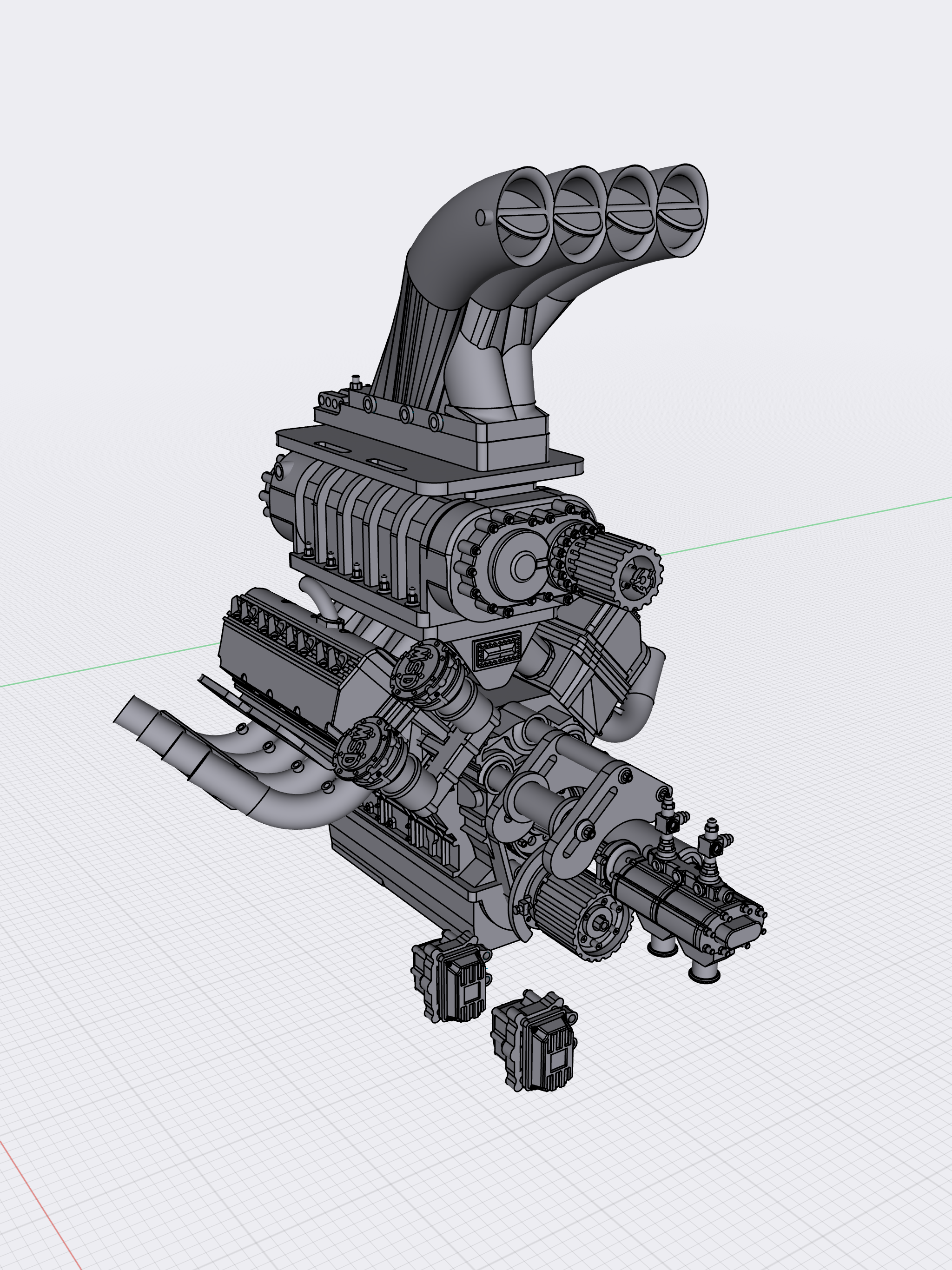

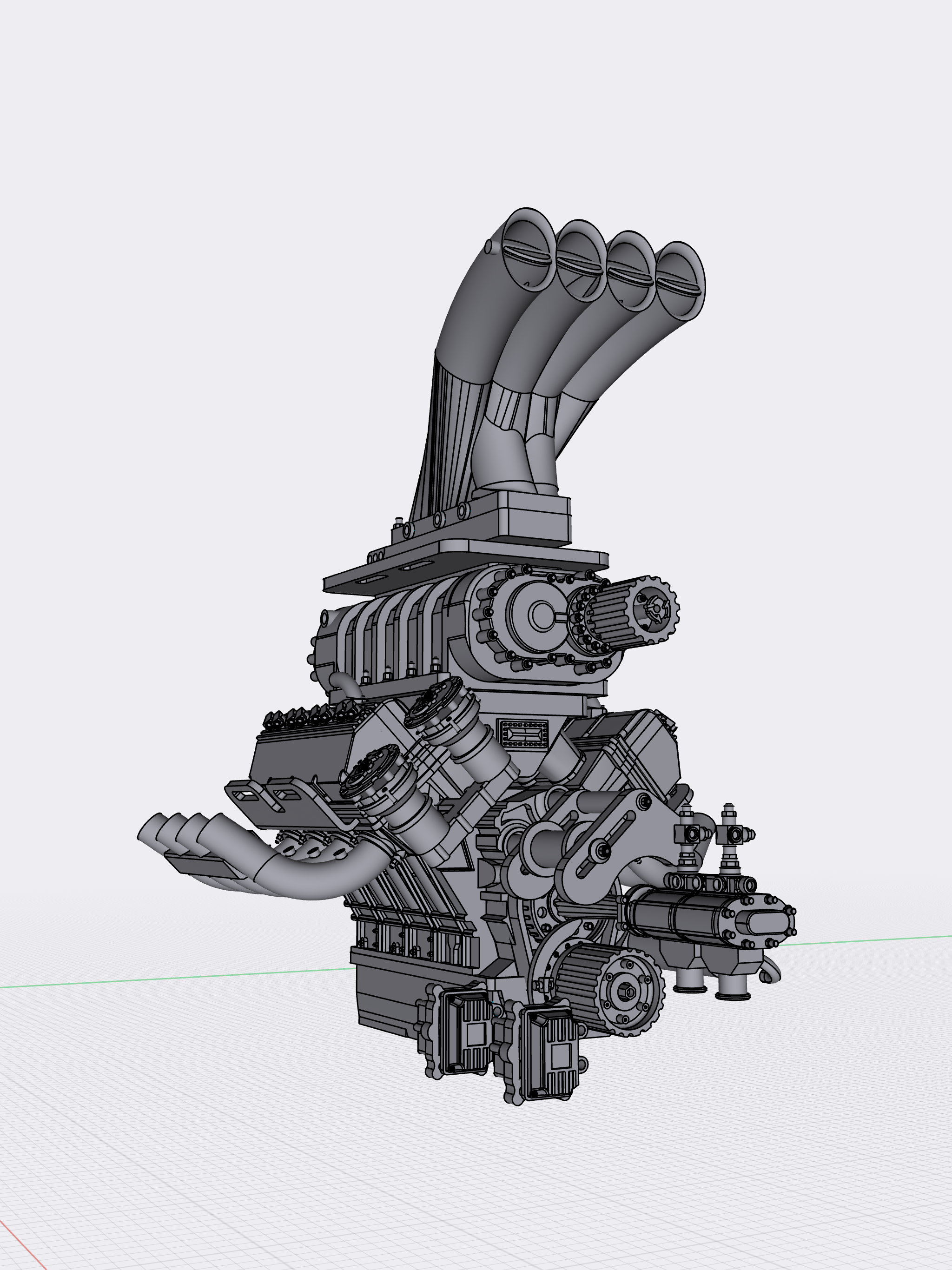

Designed from scratch a full detail Top Fuel billet Hemi with 14/71 Supercharger & all accesories, high in detail, ideal for scale modeling (currently in 1/24 and 1/25 scale).

Perfect for those show winning Top Fuel and drag racing builds!

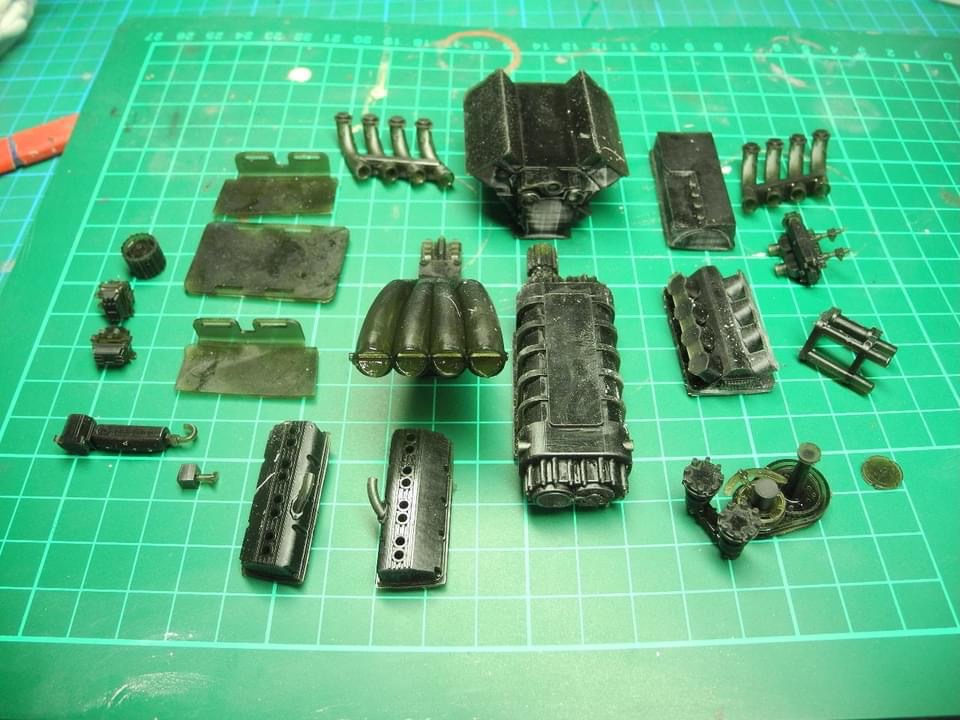

Multi-piece design for better detailing, holes for oil hoses, fuel hoses, ignition wires etc. Where i have uploaded only 1 side (like headers or valve cover, use the "mirror" option in your slicer to replicate the other side as they are identical.
Includes;
- Highly detailed billet block & heads
- Twin spark valve covers with ribbed design
- Ignition plug boot (comes x1 just copy as many as you want)

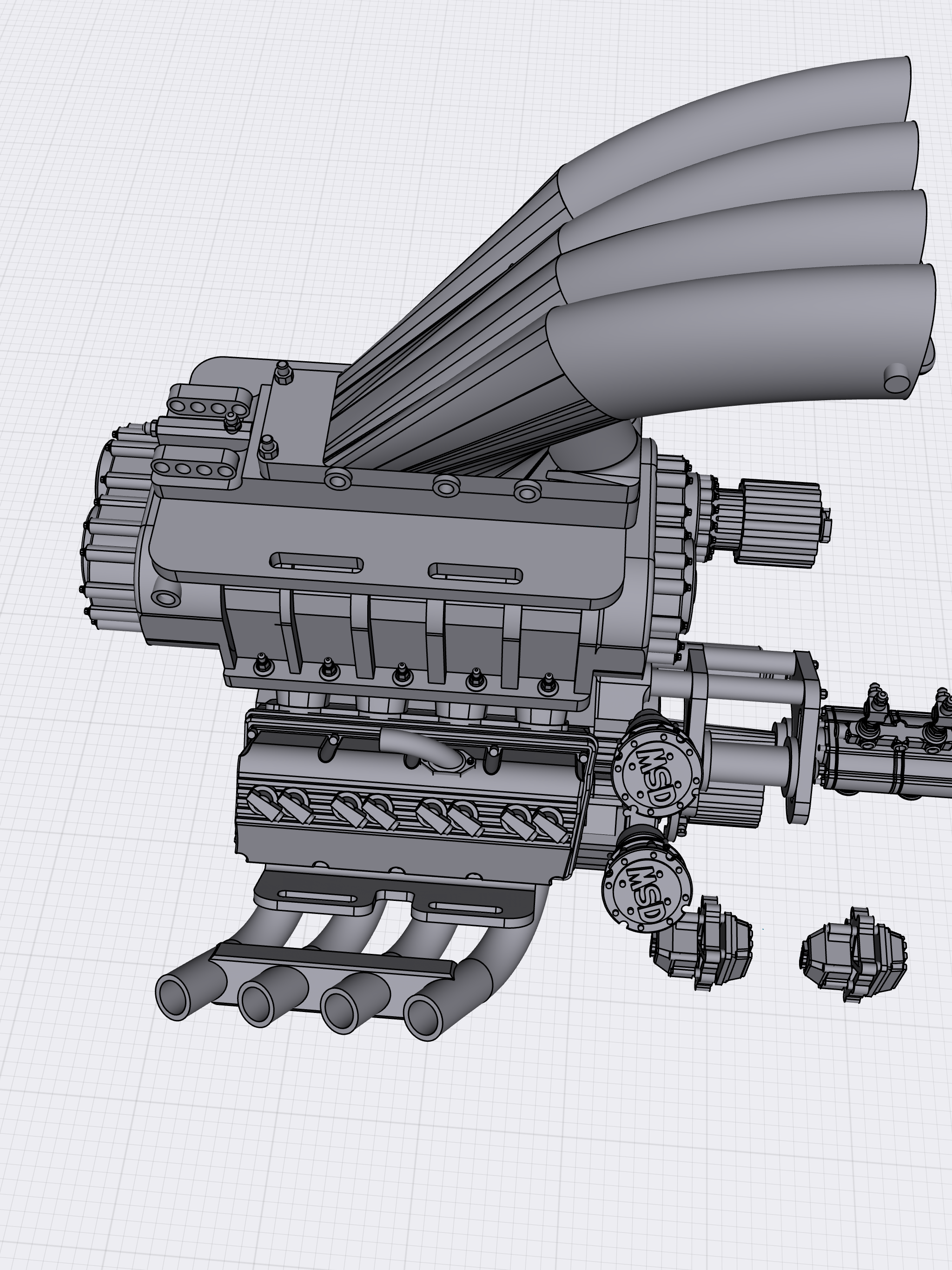

- 14/71 Supercharger
- Blower strap brackets - 1 above blower and 2 between heads & valve covers
- High rise intake with burst plate

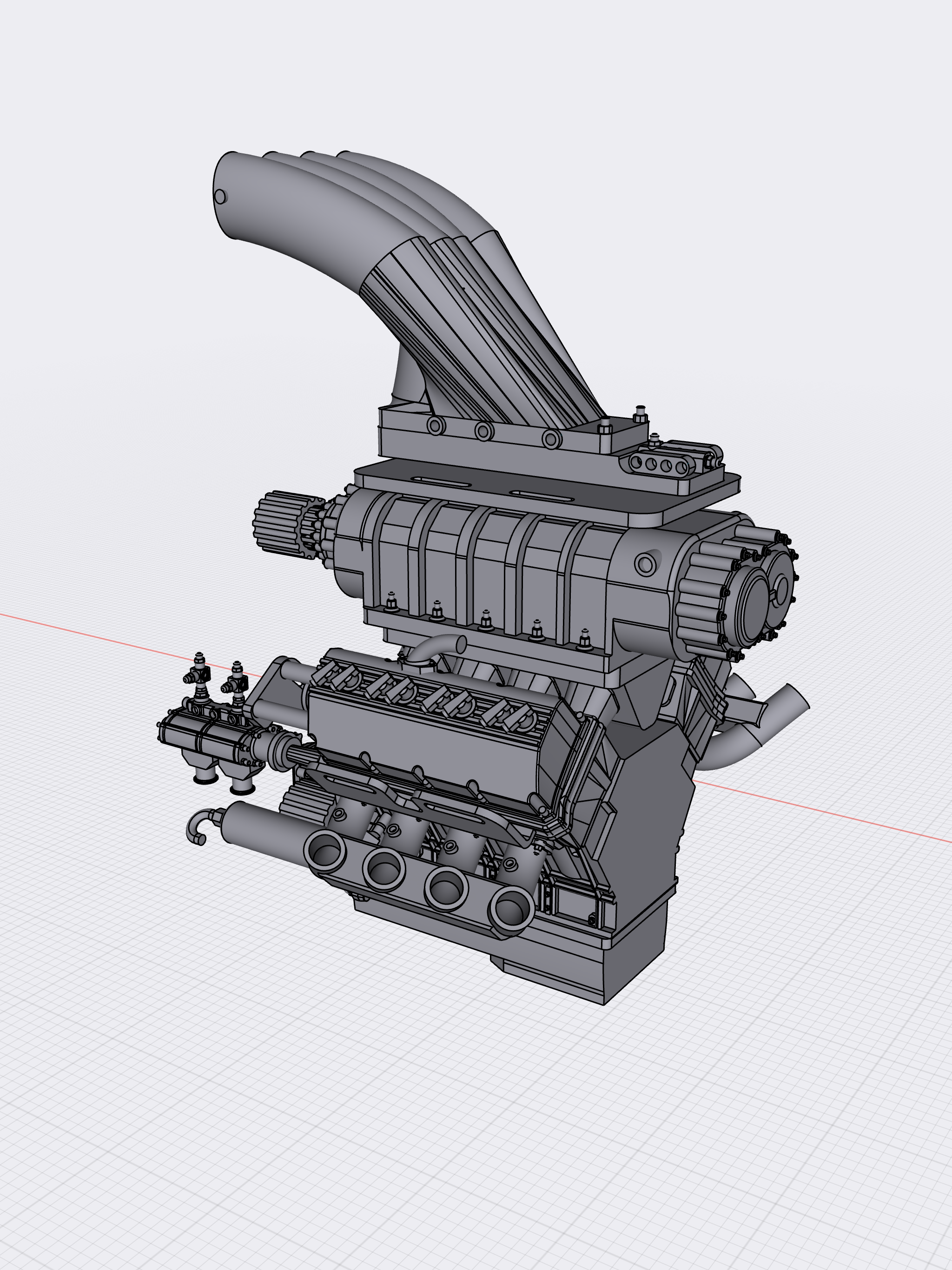

- Zoomie short style headers with stabilizer and o2 sensor bungs
- Big injector hat with part-opened butterflies, rear located fuel block, holes for fuel lines (6 in base plate and 2 in rear of supercharger)

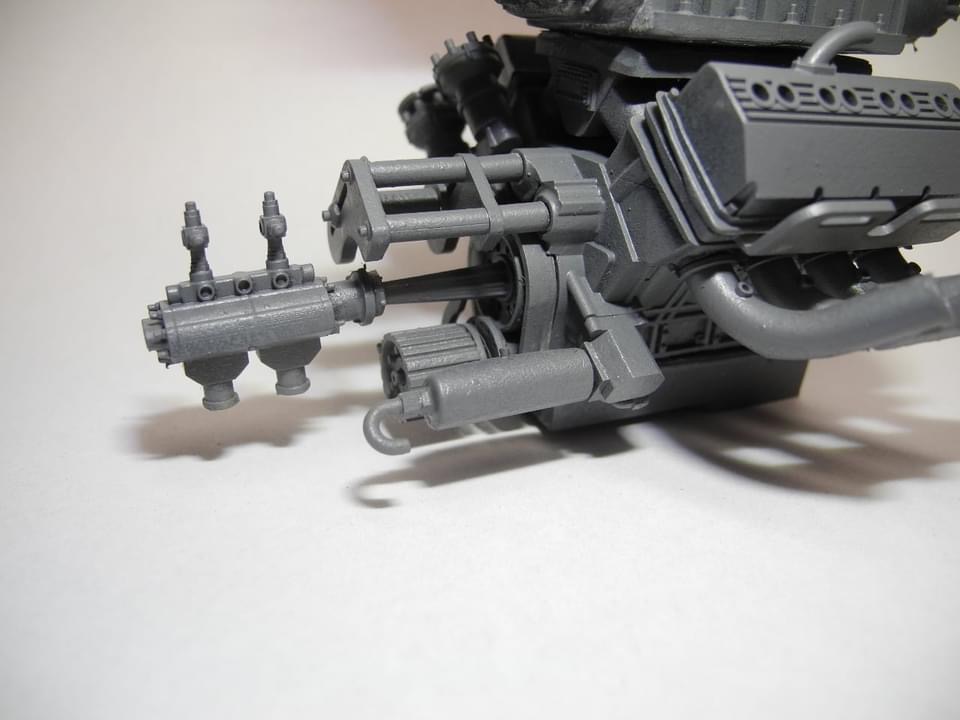

- Big Bertha style gear driven fuel pump with fuel blocks and fittings

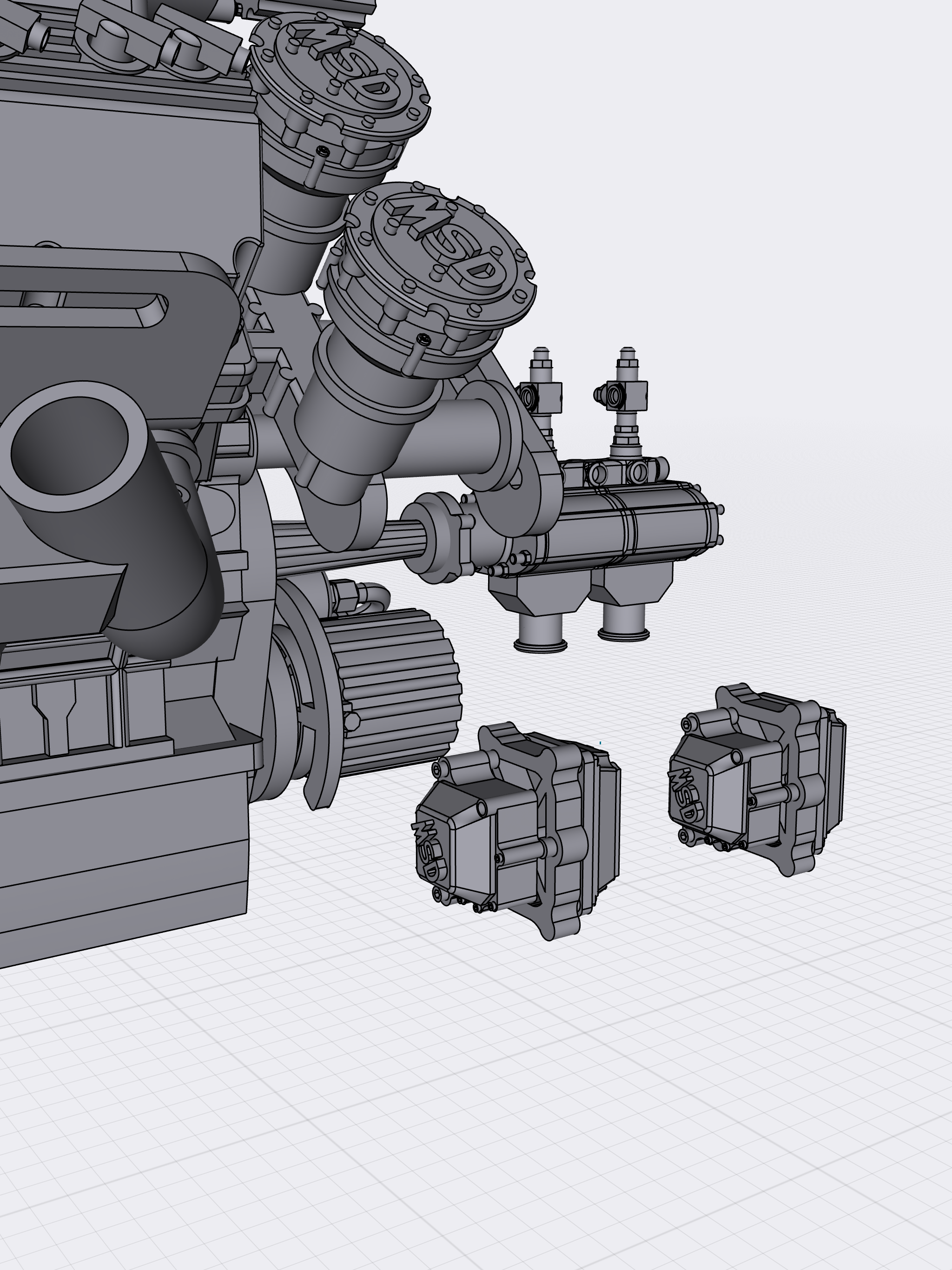

- Twin Magnetos (quick wire format) and ignition boxs and frame mount
- Crank pulley (separate to allow better detailing to gear drive assembly)
- Blower belt tensioner (3 locating holes in block to position correctly

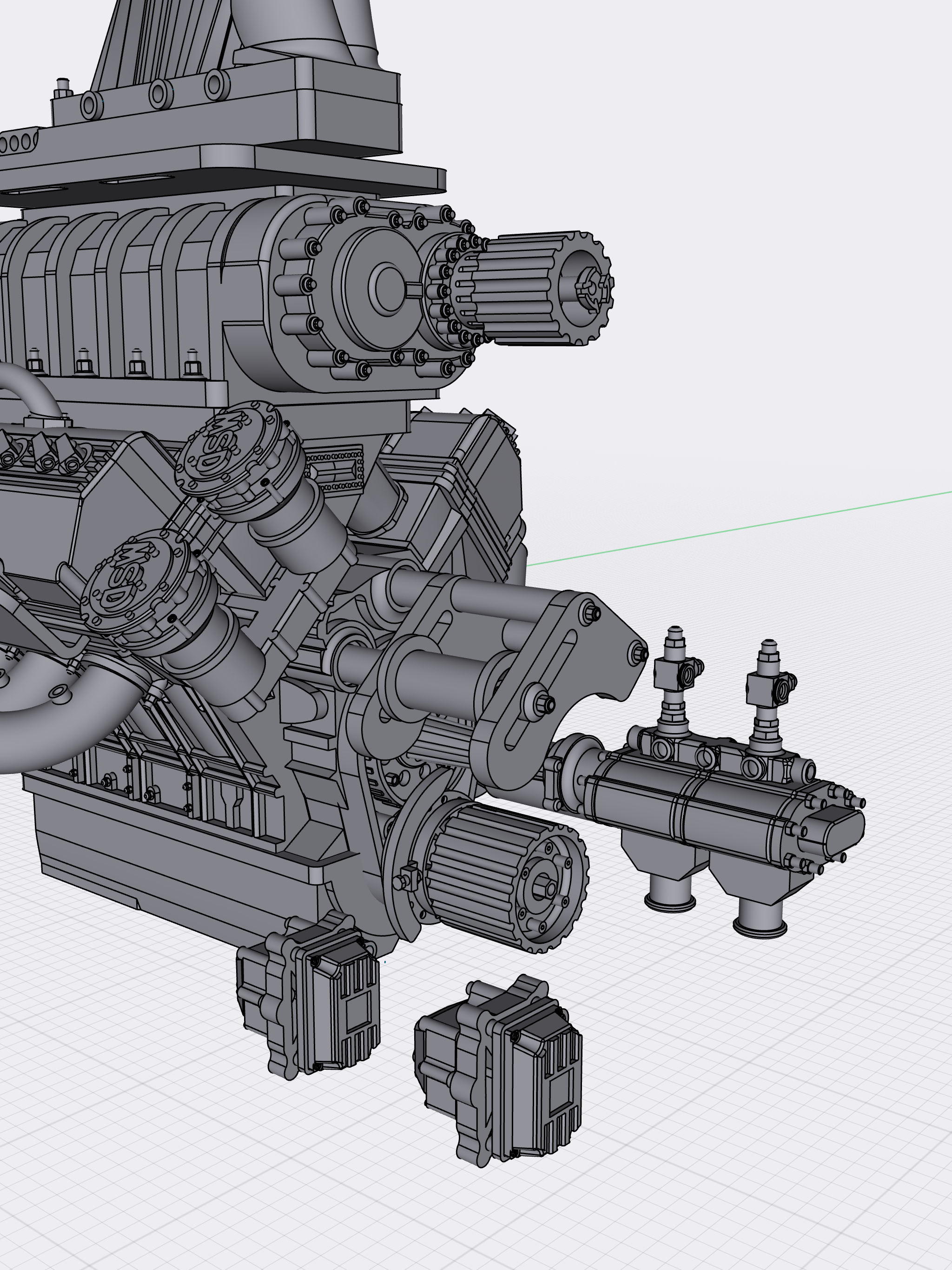

- Front gear drive assembly with crank angle trigger and fuel pump drive shaft extension
- Oil pump

Upgrades Added;
- Titanium hinged 2 piece valve covers option
- Olson Billet sump option
- Detailed blower strap plate option

Be sure to tag @mattys_custom_scale on Instagram with your finished prints & projects!
