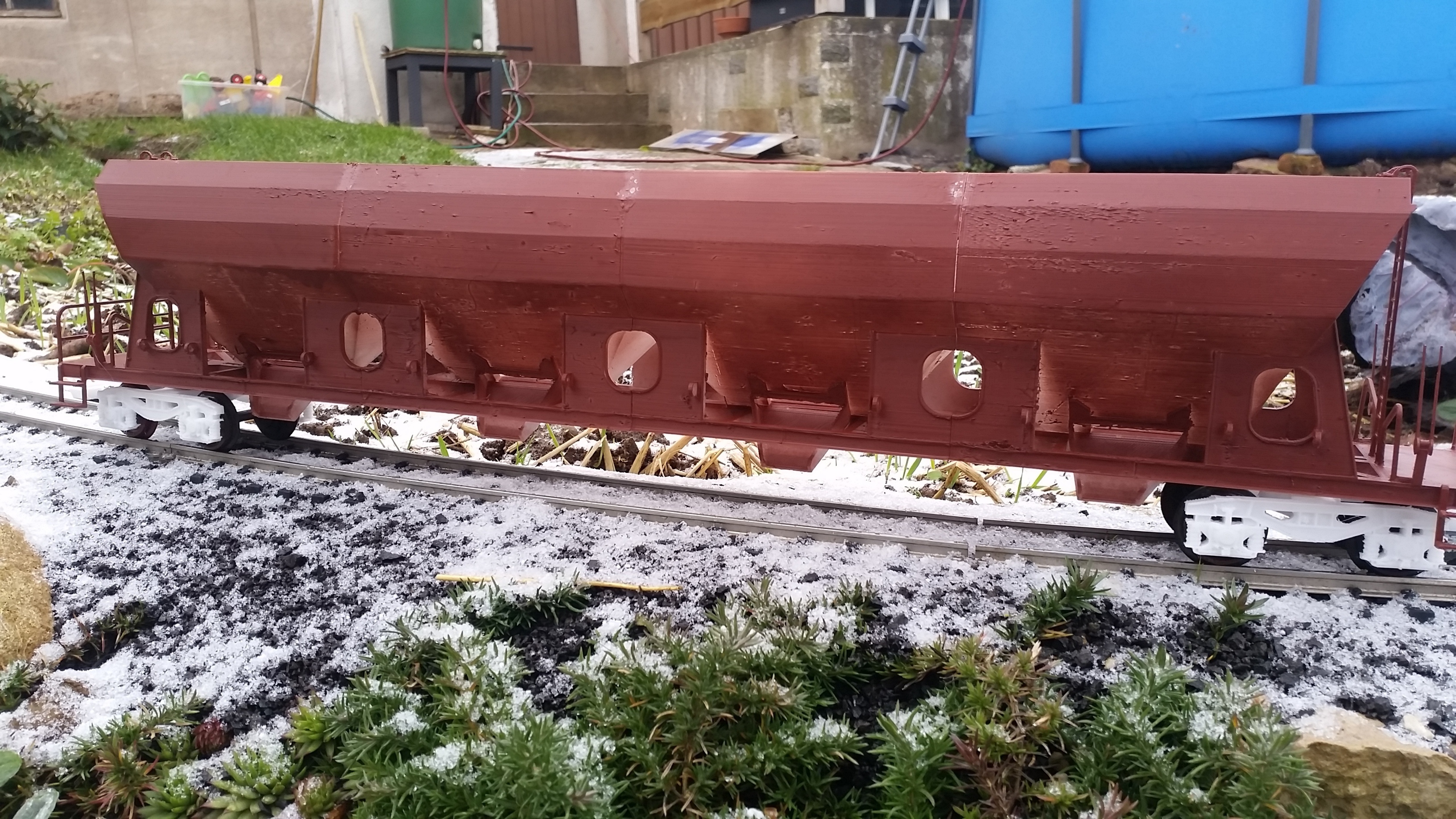

Spur G Fcs Schüttgutwagen 4 Achs

Advertising
Make an offer
Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
Usages
3D design format
18 files (STL) Close
  • Y25 dreh.stl 76.961998 × 145.836701 × 23.571201 mm
  • auslass drehgestell.stl 47.449516 × 76.27653699999999 × 24.6 mm
  • auslass4teiler.stl 47.449516 × 36.138269 × 24.6 mm
  • bohle rund.stl 21.679951000000003 × 88.00000700000001 × 24.799999 mm
  • deckel.stl 13.998003 × 13.998966000000003 × 2.0 mm
  • gelaender.stl 2.0 × 85.0 × 31.999302 mm
  • gelaenderzusatz.stl 31.999313 × 29.108123999999975 × 2.0 mm
  • haken.stl 7.899999999999999 × 19.950939 × 9.5 mm
  • hebel.stl 40.497215 × 15.998166 × 5.5 mm
  • hebelhalter.stl 13.949417000000004 × 18.455731999999998 × 8.0 mm
  • hook_and_loop_spring.stl 21.802 × 25.823 × 2.002 mm
  • leiter.stl 118.15737100000001 × 16.5 × 12.002353999999997 mm
  • longer_hook.stl 21.001998999999998 × 57.39310599999999 × 11.95797 mm
  • schieber neu.stl 80.0 × 45.0 × 2.5 mm
  • vierteiler.stl 716.294209 × 110.0 × 120.256555 mm
  • vierteiler1.stl 203.911194 × 109.98200600000001 × 120.294403 mm
  • vierteiler2.stl 149.572021 × 109.99800099999999 × 120.25621 mm
  • zapfen.stl 15.0 × 50.0 × 14.5 mm

Learn more about the formats
Last update
Publication date
Design number 263854
Design author Modelmaker
Modelmaker

Modelmaker

Issue with this design? Report a problem.

3D printer file info

3D model description

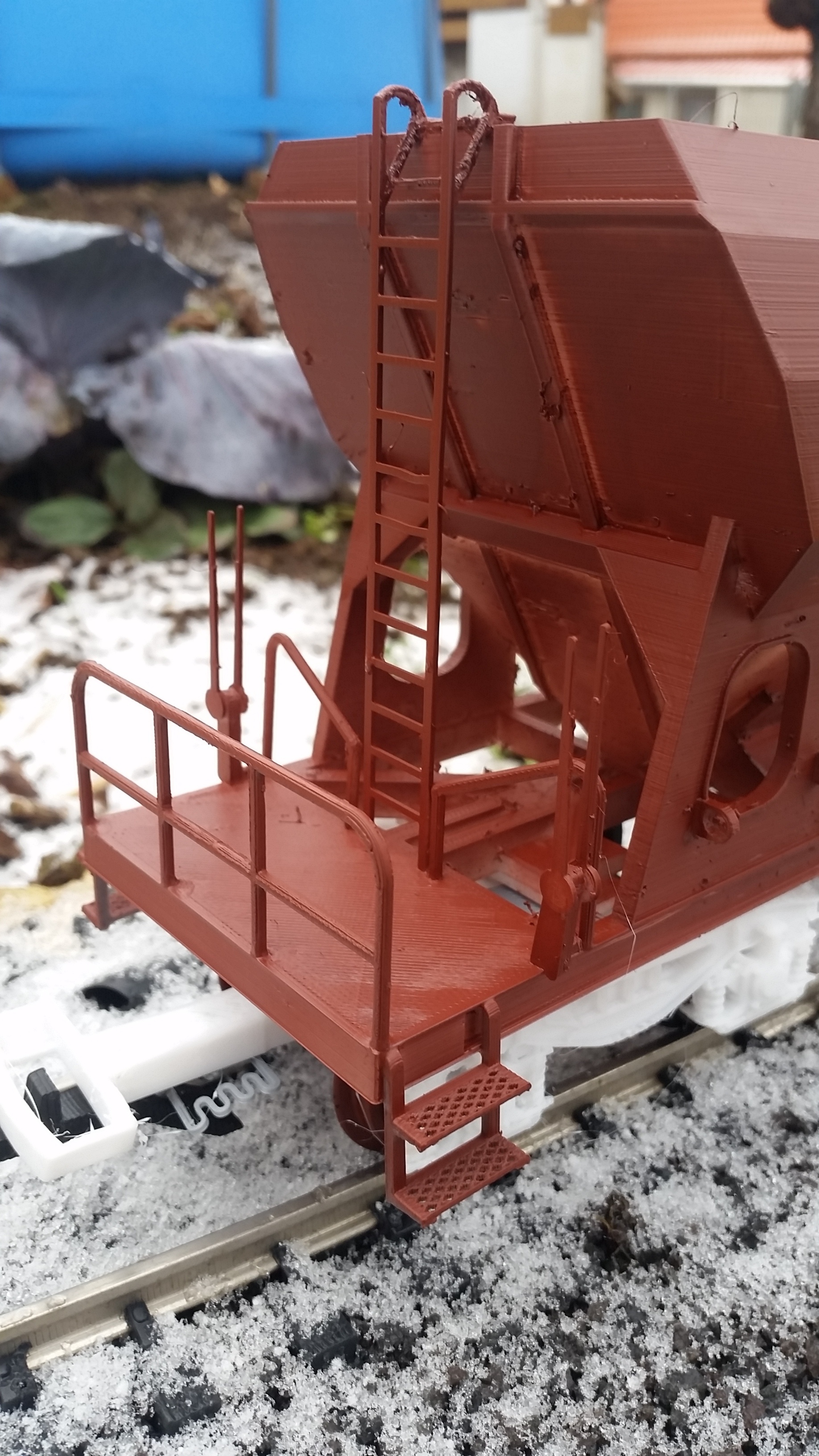

2x Endteil 2x Mittelteil

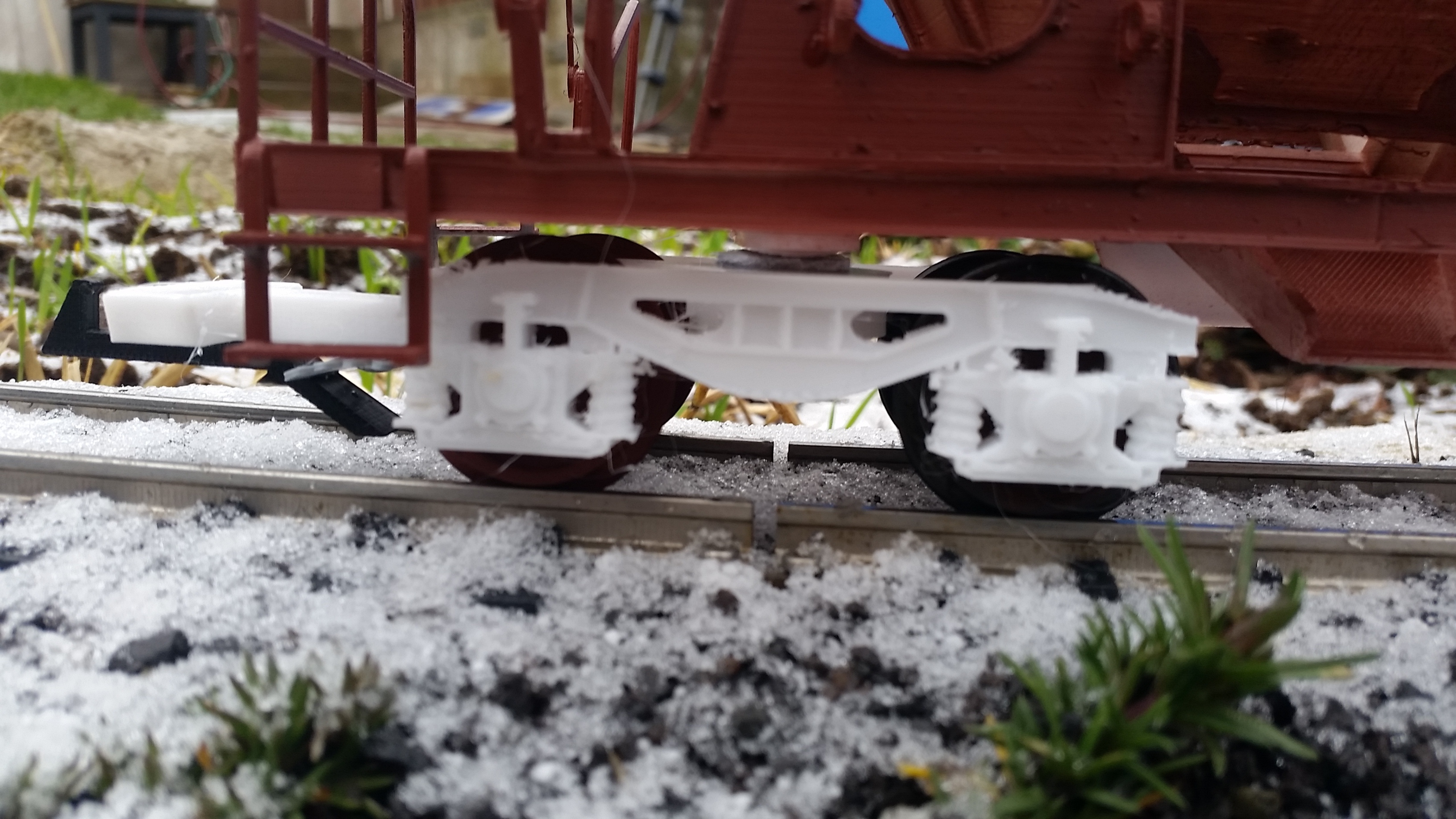

Treppen ganz vorne ankleben und den Drehzapfen nach Bild Fixieren
2mm Rundstab und Rohr 2x4mm auf längen anpassen, mitte bleibt frei
Hebel plus Halter jeweils jede seite rechts links fixieren
spaxschrauben 3x10 senkkopf für Kupplungshaken und Flachkopf 3x10 für Feder und Drehgestell verwenden

Auslass Dtrehgestell nicht mittig setzen , bis an den rahmen schieben wegen Drehgestell bewegung

3D printing settings

4 Wände
Stützstruktur ja
Brim
Kleinzeug Skirt und Langsam gedruckt
