CBR 1000 Velocity Stack with integrated mesh 52mm 65mm 75mm

A few different configurations for a set of Stacks to suit CBR 1000 ITB's.
They are a flush fit over the original ribs and bolt with factory hardware or normal 5mm bolts and washers.

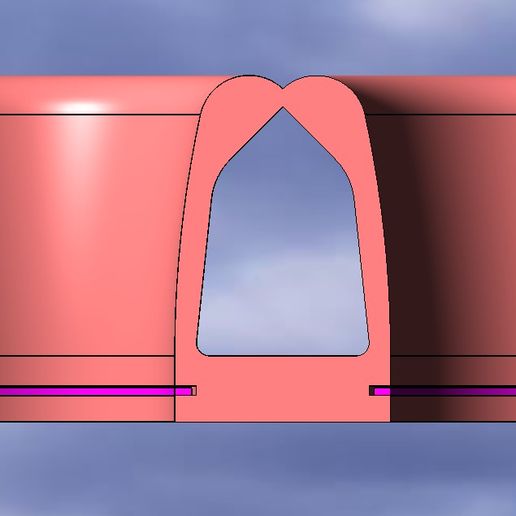

In the files you have the option to print a ring and pause to add a mesh. this ring can then be fitted inside the velocity stack to offer some level of filtration.

Refer to this tutorial for more information about adding the ring to the part https://hackaday.io/project/182664/instructions

The files contained in the package are the following:
52mm Stack
65mm Stack
75mm Stack
Each stack has 4 variants:
FactoryScrews (uses the factory hardware with integrated compression limiter)
FactoryScrews_NoFilter (Does not have the slot cut out to insert the mesh ring),
5mmScrews ( mounting holes are just built for 5mm bolts and washers) ,
5mmScrews_NoFilter (Does not have the slot cut out to insert the mesh ring

The design is symetrical, no need to mirror the Stack

Gas Resistent Fillament ( PETG, PA, etc)
Printed at a LH of 0.3 with adaptive layers for the top curve of the Stack

5 walls, 20% infil, NO SUPPORTS
