25 POUNDER GUN QF

πŸ”« 3D models of guns or weapons are dummy objects or prop toys and have no real functionality as weapons. They are intended for entertainment or decorative purposes only. For any design violating our T&Cs, please report them.

Advertising
Make an offer
Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
3D design format
34 files (STL) Close
  • 01 25 Pr Muzzle Brake.stl 39.0 Γ— 24.0 Γ— 17.0 mm
  • 02 25 Pr Barrel Fwd.stl 103.99999999999994 Γ— 14.0 Γ— 14.0 mm
  • 03 25 Pr Barrel Rear.stl 127.0 Γ— 20.0 Γ— 20.0 mm
  • 04 25 Pr Barrel Support.stl 10.0 Γ— 30.738037000000077 Γ— 10.590698000000003 mm
  • 05 25 Pr Breech Base.stl 13.0 Γ— 30.738037000000077 Γ— 19.0 mm
  • 06 25 Pr Breech Ring.stl 23.0 Γ— 26.0 Γ— 31.0 mm
  • 07 25 Pr Breech Block.stl 16.5 Γ— 16.0 Γ— 31.0 mm
  • 08 25 Pr Cradle.stl 179.03735299999994 Γ— 60.06982400000015 Γ— 19.0 mm
  • 09 25 Pr Trunion Clamp.stl 24.372986000000083 Γ— 5.0 Γ— 16.013182999999998 mm
  • 10 25 Pr Saddle.stl 73.97393800000009 Γ— 60.07397399999991 Γ— 51.863184000000004 mm
  • 11 25 Pr Range Cone.stl 15.0 Γ— 20.0 Γ— 15.000004000000004 mm
  • 12 25 Pr Elevating Hw.stl 50.0 Γ— 30.882325000000037 Γ— 29.910475 mm
  • 13 25 Pr Traversing Hw.stl 30.882262999999966 Γ— 30.0 Γ— 29.910475 mm
  • 14 25 Pr Carriage Fwd.stl 171.28070000000002 Γ— 87.89477600000009 Γ— 37.999999 mm
  • 15 25 Pr Carriage Rear.stl 94.238831 Γ— 109.61254800000006 Γ— 43.360415 mm
  • 16 25 Pr Towing Eye.stl 34.44287099999997 Γ— 14.417480999999952 Γ— 10.529179000000001 mm
  • 17 25 Pr Spade Box.stl 27.250854000000004 Γ— 66.0 Γ— 16.966333 mm
  • 18 25 Pr Layers Seat Bracket.stl 17.73388699999998 Γ— 20.043456999999762 Γ— 10.0 mm
  • 19 25 Pr Layers Seat.stl 27.108277000000044 Γ— 27.108397999999852 Γ— 18.0 mm
  • 20 25 Pr Shield Bracket Left.stl 40.994445999999925 Γ— 11.0 Γ— 47.994918000000006 mm
  • 21 25 Pr Shield Bracket Right.stl 40.994445999999925 Γ— 11.0 Γ— 47.999999 mm
  • 22 25 Pr Shield Main.stl 46.68402100000003 Γ— 168.0 Γ— 125.599349 mm
  • 23 25 Pr Front Towing Att.stl 22.038329999999974 Γ— 8.0 Γ— 7.999999999999999 mm
  • 24 25 Pr Shield Top.stl 8.892090000000053 Γ— 168.0 Γ— 15.957335999999998 mm
  • 25 25 Pr Axle.stl 9.5 Γ— 168.0 Γ— 9.5 mm
  • 26 25 Pr Handspike.stl 67.11669900000004 Γ— 4.0 Γ— 26.046583 mm
  • 27 25 Pr Axle Tree.stl 15.963805999999977 Γ— 30.0 Γ— 15.981878 mm
  • 28 25 Pr Platform.stl 171.47894299999996 Γ— 171.5366210000002 Γ— 13.873527000000001 mm
  • 29 25 Pr Platform Linkage 1.stl 10.000549000000092 Γ— 30.31787099999974 Γ— 9.134350000000001 mm
  • 30 25 Pr Platform Linkage 2.stl 59.286986999999954 Γ— 34.0 Γ— 24.024327 mm
  • 31 25 Pr Platform Linkage 3.stl 46.169493999999986 Γ— 73.0 Γ— 18.316316 mm
  • 32 25 Pr Wheel Hub.stl 49.86016900000004 Γ— 17.5 Γ— 49.999999 mm
  • 33 25 Pr Tyre.stl 81.99798599999997 Γ— 14.99389599999995 Γ— 82.0 mm
  • 34 25 Pr Breech Top.stl 30.524535999999898 Γ— 26.0 Γ— 16.0 mm

Learn more about the formats
Publication date
Design number 1128393
Design author Mandeep255
Mandeep255

Mandeep255

Issue with this design? Report a problem.

3D printer file info

3D model description

β€’ The Ordnance QF 25-pounder, or 25-pounder, was the major British Field Artillery Gun which was extensively used during the Second World War. QF stands for Quick Fire, its calibre is 87.6 mm of 28 calibres length, and it fired a shell weighing 25 Pounds. It was the most outstanding field artillery gun in terms of ease of operation and versatility. It was introduced into service in 1940 and remained the British Army's primary artillery equipment into the 1960s. Many other countries used the equipment till as late as the nineties. Over 12,000 pieces had been manufactured. It was used by 47 countries including Australia, India, New Zealand, Pakistan, Sri Lanka. The 3D This Model is dedicated to this outstanding marvel of a Gun.

3D printing settings

β€’ This model prints to a Scale of 1:11, it can be printed to any scale desired while slicing. FDM Printer with PLA filament was used, though any other type of filament can be utilised. Polymaker Matte PLA Filament 1.75 Army Dark Green was used to print the model and gave a realistic finish. Any filament of choice may be used. Nozzle 0.4 mm, Layer Height 0.3 mm.
β€’ There are 34 components that must be printed as separate parts and assembled. An STL file for each of the parts has been included and starts with Part No as shown in the illustration. The Platform (28), Carriage Front (14), and Carriage Rear (15) will require support. Other parts can be aligned with the printer bed appropriately and printed without supports.

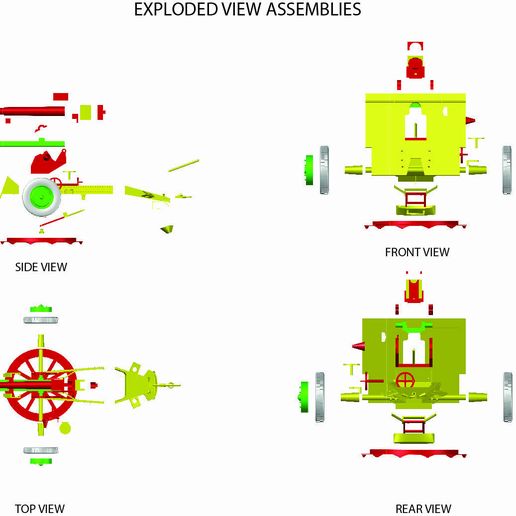

β€’ The detailed diagram showing the exploded view of the model is included. Sand and Finish each of the parts depending on the finish offered by your printer. Some interlocking parts may require more sanding depending on the accuracy of your printer.
β€’ Glue the parts using a normal cyanoacrylate or any other quick-drying glue. The following parts should be joined using metal screws: -
o Fix the Trunnion Clamps (9) should be fixed to the Saddle (10) using M3 Screws or small bits of 2mm wire.
o Fix the Shield Main (22) to the Shield Supports (20 & 21) using M3 Screws.
o Connect the linkages of the Platform Links (29, 30 & 31) to each other using M2 Screws.
o Fix the Platform Linkage 1 (29) to the Platform (28) using M3 Screw.
o Fix the Shield Main (22) to the Shield Top (24) using thin wire through the hinges. Alternatively, a thin strip of cellophane tape.
β€’ The model can be embellished with regimental markings, serial numbers, and so on.

Happy Printing!
