1/10 T-70M TANK RC MODEL

1.jpg 1/10 T-70M TANK RC MODEL
2.jpg 1/10 T-70M TANK RC MODEL
WhatsApp-Image-2023-07-20-at-21.36.41.jpeg 1/10 T-70M TANK RC MODEL
WhatsApp-Image-2023-07-20-at-21.36.42.jpeg 1/10 T-70M TANK RC MODEL
WhatsApp-Image-2023-07-20-at-21.36.42-2.jpeg 1/10 T-70M TANK RC MODEL
WhatsApp-Image-2023-07-20-at-21.36.42-1.jpeg 1/10 T-70M TANK RC MODEL
WhatsApp-Image-2023-07-20-at-21.36.43.jpeg 1/10 T-70M TANK RC MODEL
WhatsApp-Image-2023-07-20-at-21.36.43-1.jpeg 1/10 T-70M TANK RC MODEL
WhatsApp-Image-2023-07-20-at-21.36.43-2.jpeg 1/10 T-70M TANK RC MODEL
3.jpg 1/10 T-70M TANK RC MODEL
5.jpg 1/10 T-70M TANK RC MODEL
NovΓ½-rastrovΓ½-obrΓ‘zek-99.jpg 1/10 T-70M TANK RC MODEL
Advertising
Share
Add to
Make
Advertising
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
Usages
3D design format
1 file (ZIP) Close
  • T-70M.zip
    • Axe - support.stl
    • Hull/Drivers hatch 1.stl
    • Hull/Drivers hatch 2.stl
    • Hull/Drivers hatch hinge.stl
    • Hull/Fender flare front - 2x.stl
    • Hull/Fender flare rear - 2x.stl
    • Hull/Floor front.stl
    • Hull/Floor middle.stl
    • Hull/Floor rear.stl
    • Hull/Front hook - 2x - support.stl
    • Hull/Lower front armor.stl
    • Hull/Radiator case.stl
    • Hull/Radiator grille - only infill.stl
    • Hull/Rear armor.stl
    • Hull/Rear engine hatch.stl
    • Hull/Roof armor 1.stl
    • Hull/Roof armor 2.stl
    • Hull/Side armor left 1 - support.stl
    • Hull/Side armor left 2.stl
    • Hull/Side armor left 3 - support.stl
    • Hull/Side armor right 1 - support.stl
    • Hull/Side armor right 2.stl
    • Hull/Side armor right 3 - support.stl
    • Hull/Upper front armor.stl
    • Hull detail/Exhaust holder 1 - 2x.stl
    • Hull detail/Exhaust holder 2 - 2x.stl
    • Hull detail/Exhaust muffler - 2x.stl
    • Hull detail/Exhaust pipe 1 - support.stl
    • Hull detail/Exhaust pipe 2 - support.stl
    • Hull detail/Fender holder - 8x.stl
    • Hull detail/Headlight 1.stl
    • Hull detail/Headlight 2.stl
    • Hull detail/Horn 1.stl
    • Hull detail/Horn 2.stl
    • Hull detail/Rear hook - support.stl
    • Hull detail/Spare wheel bandage.stl
    • Hull detail/Spare wheel.stl
    • Hull detail/Tool box front.stl
    • Hull detail/Tool box hatch - 2x.stl
    • Hull detail/Tool box rear.stl
    • Hull detail/Turret base side shield.stl
    • Hull reinforcements/Floor.stl
    • Hull reinforcements/Left front.stl
    • Hull reinforcements/Left rear.stl
    • Hull reinforcements/Left side 1.stl
    • Hull reinforcements/Left side 2.stl
    • Hull reinforcements/Rear 1 - 2x.stl
    • Hull reinforcements/Right front.stl
    • Hull reinforcements/Right rear.stl
    • Hull reinforcements/Right side 1.stl
    • Hull reinforcements/Right side 2.stl
    • Shovel - support.stl
    • Suspension/Extension bearing - 10x.stl
    • Suspension/Front suspension arm L.stl
    • Suspension/Front suspension arm R.stl
    • Suspension/Front suspension case L.stl
    • Suspension/Front suspension case R.stl
    • Suspension/Shaft extension - 10x.stl
    • Suspension/Spring holder - 8x.stl
    • Suspension/Suspension arm L - 4x.stl
    • Suspension/Suspension arm R - 4x.stl
    • Suspension/Suspension case L - 4x.stl
    • Suspension/Suspension case R - 4x.stl
    • Suspension/Wheel arm - 10x.stl
    • Suspension/Wheel hub - 10x.stl
    • T-70M Assembly guide EN.pdf
    • Track link 1mm hole.stl
    • Track link.stl
    • Track teeth gluing tool.stl
    • Track tensioner/Tensioner holder - 2x.stl
    • Track tensioner/Tensioner shaft - 2x.stl
    • Track tensioner/Tensioner wheel hub - 2x.stl
    • Track tooth.stl
    • Transmission/Drive cover - 2x - support.stl
    • Transmission/Final gear - 2x.stl
    • Transmission/Final gear shaft - 2x.stl
    • Transmission/Gear 1 - 2x.stl
    • Transmission/Gear 2 - 2x.stl
    • Transmission/Gear 3 - 2x.stl
    • Transmission/Main drive shaft - 2x.stl
    • Transmission/Main shaft holder L - support.stl
    • Transmission/Main shaft holder R - support.stl
    • Transmission/Motor gear 540 - 2x.stl
    • Transmission/Secondary shaft 1 - 2x.stl
    • Transmission/Secondary shaft 2 - 2x.stl
    • Transmission/Secondary shaft holder L.stl
    • Transmission/Secondary shaft holder R.stl
    • Transmission/Shaft 1 - 2x.stl
    • Transmission/Shaft 2 - 2x.stl
    • Transmission/Shaft 3 - 2x.stl
    • Transmission/Transmission 1 left.stl
    • Transmission/Transmission 1 right.stl
    • Transmission/Transmission 2 left.stl
    • Transmission/Transmission 2 right.stl
    • Transmission/Transmission 3 left.stl
    • Transmission/Transmission 3 right.stl
    • Turret/Gun mantlet - support.stl
    • Turret/Gun mantlet bearing - 2x.stl
    • Turret/Gun.stl
    • Turret/Lifting arm.stl
    • Turret/Lifting rail.stl
    • Turret/Lifting servo holder.stl
    • Turret/Rim front left.stl
    • Turret/Rim front right.stl
    • Turret/Rim rear left.stl
    • Turret/Rim rear right.stl
    • Turret/Rim side left.stl
    • Turret/Rim side right.stl
    • Turret/Top hatch.stl
    • Turret/Turning gear.stl
    • Turret/Turning servo holder 1.stl
    • Turret/Turning servo holder 2.stl
    • Turret/Turret body.stl
    • Turret/Turret bottom.stl
    • Turret/Turret front.stl
    • Turret/Turret rear.stl
    • Wheels/Drive sprocket - 2x - support.stl
    • Wheels/Return roller inner half - 6x.stl
    • Wheels/Return roller outer half - 6x.stl
    • Wheels/Road wheel bandage - 12x.stl
    • Wheels/Road wheel center cover - 12x.stl
    • Wheels/Road wheel inner half - 12x.stl
    • Wheels/Road wheel outer half - 12x.stl

Learn more about the formats
Last update 2023-10-20 at 15:22
Publication date 2023-07-20 at 19:55
Design number 1335670
Redneck_3D

Redneck_3D

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

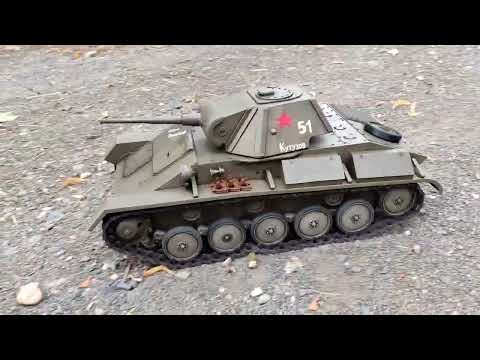

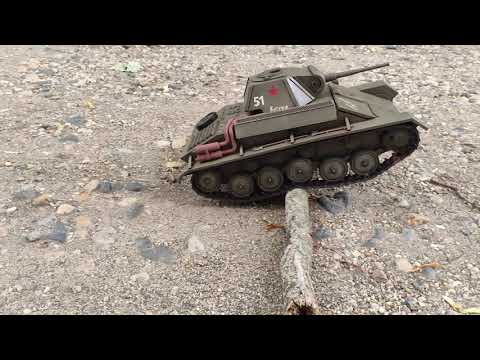

Fully 3D printable soviet T-70M light tank in scale 1/10

Video:
https://www.youtube.com/watch?v=ourU_CIFzxE&ab_channel=Redneck_3D
https://www.youtube.com/watch?v=cDXXXitYa8c&ab_channel=Redneck_3D

Link to assembly guide:
https://drive.google.com/drive/folders/1jEegvdx1q806nLu-rRWhtMTbQj0zVCIU?usp=sharing

The T-70 is a light tank used by the Red Army during World War II, replacing both the T-60 scout tank for reconnaissance and the T-50 light infantry tank for infantry support.
The T-70 was designed by Nicholas Astrov's design team at Factory No. 38 in Kirov.
The first batch of T-70s were built with a GAZ-202 automotive engine on each side of the hull, one driving each track. This arrangement proved to be a serious problem, even before the first tanks were issued. It was quickly redesigned as the T-70M, with the engines in-line on the right side of the tank and a normal transmission and differential. The conical turret was replaced by one more easily welded out of plate armour, and moved to the left side of the hull.

Lenght: 470mm
Width: 250mm
Height: 245mm
Weight: approx 3 kg

Detailed, full of functions and easy to build (print).
Working suspension.
Working turret traverse.
Working cannon lifting
Adjustable track tension
Working Headlight.
Printed tracks.
Printed transmissions.
Easy access to the transmissions for maintenance.

Tank can be equipped with various electronics and functions.
It is up to you how much you would like to use all the options.

Tank uses two separate transmissions for movement.

The model contains everything what you need to print and build the tank:
STL files for every printed part, assembly guide and shopping list (screws, motors, servos....)

Shopping list:

Screw M3x10 – 120x
β€’ Screw M2x8 – 109x
β€’ Screw M2x10 – 10x
β€’ Nut M3 – 10x
β€’ Screw M3x40 – 10x
β€’ Screw M3x15 – 4x
β€’ Screw M3x12 – 10x
β€’ Socket set screw M3x4 – 2x
β€’ Screw M3x6 – 3x
β€’ Motor 540 – 2x
β€’ Rubber band – 11x
β€’ Bearing 10x15x4 – 40x
β€’ Steel rod 2mm (e.g. welding rod for autogenous welding) – 4m
alternatively you can use pieces of filament
β€’ Standard servo 360Β° (for turret turning) - 1x
β€’ Standard servo 180Β° or 360Β° (for cannon lifting) - 1x
β€’ Glue

Whole model is designed for FDM printers only.

If you have any questions please do not hesitate to send me an email.

I have spent a lot of time developing this model.
Please, dont share this STLs, it will affect my next releases.
Thank you very much.

3D printing settings

Whole model is designed for FDM printers only.
Bed size: 200x200mm

Nozzle size: 0,4mm
Layer height: 0,2mm
Infill: 40%
Perimeters: 3
Material: PLA
Material for tracks: PETG
Material for wheel bandages: Flex, TPU (optional)

Most parts do not require supports. Parts that do need them have β€žsupportβ€œ in the name.
