CNC Jog & Shuttle Hand wheel / Pendant

CNCjog_assembly.jpg CNC Jog & Shuttle Hand wheel / Pendant
cncjog_topassy_pic.jpg CNC Jog & Shuttle Hand wheel / Pendant
CNCjog_bottom.jpg CNC Jog & Shuttle Hand wheel / Pendant
CNCjog_topshell.jpg CNC Jog & Shuttle Hand wheel / Pendant
cncjog_assembly_pic.jpg CNC Jog & Shuttle Hand wheel / Pendant
cncjog_topshell.png CNC Jog & Shuttle Hand wheel / Pendant
cncjog_topshell.stl CNC Jog & Shuttle Hand wheel / Pendant
cncjog_bottom.stl CNC Jog & Shuttle Hand wheel / Pendant
CNCjog_assembly.jpg CNC Jog & Shuttle Hand wheel / Pendant
cncjog_topassy_pic.jpg CNC Jog & Shuttle Hand wheel / Pendant
CNCjog_bottom.jpg CNC Jog & Shuttle Hand wheel / Pendant
CNCjog_topshell.jpg CNC Jog & Shuttle Hand wheel / Pendant
cncjog_assembly_pic.jpg CNC Jog & Shuttle Hand wheel / Pendant
cncjog_topshell.png CNC Jog & Shuttle Hand wheel / Pendant
cncjog_topshell.stl CNC Jog & Shuttle Hand wheel / Pendant
cncjog_bottom.stl CNC Jog & Shuttle Hand wheel / Pendant
Advertising
Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
Usages
3D design format
3 files Close
  • 01-28_cnc-handwheel.scad
  • cncjog_bottom.stl 56.0 × 114.0 × 9.5 mm
  • cncjog_topshell.stl 56.0 × 114.0 × 11.100000000000001 mm

Learn more about the formats
Publication date
?
Published to Thingiverse on:
Design number 1528173
Design author Hennings
Hennings

Hennings

Issue with this design? Report a problem.

3D printer file info

3D model description

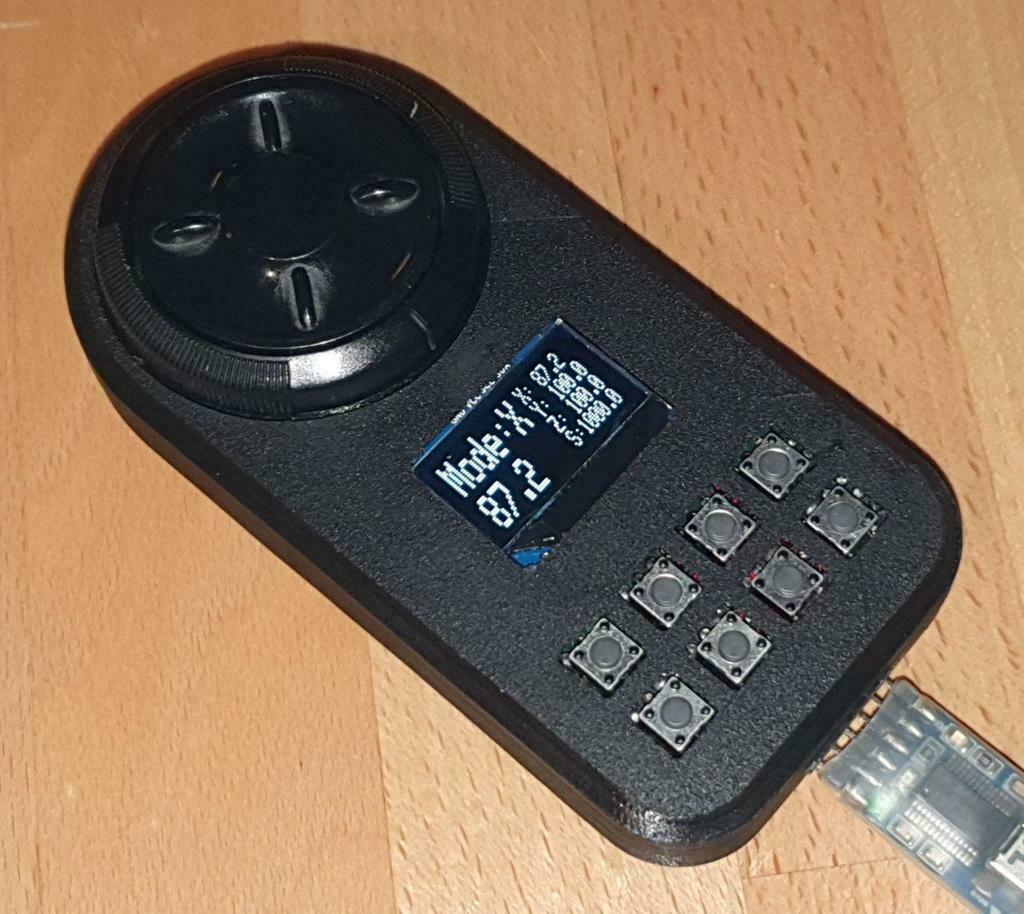

I developed this hand wheel for my DIY CNC milling machine, designed with OpenScad completely from scratch.

With OpenScad and the included remarks in the CAD source code, you can easily adapt the design for your own needs, e.g. to match different display, jogwheel or keyboard sizes.

The housing is made from a top and bottom shell which contain the electronic components:

A) Bottom Shell contains:
- Arduino Pro Mini Microcontroller

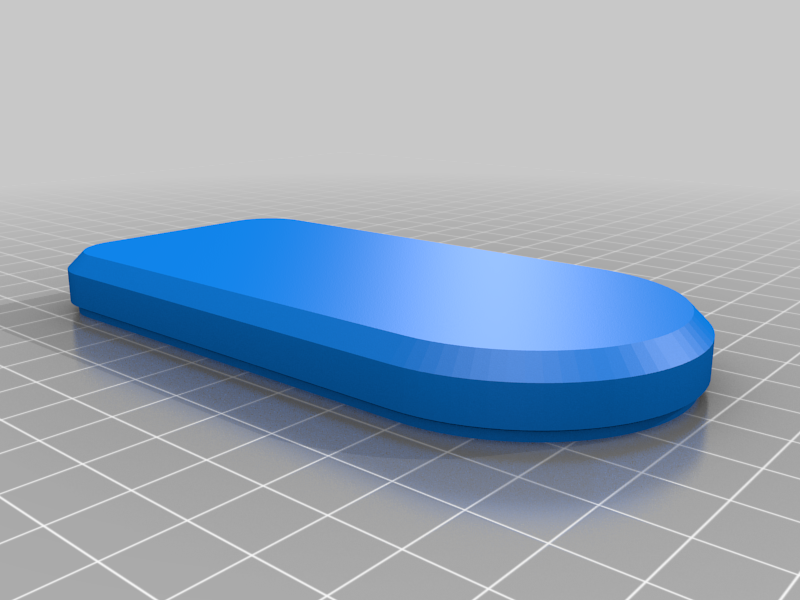

B) Top Shell contains:
- OLED 0.91" monochrome display (I2C interface)
- Jog & Shuttle wheel from Mitsumi, taken from an old VCR Panasonic remote control
- Keyboard made of 8 pushbuttons on a small PCB

Arduino Code handles everything and interfaces with the CNC machine controller with Gcodes via the serial port.
