BL Touch Cover Case Jacket Shield Protector

BL_Touch_Jacket_NO_ARROW.png BL Touch Cover Case Jacket Shield Protector
20210710_140809.jpg BL Touch Cover Case Jacket Shield Protector
20210710_140809.jpg BL Touch Cover Case Jacket Shield Protector

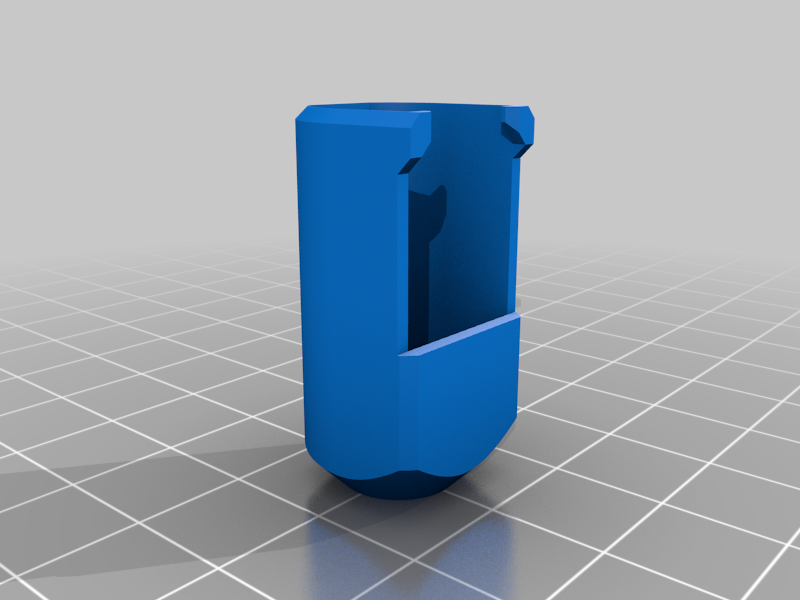

BL_Touch_Jacket_ARROW.png BL Touch Cover Case Jacket Shield Protector
BL_Touch_Jacket_NO_ARROW.stl BL Touch Cover Case Jacket Shield Protector
BL_Touch_Jacket_ARROW.stl BL Touch Cover Case Jacket Shield Protector
BL_Touch_Jacket_NO_ARROW.png BL Touch Cover Case Jacket Shield Protector
20210710_140809.jpg BL Touch Cover Case Jacket Shield Protector
20210710_140809.jpg BL Touch Cover Case Jacket Shield Protector
BL_Touch_Jacket_ARROW.png BL Touch Cover Case Jacket Shield Protector
BL_Touch_Jacket_NO_ARROW.stl BL Touch Cover Case Jacket Shield Protector
BL_Touch_Jacket_ARROW.stl BL Touch Cover Case Jacket Shield Protector
Advertising
Share
Add to
Make
?
Creation quality: 5/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
License
Usages
3D design format
2 files (STL) Close
  • BL_Touch_Jacket_ARROW.stl 15.399999 ร— 15.100000000000001 ร— 31.5 mm
  • BL_Touch_Jacket_NO_ARROW.stl 15.399999 ร— 15.100000000000001 ร— 31.5 mm

Learn more about the formats
Publication date
?
Published to Thingiverse on:
Design number 496100
Design author joeymorgans
joeymorgans

joeymorgans

Issue with this design? Report a problem.

3D printer file info

3D model description

I tried 2x designs on Thingiverse but found they were either too long or the walls were too thick meaning it hit my print head, so I designed my own.

The idea is to block the annoying red light coming from the BL touch, as there is no way of turning it off. The part is a friction fit. There are 2x versions, one with an arrow and one without, use whichever you prefer :)

Printing in black blocks out all the light, but lighter colours may let the light through which could look cool.

I recommend 0.1mm layer height so the arrow comes out nicely. I also recommend printing with a brim as the bottom does not have much surface area.

15/08/2021 DESIGN UPDATE: Added some small tabs at the top to help it click into place and stop falling off.

3D printing settings

-

Categories

All categories โ€บ Tool
