Mercury Redstone Capsule Escape Tower

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 407 views
  • 1 like

3D model description

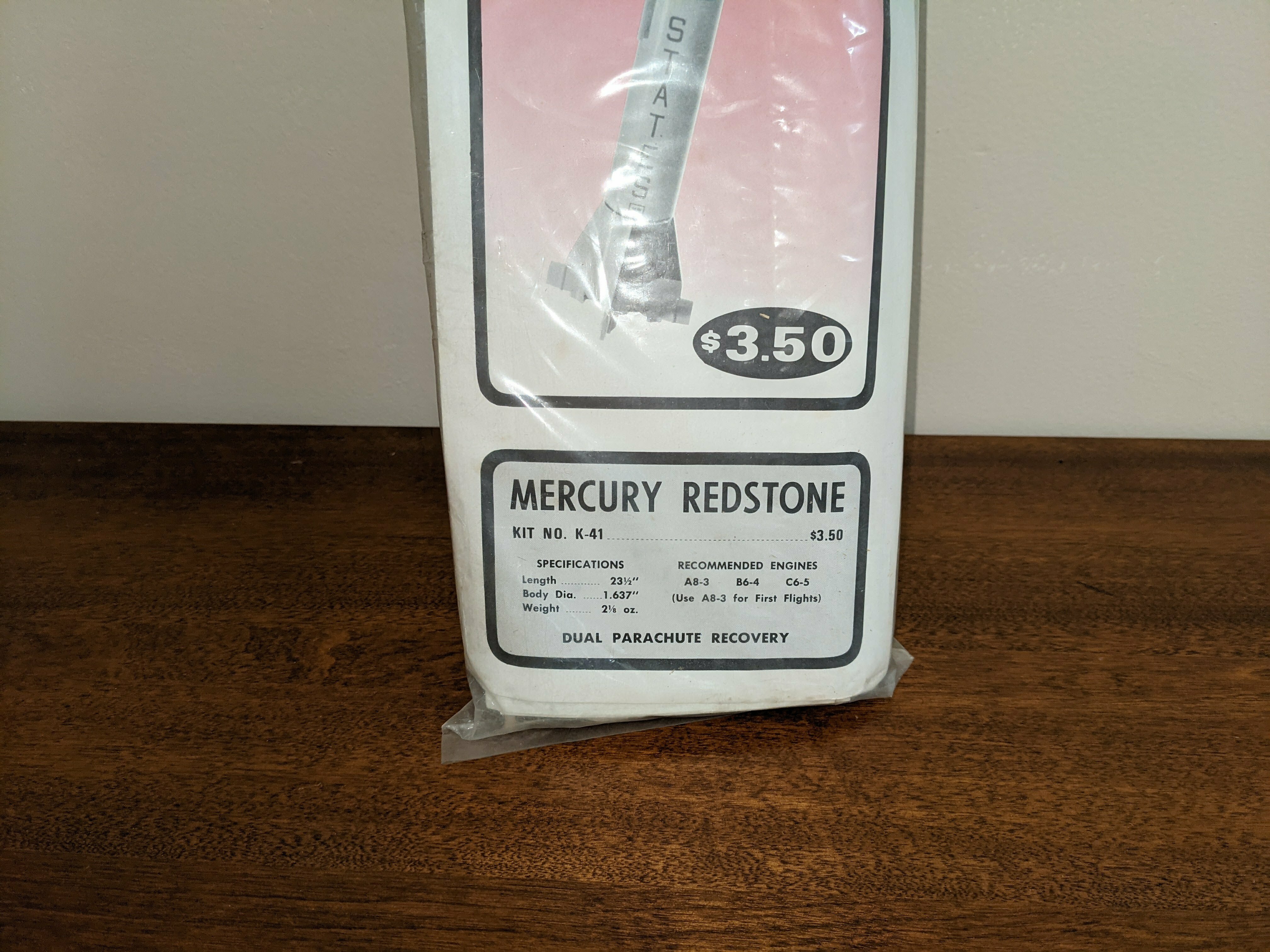

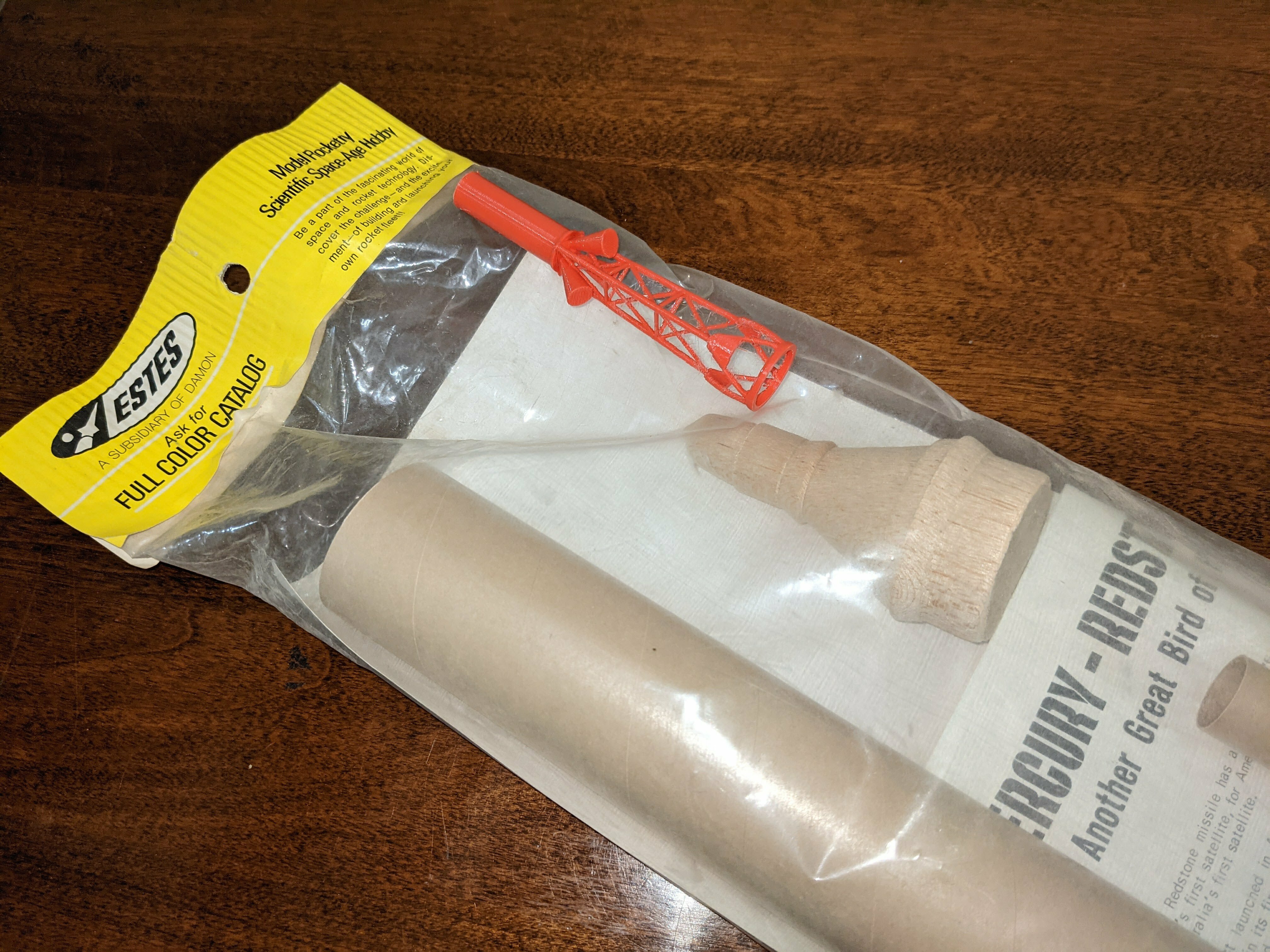

I came across in my old rocket box an unopened Estes Mercury Redstone model from the 70's... you can tell it's old because of the price!I I also recalled reading more than once that the capsule escape tower was a bear to build because of all the small wooden parts required to make the structure look like the real thing.

Seemed to me that a 3D printed tower might be a 3D file in which model builders would be interested. I created the CAD file from an image I found in a Google image search. I saved it out as an .STL file and pulled it into my Cura slicer.

3D printing settings

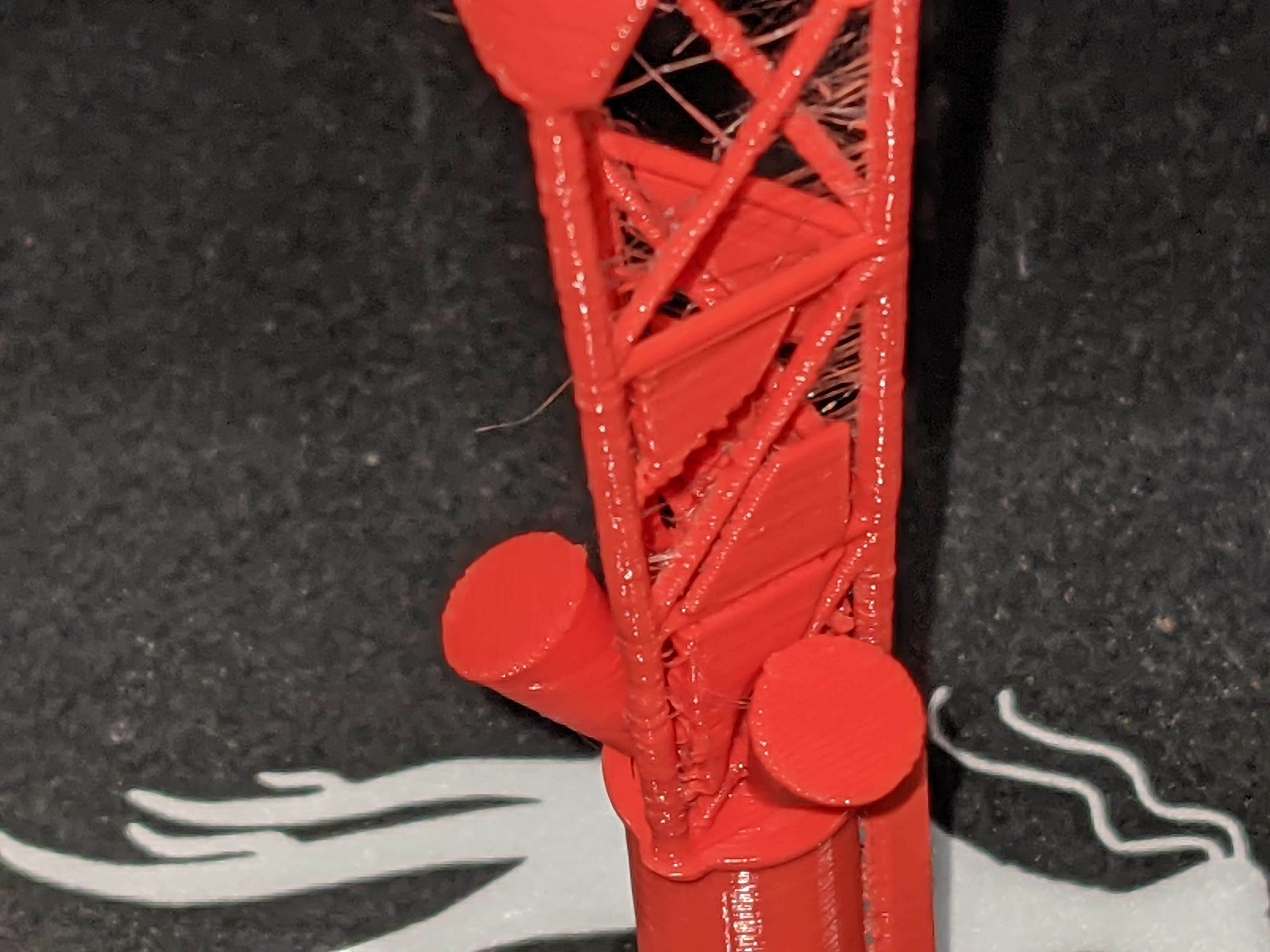

The first print was a disaster because the complete hollow tower volume became filled with support material that is literally impossible to remove. So I gave up on the first try and reprinted the model with the rocket side down and received a very usable result with a little support to help the horizontal structures in the frame of the tower.

I hope Mercury Redstone fans find this useful for increasing the realism of their model.

  • 3D file format: STL
  • 3D model size: X 22.2 × Y 99.9 × Z 23.3 mm
  • Publication date: 2021/03/02 at 22:03

Tags

Creator

Freelance Solidworks CAD designer with some childhood experience building and flying Estes rockets. Welcome suggestions about rocket theme suggestions for 3D printer files you'd like me to post here.
