Ghetto Station Antenna Tracker

Advertising
Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
Usages
3D design format
18 files Close

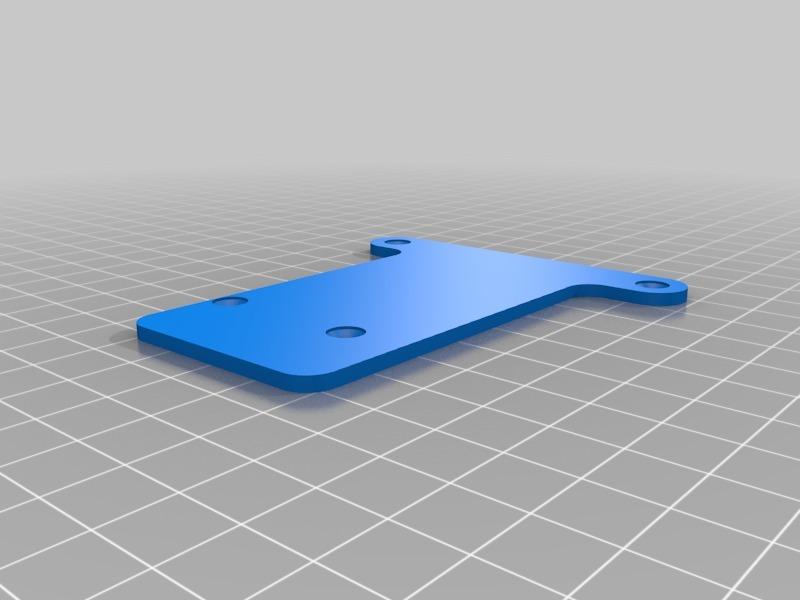

  • 1._Vrx_Shelf.STL 84.999996 ร— 76.297417 ร— 2.500004000000004 mm

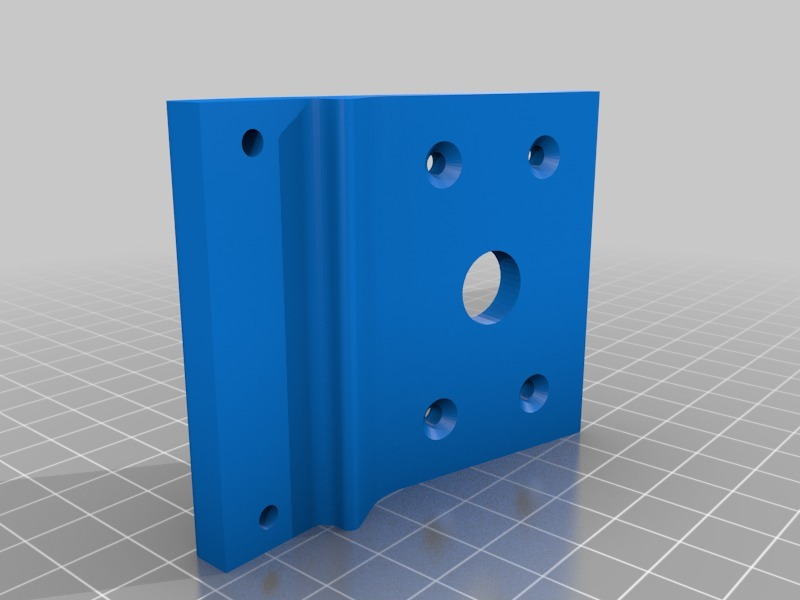

  • 10._Ghetto_Mount.STL 72.61637499999999 ร— 20.015953000000003 ร— 60.0 mm

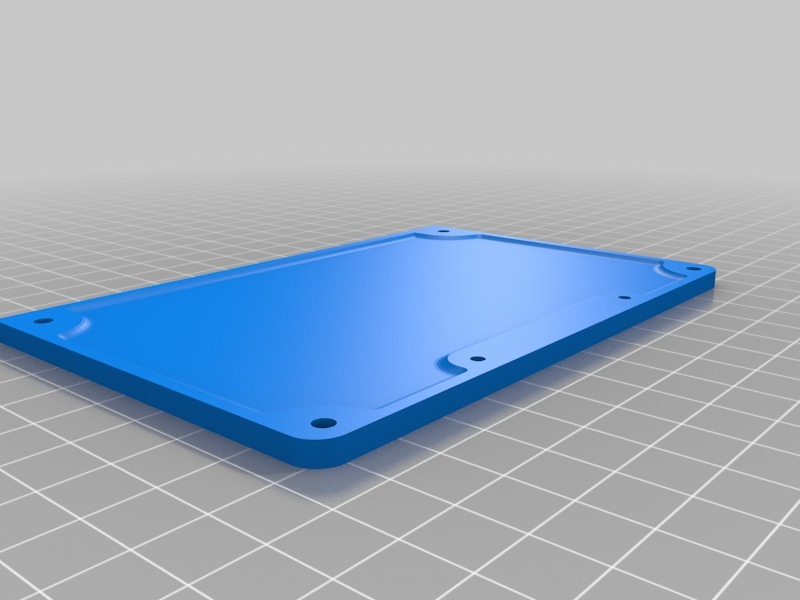

  • 11._Plain_Lid.STL 129.199997 ร— 84.570007 ร— 4.0 mm

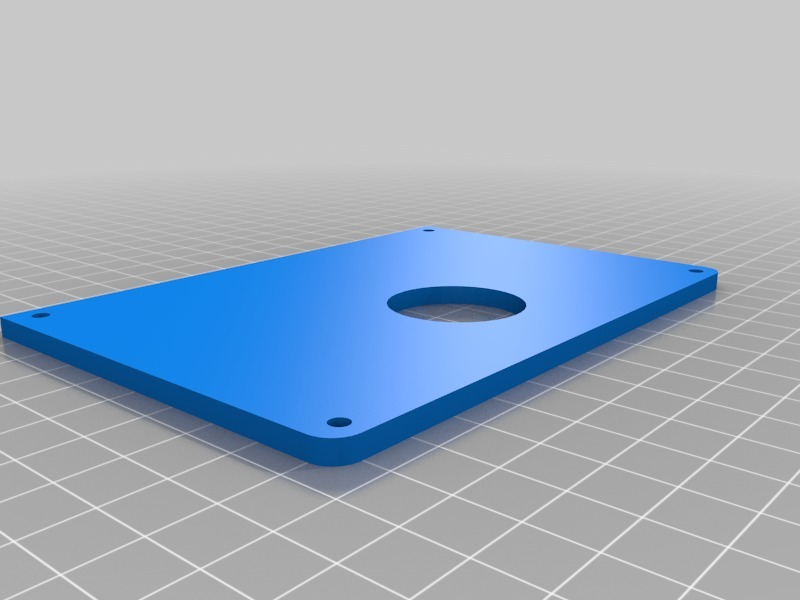

  • 12._Tracker_Lid.STL 129.199997 ร— 89.23000300000001 ร— 4.0 mm
  • 2._Left_Tilt_Arm.STL 45.962664000000004 ร— 67.746971 ร— 5.000007999999998 mm

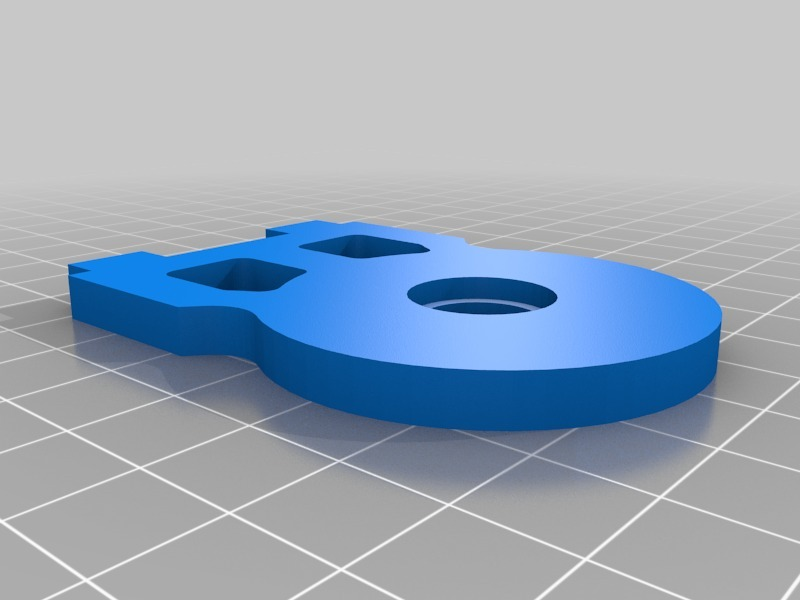

  • 3._Right_Tilt_Arm.STL 45.962664000000004 ร— 67.746968 ร— 5.0 mm

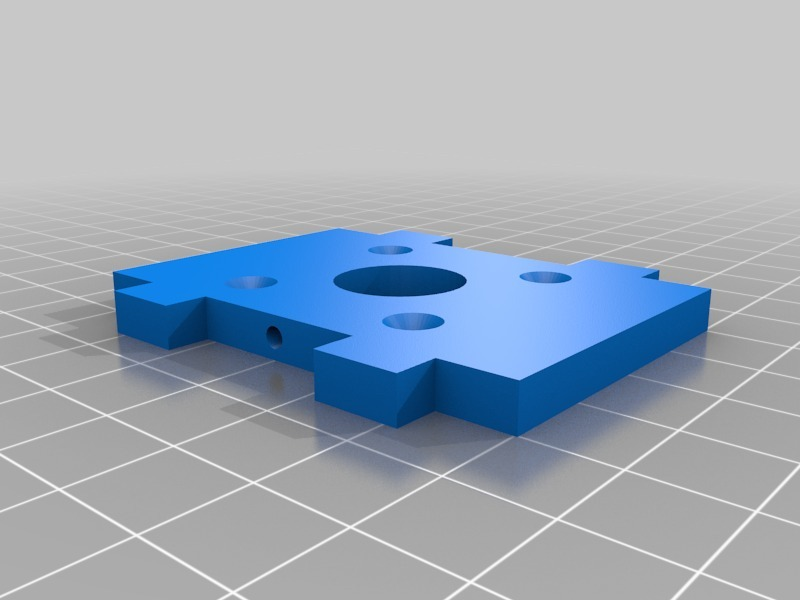

  • 4._Pan_Base.STL 50.399995000000004 ร— 60.0 ร— 5.0 mm

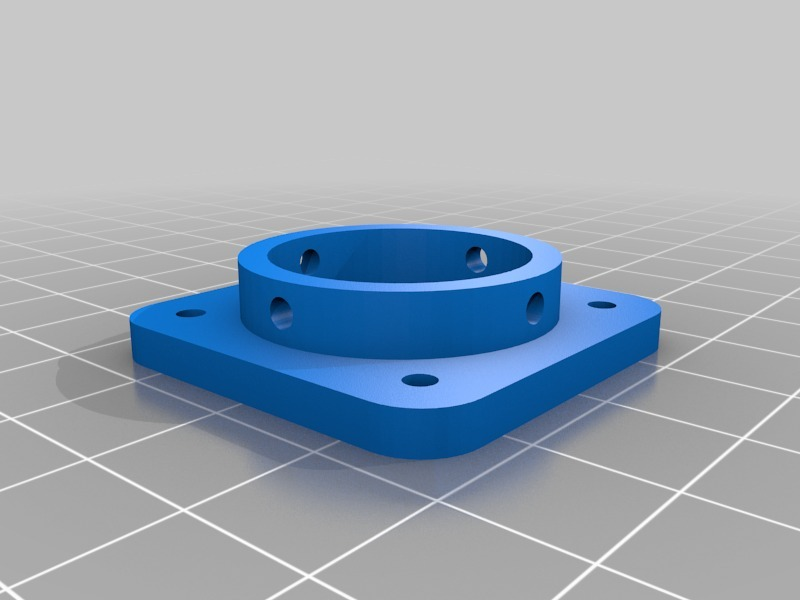

  • 5._Pan_Base_Mount.STL 35.0 ร— 35.000001 ร— 8.4 mm
  • 6._Pan_Servo_Mount.STL 35.987242 ร— 36.0 ร— 24.730001 mm
  • 7._LCD_Case_Lid.STL 101.199997 ร— 73.19999899999999 ร— 12.799999 mm
  • 8._LCD_Case_Mount.STL 72.61637499999999 ร— 20.015953000000003 ร— 60.0 mm

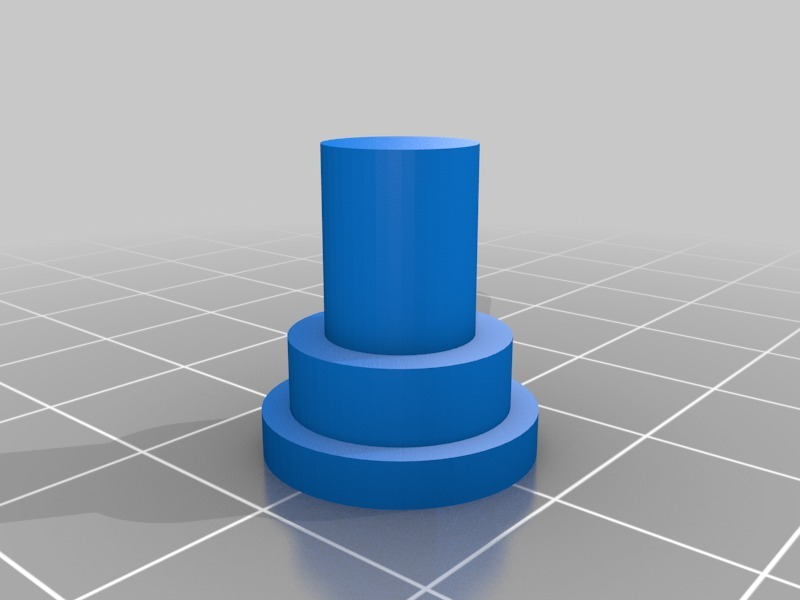

  • 9._Alloy_Pin.STL 14.993879999999999 ร— 14.987770000000001 ร— 16.500001 mm
  • Bottom_L_Side.STL 72.485283 ร— 71.497452 ร— 9.000004999999998 mm

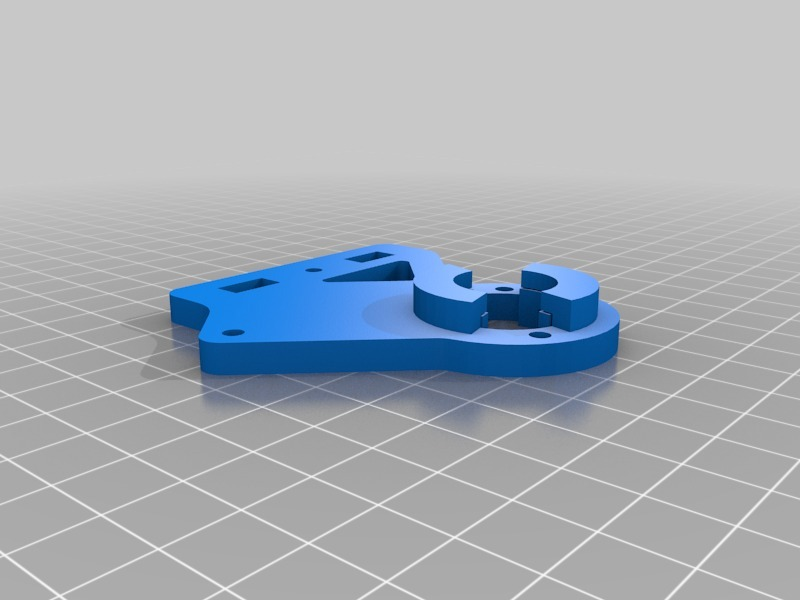

  • Bottom_R_Side.STL 72.485283 ร— 71.497459 ร— 10.000003999999997 mm

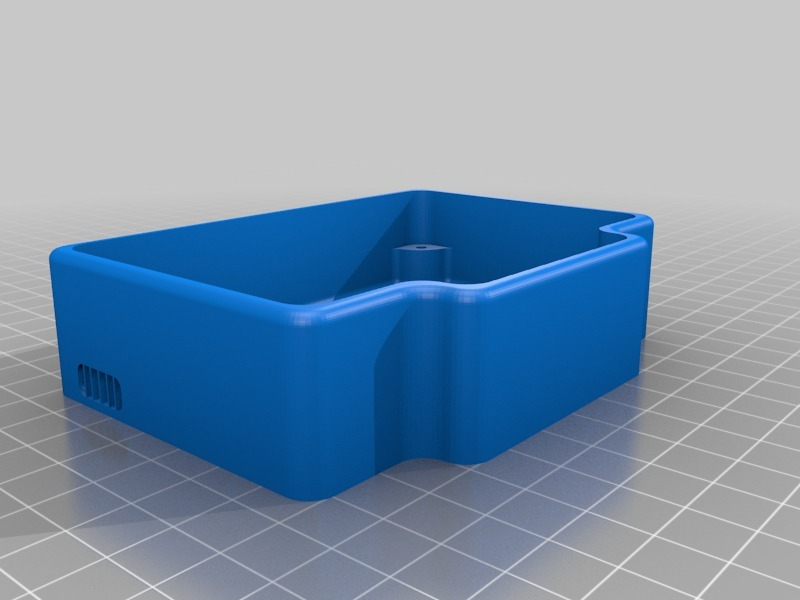

  • Case_Bottom.STL 107.999996 ร— 80.0 ร— 27.500002 mm

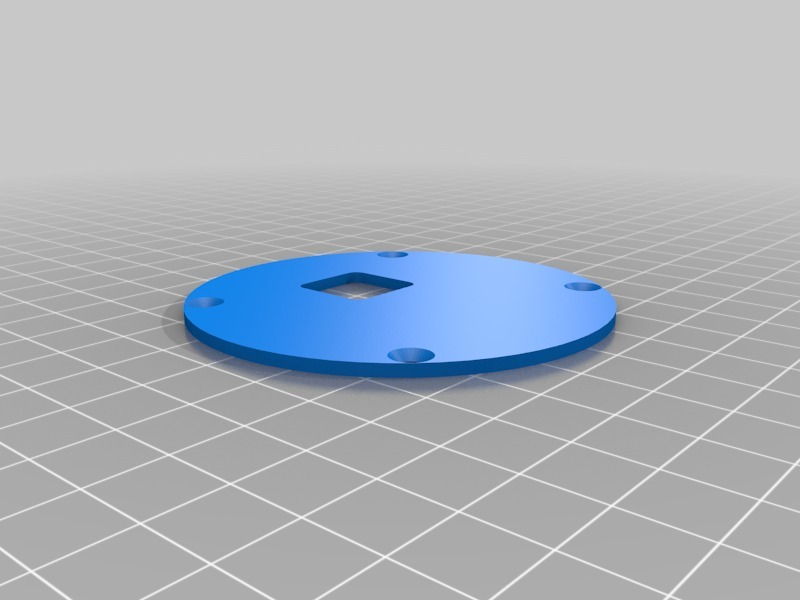

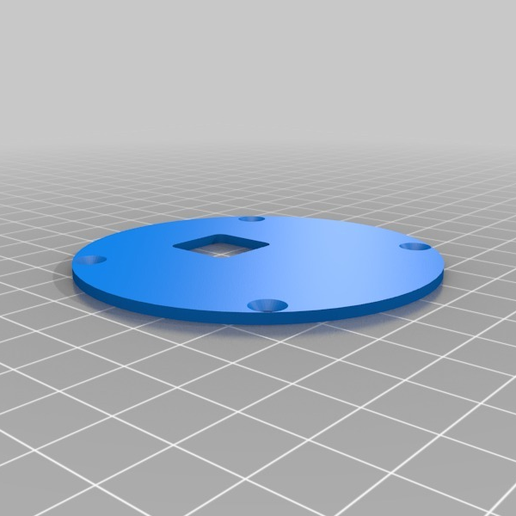

  • DIY_Antenna_Back_Plate.STL 69.910155 ร— 70.0 ร— 2.0 mm

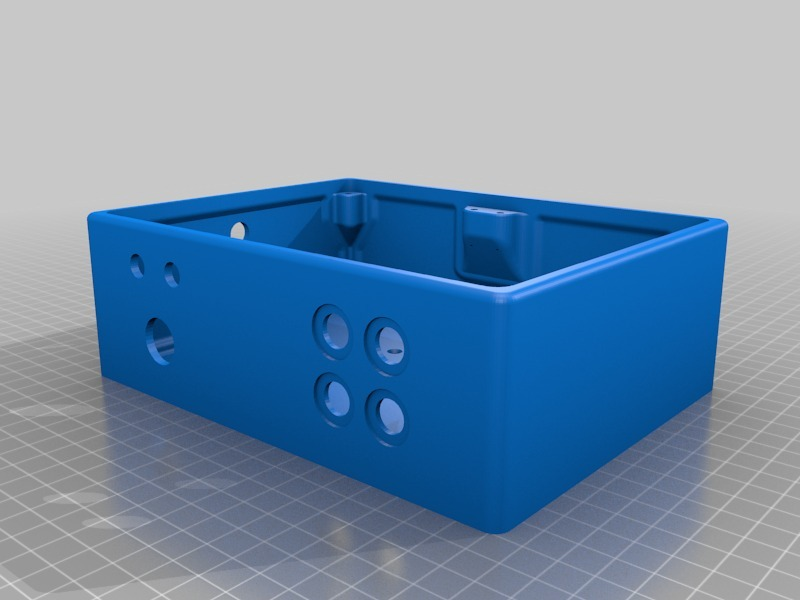

  • Enclosure__Ghetto_.STL 139.998001 ร— 184.998013 ร— 62.000007999999994 mm

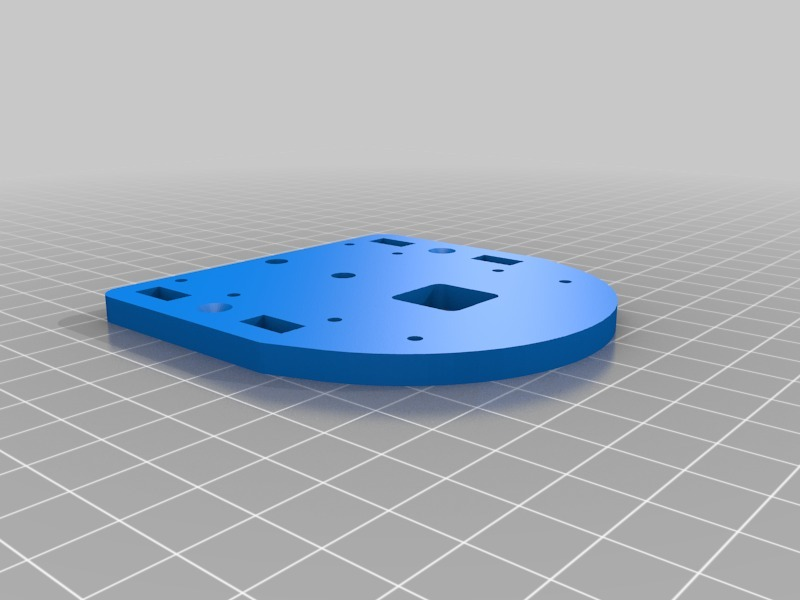

  • Mounting_Plate.STL 80.009975 ร— 80.70702299999999 ร— 5.0000029999999995 mm

Learn more about the formats
Publication date
?
Published to Thingiverse on:
Design number 1257402
Design author QuadFramesUK
QuadFramesUK

QuadFramesUK

Issue with this design? Report a problem.

3D printer file info

3D model description

Designed by QuadFramesUK
https://www.Quadframesuk.co.uk

Signup to our email newsletter for news on new and upcoming designs, Design video Guides, Build Guides, Product Reviews and enter our monthly prize giveaways
http://eepurl.com/deq-3H

Ghetto Station Antenna Tracker.

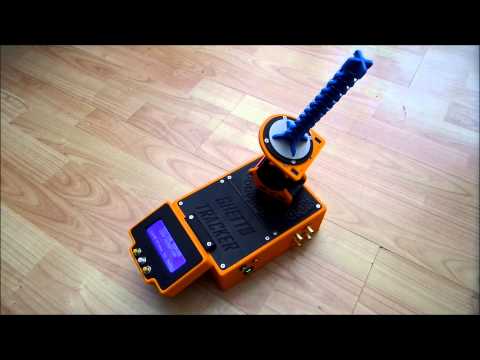

https://www.youtube.com/watch?v=6gQ-Y-jciH0&feature=youtu.be

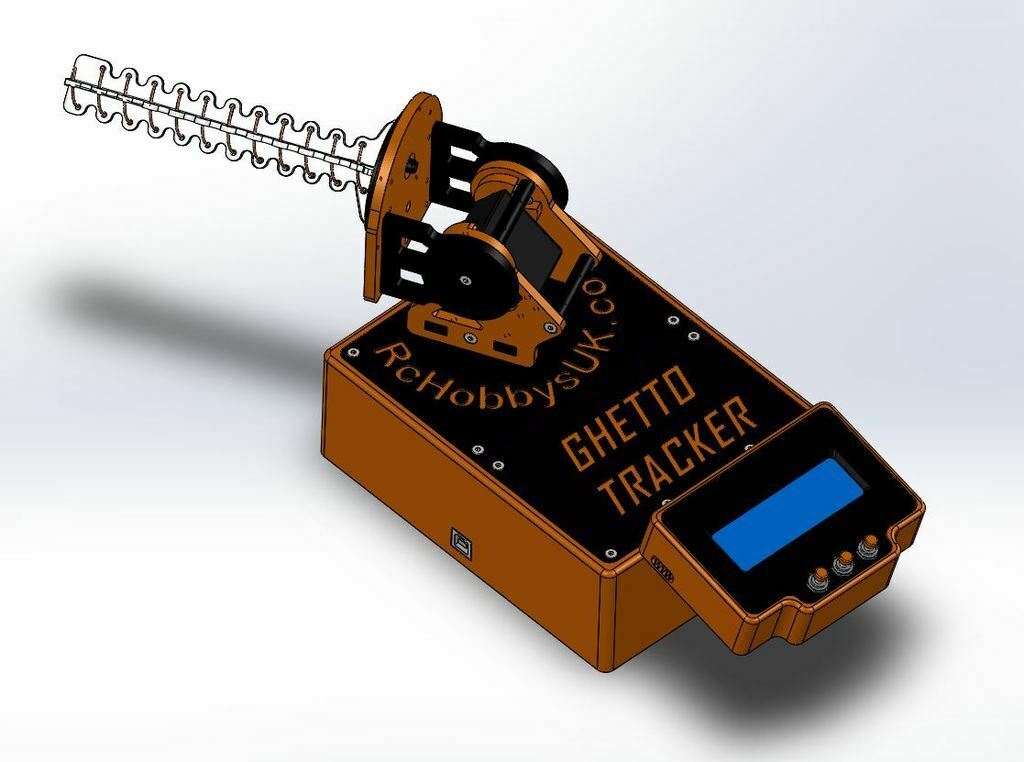

It has been designed around the Arduino Mega using a compatible LCD screen with 3 buttons. The LCD case with buttons can be detached and mounted underneath to allow the use of tall tripod mounts and still be able to get at the functions while its above your head.

180deg Pan

180deg Tilt

3s 2200 lipo with banana charge inputs.

tripod mount

Arduino can still be updated by the accessible usb port

2 x audio and video output

Low voltage buzzer

illuminated Power Button

Ghetto Ground Station
