SlimeVR 18650 tracker

c9d1e974-5ae5-46a1-942c-80751fb281aa.png SlimeVR 18650 tracker
7a7a2620-5e7a-407c-b893-d46781b0675a.png SlimeVR 18650 tracker
81822d1e-5fd7-41f7-8712-6587294727e6.png SlimeVR 18650 tracker
18650_Slime_Body_Bottom_V4.stl SlimeVR 18650 tracker
18650_Slime_Battery_top.stl SlimeVR 18650 tracker
SlimeVR_18650_holder_v19.obj SlimeVR 18650 tracker
c9d1e974-5ae5-46a1-942c-80751fb281aa.png SlimeVR 18650 tracker
7a7a2620-5e7a-407c-b893-d46781b0675a.png SlimeVR 18650 tracker
81822d1e-5fd7-41f7-8712-6587294727e6.png SlimeVR 18650 tracker
18650_Slime_Body_Bottom_V4.stl SlimeVR 18650 tracker
18650_Slime_Battery_top.stl SlimeVR 18650 tracker
SlimeVR_18650_holder_v19.obj SlimeVR 18650 tracker
Advertising
Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
Usages
3D design format
3 files Close
  • 18650_Slime_Battery_top.stl 74.599998 ร— 40.0 ร— 20.200003 mm
  • 18650_Slime_Body_Bottom_V4.stl 74.599998 ร— 62.0 ร— 13.0 mm
  • SlimeVR_18650_holder_v19.obj 74.599998 ร— 62.0 ร— 33.200002999999995 mm

Learn more about the formats
Publication date
?
Published to Thingiverse on:
Design number 1734963
Design author se7en9057
se7en9057

se7en9057

Issue with this design? Report a problem.

3D printer file info

3D model description

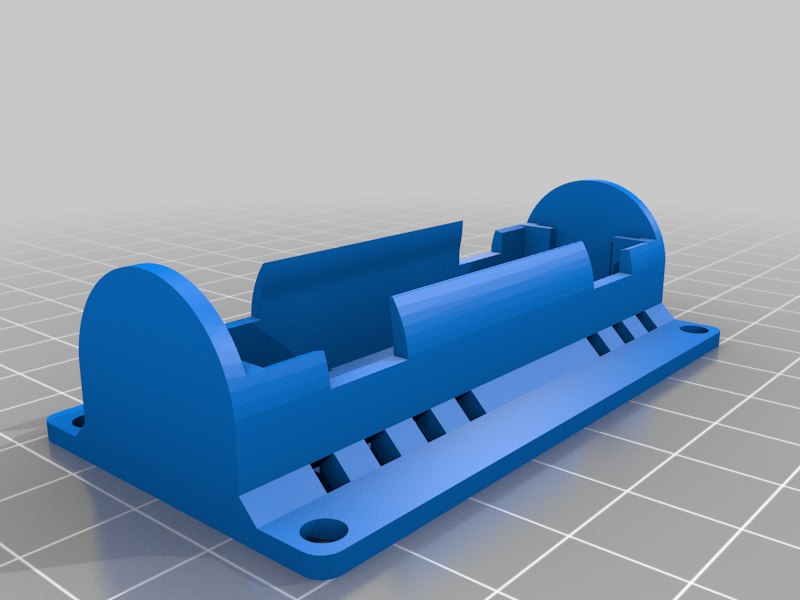

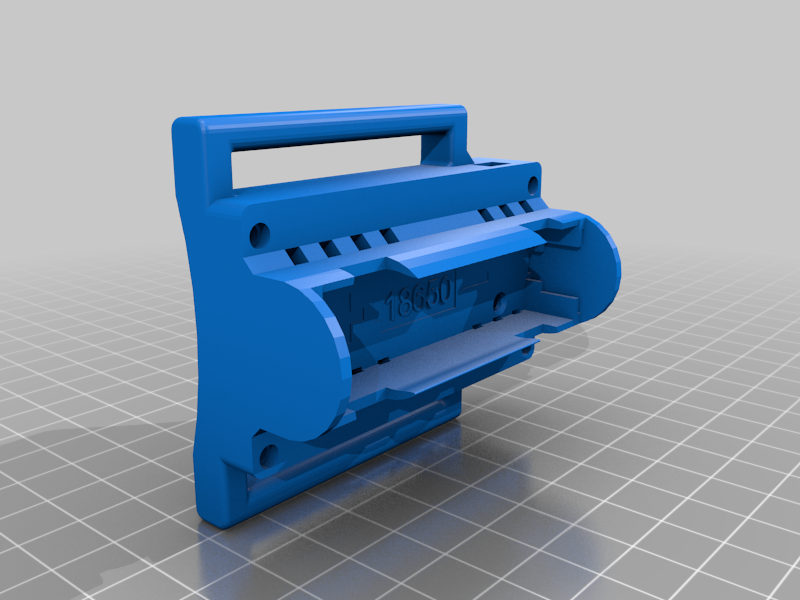

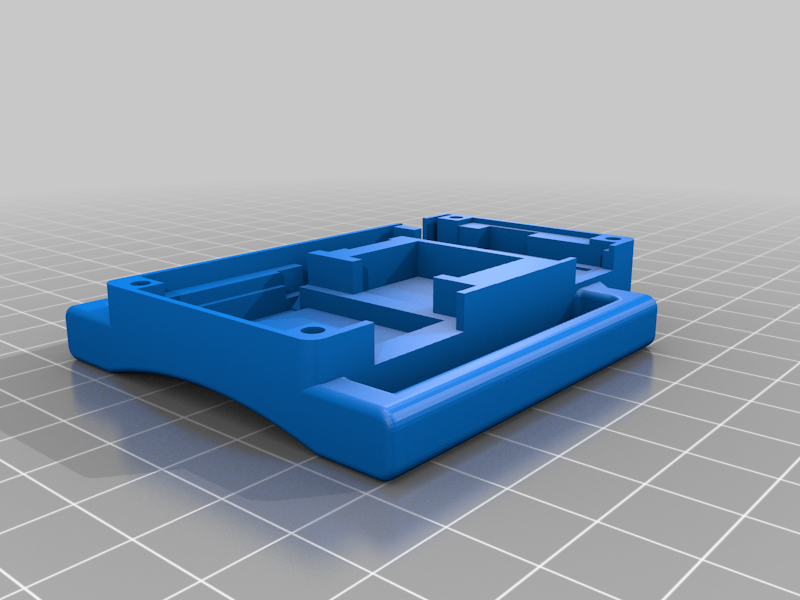

SlimeVR tracker. Wemos D1 Mini and BMI6050 IMU

Couldn't find any 18650 trackers i liked so i designed one.

MCU: Wemos D1 Mini
https://www.amazon.com/dp/B0BKSKV54X?psc=1&ref=ppx_yo2ov_dt_b_product_details
IMU: MPU6050
https://www.amazon.com/dp/B0943SGP34?psc=1&ref=ppx_yo2ov_dt_b_product_details
Charger:TP4056
https://www.amazon.com/dp/B08DNK398S?ref=ppx_yo2ov_dt_b_product_details&th=1
Switch:SS12F16-G3
https://www.amazon.com/dp/B099MH7QV5?psc=1&ref=ppx_yo2ov_dt_b_product_details
Battery Contacts: Spring and post
https://www.amazon.com/dp/B07HRTMY5T?psc=1&ref=ppx_yo2ov_dt_b_product_details
you will need 180k ohm resistors and Diodes. see other builds for this information.
Straps: 2" x 18" (any 2" strap should work)
https://www.amazon.com/dp/B091PKBFNN?psc=1&ref=ppx_yo2ov_dt_b_product_details

Rev1 will accept older and newer D1 mini's however the D1 mini pro with i2c connector is in the wrong orientation for use. plan is to change the orientation of the MCU so the i2c connector is available

Tight tolerances. some PCB's will need to be sanded or model edited to make fit. this is intentional to avoid having to use glue or screws for the PCB's. some may be needed or wanted regardless.
