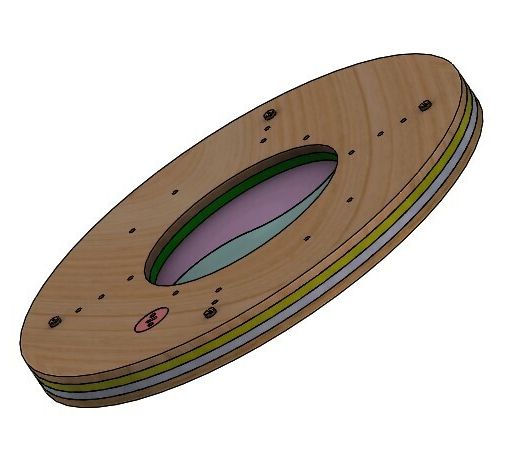

mechanical or taiji mechanism designed for laser cutting. There are 2 leaves. When you rotate the "Drive Part"or the middle plate,
the center hole can open or close gradually. The center hole is diameter 70mm, the outer size is diameter 160mm and
thickness is 12 mm. The parts' thickness are 3 mm. Because your material's thickness may be less or thicker than 3mm, perhaps you need to
make some change accordingly when assemblying.
To assemble the parts togther,some metal parts and glue are needed: 1. Diameter 2mm length 5mm-pin; Diameter 2mm,length 12 mm pin;
M2X12 screw; M2 hexagon nut.

STEP and DXF format files are included.
