IS-7 Heavy Tank Object 260
- 1.2k views
- 5 likes
- 0 downloads
3D model description

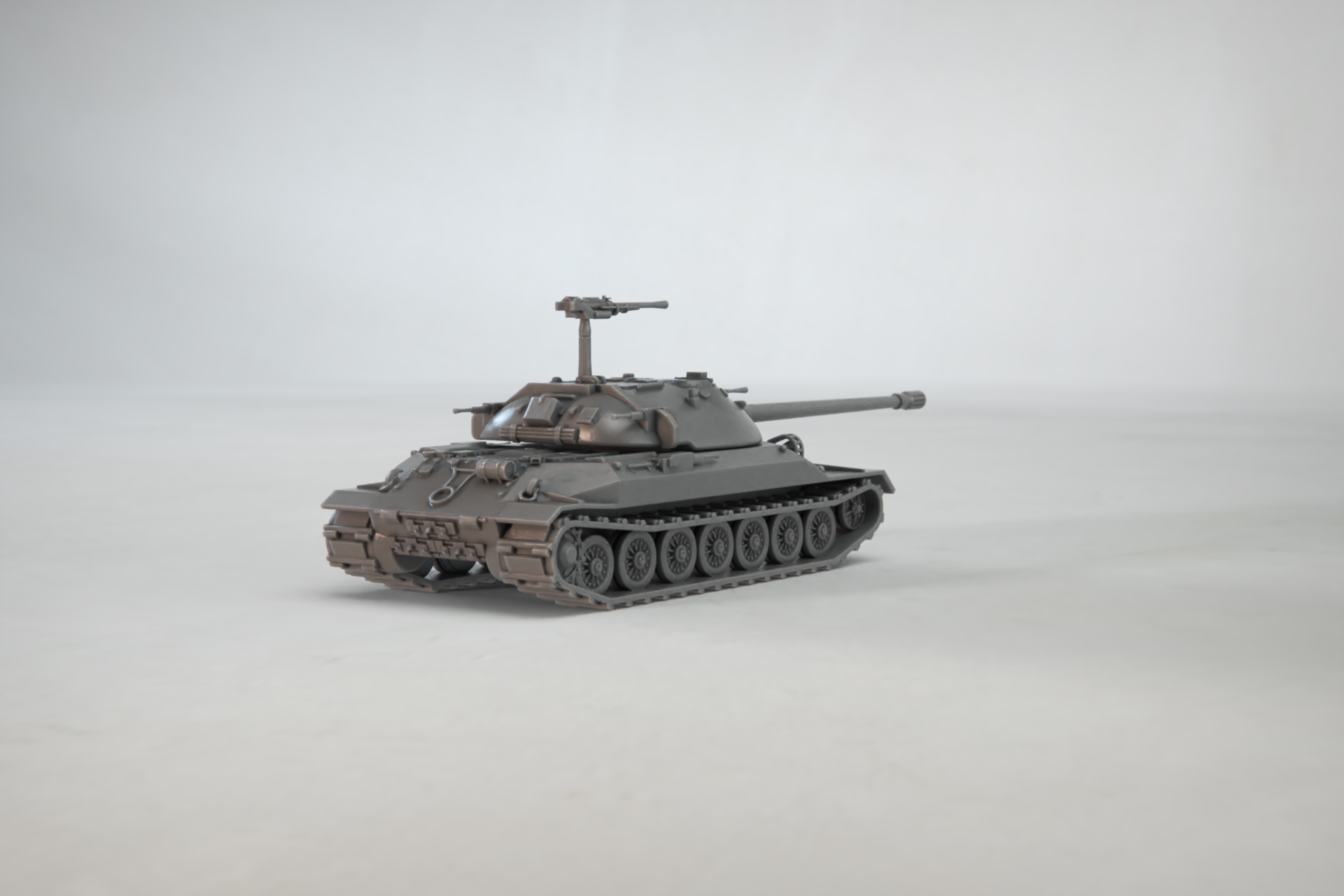

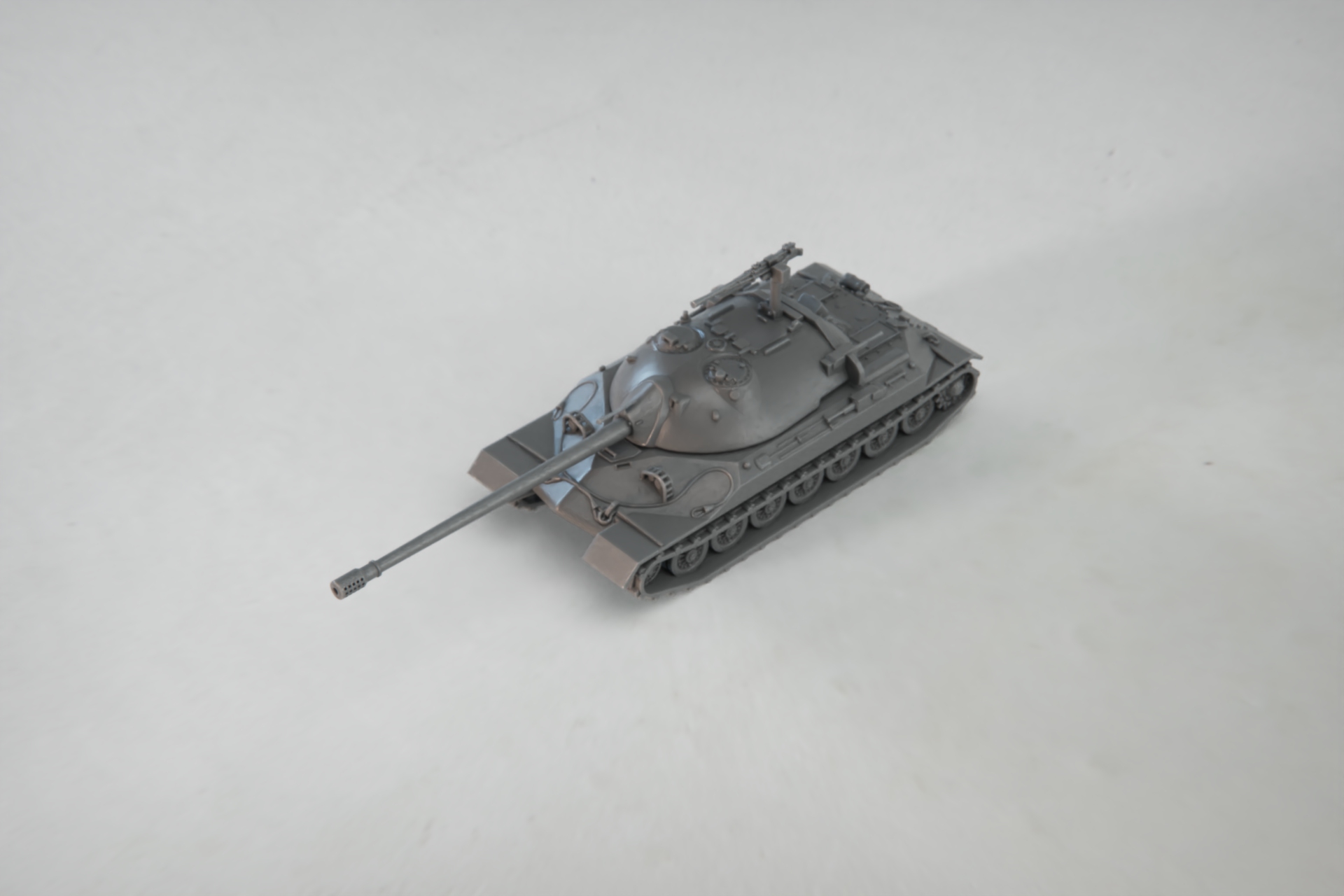

This is a 1/64 (scalable to other scales) scale model of the IS-7 heavy tank design began in Leningrad in 1945 by Nikolai Fedorovich Shashmurin Weighing 68 tonnes, thickly armoured and armed with a 130 mm S-70 long-barrelled gun, it was the largest and heaviest member of the IS family and one of the most advanced heavy tank designs.
The armour was engineered in a similar fashion to the IS-3, with a pike nose on the upper glacis sporting 150mm of armor sloped at 65°. This armor was designed to defeat rounds from the Jagdtiger's 12.8 cm Pak 44 from as close as 1 km (0.62 mi). The lower glacis was designed to be 100mm but a measure taken by Nicholas Moran found it to be as thick as 110-120mm depending on welding variations. The armor on the sides was also 150mm on the upper side plate and 100mm on the lower side plate. Behind the lower side plate, inflatable bags could hold fuel. The turret mantlet was 350mm thick and the turret itself between 240-250mm angled at 50-60 degrees. When shot at frontally, the extreme angle that the pike nose presents results in a much higher likelihood of a ricochet. Thus, armour protection could be enhanced without having to use excessive amounts of materials. However, if the pike nose was shot at a sideways angle, it would not have a relative thickness high enough to ricochet the shell. The tank's interior has a "V" shape seen from the front of the tank so that the side armor was spaced. In spite of its weight, it was easy to drive due to numerous hydraulic assists. The loaders noted that the IS-7 was comfortable and that the autoloader was easy to use. It was also able to achieve a top speed of 60 km/h, thanks to a 1050-horsepower diesel engine, giving it a power-to-weight ratio of 15.4 hp/tonne, a ratio superior to most contemporary medium tanks. Its armour was not only immune to the Jagdtiger's 12.8 cm PaK 44 but was even proof to its own 130 mm. Due to unknown reasons, most likely because of the considerable issues arising from its mass (bridges, rail transport - no Soviet/Russian tank accepted into service afterwards exceeded 55 t), the tank never reached the production lines.
Note: This design is protected under International Law through a "BY-NC-ND: Attribution - non-commercial -no derivatives" Creative Commons License. That means that purchasers cannot distribute or sell, neither the digital design nor the printed items made from the design. Buying this design gives you a non-exclusive agreement to print it in your own printer and for your own use, as given by the license.
The CC License is the default copyright for this design, UNLESS you have a separate business or commercial agreement with me, the copyright author of the design. Contact me at: email@example.com
3D printer file information
3D design format: ZIP Folder details Close
- IS7 1 64.zip
- Publication date: 2021/10/14 at 02:06

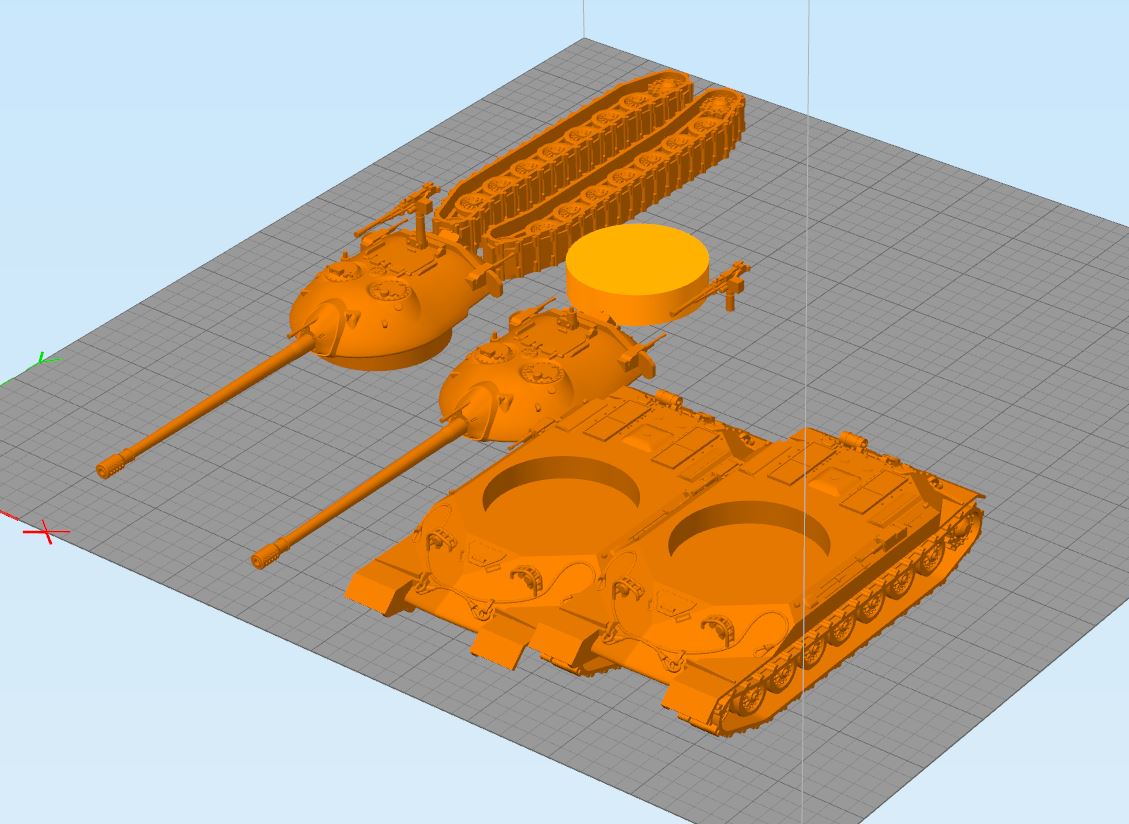

All my models are divided for easy printing on FDM machines. Models can be printed on SLA or DLP machines too, non divided versions are included.
Note: To get physical models of any of my digital model, contact me at firstname.lastname@example.org for pricing, indicate scale
Hi, thank you very much for your interest in my models. I have done Architectural Visualizations for almost 10 years now, recently I have been messing around with 3d Printing and photo modeling. My main goal is to design quality scale models that are easy to print.
My models have been modeled carefully, always thinking about fidelity to reality and making the most of the capabilities of FDM 3D printing.
If you want to obtain a model that is not in my store, you can also contact me to quote its development, I am sure I can help you. Contact me at email@example.com
To see my recent works or follow my work you can follow me on my Instagram @ guaro3d and visit my web www.guaro3d.com (under construction).
