CORSAIR 280X FRONT PANEL REPLACEMENT V1

?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

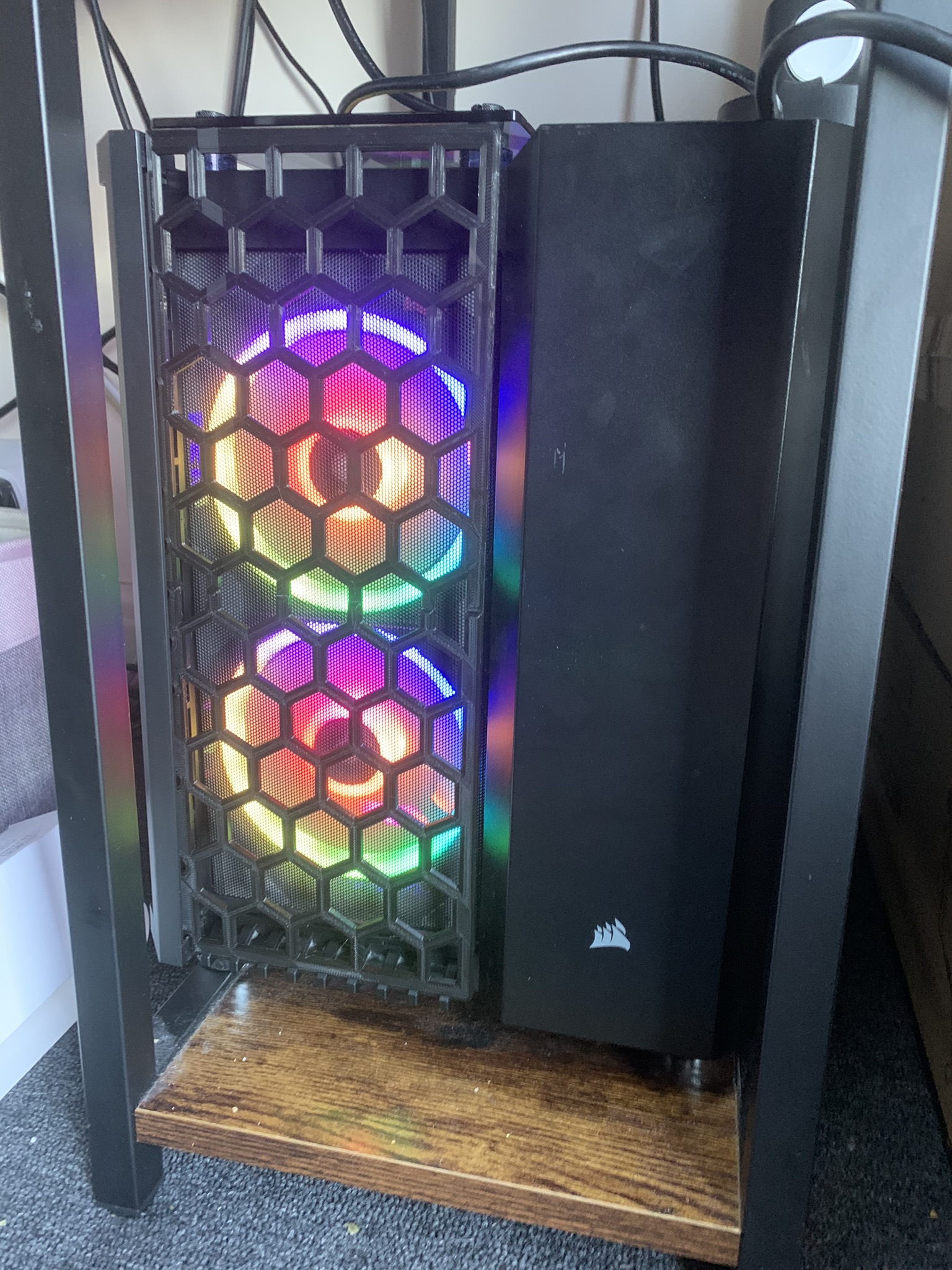

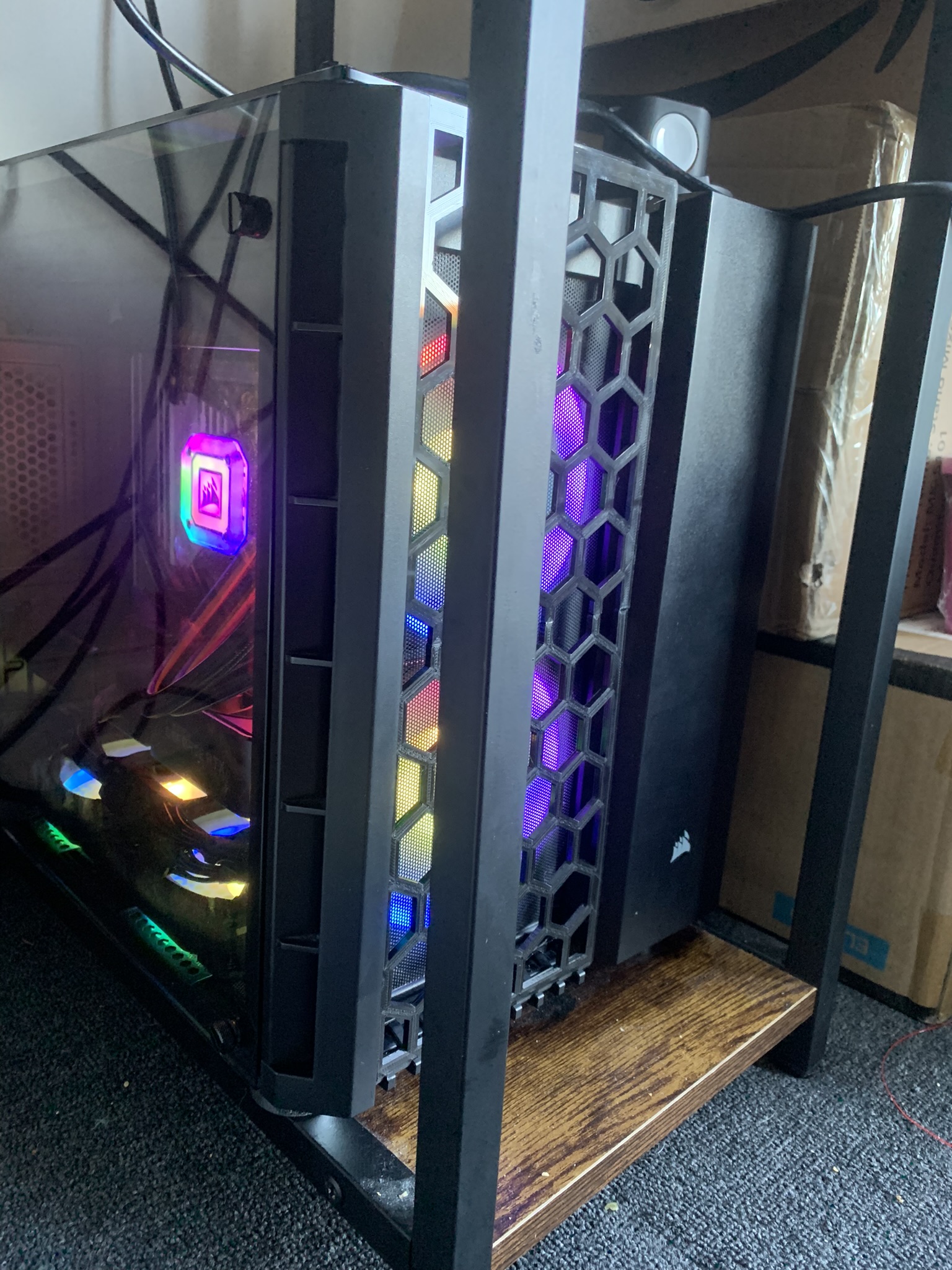

This is my version 1 design of the Corsair 280x Front Replacement Panel. This uses large hexagons to allow for better airflow and show off those sexy RGB front fans!

This is a Corsair 280x Front Panel replacement. Most users for this case have probably noticed that there is poor air flow due to the tempered glass front pane - this front panel replacement alleviates that by having additional ventilation hole and a geometric design to aid with air flow.

Most printers probably won't be able to print the entire front panel in one piece, so I have attached two separate files for the front panel which can be printed separately. This does require the full disassembly of the front panel to remove the existing glass panel.

The front panel replacement is purely a friction fit into the panel mount rather than mechanically mounted, but is additionally supported by the bottom support, so should be sufficient as long as you aren't moving the case around a lot. The two panels can be glued along the seam to provide additional structural support.

If you are looking for a custom design - I might be available on commission to create it for you - message me for more!


3D printing settings

For a standard printer, you have to split this print into two separate parts - each taking about 3/4 hours at 0.3mm layer height and 20% infill.

3D printer file information

  • 3D design format: STL Folder details Close
    • Corsair 280x Front Panel - Bottom.STL
    • Corsair 280x Front Panel - Top.STL
    • Corsair 280x Front Panel.STL

    Learn more about the formats

  • Publication date: 2022-01-19 at 16:15
