Circuit Playground Screw Terminal

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 788 views
  • 1 like
  • 17 downloads

3D model description

Designed with Fusion 360. Learn to design with Fusion 360 with video tutorials at https://www.desktopmakes.com/

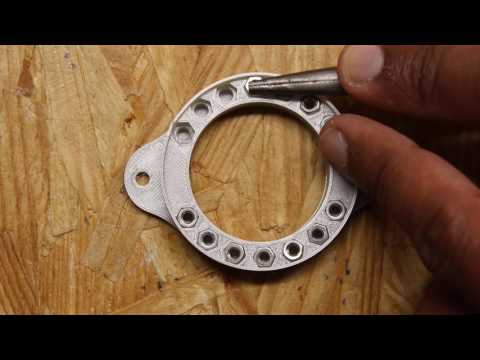

This is a screw terminal block for the Adafruit Circuit Playground board. It allows you to use the board with regular jumper wires instead of alligator clips. It is designed for M3 nuts and screws. The nuts I used measured 5.4mm in diameter. Take a look at the video below for design and assembly.

https://youtu.be/vQVX-AsVE5U
https://youtu.be/YTMIqhu1OOU

3D printing settings

Printer Brand:
Prusa

Printer:
Prusa Mk2

Rafts:
No

Supports:
No

Resolution:
0.2mm

Infill:
20%

  • 3D file format: STL
