Elévateur D3P pour Bambu Lab P2S

D3P RISER FOR BAMBU LAB P2S by Darren 3d Print

NEW: Have a look at Dirt-E-Bikes excellent video about the D3P riser and other risers. https://www.youtube.com/watch?v=MLQvEFuRu9Y

Also, get a free model consisting in a custom insert for the P2S D3P riser drawers custom made for the P2S riser. To get a free code you need to get the coupon code by watching Dirt-E-Bikes video (see above link). Link for custom insert (Hint: use the code - no need to pay for the model) : https://cults3d.com/en/3d-model/tool/p2s-drawer-insert

NEW ADDON: Side mounted build plate holder: https://makerworld.com/en/models/1921176-x1c-p1s-p2s-d3p-side-build-plate-holder#profileId-2061434

Note: The model is also available on Creality Cloud should you not be able to purchase it on Cults: https://www.crealitycloud.com/model-detail/d3p-riser-bambu-lab-p2s?source=22

This riser will work with the new Bambu Lab P2S which is deeper than the X1C and P1S. It will be too long (deep) for the X1C and P1S.

The D3P riser for the P2S is also 25 mm (1 inch) taller for better access.

The D3P riser system is an innovative and modular riser system for your 3d printer. It features numerous free to download add-ons allowing you to customize your printer and riser like you want. The design of the D3P riser system is patent pending.

FEATURES

Features of the D3P riser system:
• Front and side adjustable vents;

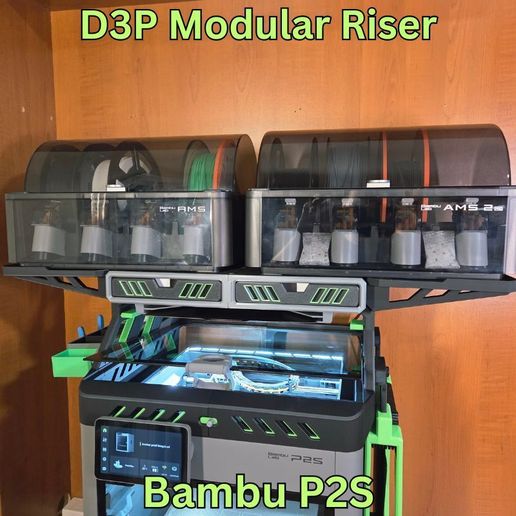

• Add-on extensions for dual AMS 1 or AMS 2 units;
• Innovative COB LED channels that feature brackets to secure the LEDS in place;
• Top unit is set back to allow easy access to the printer from the top;
• Sturdy and reinforced construction and design to prevent sagging;
• Foldable add-on lid handle to prop the lid open;

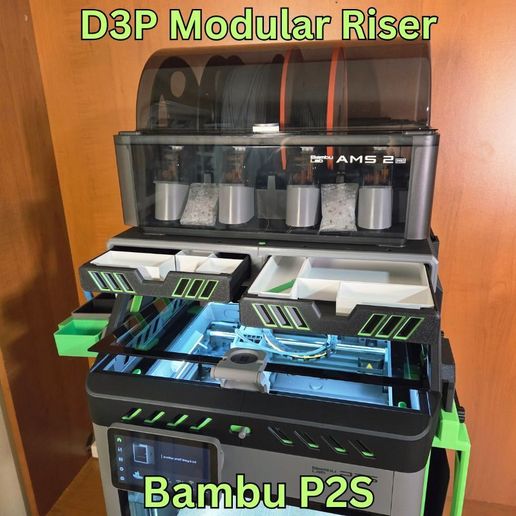

• Two large storage drawers with gridfinity style drawer inserts;
• Integrated build plate holder for two build plates;
• Integrated lid holders;
• Opening on inner front for sd card access;
• Multiple add-ons such as a modular tool tray, interchangeable external spool holder and more to come;
• Detailed pdf instructions with pictures and steps;
• Printing requires little or no support.

NEW: Have a look at MkesQuestLog assembly video for the riser:
https://www.youtube.com/shorts/gCheKPiknRc

INTELLECTUAL PROPERTY

This work is licensed under the standard digital file license. You are prohibited from sharing, sub-licensing, selling, renting, hosting, transferring, reproducing or distributing the digital file or 3d printed versions of this object, as well as any other derivative work in either digital or physical form (including remixes or copying/reproducting the design by any means).you are not allowed to use the objects in any manner that involves charging money or collecting fees without permission.
A patent has been filed for the D3P riser design and it is patent pending. I thank you for your understanding.

ADD-ONS

The model features a number of add-ons that are free to download on MakerWorld. All the addons for the X1C and P1S work for the D3P P2S riser.

Gasket for the lid cutout: https://makerworld.com/en/models/2105397-3dp-riser-gasket-kit-for-p2s#profileId-2277156

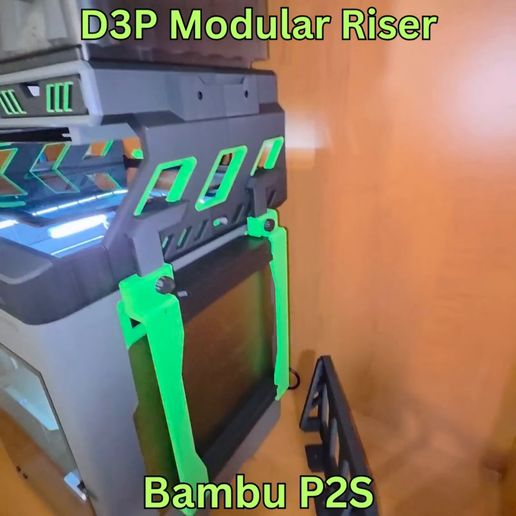

Side mounted build plate holder: https://makerworld.com/en/models/1921176-x1c-p1s-p2s-d3p-side-build-plate-holder#profileId-2061434

AMS-HT Side shelf: https://makerworld.com/en/models/1786413-ams-ht-side-shelf-for-x1c-p1s-d3p-riser#profileId-1903530

TPU top mount spool holder:
https://makerworld.com/en/models/1688255-tpu-top-mount-spool-holder-p1-and-x1c-d3p-riser#profileId-1789303

Drawer inserts:
https://makerworld.com/en/models/1260535-drawer-inserts-for-dual-ams-sidekick-stand#profileId-1284915

Interchangeable spool holder:
https://makerworld.com/en/models/1636867-interchangeable-spool-holder-for-d3p-riser#profileId-1729260

Lid handle:
https://makerworld.com/en/models/1636856-lid-handle-for-x-c-and-p1s-d3p-riser#profileId-1729242

Modular tool tray:
https://makerworld.com/en/models/1636862-modular-tool-tray-for-x1c-and-p1s-d3p-riser#profileId-1729251

AMS 1 and AMS 2 shelf extensions:
https://makerworld.com/en/models/1636838-ams-shelf-extension-for-x-c-p1s-d3p-riser#profileId-1729228

AMS HT - Single dryer extension shelf:
https://makerworld.com/en/models/1752986-ams-ht-extension-shelf-for-the-d3p-riser#profileId-1863869

I will be adding to these so be sure to check back from time to time.

TECHNICAL SPECIFICATIONS

For the base riser:
Filament: 2.7 kg
Approximate print time: 3 days 6h
Height with closed Ace-Pro unit: 90 cm (35.5 inches)
Height with open Ace-Pro unit: 105 cm (41.5 inches)

PRINT SETTINGS

IMPORTANT I upload a print setting files for all my models. The print settings has the parts positioned for correct printing.

EACH BUILD PLATE HAS THE TYPE OF SUPPORT REQUIRED INDICATED ON THE BUILD PLATE DESCRIPTION (TREE AUTO, TREE MANUAL OR NO SUPPORT).

I strongly recommended you use my print setting file. If not, I will not be able to assist you if there is an issue when printing. From experience, many of the issues with printing my models are on account of users not using my print settings.

CHANGELOG
If there are any changes to the STL files or print settings I will list them here. I recommend looking at this section prior to printing as it is the only way I can inform users of changes.

3D PRINT SETTINGS
I use the following settings and materials to print this model:
Infill % : 15% (no need for more)
Nozzle diameter: 0.4 mm
Layer height: 0.2 mm standard
Material: I am often asked the question about the riser deforming when using PLA when printing ABS or ASA. I prefer PLA since it cheaper to purchase and easier to print. I print all my risers in PLA but I seldom print in ASA or ABS. I have some users that printed in PETG and some in ABS. Both will also work providing your printer can maintain tolerances. PETG may be preferable if you intend on printing higher temp materials on a regular basis. .

ASSEMBLY AND INSTRUCTIONS
A detailed instruction and assembly guide with steps and pictures is available for download with the model files.

TROUBLESHOOTING
All parts and the assembly have been tested multiple times (both printing and assembly).
• Make sure your build properly cleaned and free of grease and oils before printing. This is the cause of adhesion.
• Make sure you use my print profiles/settings (the .3mf file that has multiple plates with all the parts) and that you enable support as indicated for each build plate on the build plate description.
• Filament and printer will affect tolerances however all should fit. If unsure proceed slowly and cautiously.
• If there are any changes I list them in a changelog on the model page. Please have a look at it prior to printing in the event there are any changes.
I am available to assist with any issues with this model.

The best way to reach me is through Facebook messenger – my user name is “Darren 3d print”.

I thank you for your support and hope you like this model.
